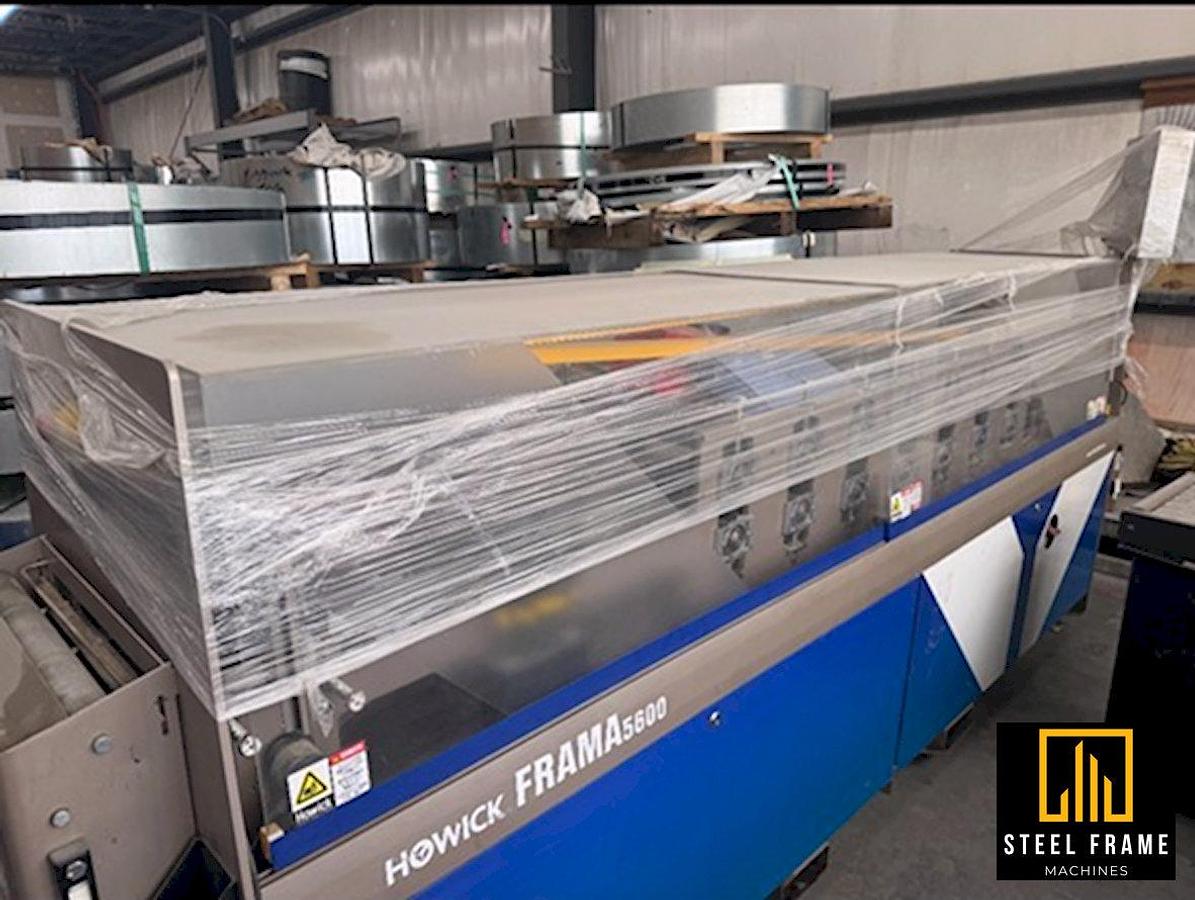

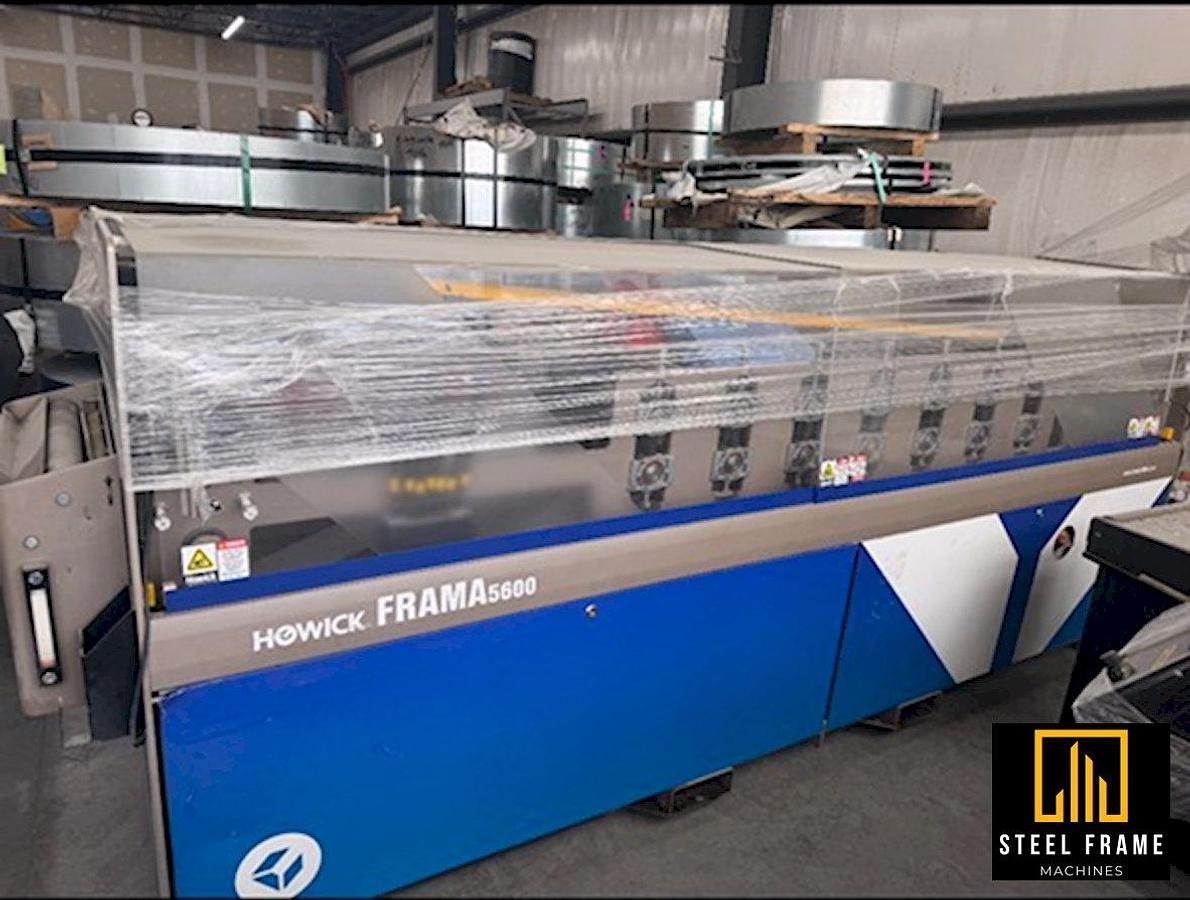

2022 Howick FRAMA 5600 Steel Framing Machine

This 2022 Howick FRAMA 5600 is a dedicated frame and truss production machine built for load-bearing frame manufacturing, featuring Howick's proprietary end-bearing stud detail. The machine handles material from 0.95mm to 1.55mm (20–16 gauge) and can roll coil up to 1.6mm, giving it greater loading capacity than lighter-duty models in the FRAMA lineup.

With 9 forming stages and a compact footprint (11.2' x 2.5' x 4.6'), the FRAMA 5600 is suited to frame manufacturers looking to scale production without a large facility investment. The machine ships with 9 standard tools — including truss end, service hole, web hole, bolt hole, lip notch, web notch, lip roller, dimple, swage, and end-bearing cut-off — and has space for 2 additional custom tools, with the option to add pre-punch and post-punch stations for custom requirements.

Components are fully processed and self-clip together (dimpled, notched, fastener-ready), eliminating the need for jigs, clamping, or drilling on the assembly side. The unit is computer-controlled via a Windows 10 touch-screen panel PC running FRAMA Machine Control, accepting CSV input files, and includes dual-head inkjet component marking.

Note: All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. Indiquip assumes no liability for discrepancies or omissions.
