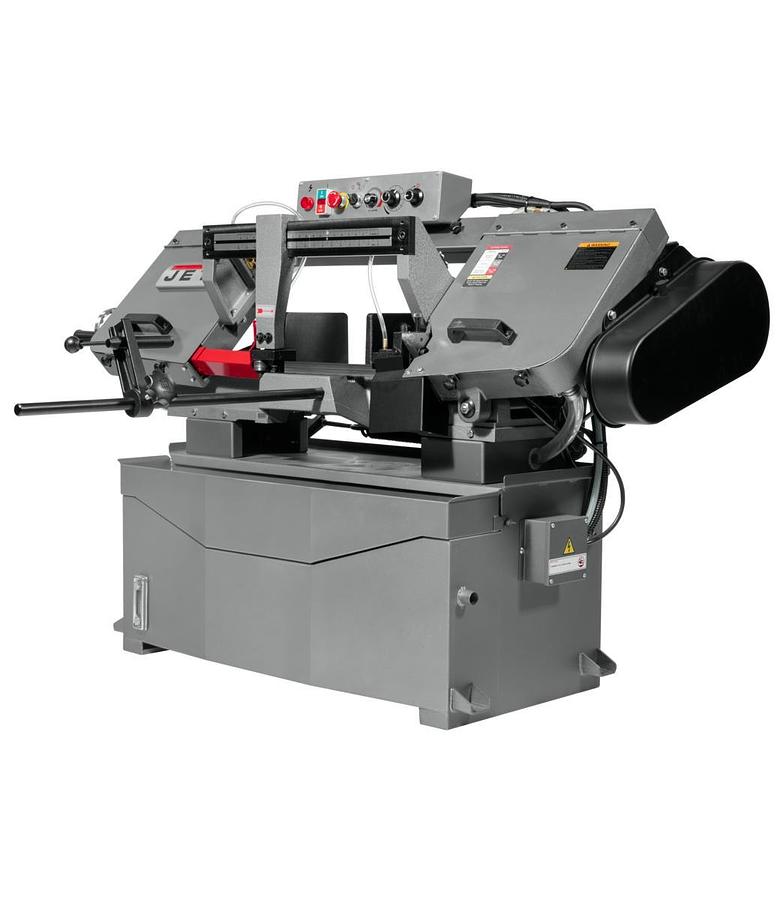

HBS-916EVS, 9" x 16" EVS (Electronic Variable Speed) Horizontal Bandsaw

or
Call (954)444-4004

Description

EVS Horizontal Bandsaw - 9" x 16"
Show All

Specifications

ManufacturerJet Tools
ModelHBS-916EVS
ConditionNew
Stock NumberJT9-424469
Amperage5
Amperage Draw @ 115V 1Ph5
Bed Height (In.)23.5
Blade Length (In.)119-1/2
Blade Speed (SFPM)EVS 82 - 330
Blade Speeds (SFPM)(EVS ) 82-330
Blade Wheel Diameter (In.)13
Cutting Capacity (W x D) (In.)9 x 16
DriveEVS
Motor (HP)1-1/2
Overall Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
Prewired Voltage (V.)115
Prop 65None
Rectangle at 45 Degrees (In.)9 x 6-1/8
Rectangle at 90 Degrees (In.)8-1/2 x 14 and 2 x 16
Round at 45 Degrees (In.)6-1/8
Round at 90 Degrees (In.)9
Shipping Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
Shipping Weight (Lbs.)818
Vise Swivels (Deg.)45°
Warranty2 Year
Gross Weight704.0
Net weight625.0
Overall Assembled (Bow Raised) (L x W x H)65 x 25 x 67
