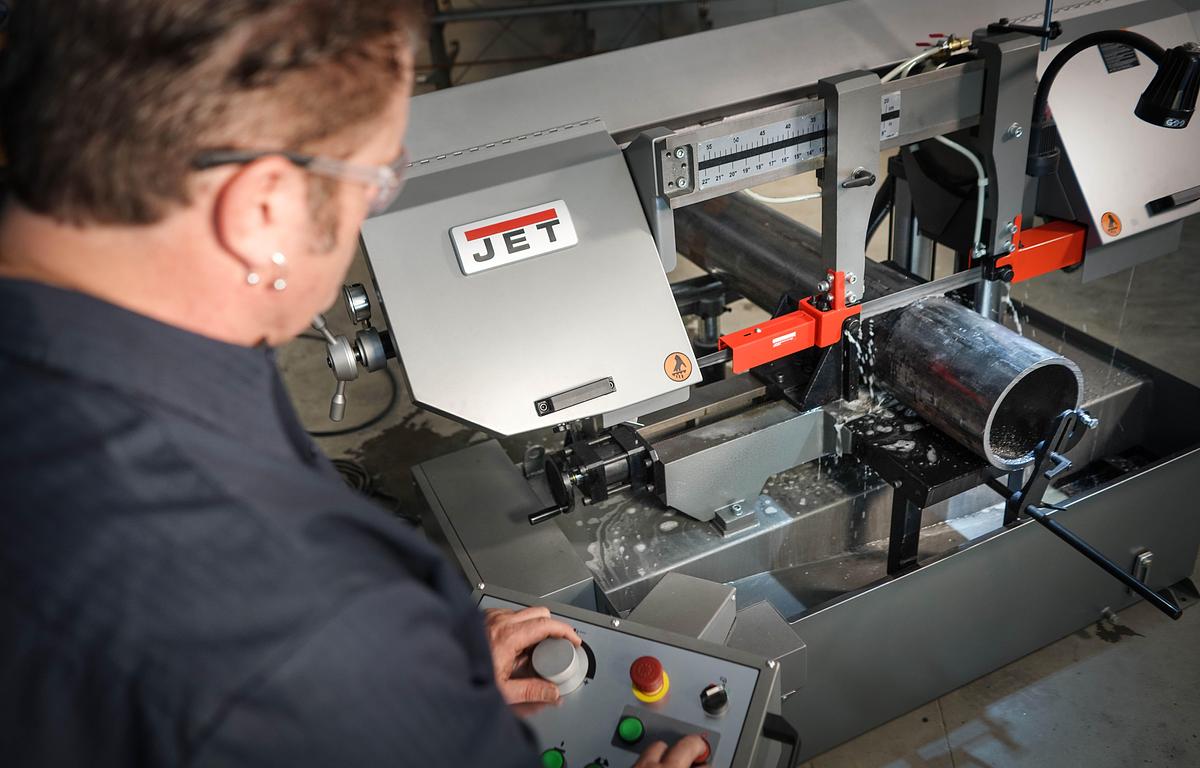

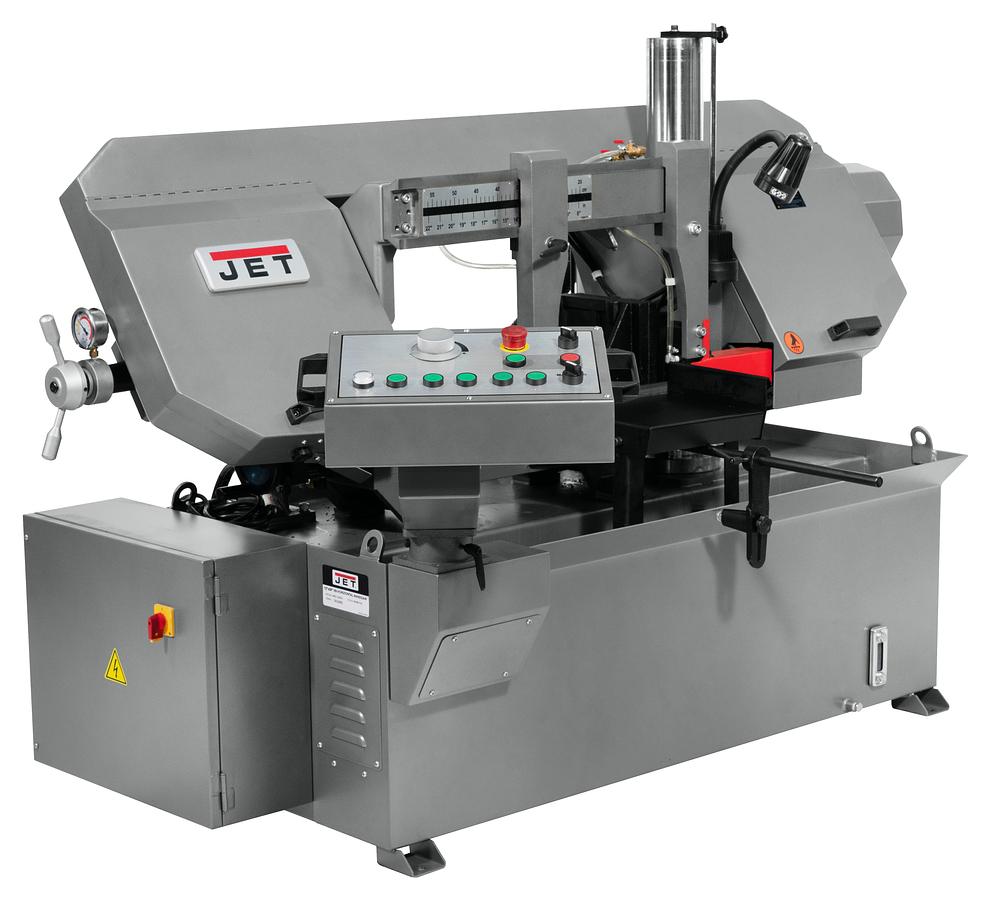

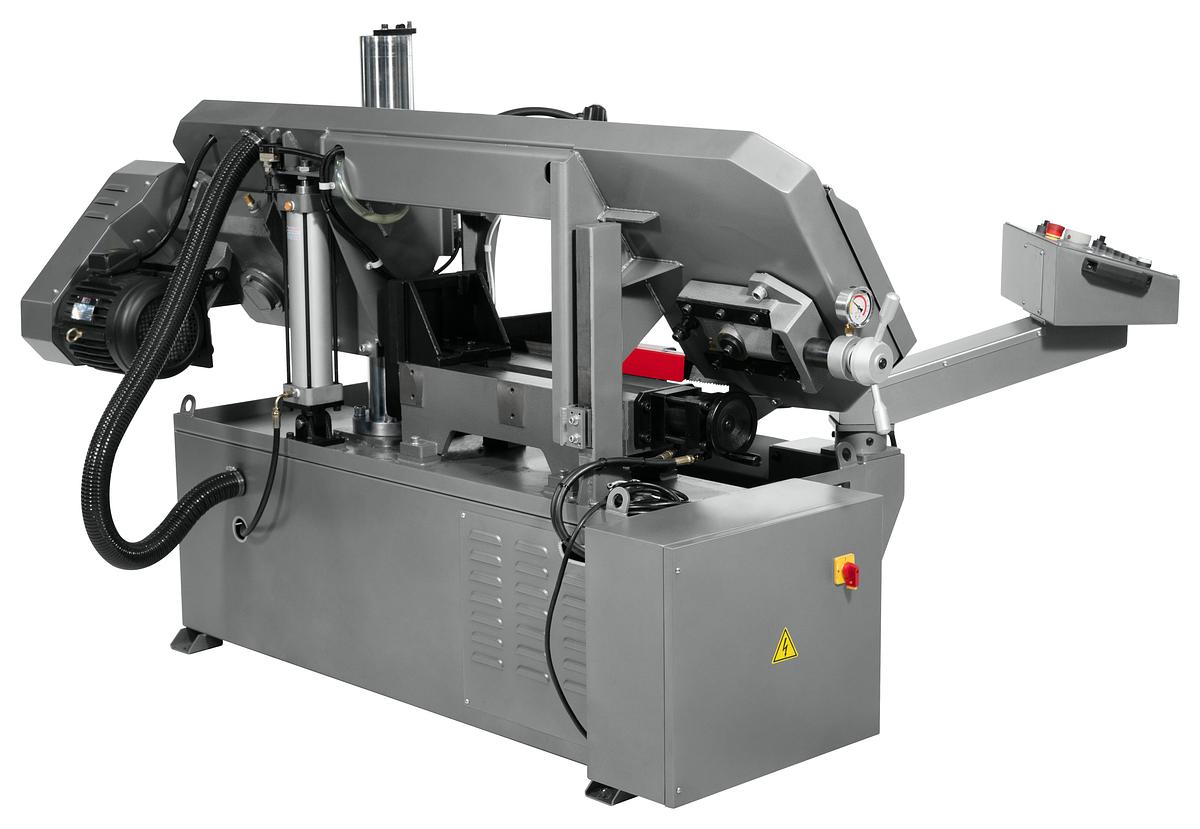

HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase
Description
Semi-Automatic Dual Column Bandsaw - 3HP, 3Ph 230/460V
Specifications
| Manufacturer | Jet Tools |
| Model | HBS1220DC |
| Condition | New |
| Stock Number | JT9-413400 |
| Bed Height (In.) | 27 |
| Blade Length (In.) | 155-1/2 |

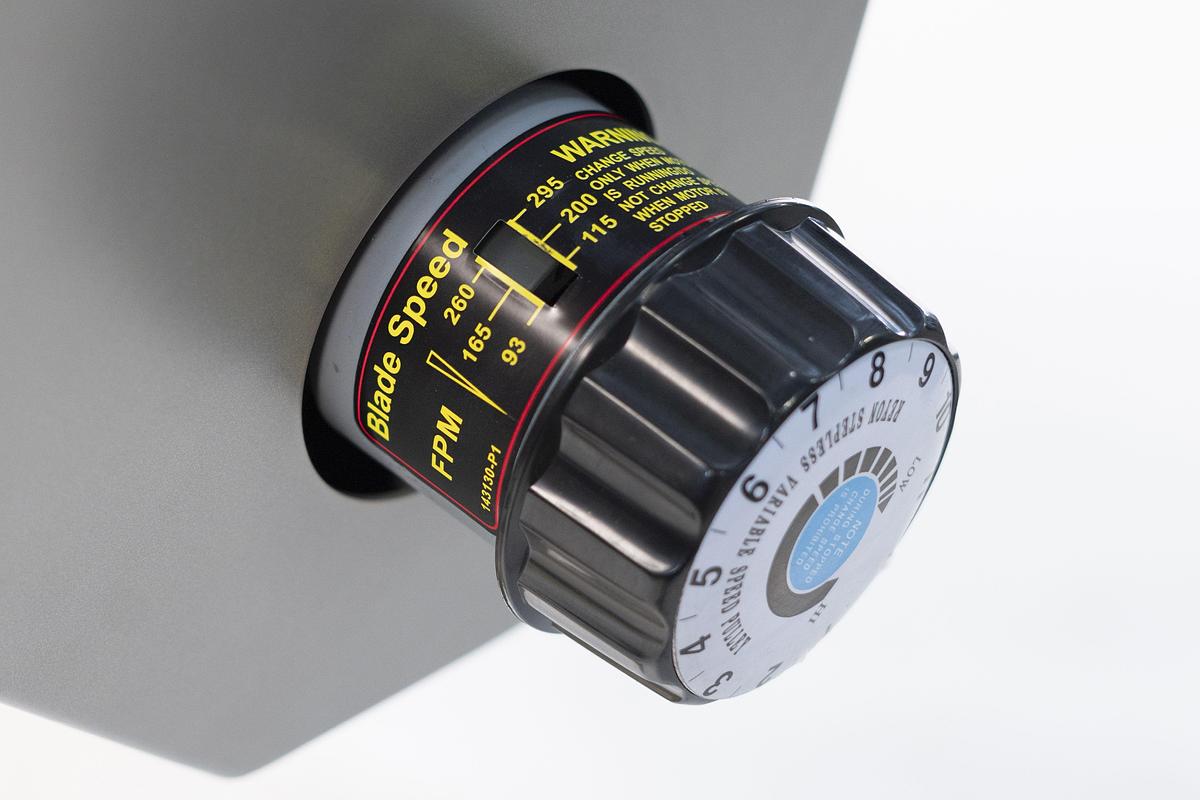

| Blade Speed (SFPM) | 95 - 295 |
| Blade Speeds (SFPM) | 86,157,228,330 |
| Blade Wheel Diameter (In.) | 16 |
| Drive | Mechanical Variable Speed |
| Electrics | 3HP, 230/460V, 3Ph |

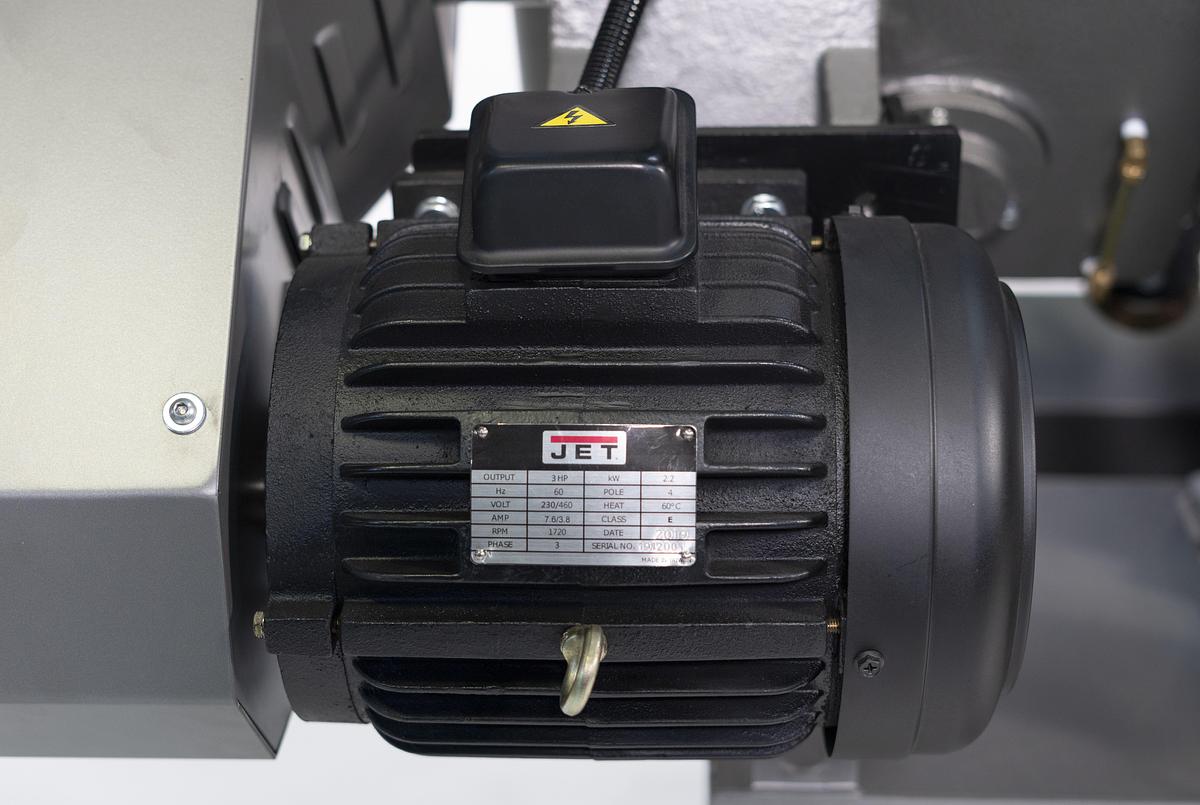

| Motor (HP) | 3 HP, 230/460V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 81 x 42-1/2 x 54-1/2 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 90 Degrees (In.) | 12 x 20 |
| Round at 90 Degrees (In.) | 12 |
| Shipping Weight (Lbs.) | 1628 |
| Square at 90 Degrees (In.) | 12 |
| Throat Depth (In.) | 12 x 12 |
| Warranty | 2 Year |
| Gross Weight | 1740.0 |
| Net weight | 1420.0 |
| Blade Size (In.) | 1-1/8 x 0.043 x 155-1/2 |
| Coolant Pump Motor | 1/8HP, 230/4660V, 3Ph |
| Oil Pump Motor | 1HP, 230/460V, 3Ph |
