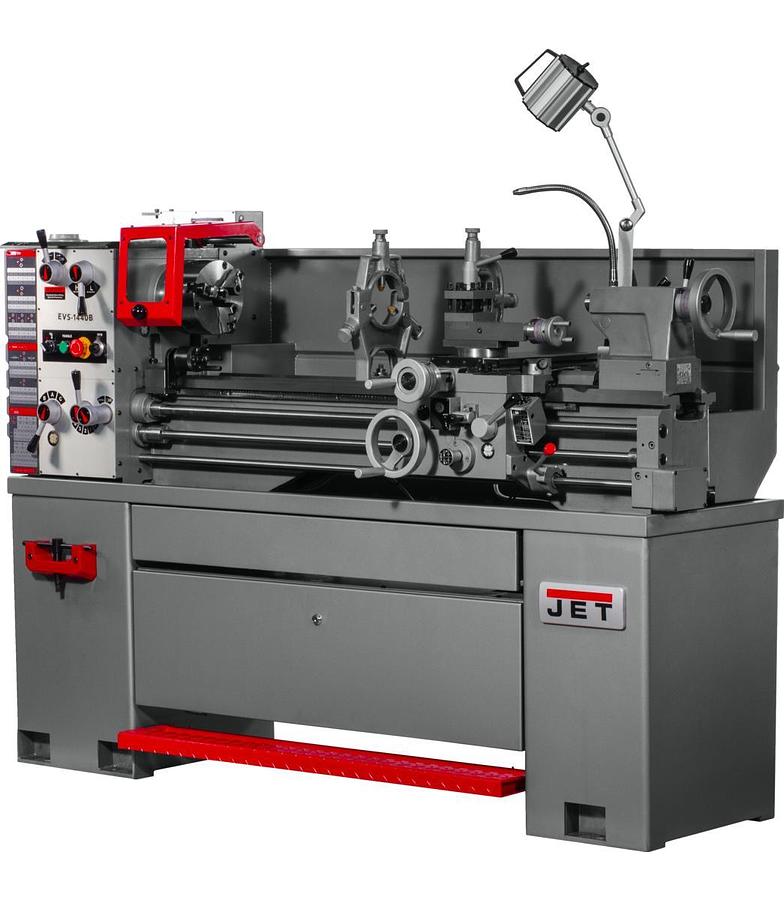

EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO,3HP
Description
EVS Lathe - Newall DP700 DRO, 3HP
Specifications
| Manufacturer | Jet Tools |
| Model | EVS-1440 |
| Condition | New |
| Stock Number | JT9-311448 |
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 7 |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Motor (HP) | 3HP, 230V, 3Ph |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Metric Threads | 34.0000 |
| Overall Dimensions (L x W x H) (In.) | 68.5 x 28.3 x 50 |
| Prop 65 | None |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Range of Spindle Speeds (RPM) | 40-2000 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |

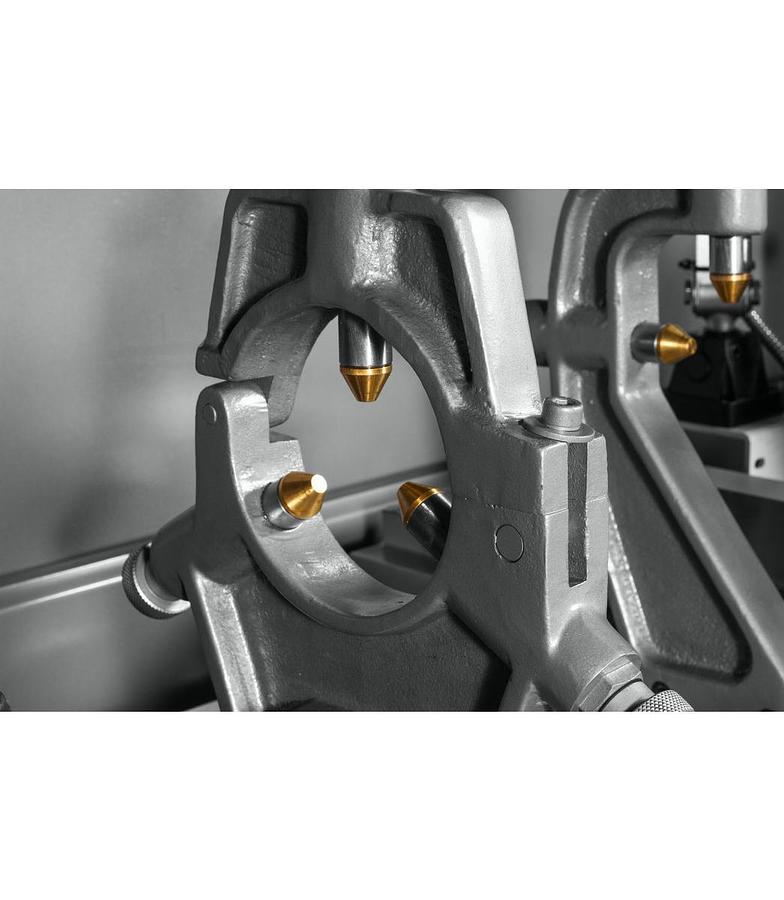

| Steady Rest Capacity (In.) | 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP) |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 9-1/16 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7.48 |
| Gross Weight | 1584.0 |
| Net weight | 1320.0 |
