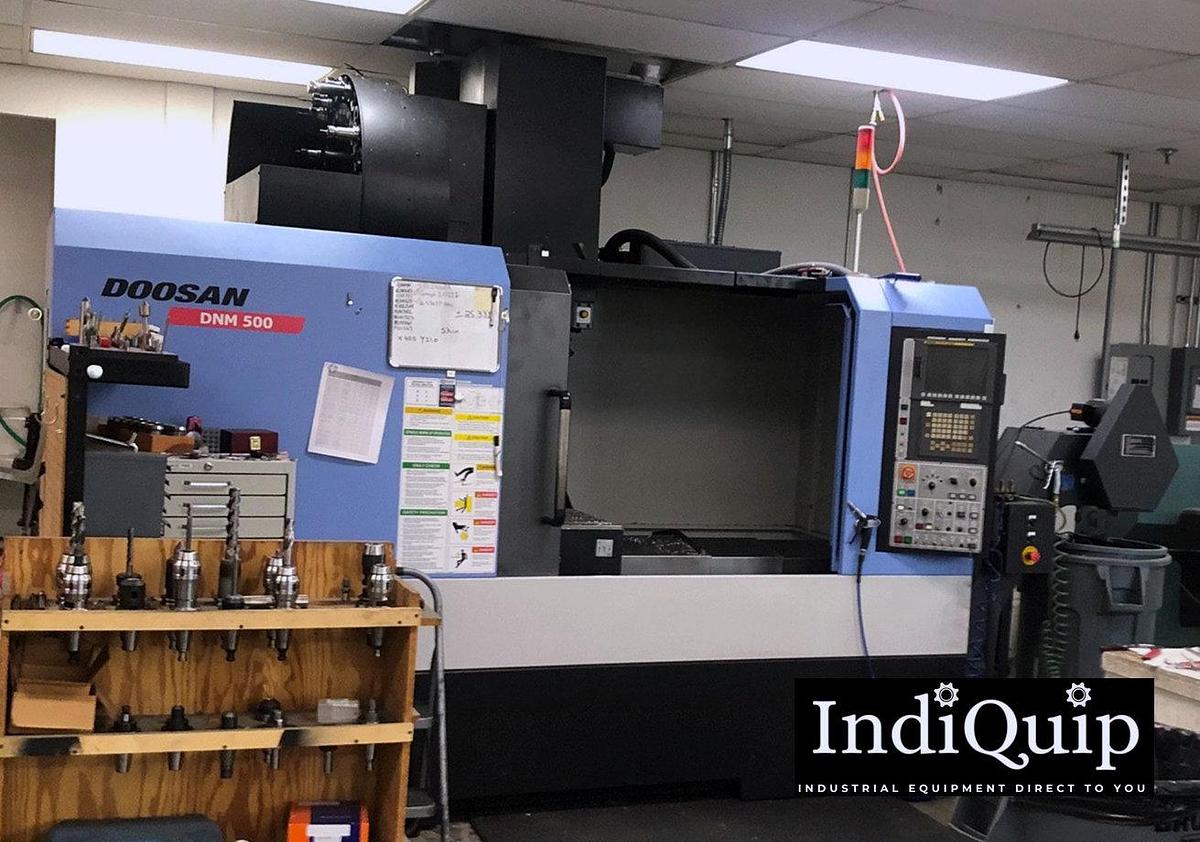

2010 Doosan DNM500 CNC Vertical Mill

The Doosan DNM-500 CNC Vertical Machining Center is a proven performer built for precision, rigidity, and high-volume production. With its robust design and powerful spindle, this machine delivers the versatility and reliability demanded by modern job shops and production facilities.

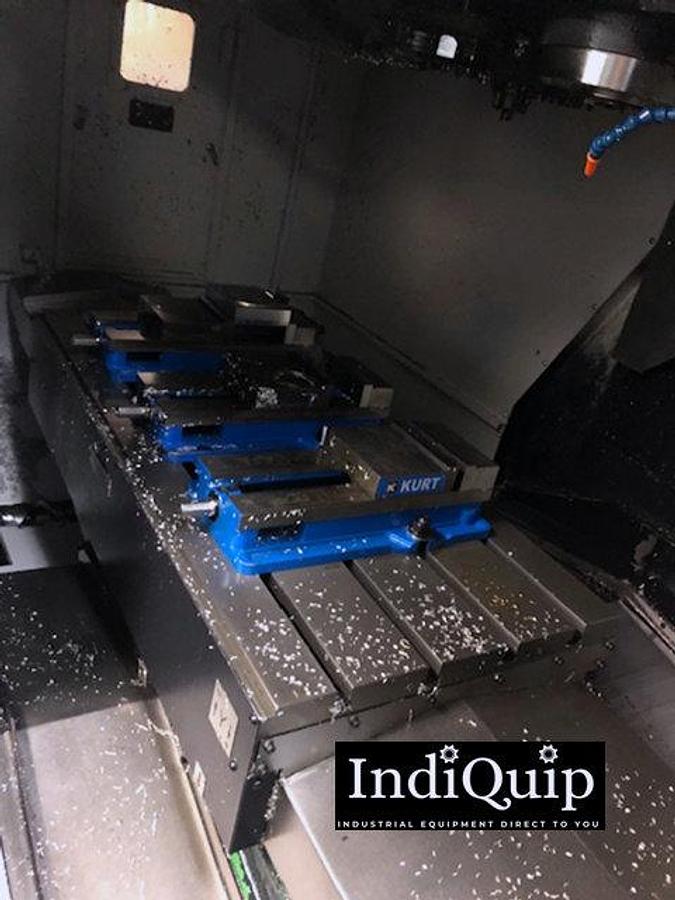

Featuring a 47.2" x 21.3" table with a 1,760 lb load capacity, the DNM-500 offers ample workholding space for both small and large parts. Its 40.2" X, 21.3" Y, and 20.1" Z axis travels provide the reach and flexibility needed to tackle a wide range of applications. With rapid traverse rates of 1,417 IPM (X/Y) and 1,181 IPM (Z), this machine ensures fast positioning and reduced cycle times.

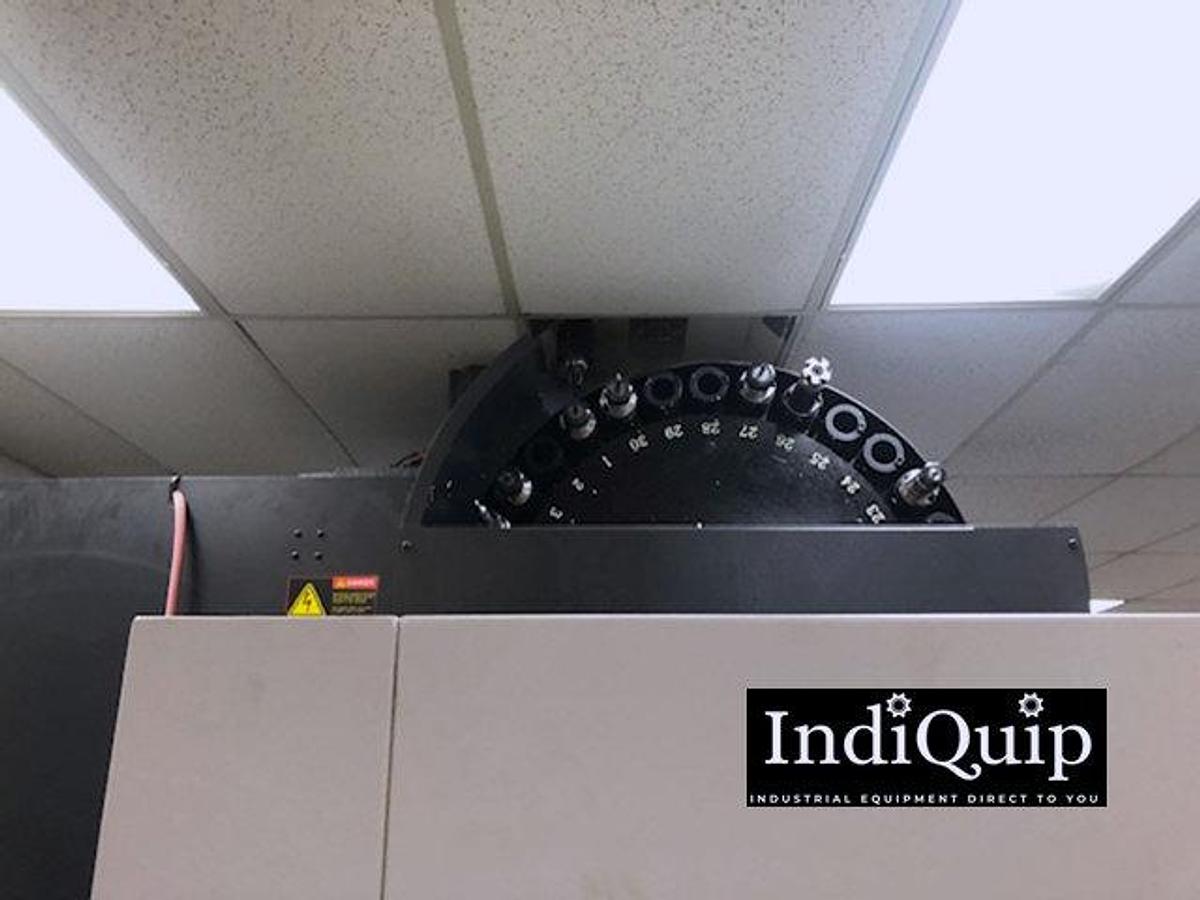

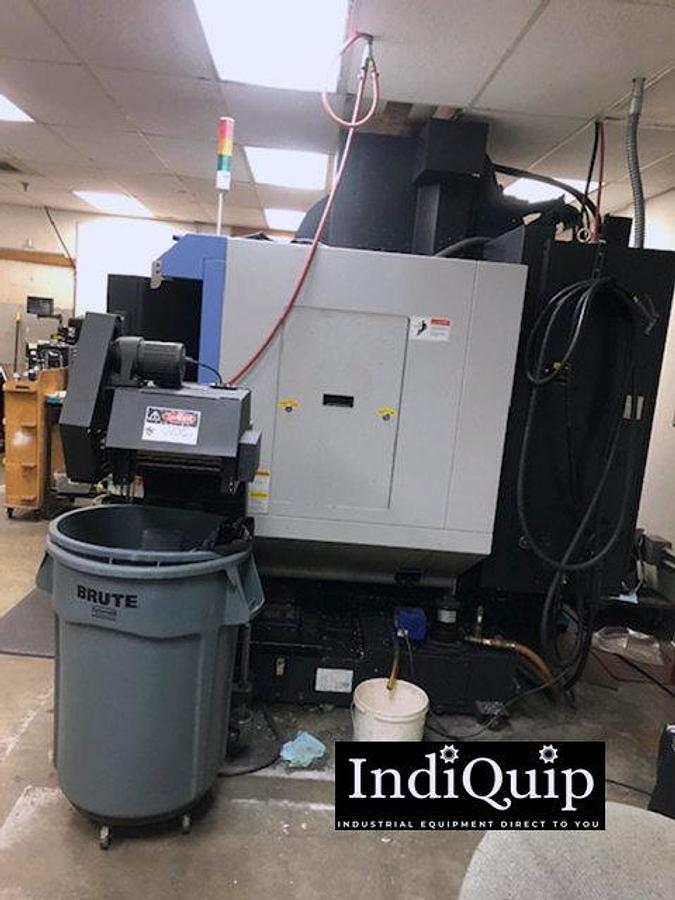

At the core of the machine is a CAT 40 spindle running at up to 8,000 RPM, powered by a 20/15 HP main motor to handle everything from heavy-duty roughing to fine surface finishing. A 30-position automatic tool changer (ATC) keeps the spindle cutting with minimal downtime, while the chip conveyor efficiently manages material removal to maintain clean and productive cutting conditions.

Operator convenience and programming efficiency are enhanced by the Fanuc i Series CNC control, a trusted industry standard known for its reliability, ease of use, and advanced functionality.

With its combination of spindle power, generous travels, and high-speed tool handling, the Doosan DNM-500 provides a complete solution for shops seeking dependable performance and productivity. This vertical machining center is well-suited for industries such as aerospace, automotive, medical, and general manufacturing.
