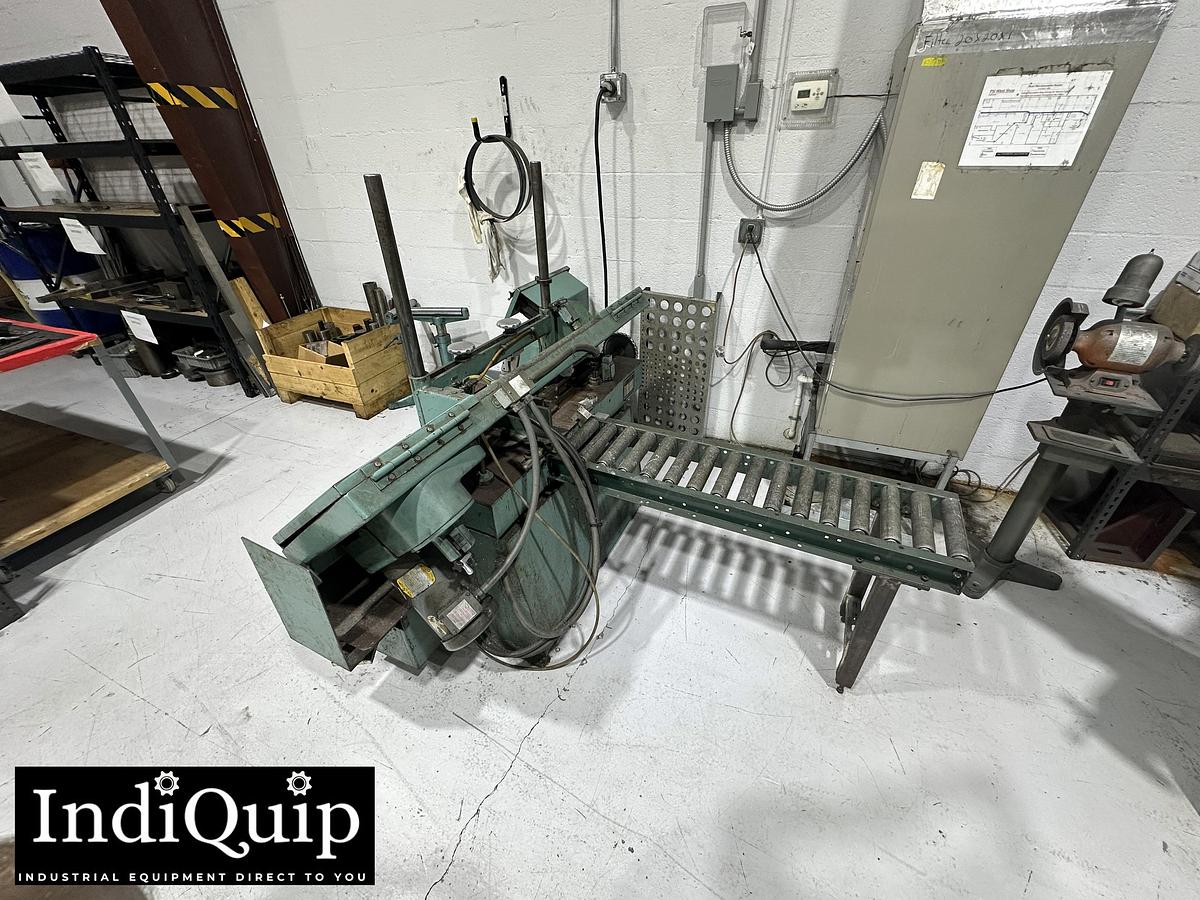

W.F. Wells W-9-1 Horizontal Band Saw

Description

W.F. Wells W-9-1 Horizontal Band Saw with 9" x 16" cutting capacity. Heavy-duty hydraulic feed, 1" blade, and roller conveyor included.

Cutting Capacity

Round Stock: up to 9" diameter

Rectangular Stock: up to 9" H × 16" W

Blade

Blade Size: 1" x 0.035" x 11’6" (138")

Blade Speed: Variable, per operator setting (chart included on machine)

Blade Type: Bi-metal recommended, tooth pitch selected based on material

Electrical

Supply Voltage Options:

• 208V, 3-Phase, 60 Hz – Full Load Amps: 12.6 (Largest Motor 8.5A)
• 230V, 3-Phase, 60 Hz – Full Load Amps: 11.0 (Largest Motor 8.2A)
• 460V, 3-Phase, 60 Hz – Full Load Amps: 5.9 (Largest Motor 4.1A)
• SCIC: 100 kA
• Controls: Push-button station with start/stop, feed, and emergency stop

Hydraulic System

Hydraulic controlled head feed for consistent cutting pressure

Adjustable feed rate (per material and blade type)

Features

Heavy-duty cast and welded steel frame construction

Integrated coolant system (with drain pan base)

Adjustable workpiece vise for secure clamping

Infeed/outfeed roller conveyor included

Onboard blade speed/feed reference chart

Safety covers and labeled danger zones
