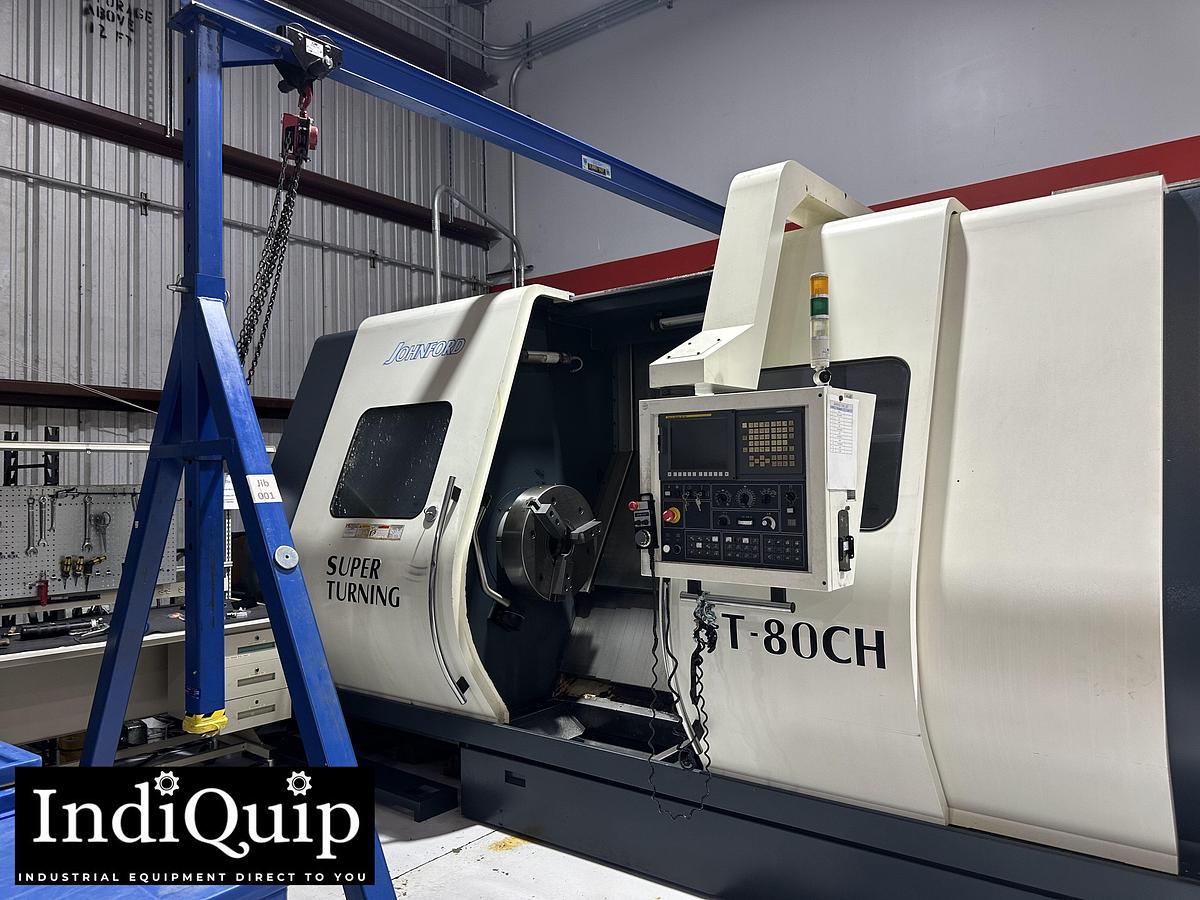

Johnford ST-80CH Super Turning CNC Lathe

Description

Johnford ST-80CH Super Turning CNC Lathe is a heavy-duty horizontal turning center built for large-diameter and long-part machining. With a powerful 56 kW spindle drive, 12-station turret, large chuck capacity, and programmable tailstock, it is ideal for oilfield, aerospace, and heavy equipment applications requiring precision turning of oversized workpieces.

Electrical / Power

• Rated Power: 56 kW
• Power Supply: 3-Phase, 220V, 60 Hz
• Full Load Current: 200A
• Short-Circuit Current: 65 kA

Spindle

• Spindle Speed: 1400 RPM
• Pneumatic Pressure: 5–7 bar

Workholding

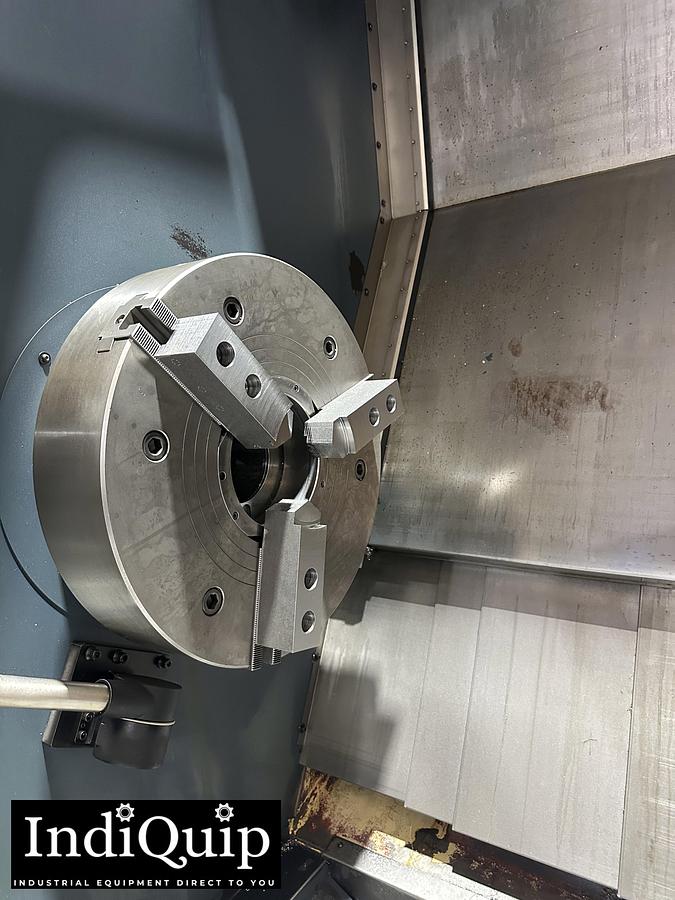

• Large 3-Jaw Hydraulic Chuck

Turret

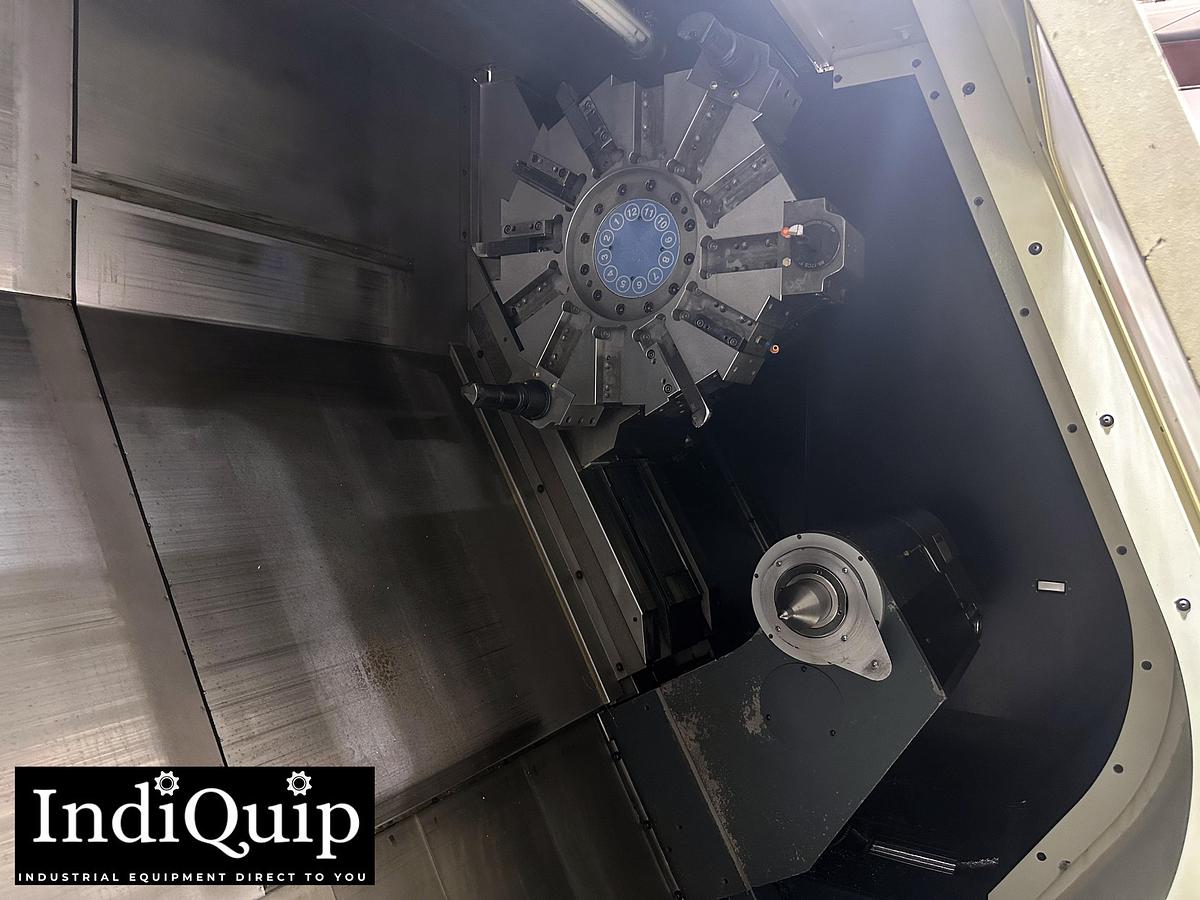

• 12-Station Tool Turret

Tailstock

• Programmable Tailstock for long-part support

Chip Removal

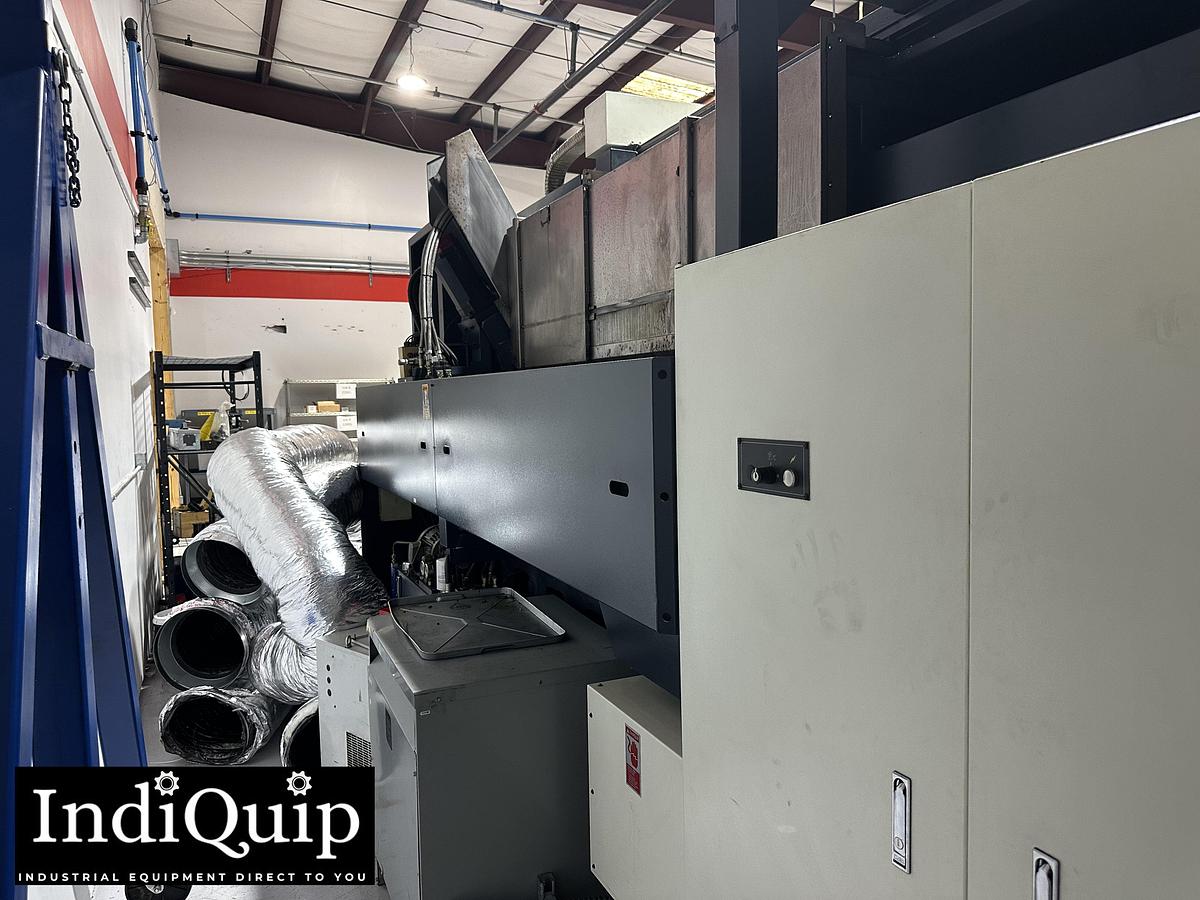

• Chip Conveyor

Construction

• Heavy-duty enclosed machine frame
• Designed for large-part turning
