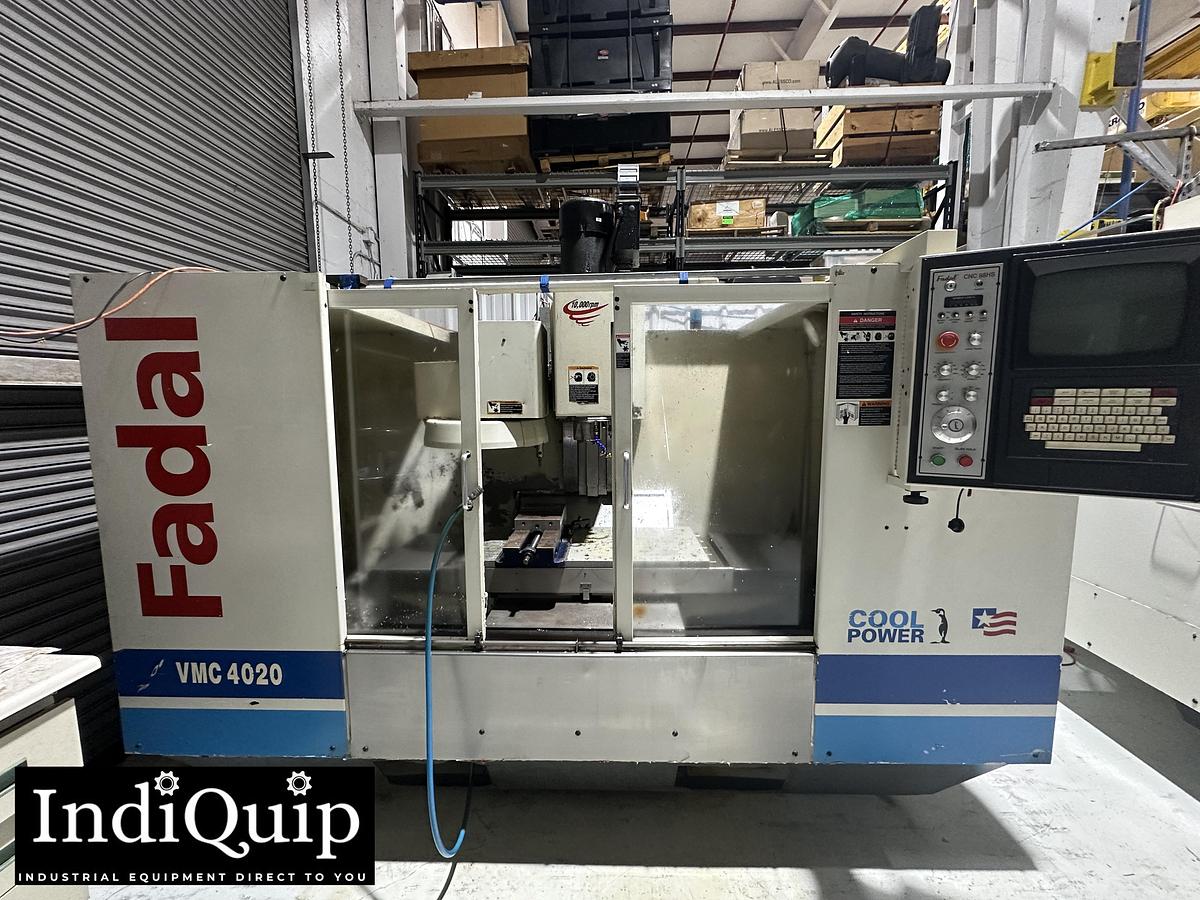

1999 Fadal VMC 4020 CNC Vertical Mill

High-precision Fadal Engineering VMC 4020 (Model 906-1) vertical machining center, 40-in × 20-in travel, 10,000 RPM CAT-40 spindle, 21-station ATC, robust build with 15 HP spindle motor, ideal for serious job-shop CNC milling applications.

Specifications

• Travel (Axes): X = 40 in, Y = 20 in, Z = 20 in
• Table Size: 48 in × 20 in
• Max Table Load Capacity: 1,500 lbs
• Spindle Taper: CAT-40
• Maximum Spindle Speed: 10,000 RPM
• Spindle Motor Power: 15 HP
• Rapid Traverse Rates: X & Y = 700 IPM, Z = 600 IPM
• Spindle Nose to Table Range: 4 in – 24 in
• Spindle Center to Column Distance: 20 in
• Automatic Tool Changer: 21-station carousel
• Maximum Tool Length: 15 in
• Maximum Tool Weight: 15 lbs
• Machine Weight: 10,100 lbs
• Overall Dimensions: 118 in × 94 in × 98 in
• Power Requirement: 230V, 3-phase
• Floor to Table Surface Height: 30–31 in
