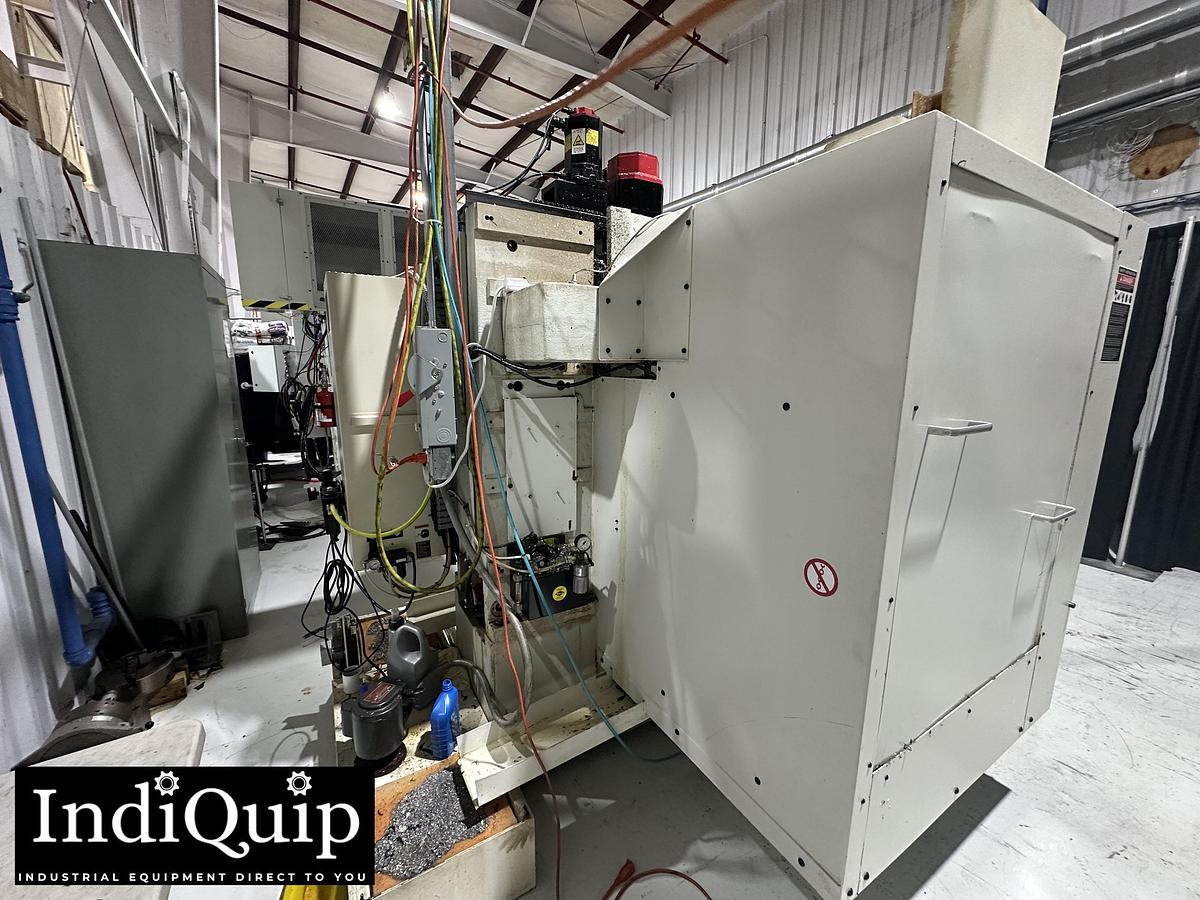

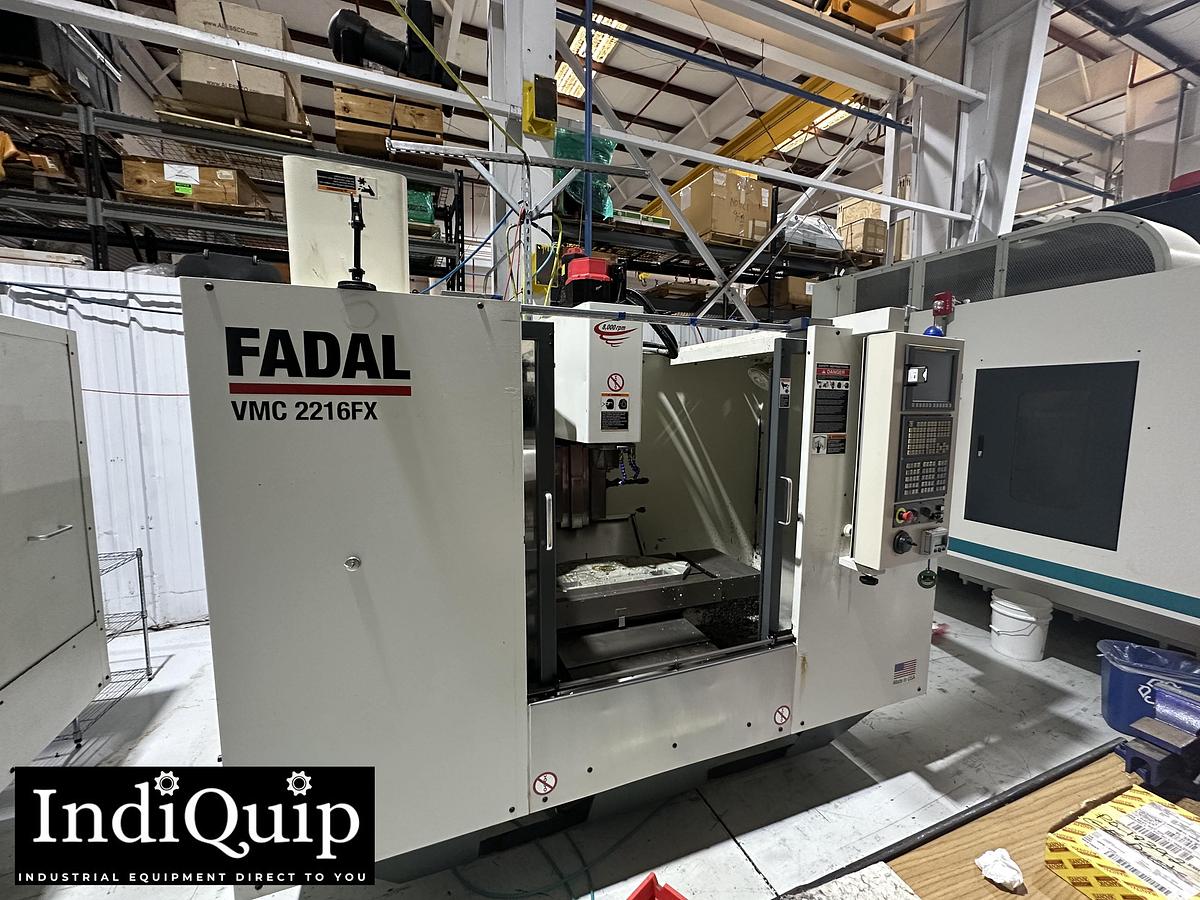

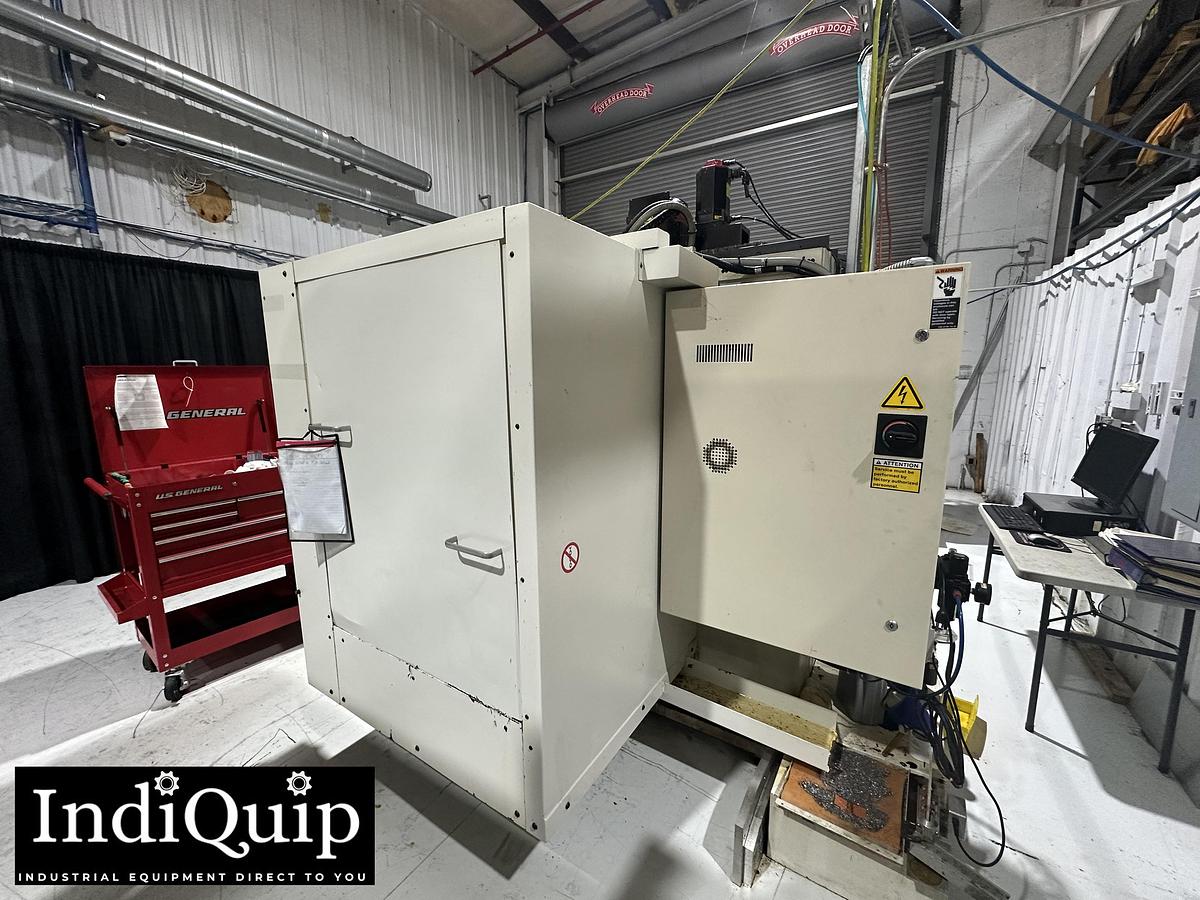

2007 Fadal VMC 2216FX CNC Vertical Mill

Compact and powerful Fadal VMC 2216FX CNC vertical machining center, built in 2007 with CAT-40 spindle, 7,500 RPM speed, 21-tool ATC, and precision 22 in × 16 in × 20 in travel. Ideal for high-speed machining in limited shop floor space.

Specifications

• Voltage: 240 VAC
• Phase: 3
• Frequency: 50/60 Hz
• Full Load Current: 38 A
• Rating of Largest AC Motor: 43 A @ 200 V
• Power Requirement: 16 kVA
• Short Circuit Interrupt Capacity: 10 kA min.
• Control: Fanuc
• Table Size: 29.5 in × 16 in
• Travel (Axes): X = 22 in, Y = 16 in, Z = 20 in
• Spindle Taper: CAT-40
• Maximum Spindle Speed: 7,500 RPM
• Spindle Motor Power: 15 HP
• Max Tool Weight: 15 lbs
• Max Tool Length: 15 in
• Machine Weight: 8,500 lbs
• Overall Dimensions: 108 in × 91 in × 98 in
