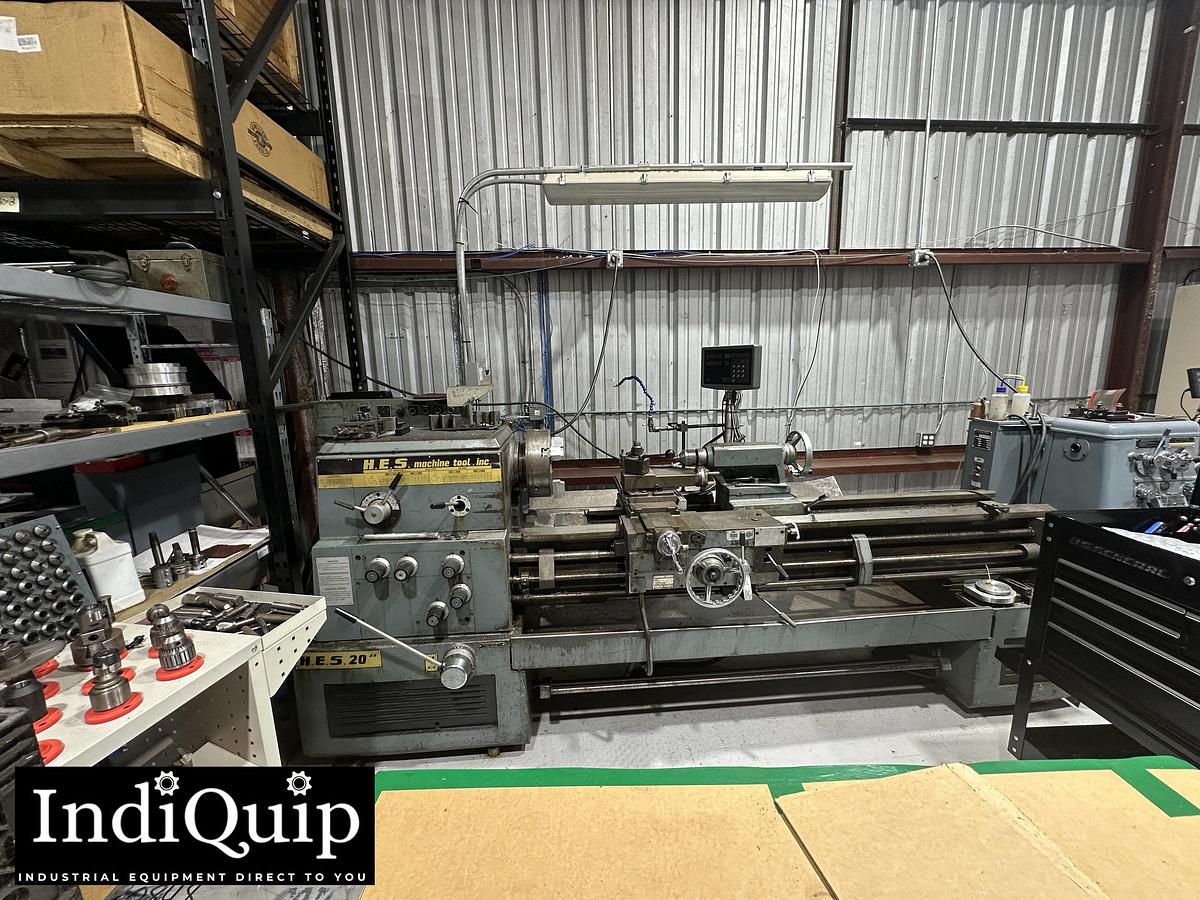

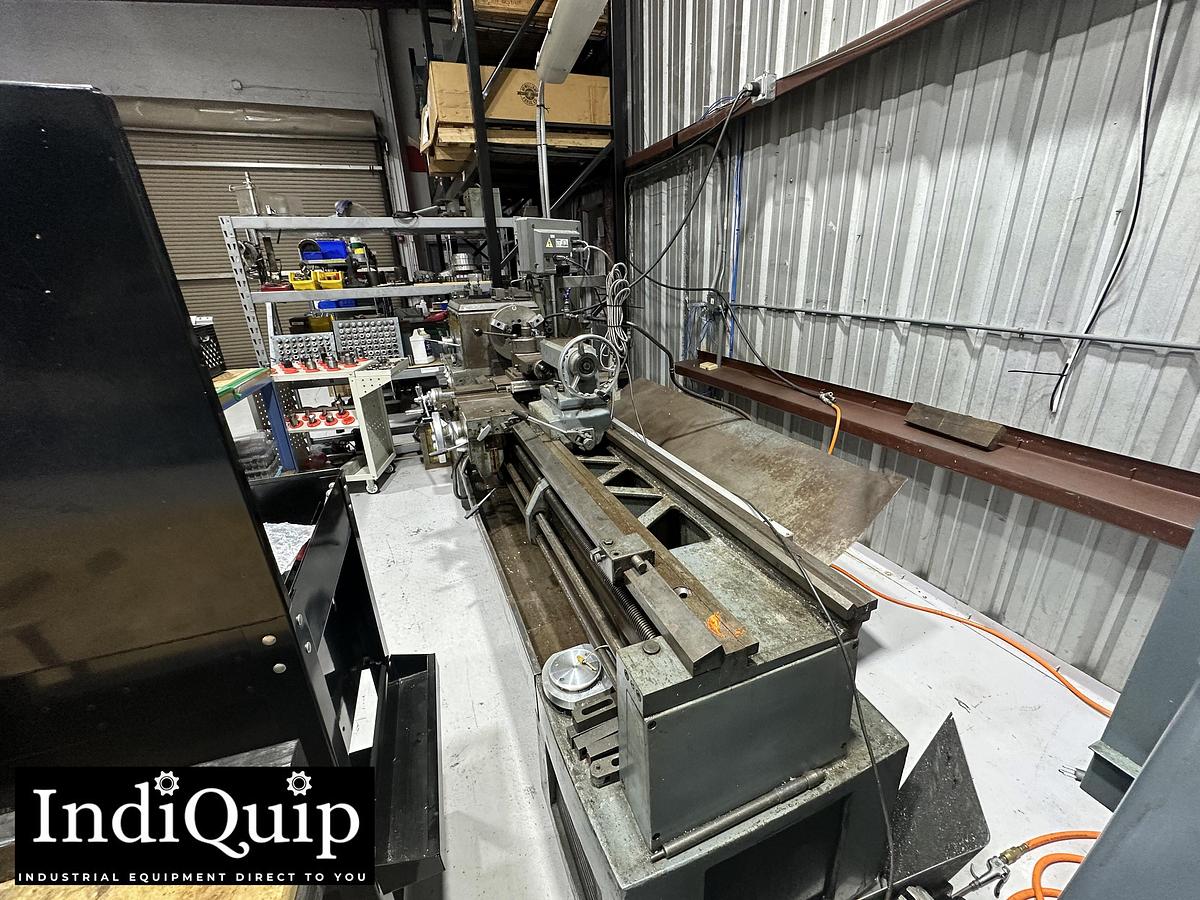

1970 H. Ernault-Somua Type 550 Manual Engine Lathe
Description
Heavy-duty H. Ernault-Somua Type 550 manual engine lathe, manufactured in 1970 in France. Built for precision turning with a robust bed and versatile threading capabilities, ideal for general machining and repair shops.
Specifications
- Swing Over Bed: 21.65 in
- Swing Over Cross Slide: 13.77 in
- Distance Between Centers: 80 in
- Spindle Bore: 3.15 in
- Spindle Nose: D1-8 camlock
- Spindle Speed Range: 25 – 1600 RPM, 18 speeds
- Main Motor Power: 15 HP
- Tailstock Quill Travel: 9 in
- Tailstock Quill Diameter: 3.5 in
- Feeds & Threading: Inch & metric threading capabilities
- Bed Width: 16 in
- Machine Weight: ~9,000 lbs
- Country of Manufacture: France
Specifications
| Manufacturer | H. Ernault-Somua |
| Model | Type 550 |
| Year | 1970 |
| Condition | Used |
| Stock Number | Q-1792867 |
