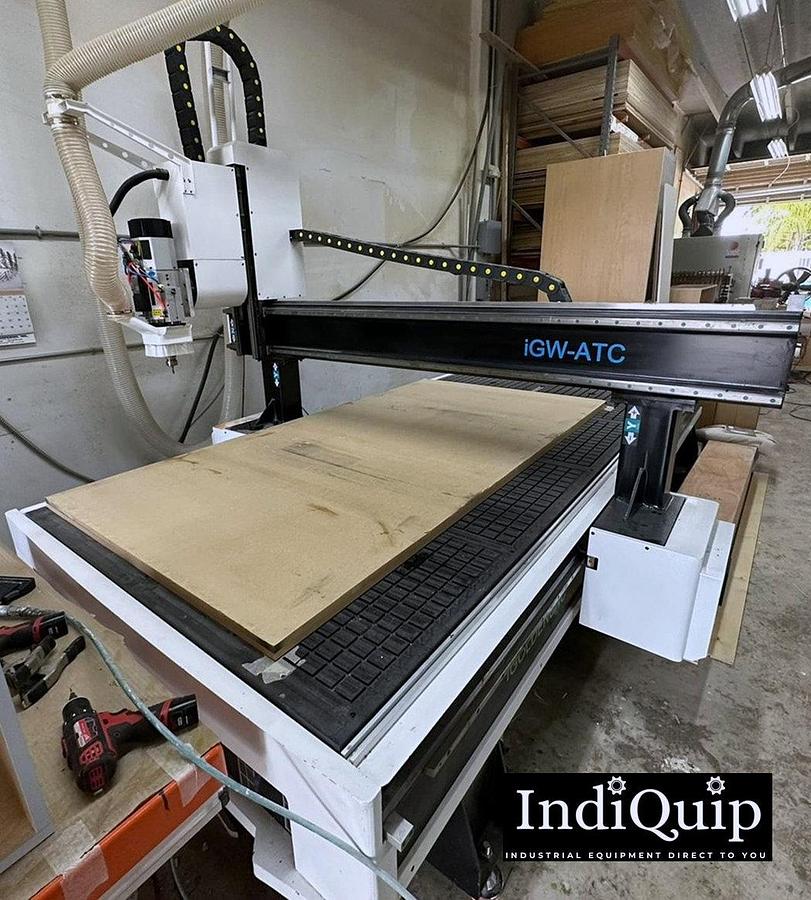

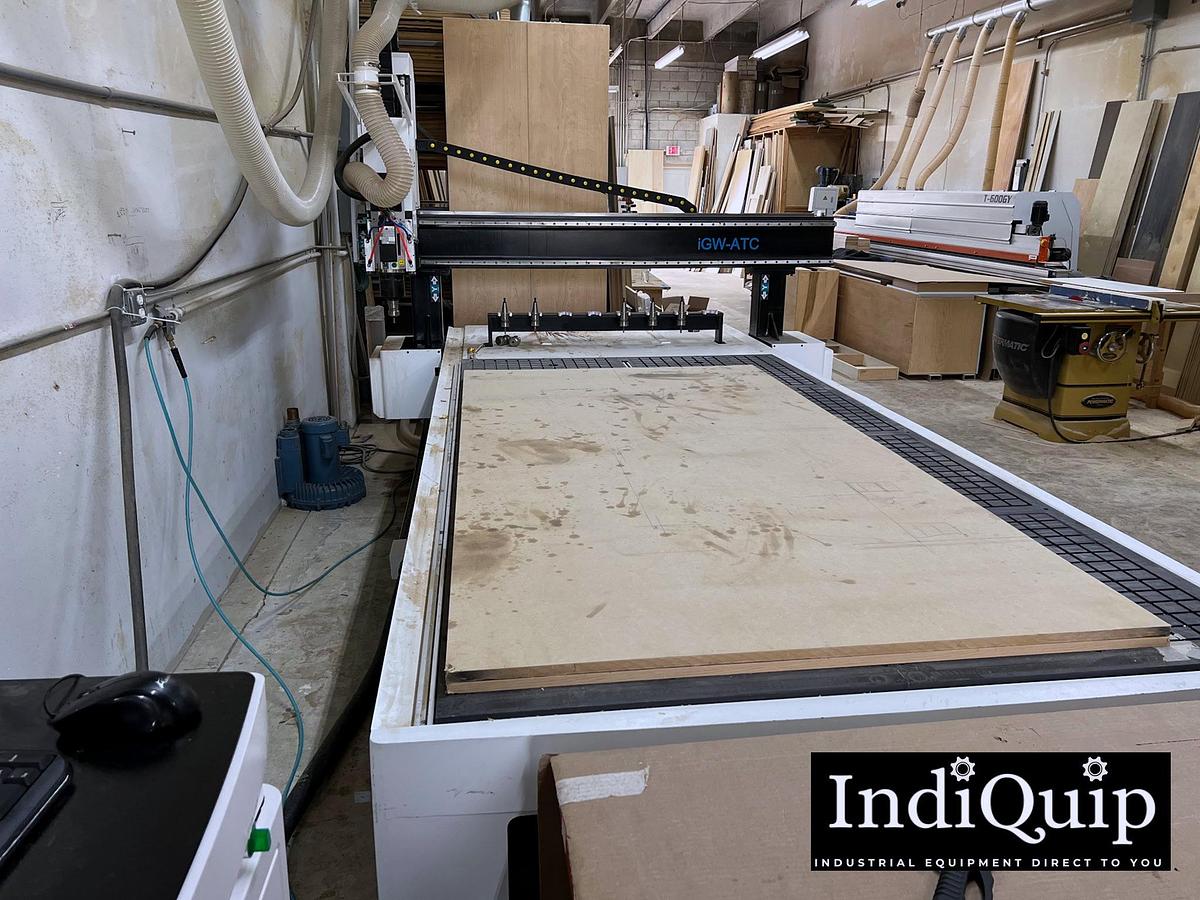

2021 IGOLDEN IGW 5' x 10' CNC Router

9kw Air-cooled Spindle with ATC

High speed and low noise, stable operation, machining without collapse, high precision spindle, maintenance-free. The tool bank comes standard with optional 8/10/12 tools (customizable quantity). The tool changing time only needs 2 seconds, which meets the processing requirements of various non-metal materials.

>Imported ceramic bearings from Germany; bearings with dust cover, more secure;

>Use ISO30 tool holder to realize fast automatic tool change and improve work efficiency;

>Built-in fan cooling, air-cooled motor with high engraving strength and normal operation under low-temperature conditions;

>High-temperature grease lubrication, fuselage made of high-quality stainless steel;

>Using high-quality motor rotor, low vibration and noise, stable operation, high accuracy, and long life;

>The grinding hole, high precision chuck, and dynamic balancing nut can be used to increase the concentricity of the motor and extend the service life.

Heavy-duty Machine Body

T-type welding body bed, honeycomb structure with reinforcing rib, welded by the rectangular pipe with a diameter of 150*250mm and 6mm thickness. After milling through large gantry and five-axis machining centers, all the installation basic holes can be drilled once and accurately. The bed is tempered and annealed by high temperature.

Eliminate internal stress, higher toughness, tensile strength, and dimensional stability. Effectively improve the accuracy of the bed, reduce the workpiece processing error, increase the resistance and stability of the guide rail.

The loss of the equipment is reduced. The accuracy of the machine is kept for a long time, and it does not change for 20 years. The stability of the equipment is good, and the machining error due to the vibration of the bed body is reduced.

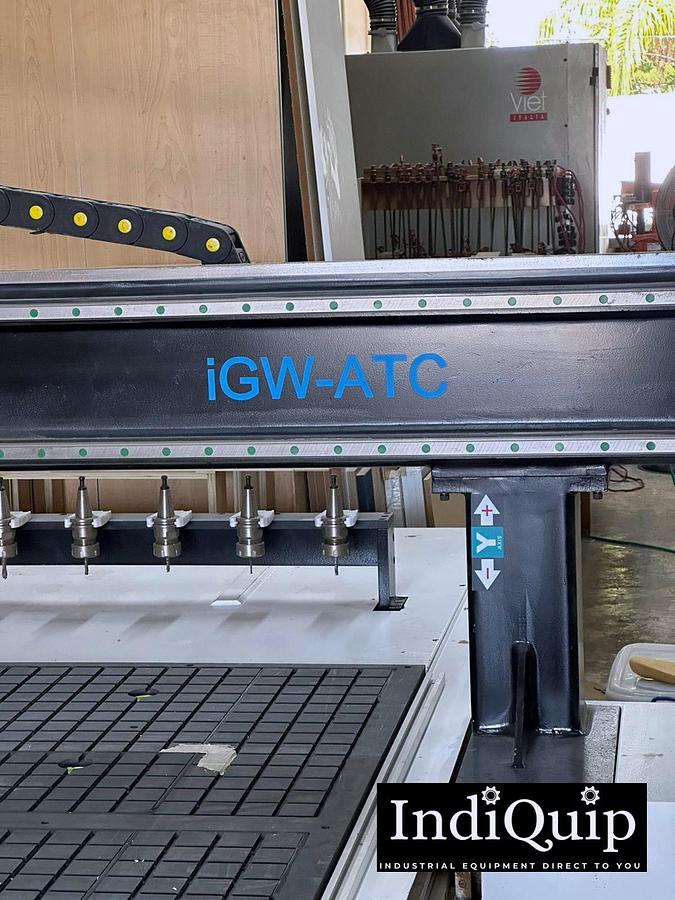

The Third-generation Gantry

The thickened rectangular tube cross beam can bear the weight less than 800kg. It is tempered by high temperature and quenched and annealed.

High strength, good rigidity, strong toughness, lightweight, no deformation, long service life.

The damage to the motion conduction device is small, the resistance to the driving motor is small, the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use cost are reduced.

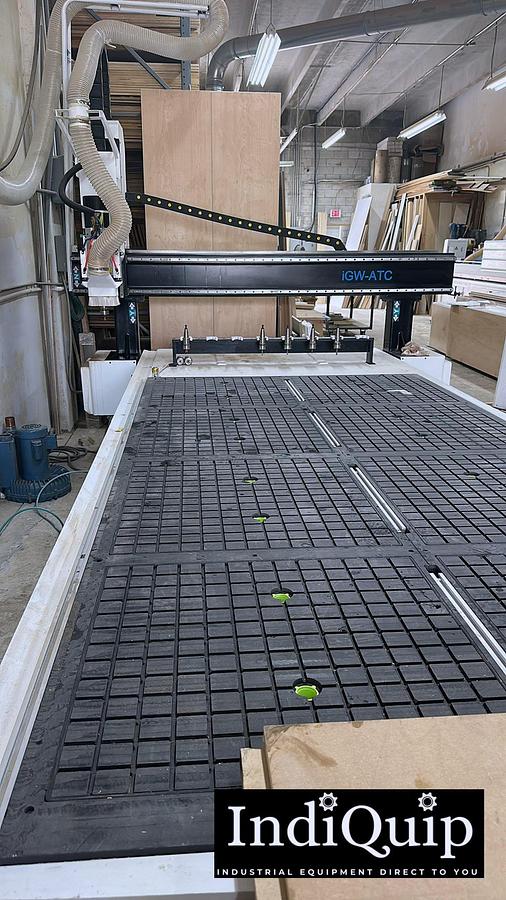

Vacuum with T-slot Table

7.5kw water-cooled high-power vacuum pump , 6 vacuum zones with independent control , uniform adsorption force on the table, can remove flammable and explosive gases, dusty gases, condensable gases and soda-water mixture.

>Can be sucked and clamped dual-use table, small board does not run;

>Reduced 70% clamping time, saving 90% working time;

>Holding small and soft materials without any vibration;

>Compared with magnetic splint, it can also clamp non-magnetic materials.
