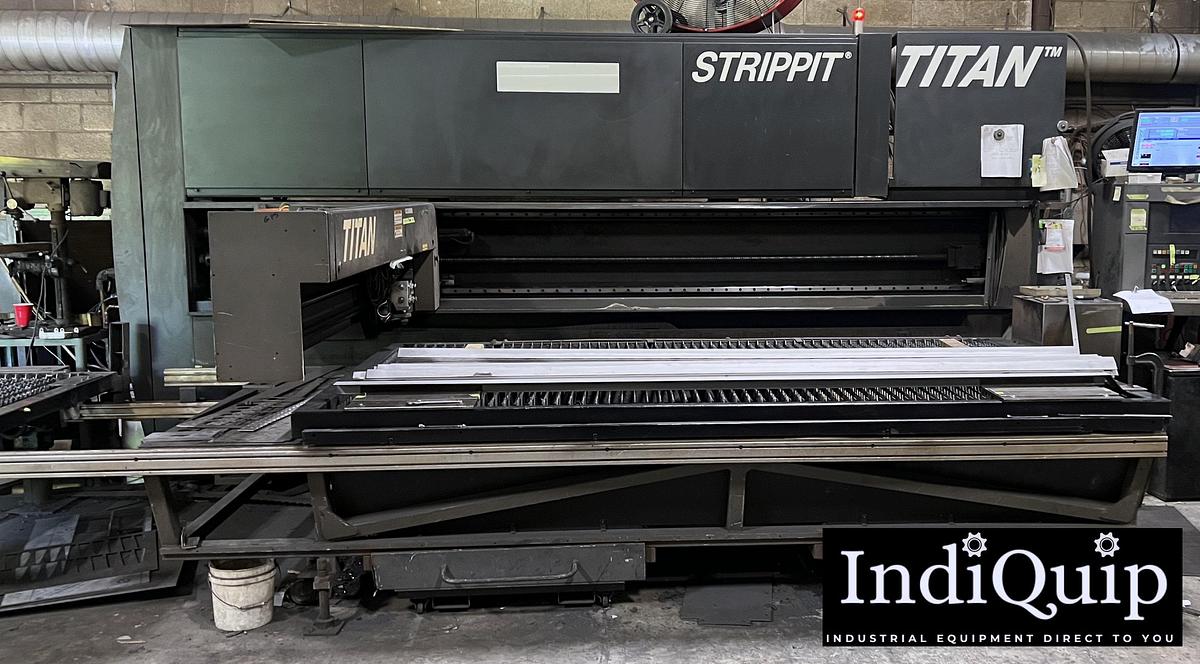

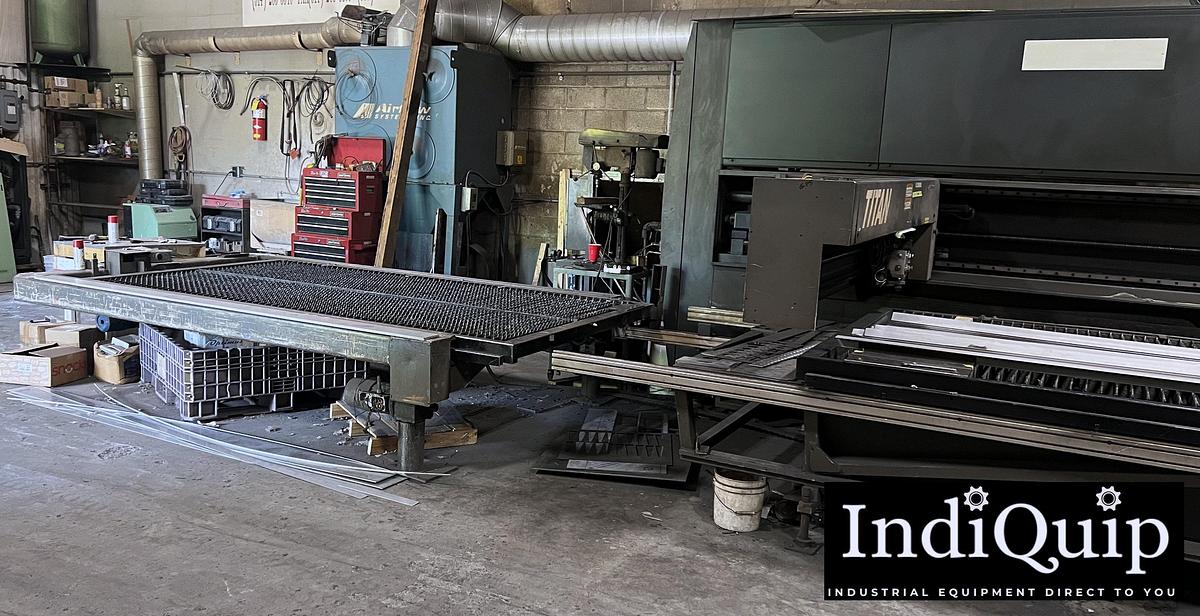

1998 Prima Power Platino 1530 with Strippit Titan 5' x 10' CNC Laser Cutting System

Both machines come as a combined unit:

This dual setup offers flexibility for different types of metal fabrication.

Optimal for different tasks: A fabricator might use the Strippit Titan for punching repetitive shapes and creating forms like louvers or dimples, which are best done with a punch press.

Efficient for complex parts: For intricate and complex contour cuts or very high-speed cuts on thin materials, the Platino laser is the ideal tool.

Complementary workflow: A job could be started on the Strippit for punching and forming features, and then moved to the Platino laser for cutting the final shape and interior contours, all on the same 5x10 foot sheet size.

Specifications of PRIMA POWER PLATINO 1530 laser cutting machine:

• laser power: 3000 W
• laser type: CO₂
• wavelength: 10.6 um
• pulse width: >250 ms
• maximum cutting thickness (mild steel): 15 mm
• maximum cutting thickness (stainless steel): 8 mm
• maximum cutting thickness (aluminium alloy): 5 mm
• maximum pipe cutting diameter: Ø 160 mm
• feed in X axis: 3000 mm
• feed in Y axis: 1500 mm
• machine dimensions (L x W x H): 10 000 x 4000 x 2600 mm

STRIPPIT TITAN:

5x10 table size
