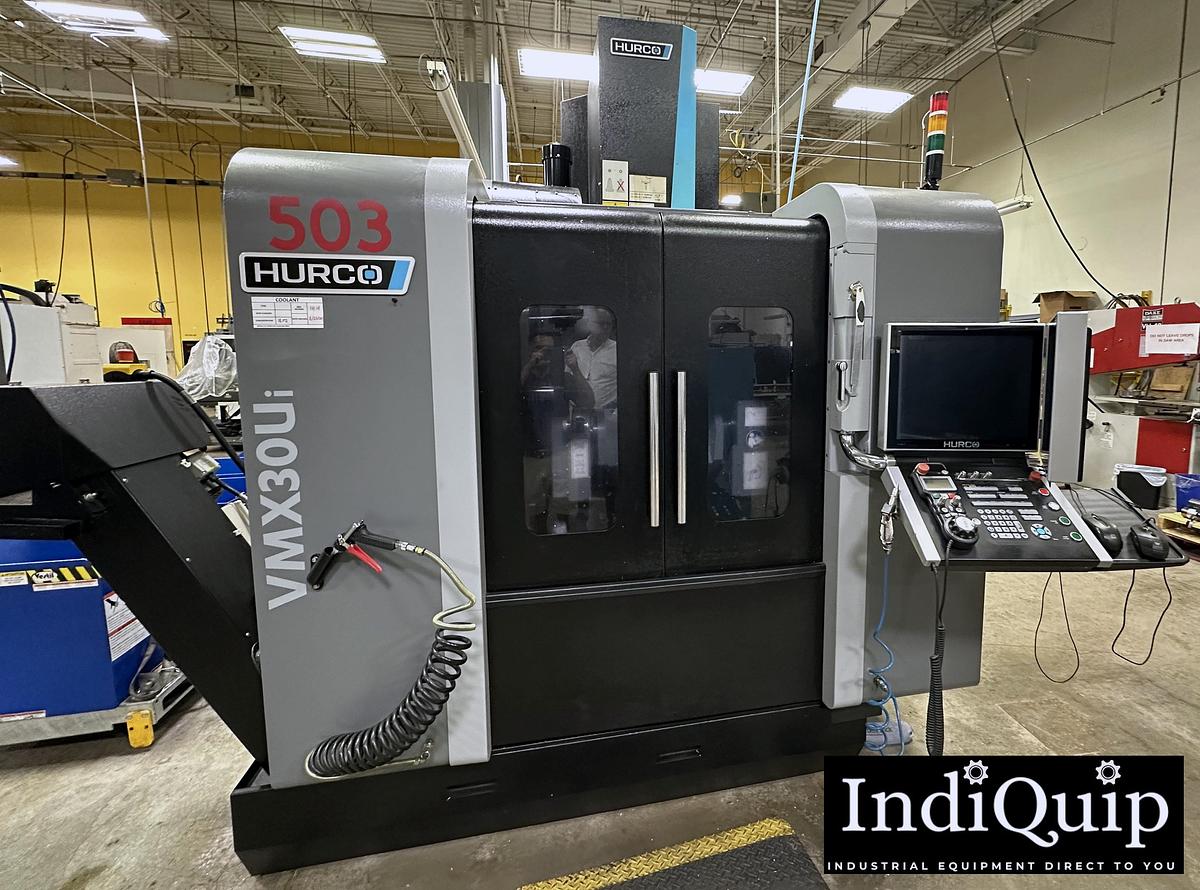

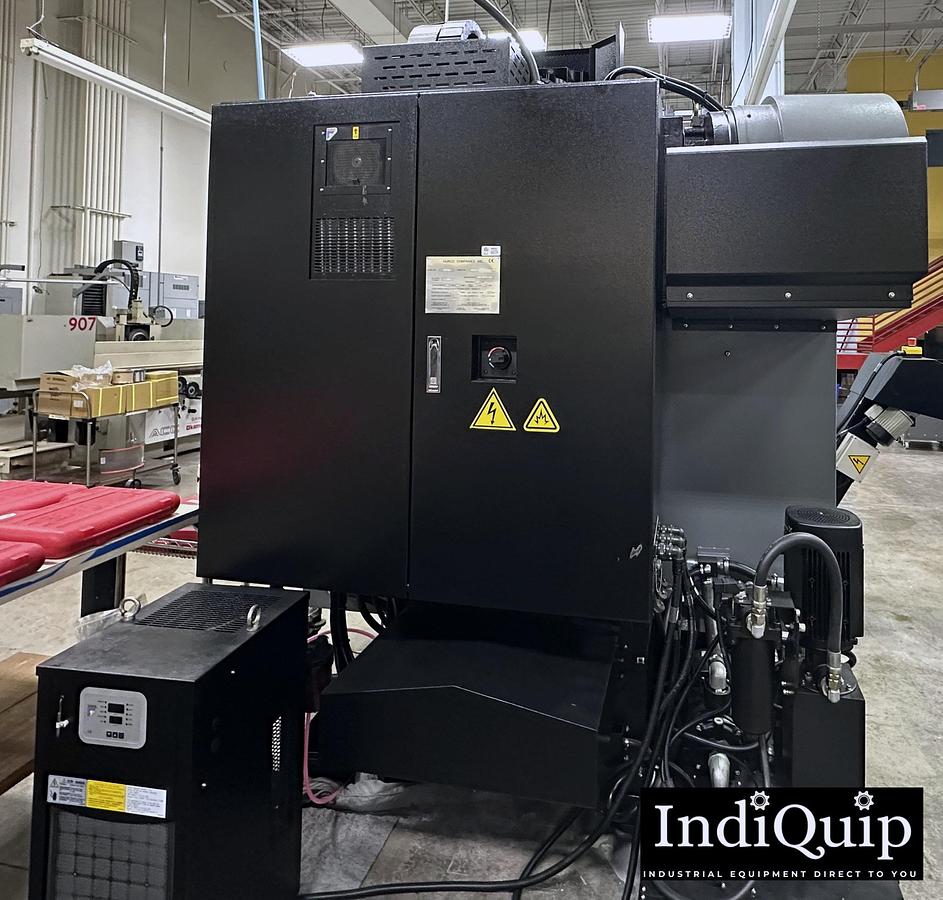

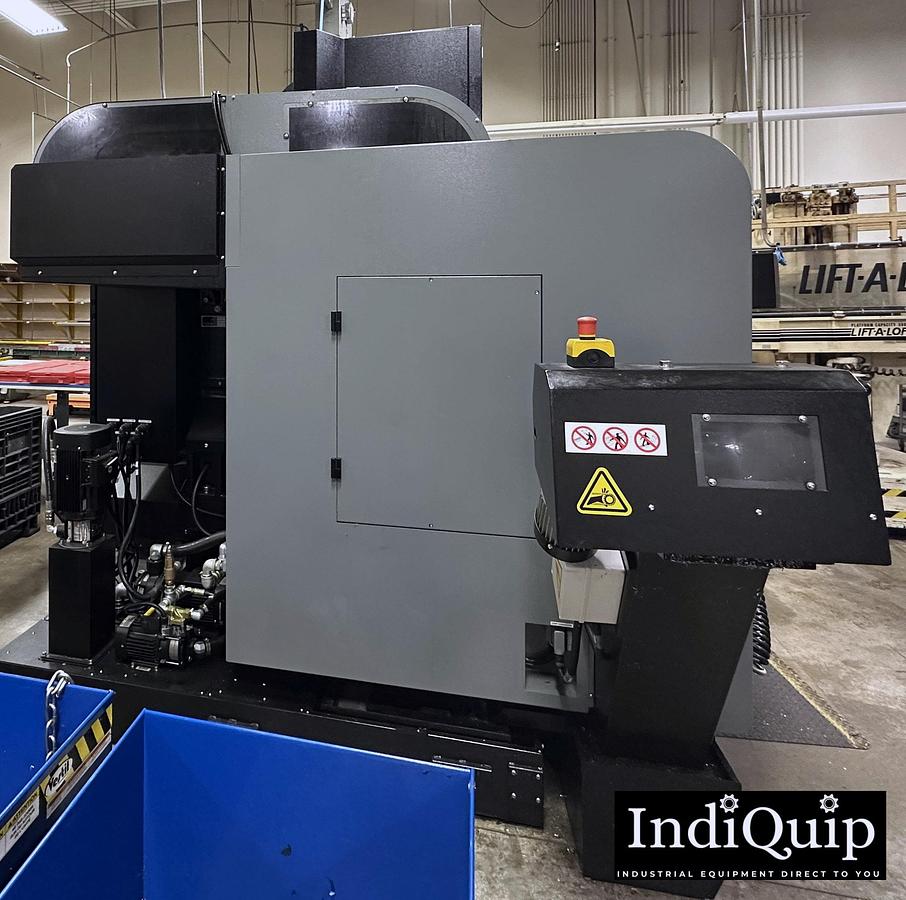

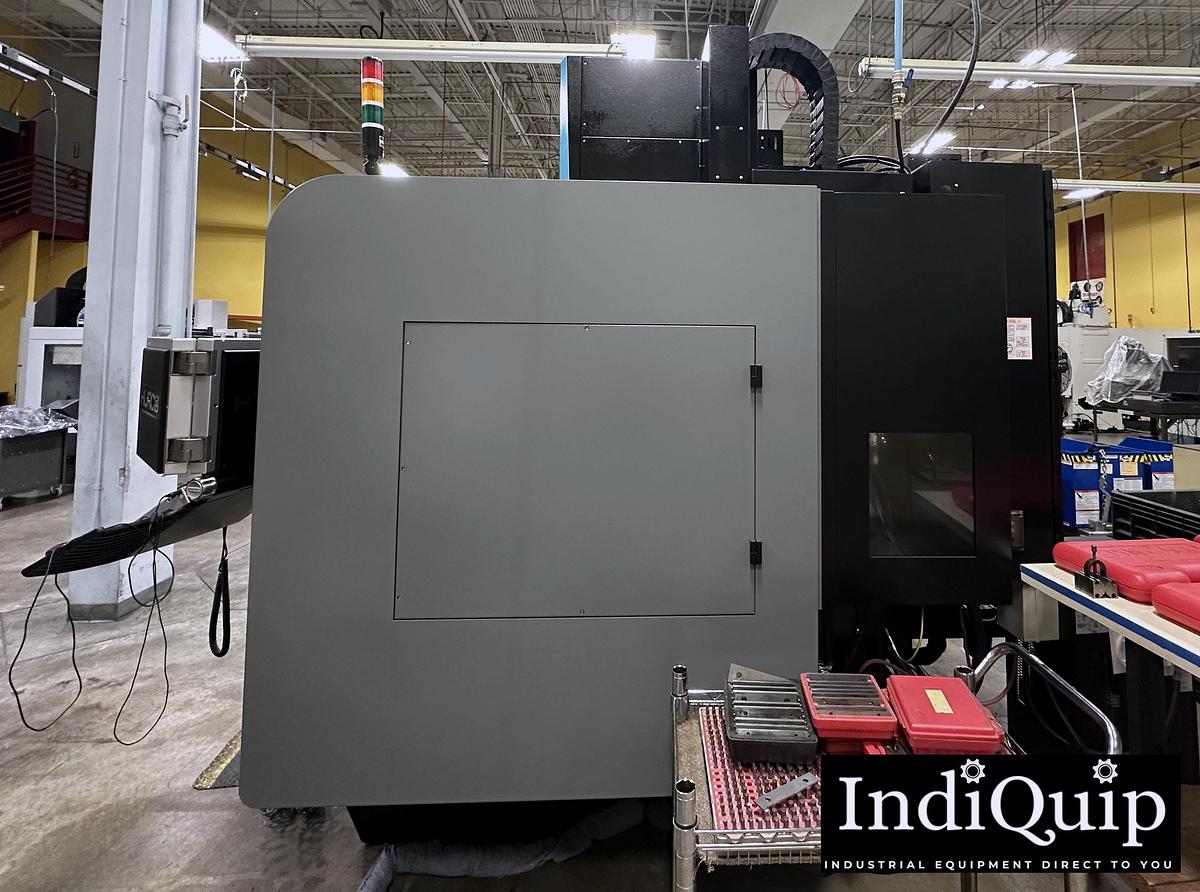

2019 Hurco VMX30Ui 5-Axis CNC Vertical Mill
Description
The 2019 Hurco VMX30Ui 5-Axis CNC Machining Center is engineered for precision, flexibility, and efficiency in complex part machining. Featuring a 12,000 RPM spindle and WinMax CNC control, this trunnion-style machine allows true simultaneous 5-axis cutting and multi-sided machining in a single setup.
Equipped With:
- Hurco WinMax Dual-Screen CNC Control
- 5-Axis Trunnion Table (Integrated)
- 12,000 RPM CAT 40 Spindle
- 40-Station Automatic Tool Changer
- Coolant Thru Spindle
- Chip Conveyor
- Dual-Screen Control with USB + Ethernet
- Rigid Tapping
Specifications
| Manufacturer | Hurco |
| Model | VMX30Ui |
| Year | 2019 |
| Condition | Used |
| Stock Number | Q-1792881 |
| Table Diameter | 9.8'' |
| * Table T-Slots | 6'' x 0.48'' |
| * X-Axis | 30'' |
| * Y-Axis | 20'' |
| * Z-Axis | 20.5'' |
| * A-Axis | +30° / -110° |
| * C-Axis | 360° continuous |
| * Rapid Traverse (X/Y) | 1,771 in/min |
| * Rapid Traverse (Z) | 1,575 in/min |
| * Programmable Feedrate | 1,575 in/min |
| Tool Changer | 40 ATC |
| Max Tool Diameter | 3'' |
| Max Tool Length | 11.8'' |
| Max Tool Weight | 15.4'' |
| Spindle Speed | 12,000 |
| Spindle Taper | CAT 40 |
