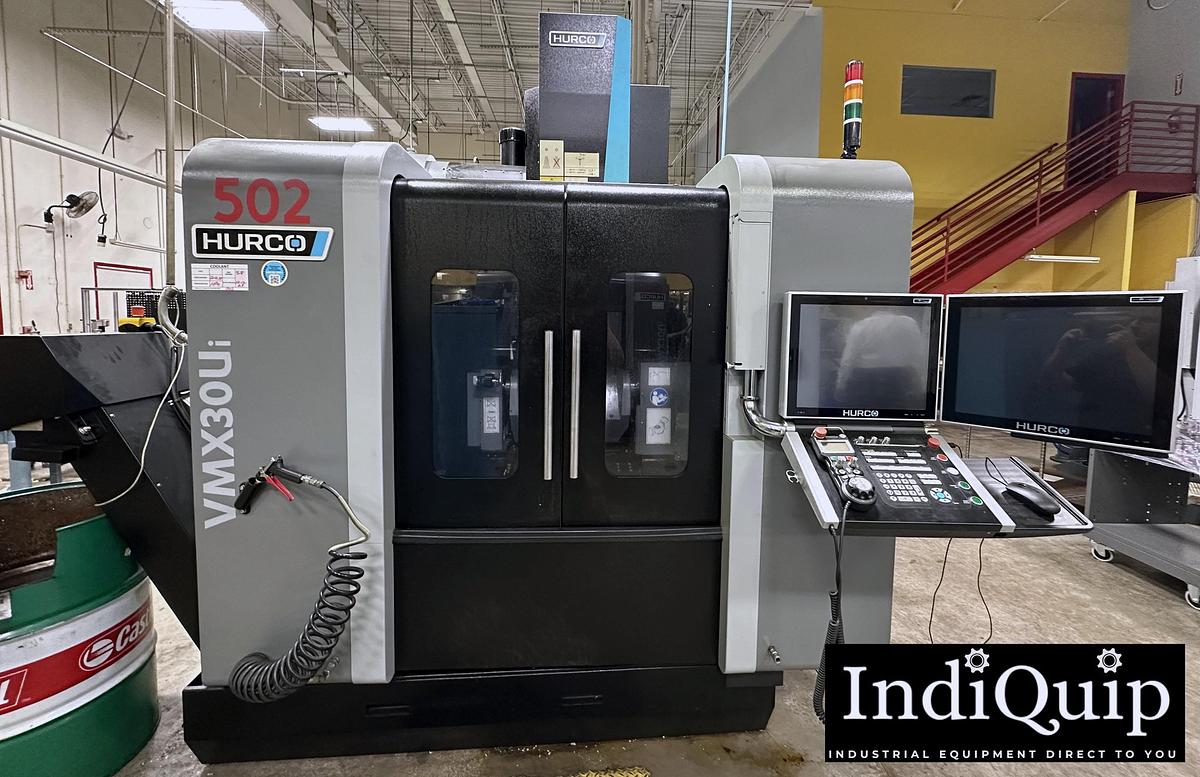

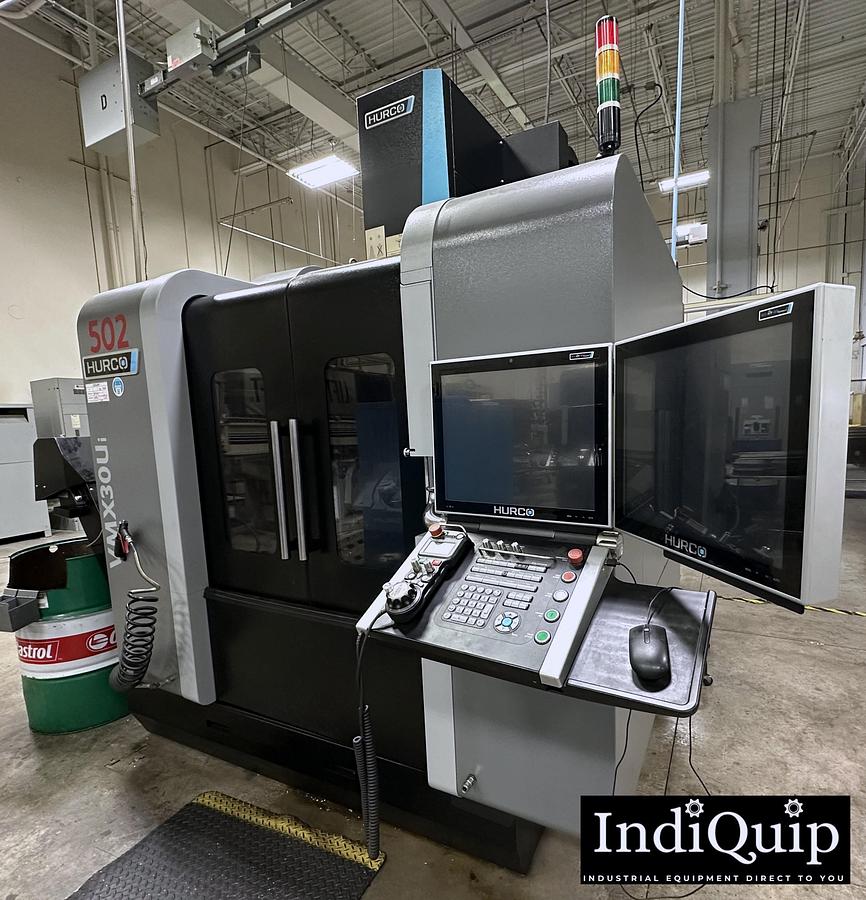

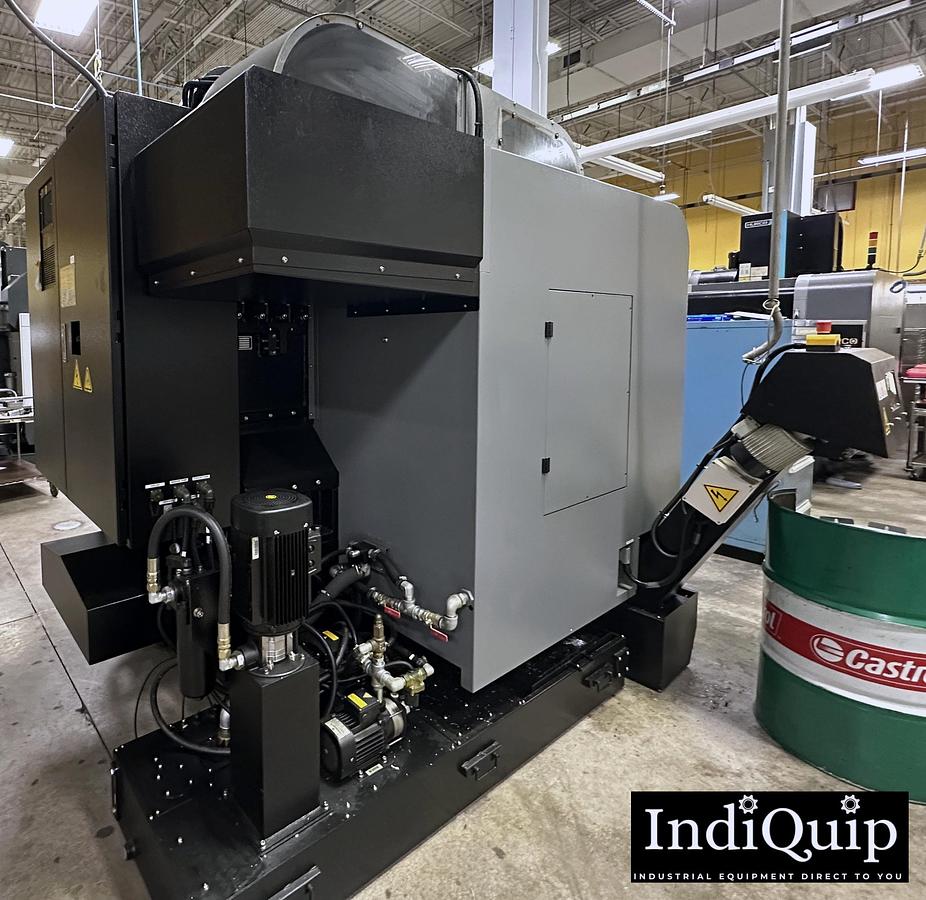

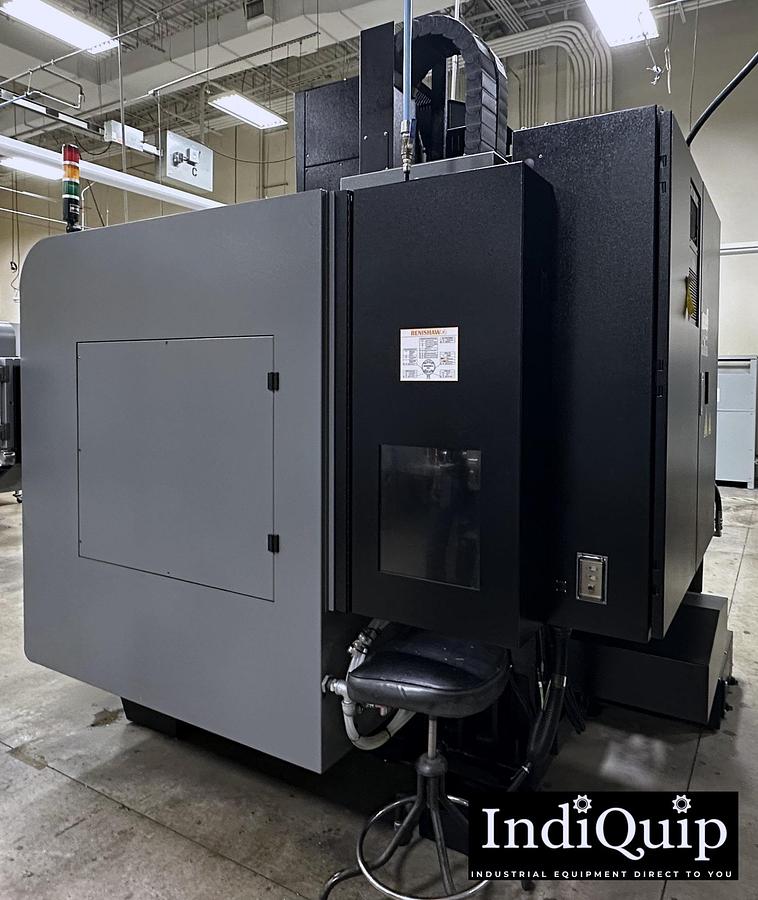

2020 Hurco VMX30Ui 5-Axis CNC Vertical Mill
Description
2020 Hurco VMX30Ui 5-Axis Vertical Machining Center with 12,000 RPM CAT 40 spindle, 40 ATC, and Hurco WinMax dual-screen CNC. Precision 5-axis trunnion machining in a compact footprint.
Equipped With:
- Hurco WinMax Dual-Screen CNC Control
- 5-Axis Trunnion Table (Integrated)
- 12,000 RPM CAT 40 Spindle
- 40-Station Automatic Tool Changer
- Coolant Thru Spindle
- Chip Conveyor
- Dual-Screen Control with USB + Ethernet
- Rigid Tapping
- Full Enclosure
Specifications
| Manufacturer | Hurco |
| Model | VMX30Ui |
| Year | 2020 |
| Condition | Used |
| Stock Number | Q-1792881 |
| Table Diameter | 9.8'' |
| * Max Table Load | 1,320 lbs |
| X Travel | 30'' |
| Y Travel | 20'' |
| Z Travel | 20'' |
| * B-Axis Tilt | +30° / -110° |
| * C-Axis Rotation | 360° continuous |
| * Spindle Speed | 12,000 RPM |
| * Spindle Taper | CAT 40 |
| * Spindle Power | 18 HP |
| * Rapid Traverse (X/Y/Z) | 1,575 IPM |
| * Tool Changer | 40 ATC |
| * Max Tool Weight | 15 lbs |
| * Max Tool Length | 11.8" |
| * Machine Weight | 11,420 lbs |
