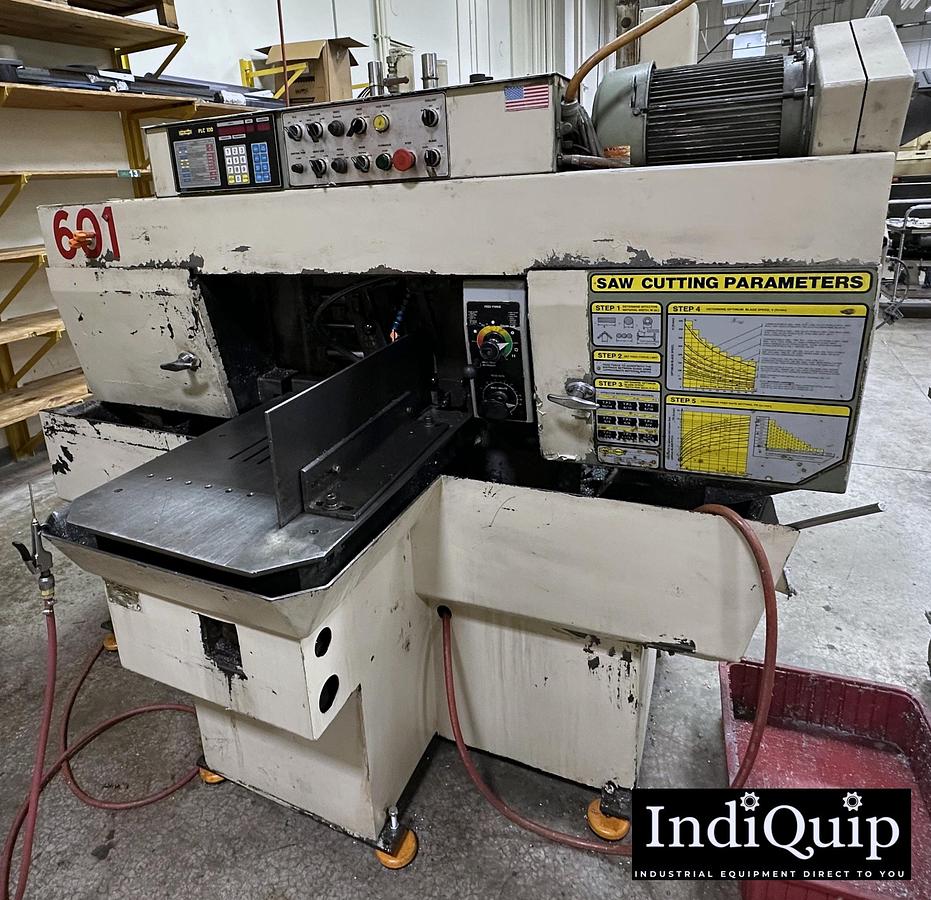

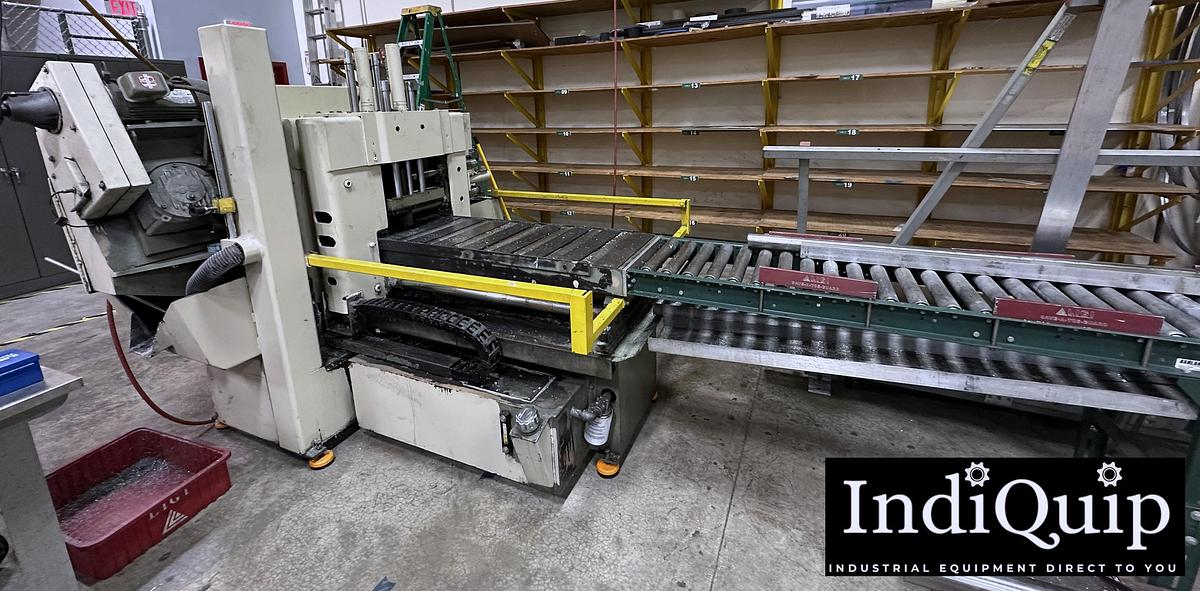

HydMech H12A Horizontal Band Saw

Used Hyd-Mech H12A Horizontal Bandsaw for sale. 12” x 18” cutting capacity, 5 HP motor, automatic shuttle feed, and variable blade speed for reliable metal cutting.

General

• Type: Horizontal, automatic bandsaw
• Model: H12A
• Manufacturer: Hyd-Mech Group Ltd.
• Weight: ~8,000 lbs (3,629 kg)
• Floor Space (L×W×H): ~124" × 87" × 74"

Capacity

• Round Capacity at 90°: 12"
• Square Capacity at 90°: 12" × 12"
• Rectangle Capacity at 90°: 18" × 12"

Blade

• Blade Dimensions: 1 1/2" × 17′ 8"
• Blade Drive Motor: 5 HP
• Blade Speed: 50–350 SFM

Hydraulic System

• Hydraulic head feed and vise clamping
• Automatic shuttle feed (0–34") with multiple indexing

Features

• Cast iron guide arms and hydraulic carbide blade guides
• Powered chip auger
• Shuttle feed with automatic multi-indexing up to 27"
• Hydraulic full stroke vises
• Automatic material height sensor
• Powered blade brush

Electrical

• 230/460V, 3-phase (depending on configuration)
• Control console with push buttons and safety interlocks
