2025 MoldtechSL Waffle Foundation System

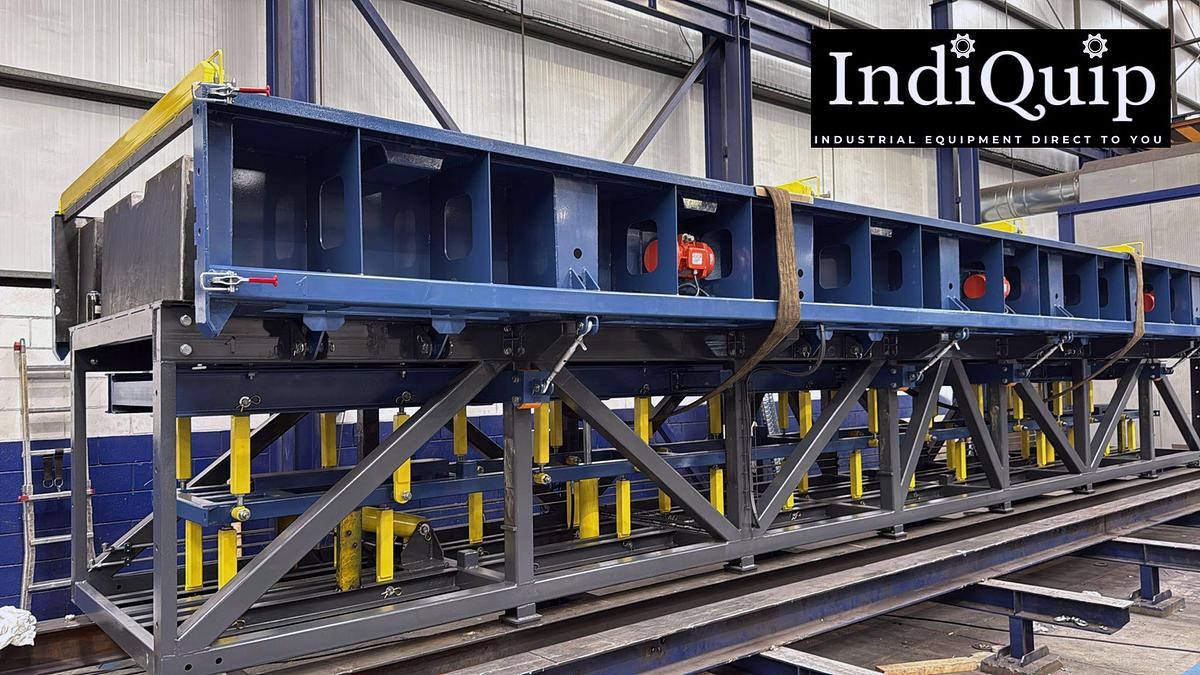

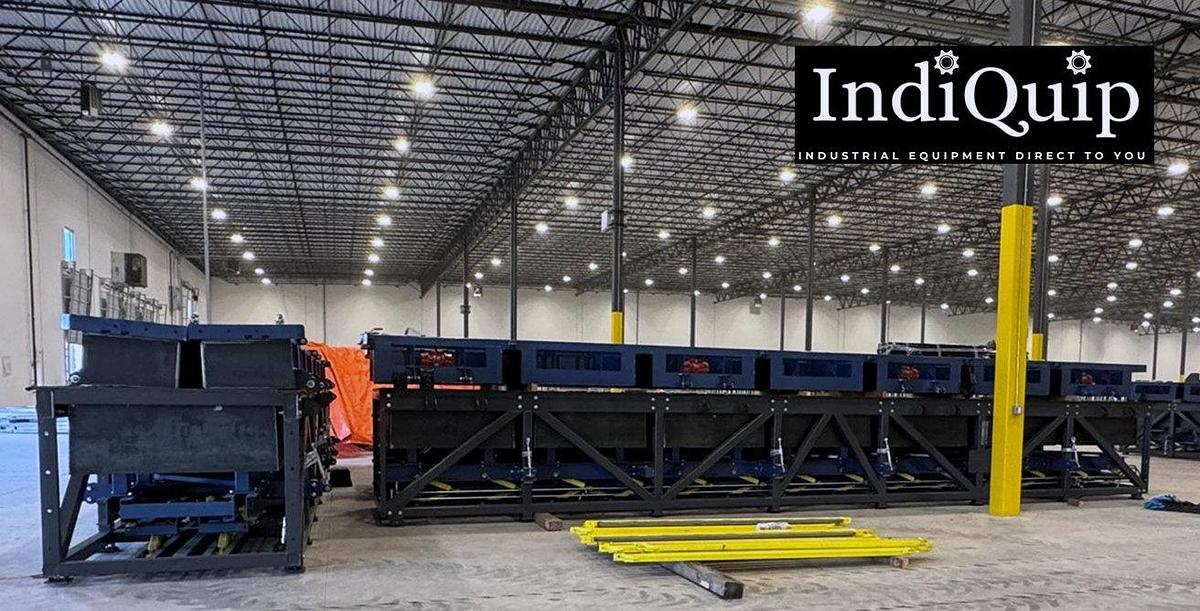

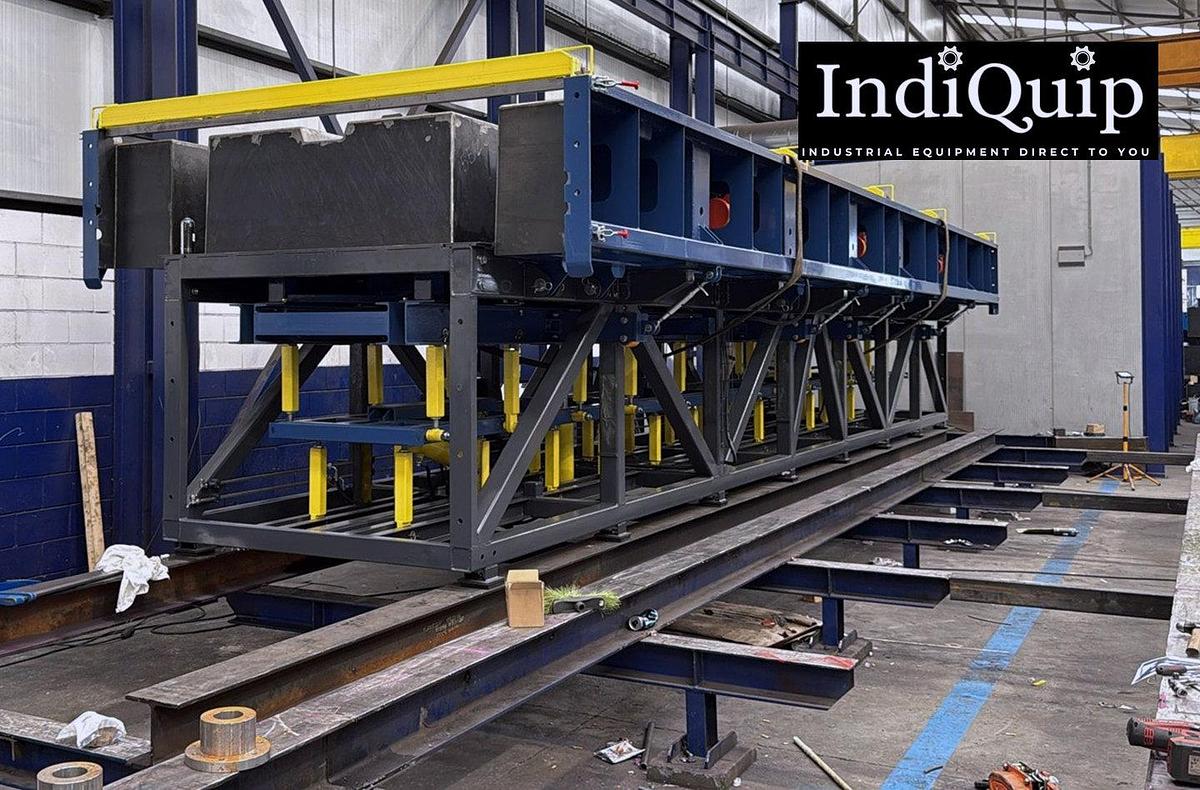

This Waffle Foundation System by MoldtechSL is engineered for efficient and reliable production of large-scale concrete waffle foundations. Built on a heavy-duty structural steel frame, the unit features a fixed mold system with hydraulic opening and closing for ease of operation. The design includes 12 hydraulic cylinders and dual vibrators, ensuring optimal compaction and consistent quality in every cycle.

With a platform size of 16.4 ft × 3.9 ft and a mold height of 39 in, the Waffle Foundation System is capable of producing robust foundation structures for industrial, commercial, and infrastructure projects. The 20 HP hydraulic power pack and 480V 3-phase electrical setup provide the strength and reliability required for continuous operation.

Whether for large construction yards, precast facilities, or infrastructure projects, this system offers a cost-effective and durable solution to high-volume foundation production needs.

Type: Waffle – Outdoor

Mold: Fixed, MoldtechSL

No. of Molds: 1

Hydraulic System: Yes, hydraulic open and close

No. of Hydraulic Cylinders: 12

Platform Size: 16.40 ft × 3.94 ft (5.0 m × 1.2 m)

Height of Waffle Mold: 39.37 in (1000 mm)

Total Height with Base Frame: 59.05 in (1500 mm)

Steel Structure: Heavy-duty structural steel frame with cross-bracing

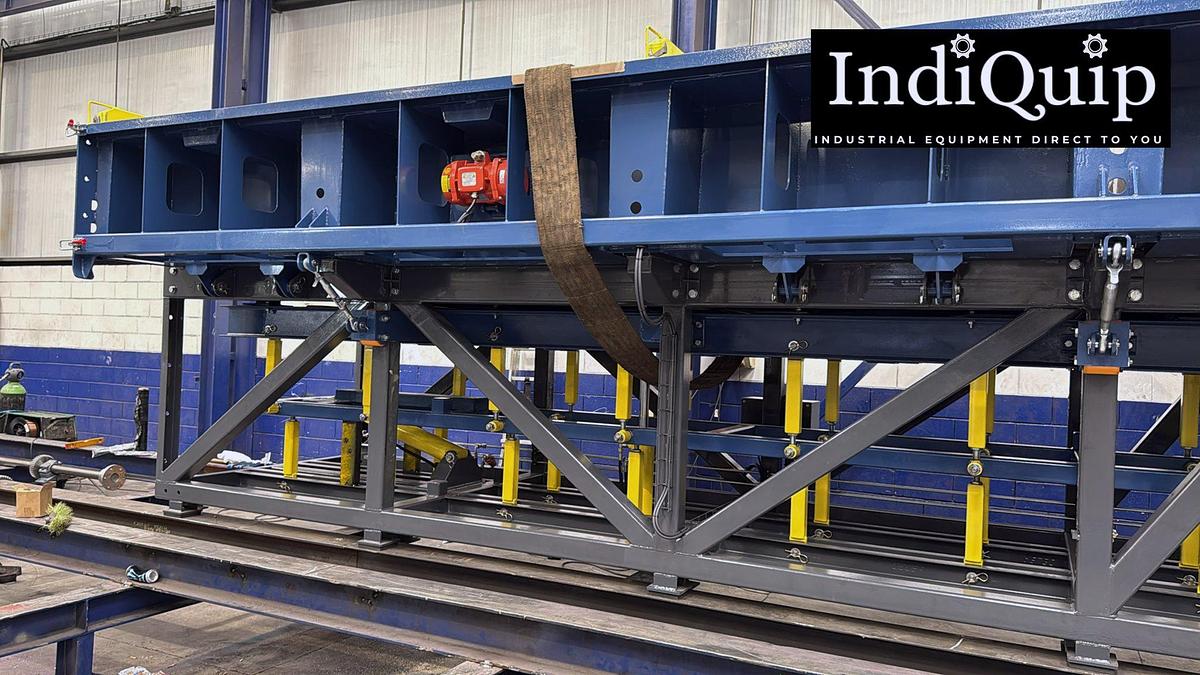

Vibration System: Equipped with 2 electric vibrators for compaction

Hydraulic Power Pack: 20 HP

Electrical Requirements: 480V / 60Hz / 3-phase

Production Capacity: Designed for industrial foundation block manufacturing

Operation: Semi-automatic with hydraulic lifting, lowering, and mold cycling
