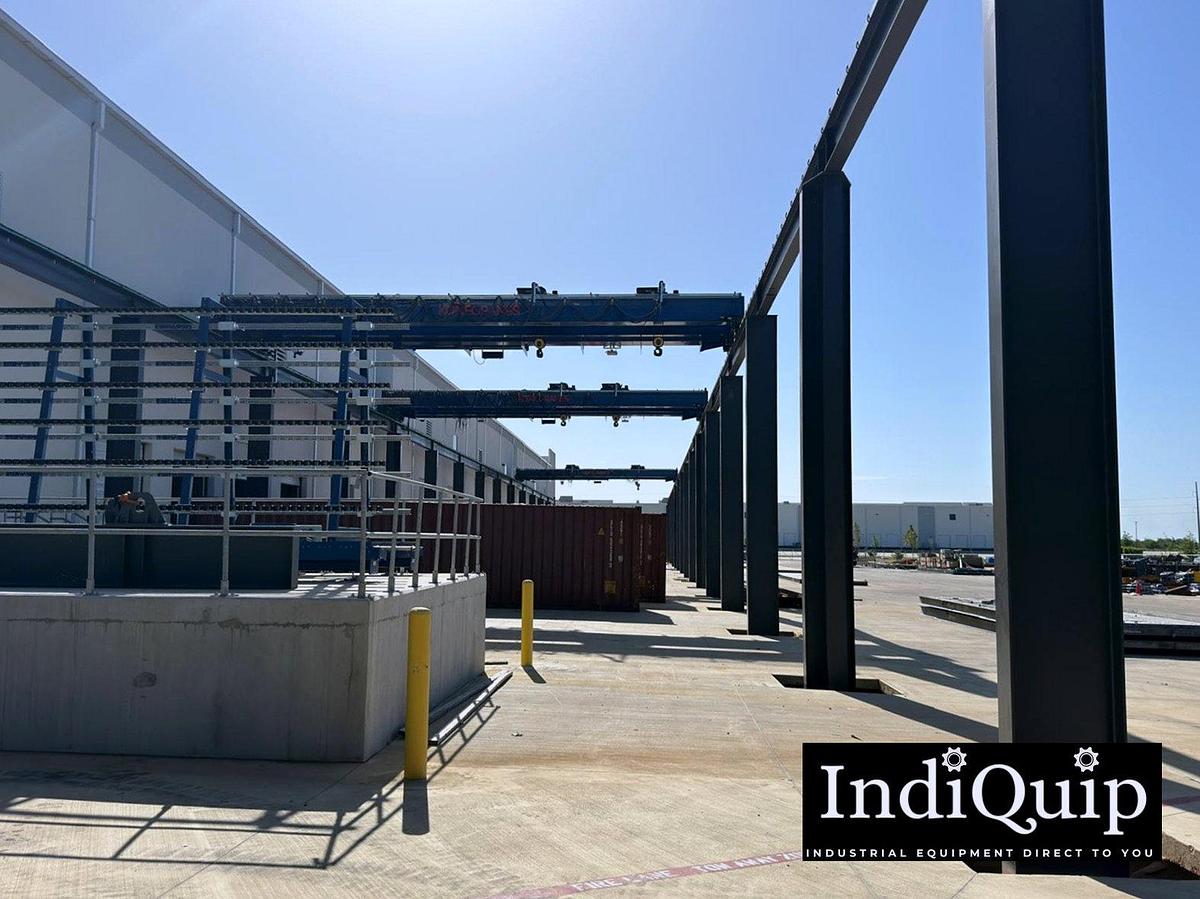

2025 Kone 15 Ton CXTD Double Girder Overhead Crane

The Konecranes 15 Ton CXTD Double Girder Overhead Crane is a heavy-duty outdoor lifting solution designed for large-scale industrial operations. With a 52 ft span and dual 7.5-ton CXT wire rope hoists, this system delivers a combined 30,000 lb lifting capacity and a maximum hook height of 27 ft.

Engineered for precision and efficiency, the crane is equipped with VFD controls on all motions, delivering smooth operation at up to 100 ft/min bridge speed, 65 ft/min trolley speed, and dual-speed hoisting for both heavy lifting and controlled positioning.

Safety and reliability are built-in with overload protection, anti-collision systems, IP66-rated motors and panels, load displays, storm locks, and rain covers. Operators can manage loads via pendant or wireless radio remote control, ensuring both flexibility and safety.

This Konecranes CXTD system is a turnkey solution for demanding material handling environments.

• Capacity: 15 Ton total (2 × 7.5 Ton CXT Hoists)
• Span: 52 ft (15.8 m)
• Lifting Height: 27 ft (8.2 m) [Max hook height 29′-2″]
• Crane Weight with Hoist: 23,170 lbs
• Static Wheel Load: 21.5 kips
• Runway Rail Type: ASCE30
• Runway Length: 459 ft (freestanding, 17 bays at 27 ft spacing)
• Voltage: 460V / 60 Hz / 3Ph (VFD control)
• Ambient Temperature Range: 14 – 104 °F
• Duty Class: CMAA C / ISO M6
• Finish: ENA 5 mil, SW Colors

Hoists (2 Units)

• Model: CXT5041008OS5 wire rope hoists
• Capacity per Hoist: 15,000 lbs
• Duty Group: ISO M6
• Trolley Type: Double girder trolley
• Reeving Type: True lift

Speeds (VFD Controlled)

• Hoist Speed: 22 ft/min (normal), 0.43 ft/min (creep)
• ESR Hoisting Speed: 25 ft/min
• Trolley Travel Speed: 65 ft/min
• Bridge Travel Speed: 100 ft/min

Motors

• Hoist Motors: 14.8 HP × 2 (60% ED)
• Trolley Motors: 0.5 HP × 2 per hoist (40% ED)
• Bridge Travel Motors: 4 × 1.8 HP (40% ED)

Controls

• Operation: Pendant + Radio Remote Control (Telecontrol/Joy)
• Drive Control: VFD for hoist, trolley, and bridge

Safety & Features

• Overload protection device
• Carburized & ground gearing (AGMA 11)
• Rope guides (prevent rope overlap)
• Squirrel cage motors with DC disk brakes
• Thermal protection on motors
• 4-step geared upper limit switch
• Anti-collision sensors with direction monitoring
• Beacon and siren for travel movement
• Load display on bridge
• Condition monitoring sensors
• Rain covers for motors, hoists, panels
• IP66 protection on motors and control panels
• Emergency stop & storm lock devices
• Full-length service platform on bridge
