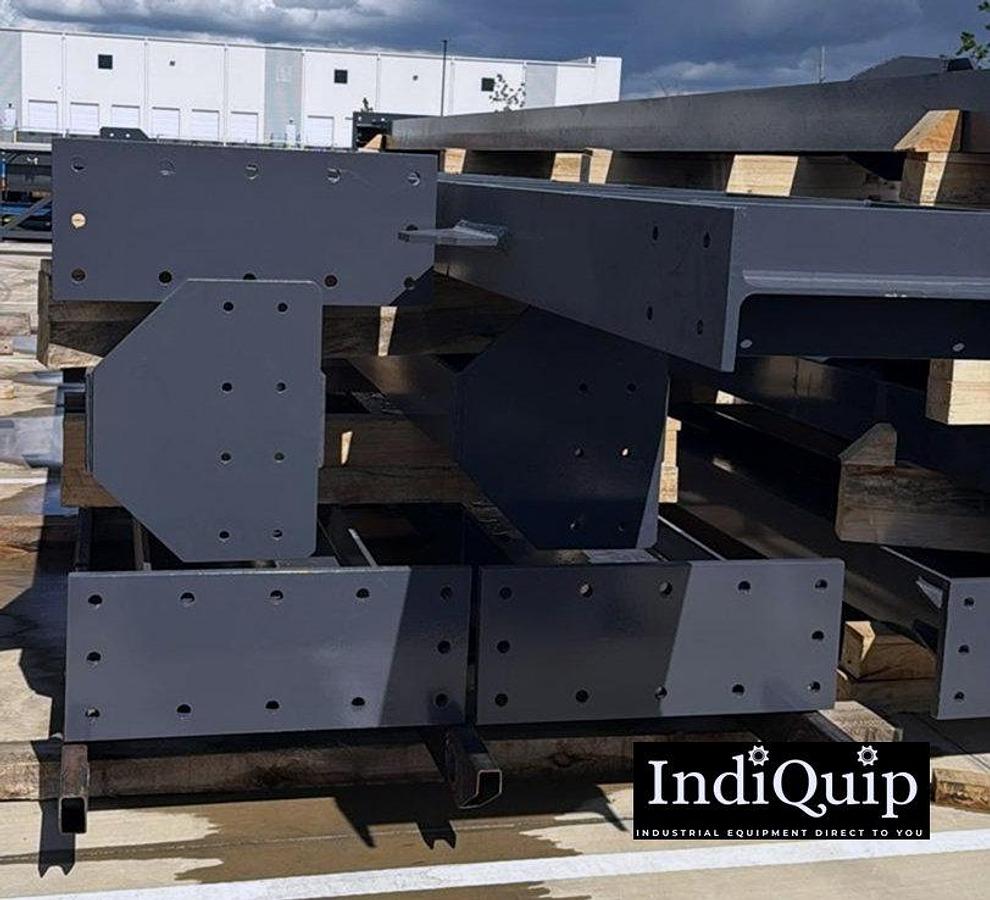

2025 Prowinch 16 Ton Outdoor Overhead Crane

The Prowinch 16 Ton Outdoor Overhead Crane is designed for heavy-duty lifting and long-span coverage in industrial yards, steel fabrication plants, and construction sites. With a 65 ft span, 30 ft lifting height, and 375 ft travel distance, this crane provides robust capacity and reliable outdoor performance.

Equipped with a 20 kW Prowinch hoist, SEW drive motors, and Schneider VFDs on all motions, the crane ensures smooth acceleration, variable speed control, and precise positioning. Operators benefit from dual control options – pendant and wireless radio remote (Telecontrol/Joy) – as well as tandem operation for synchronized lifts.

Built for continuous duty (M6 service class), the crane integrates advanced safety features including anti-collision units, load monitoring, beacon and siren alerts, and IP66-rated electrical protection. Additional features include bridge lighting, canopy protection, and heavy-duty 60 × 40 mm rails for outdoor durability.

This turnkey system is engineered to handle demanding workloads while providing long service life, operator safety, and high efficiency in outdoor environments.

• Capacity: 16 Ton
• Span: 65 ft
• Lifting Height: 30 ft
• Long Travel Distance: 375 ft
• Column Spacing: 24 + 27 + … 24 ft
• Ambient Temperature Range: –20°C to +50°C
• Service Class (ISO/CMMA): M6 : C
• Voltage: 460V, 60 Hz, 3-phase
• Drive Control: VFD on all motions (Schneider)
• Hoist Make: Prowinch (20 kW)
• Motor Brand: SEW
• Control Options: Pendant + Radio Remote Control (Telecontrol/Joy)
• Tandem Operation: Included

Performance

• Cross Travel Speed: 16 – 65 ft/min
• CT Motor Rating: 0.95 kW × 2
• Long Travel Speed: 20 m/min (standard), 5.0 m/min (creep)
• Long Travel Motor Rating: 1.1 kW × 2
• Hoist Speed: 0.8 – 4.6 m/min
• Hoist Motor Rating: 20 kW

Safety & Features

• Anti-collision system included
• Limit switches for CT & LT
• Load indication display
• Beacon & siren alarms
• IP66-rated motors and control panels
• Bridge lighting & canopy protection
• Heavy-duty rail system: 60 × 40 mm
