Moldtech S.L. Single and Double Staircase Molds

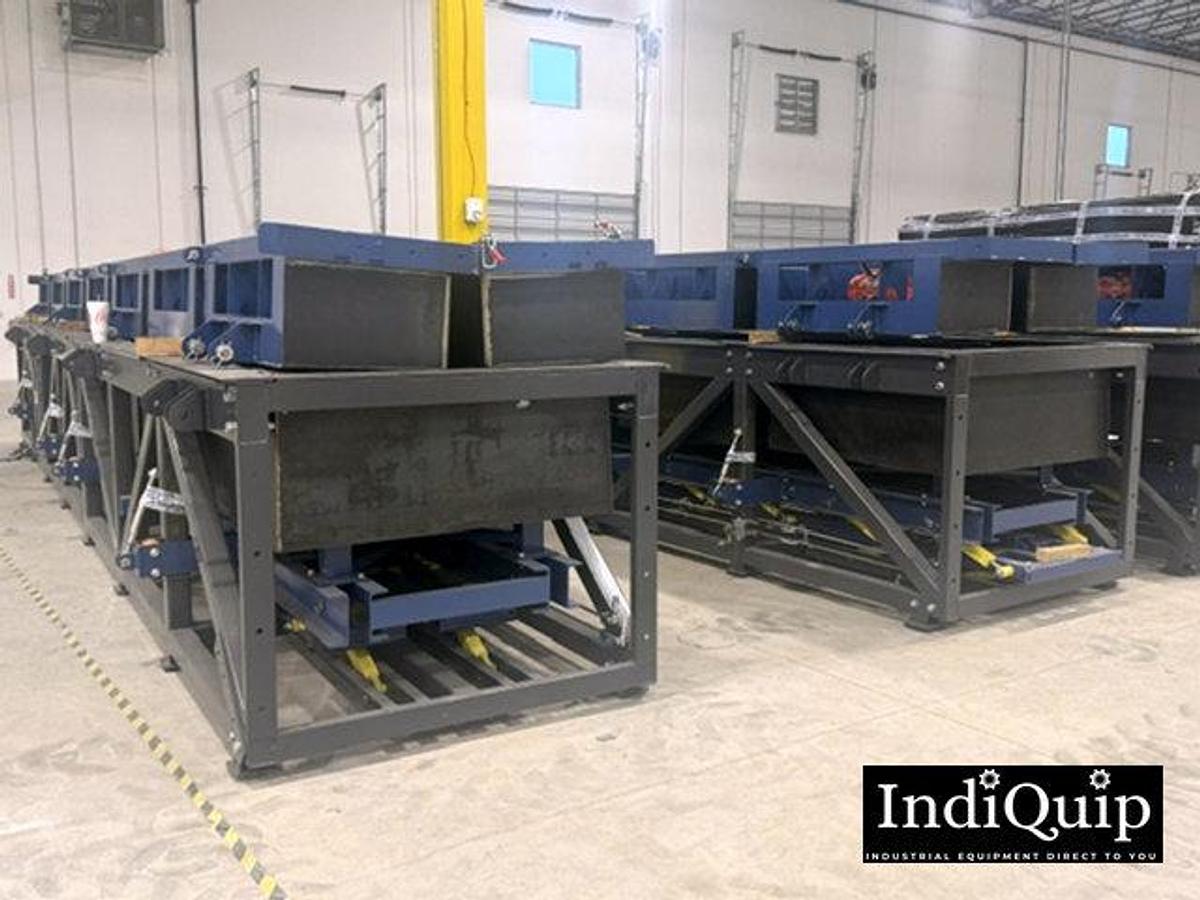

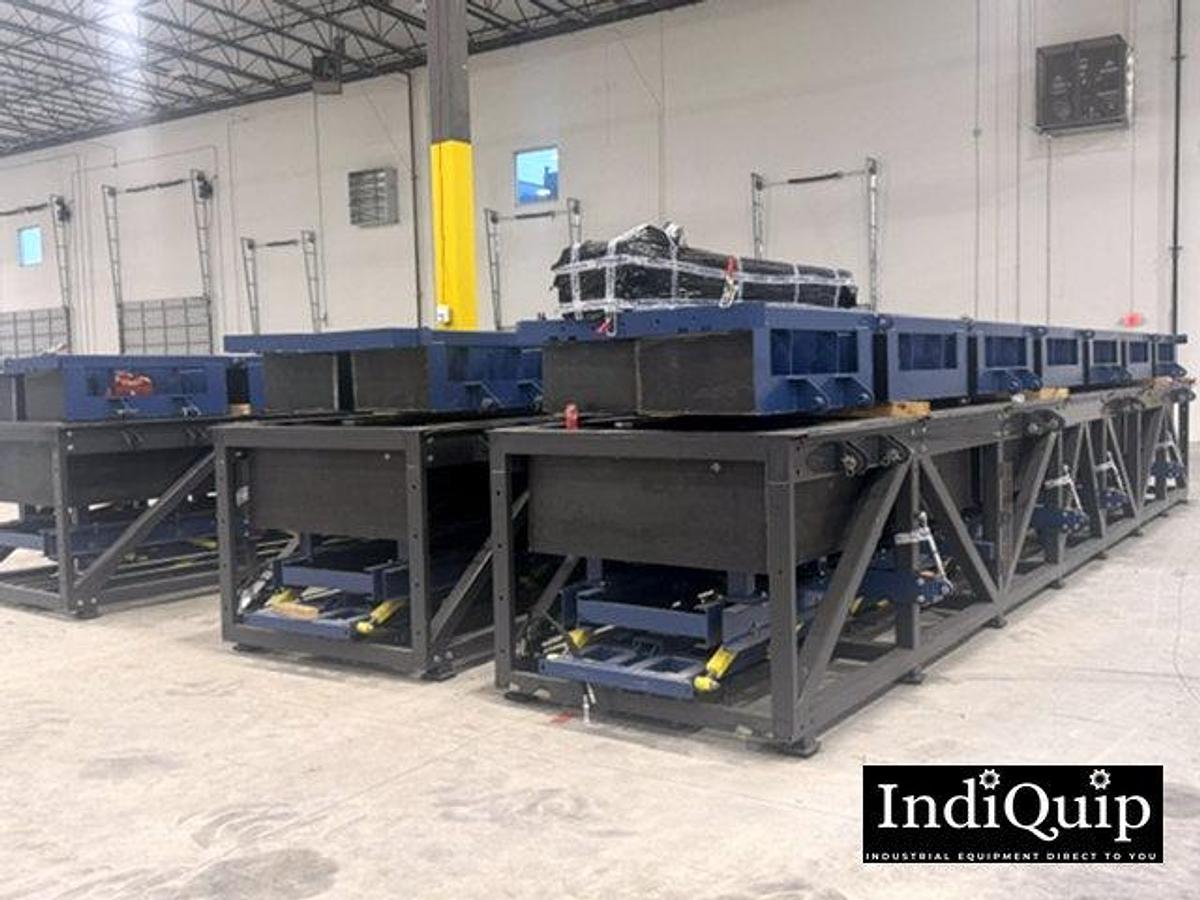

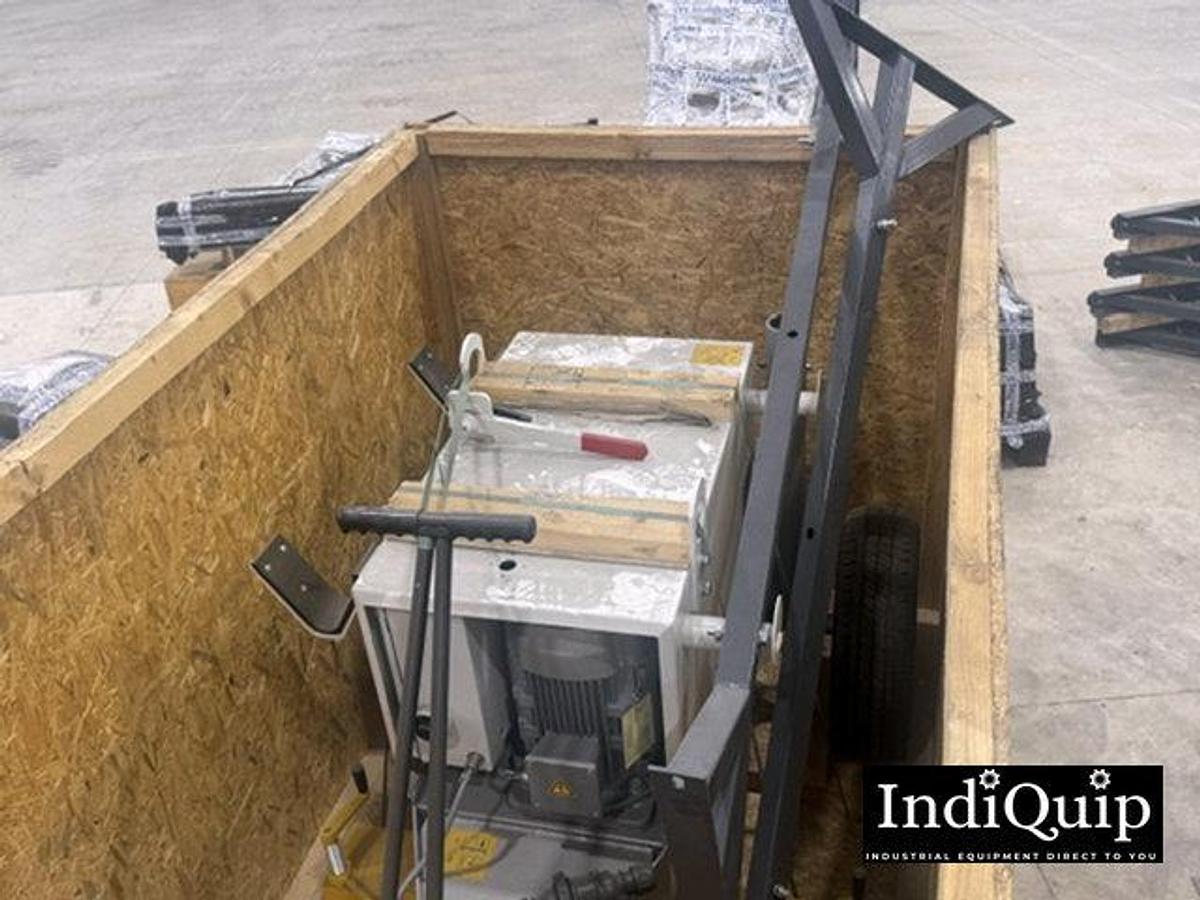

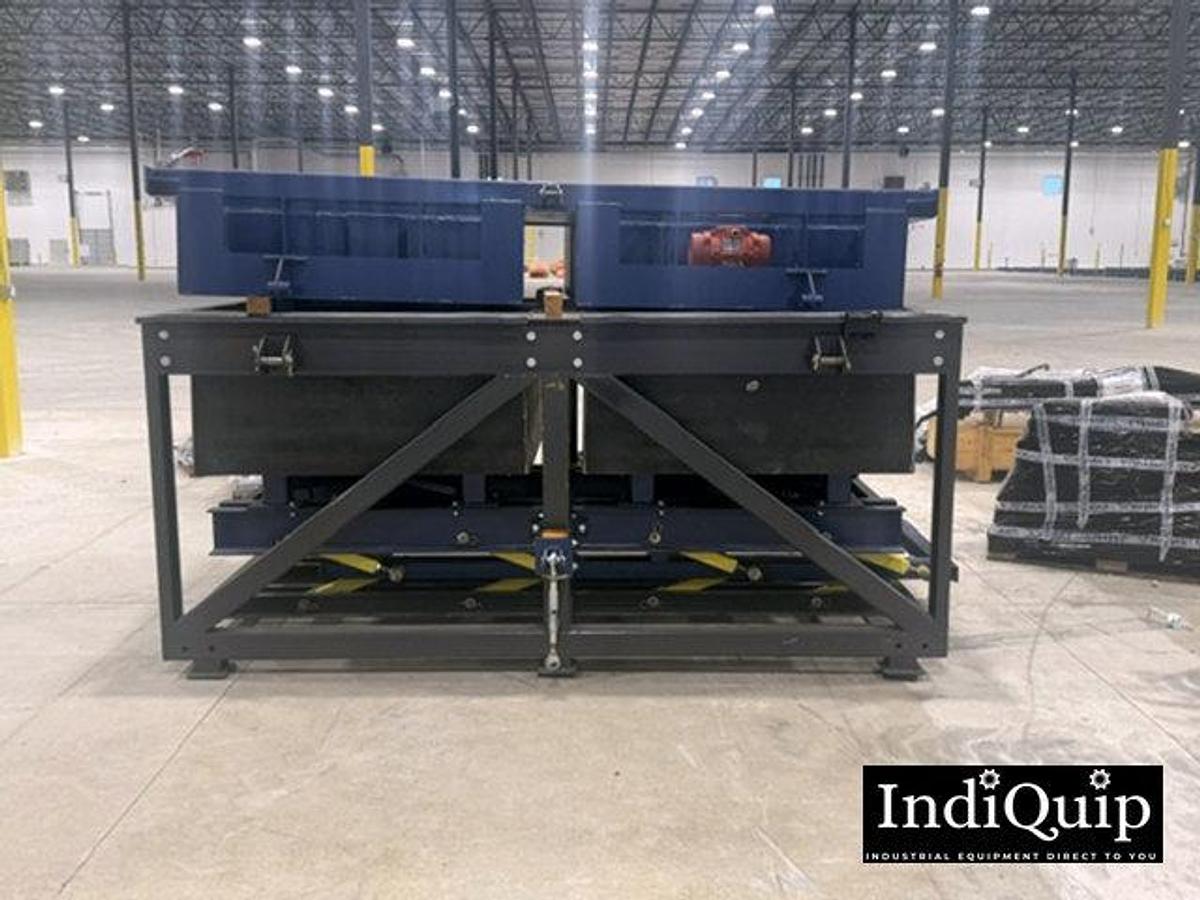

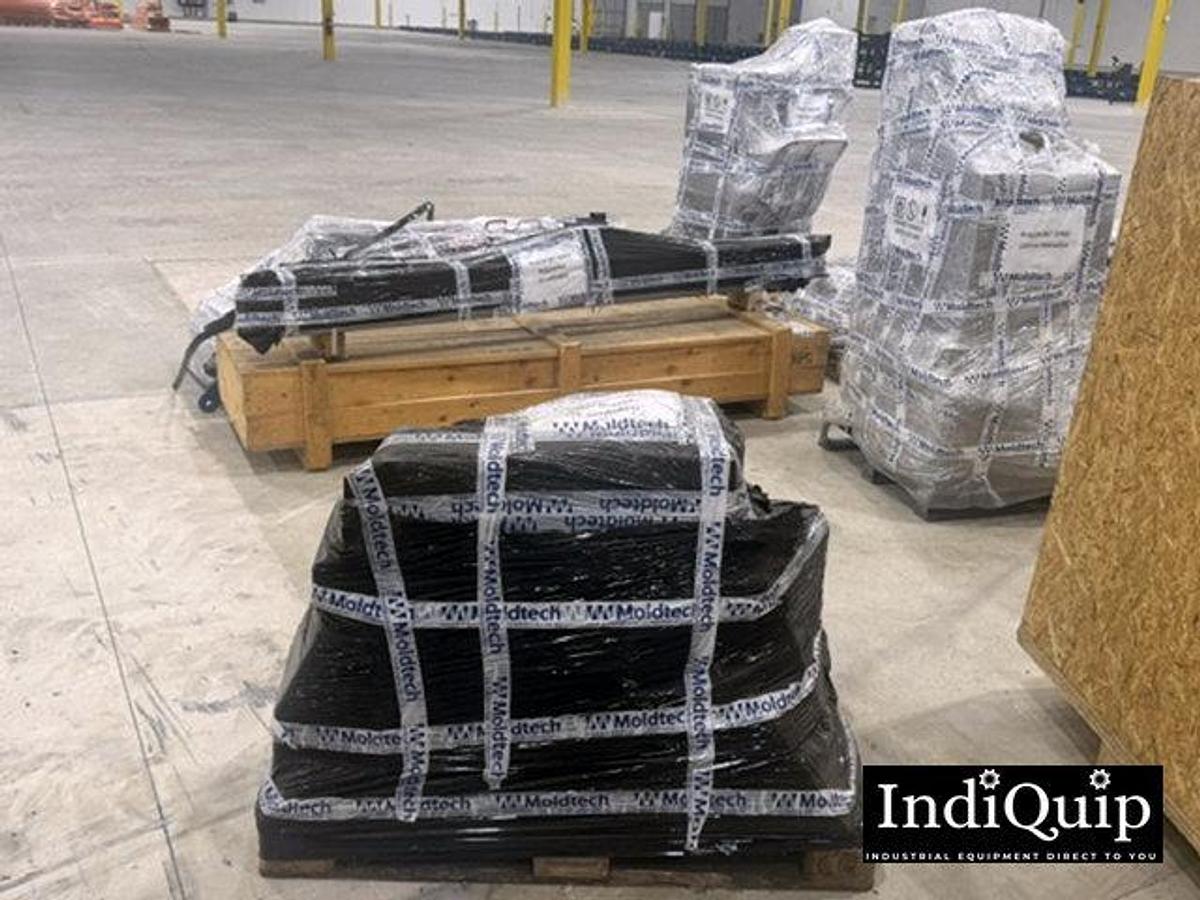

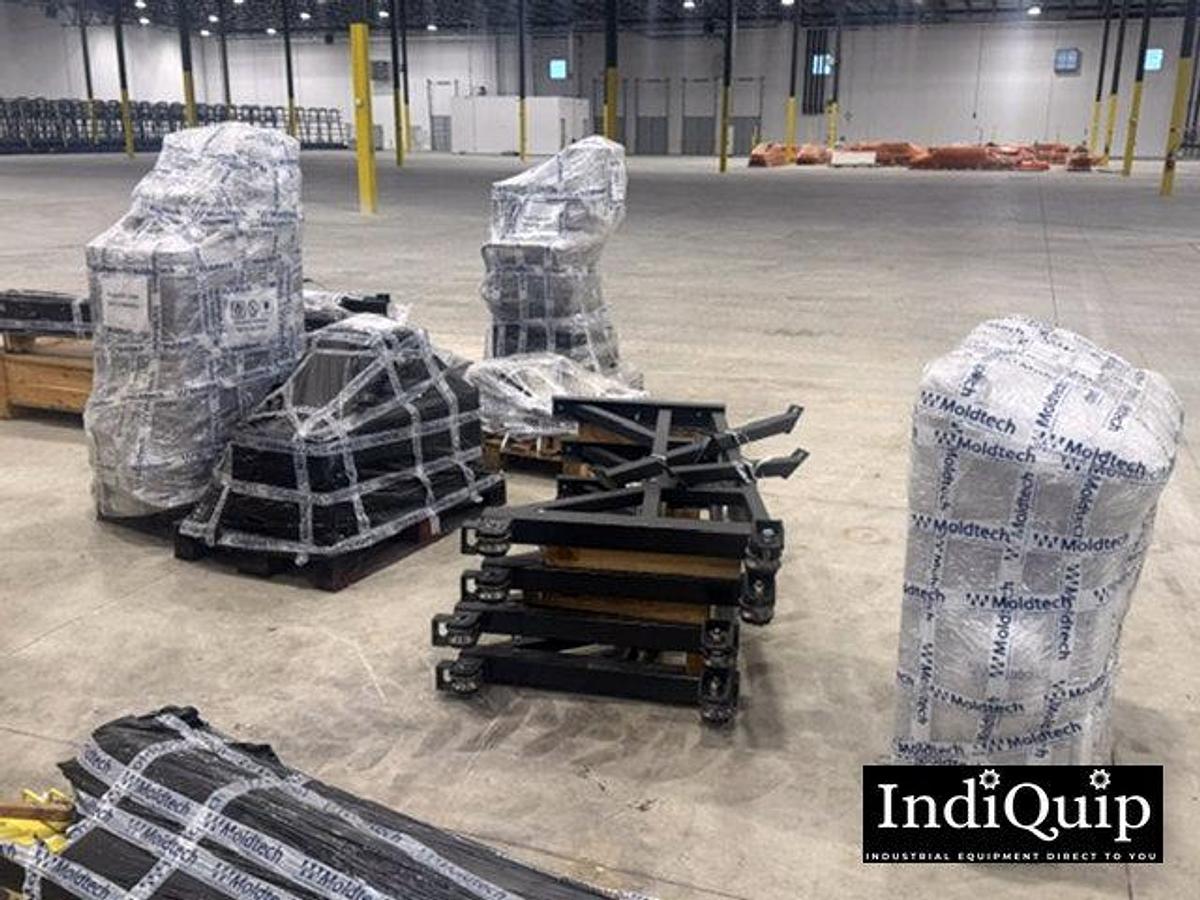

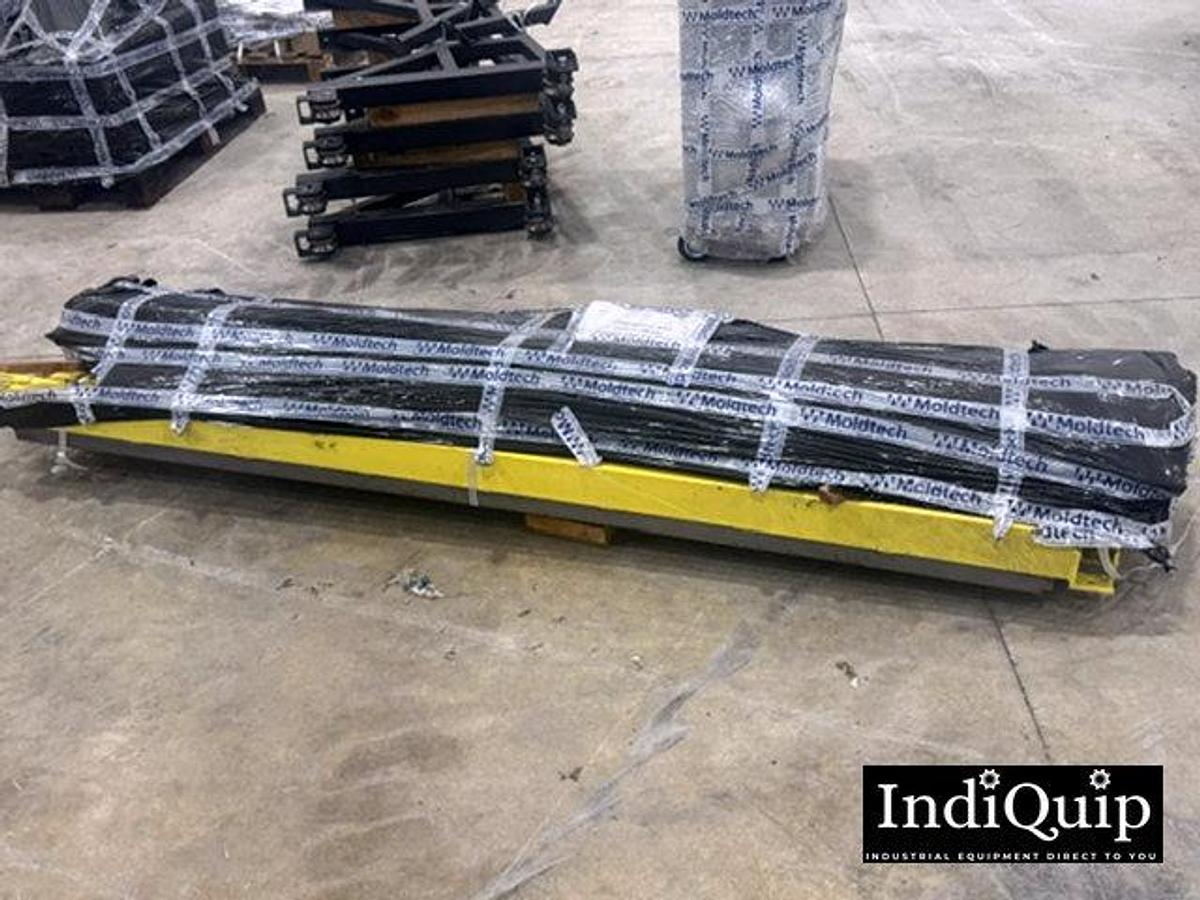

This lot includes two Moldtech vertical molds for producing precast concrete staircases: a single staircase mold and a double staircase battery mold. Both are fixed vertical molds with hydraulic opening, electric vibration systems, and 480V / 60Hz electrical components. Many components are still in Moldtech factory packaging.

The single staircase mold casts one stair per cycle. Per the manufacturer specification, it produces a 16-step stair with one landing, a 7 1/2" riser, and a maximum stair width of 3' 6". It is equipped with four electric vibrators, and its overall footprint is 20' 7 3/4" × 7' 6 1/2" × 5' 7".

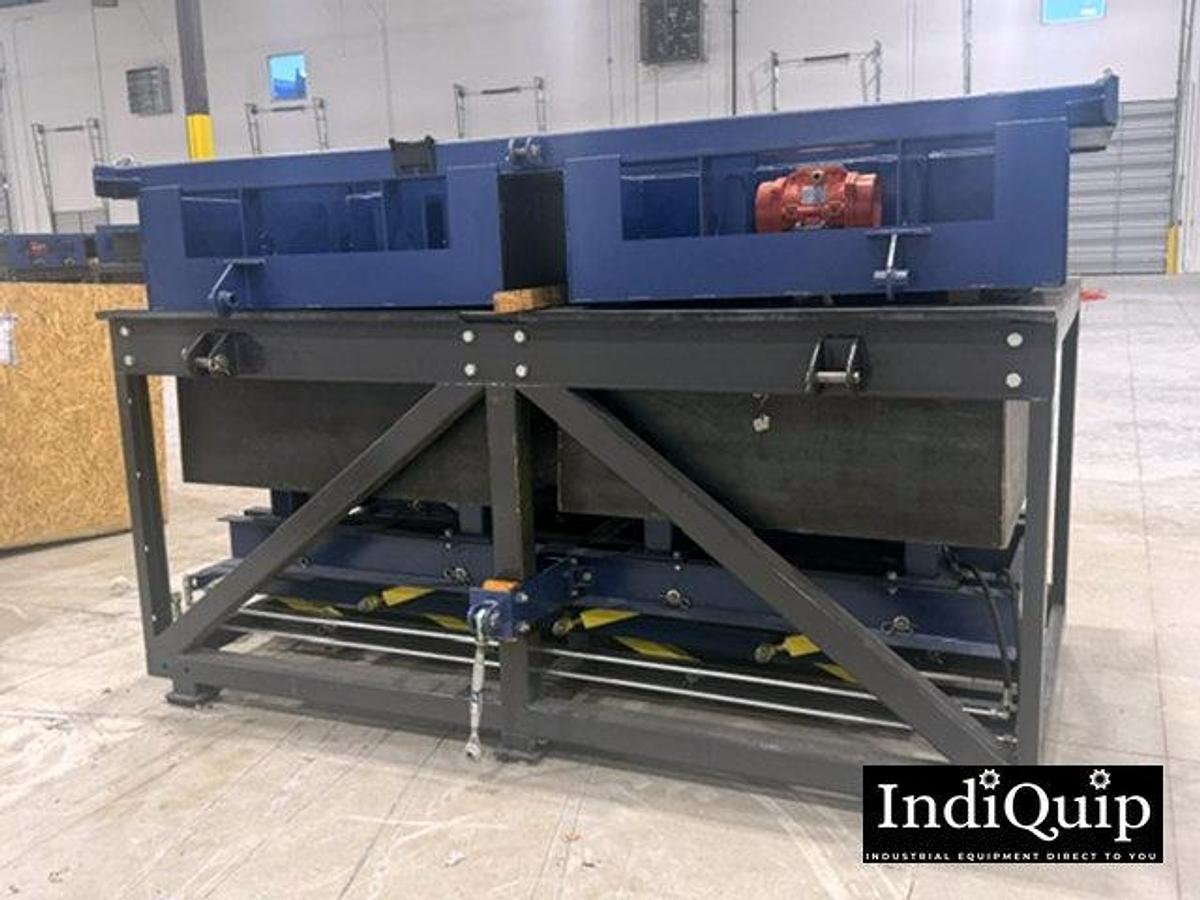

The double staircase battery mold casts two stairs per cycle. Each stair has nine steps and two landings, with a 7 1/2" riser, 7 1/2" landing thickness, and a maximum stair width of 3' 6". It is equipped with six electric vibrators and includes a working platform. Its overall footprint is 11' 10 3/4" × 13' 3 1/2" × 5' 7 1/4".

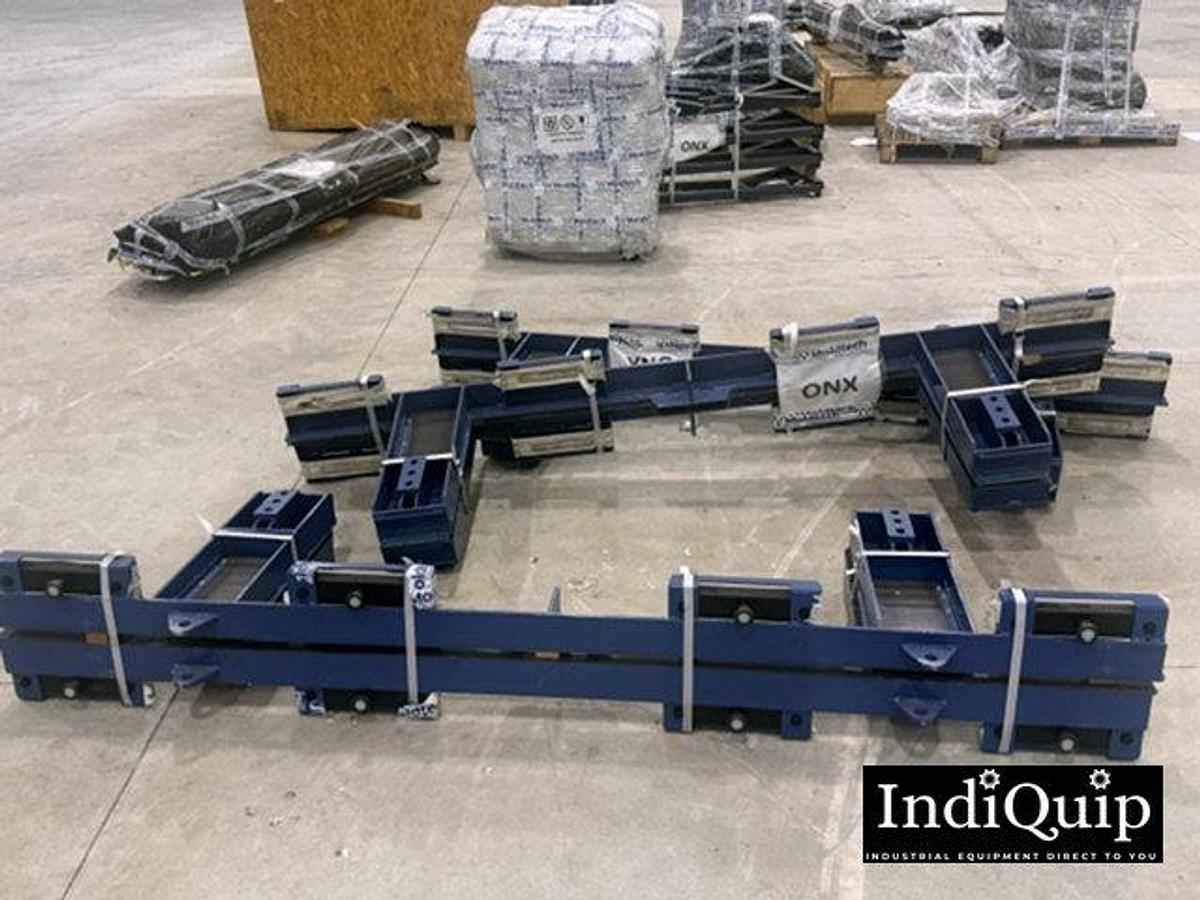

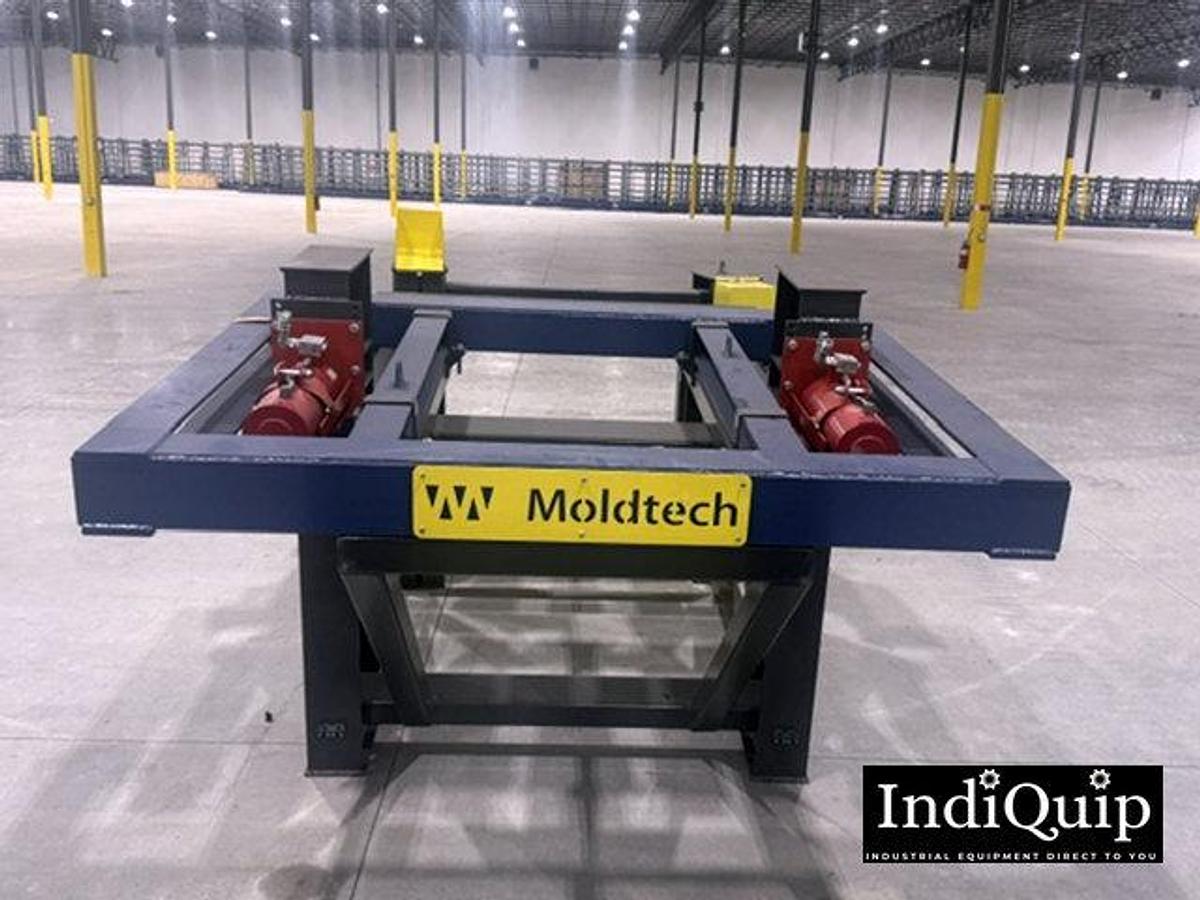

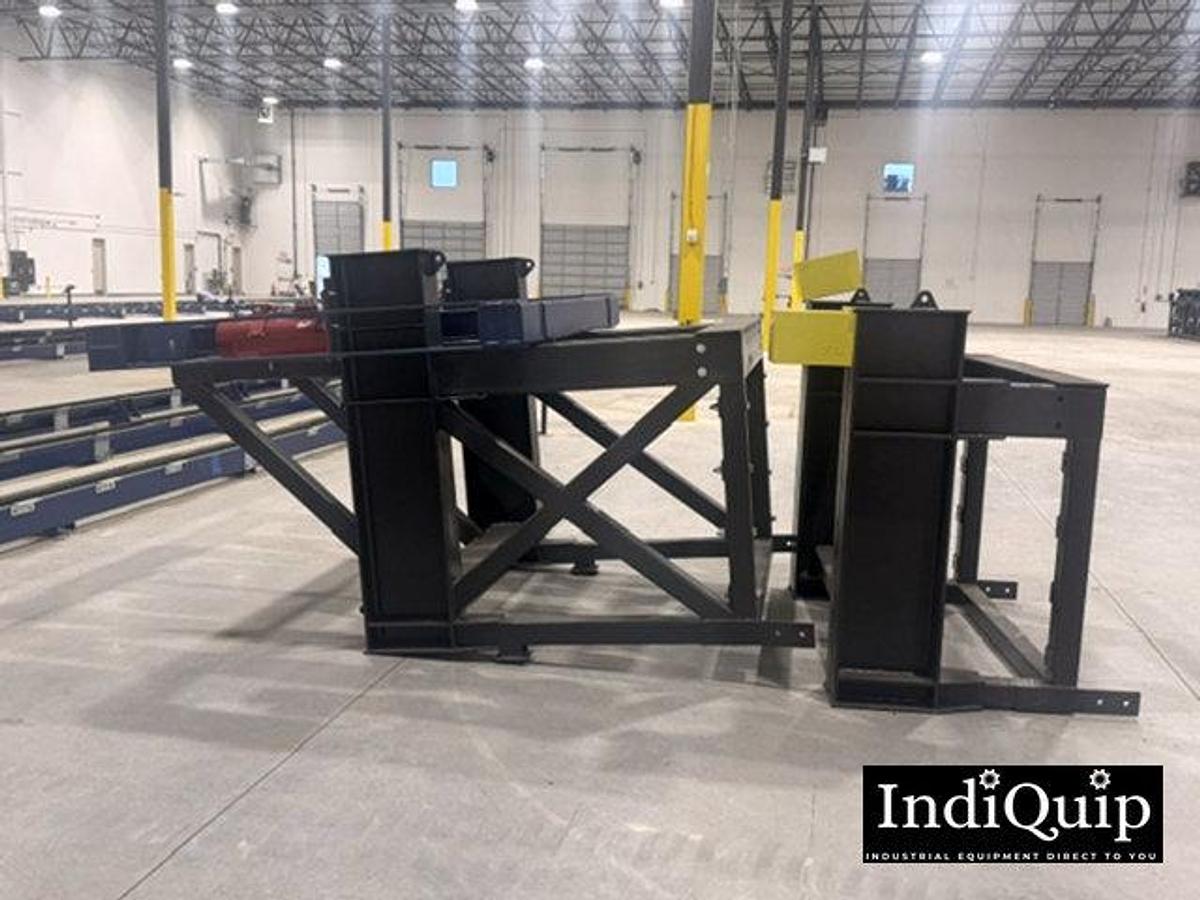

The manufacturer specifies both molds as UL certified, painted, and suitable for outdoor installation. Each mold sits on rail-mounted base frames with anchored support points. Moldtech general arrangement drawings, including foundation load reactions, are available.

Specifications: Single Staircase Mold

• Mold Type: Vertical, fixed
• Stairs per Casting: 1
• Steps: 16
• Landings: 1
• Riser: 7 1/2" (191 mm)
• Tread: 11" (279 mm, per drawing)
• Maximum Stair Width: 3' 6"
• Overall Dimensions: 20' 7 3/4" × 7' 6 1/2" × 5' 7" (6,291 × 2,300 × 1,702 mm)
• Electric Vibrators: 4
• Vibration System: Included
• Hydraulic Opening: Included
• Electrical: 480V / 60Hz
• UL Certification: Per manufacturer specification
• Installation: Outdoor rated
• Finish: Painted

Specifications: Double Staircase Battery Mold

• Mold Type: Vertical battery, fixed
• Stairs per Casting: 2
• Steps: 9 per stair
• Landings: 2 per stair
• Landing Length: 3' 7 1/2"
• Landing Thickness: 7 1/2"
• Riser: 7 1/2" (189 mm)
• Tread: 10" (254 mm, per drawing)
• Maximum Stair Width: 3' 6" (1,067 mm)
• Connection Section: 1' 1 7/8" long × 7" thick
• Overall Dimensions: 11' 10 3/4" × 13' 3 1/2" × 5' 7 1/4" (3,623 × 4,054 × 1,708 mm)
• Electric Vibrators: 6
• Vibration System: Included
• Working Platform: Included
• Hydraulic Opening: Included
• Electrical: 480V / 60Hz
• UL Certification: Per manufacturer specification
• Installation: Outdoor rated
• Finish: Painted
