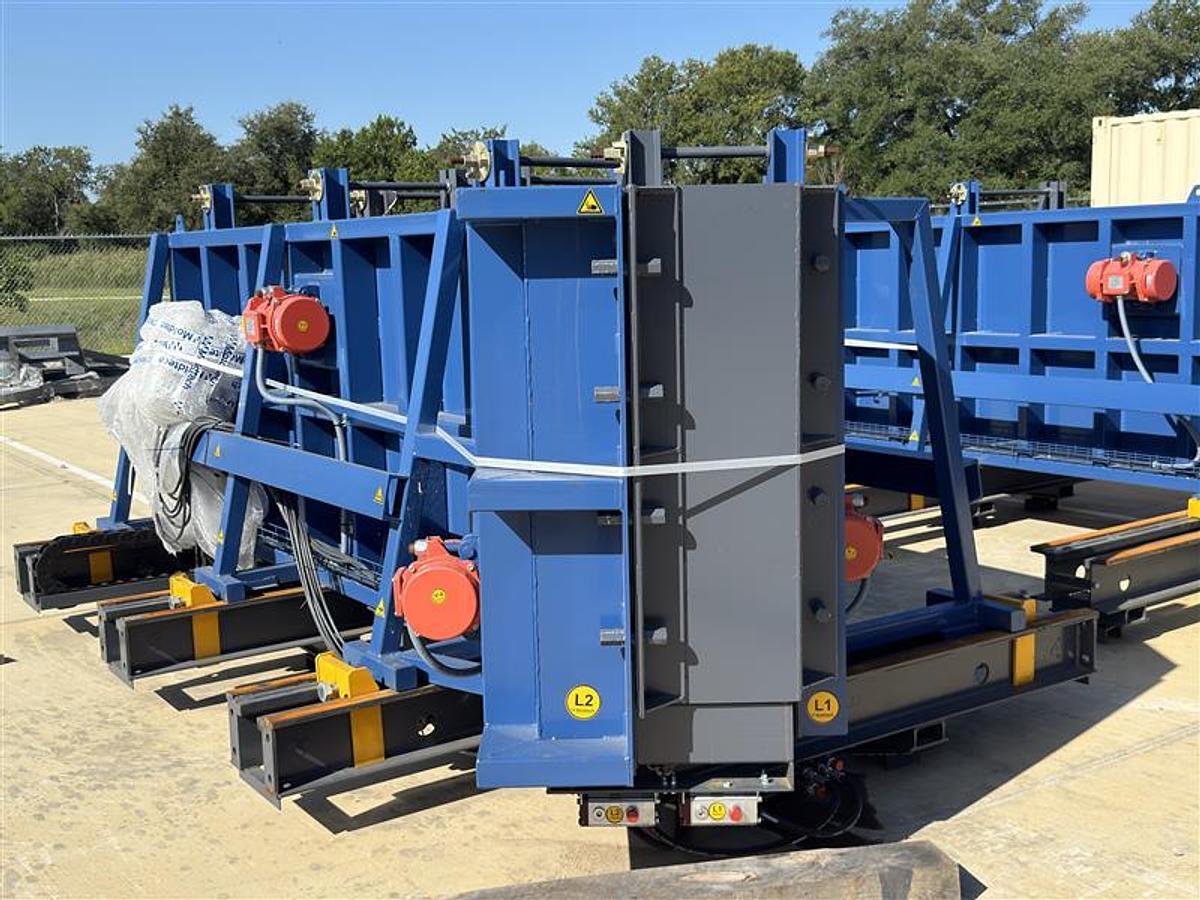

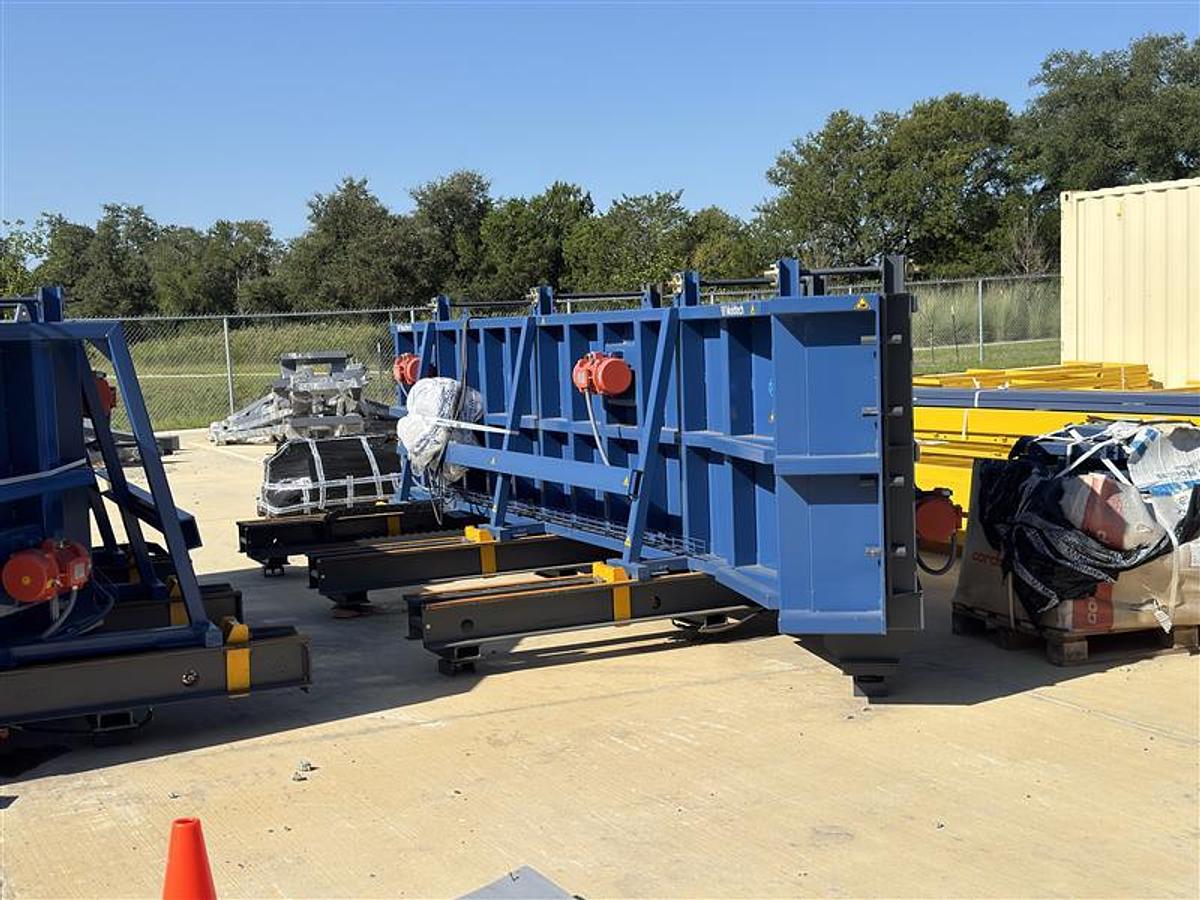

Moldtech S.L. Single and Double Staircase Moulds

The Moldtech Precast Staircase Moulds (Single and Double) are designed for high-quality production of reinforced concrete staircases in industrial precast yards. Manufactured from heavy-duty welded steel and precision-machined to ISO tolerances, these moulds ensure dimensional accuracy and repeatability.

Double Staircase Mould

• Manufacturer: Moldtech S.L.
• Type: Fixed steel precast mould for double staircase production
• Design Date: 03/12/2024
• General Tolerances:
• Flatness: ±4 mm over 4 m
• Linearity: ±4 mm over 4 m
• Parallelism: ±4 mm over 4 m
• Overall dimension tolerance: ±6 mm
• Stair Geometry (approx.):
• Total rise ~3.45 m (11′-3″)
• Stair width ~2.27 m (7′-5″)
• Landing depth ~1.37 m (4′-6″)
• Inclination ~38°
• Load Reactions: multiple reaction points up to 6 kN each
• Structure: Heavy-duty welded steel frame with hydraulic opening/closing

Single Staircase Mould (Drawing Ref: 24310-00)

• Manufacturer: Moldtech S.L.
• Type: Fixed steel precast mould for single staircase production
• Design Date: 02/12/2024
• General Tolerances:
• Flatness: ±4 mm over 4 m
• Linearity: ±4 mm over 4 m
• Parallelism: ±4 mm over 4 m
• Overall dimension tolerance: ±6 mm
• Stair Geometry (approx.):
• Total length ~6.29 m (20′-8″)
• Total rise ~3.35 m (11′)
• Stair width ~1.29 m (4′-3″)
• Landing depth ~2.3 m (7′-6″)
• Inclination ~36–38°
• Load Reactions: multiple points with forces up to 12 kN
• Structure: Modular welded steel frame with adjustment points
