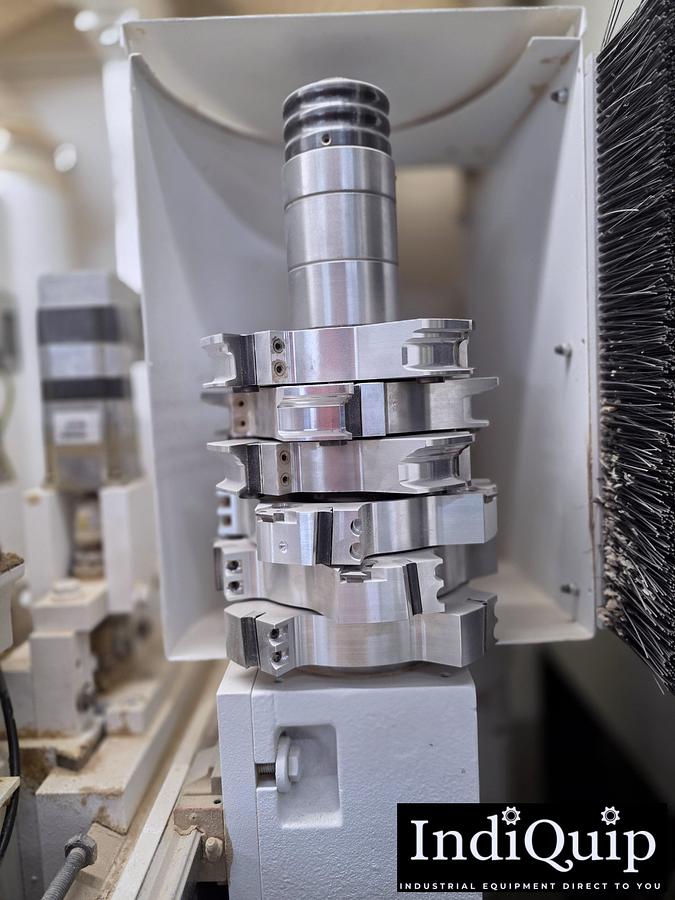

The Vertongen Shaper Sizer is a European-built machining center designed for precision profiling, shaping, and sizing applications. Equipped with a multi-head cutter stack and heavy-duty industrial control panel, it delivers consistent, high-accuracy production performance for wood component manufacturing.

Spindles (1 & 2)

• Motor Power: 10 HP (7.5 kW)
• Spindle Speed: 7,200 RPM @ 60 Hz
• Spindle Diameter: 300 mm (11.8") with Prolock, 50 mm bore
• Positioning: CNC-controlled horizontal & vertical
• Vertical Stroke: 0 – 270 mm (0 – 10.63")
• Tooling Diameter:
• Minimum: 180 mm (7.08")
• Maximum: 240 mm (9.44")
• Recommended: 200 mm (7.87")
• Oversize Capacity: Up to 1.25" (using 200 mm tooling)
• Dust Extraction (per spindle): 180 mm ports
• Features:
• Horizontal pneumatic on/off retraction
• Counter-clockwise rotation
• Coping of two parts simultaneously (requires equal height parts)

Spindle Feed System

• Design: Both spindles mounted on a mobile carriage
• Working Feed Speed: 2 – 12 m/min (6.5 – 39 ft/min), adjustable
• Rapid Traverse: 40 m/min (131 ft/min)
• Lubrication: Automatic centralized lubrication
• Oversize Monitoring: Electronic part-oversize detection

Table & Work Area

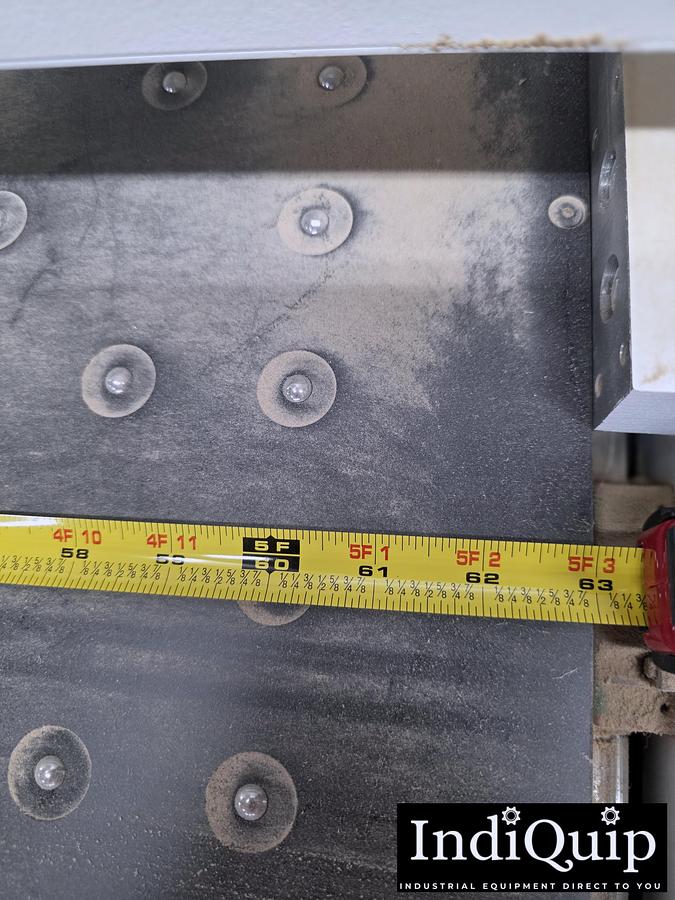

• Table Size (usable): 62" x 40" (1575 mm x 1016 mm)
• Type: Fixed air-jet table
• Part Length Capacity: 4" – 62"
• Part Width Capacity:
• Standard: 4" – 62"
• Coping: Minimum 1.5"
• Clamping:
• CNC-positioned vertical clamp across full width
• Pneumatic clamp for backing wood
• Length Fence:
• 1 automatic pneumatic swiveling backstop
• 1 manual swiveling backstop

Electrics / Pneumatics

• Electrical Requirements:
• 400V, 3-phase + Neutral + Ground
• 32A full load
• Transformer included for 230V / 460V / 480V operation
• Electrical Cabinet: CSA / UL listed
• Compressed Air: 1500 NL/min @ 6 bar
