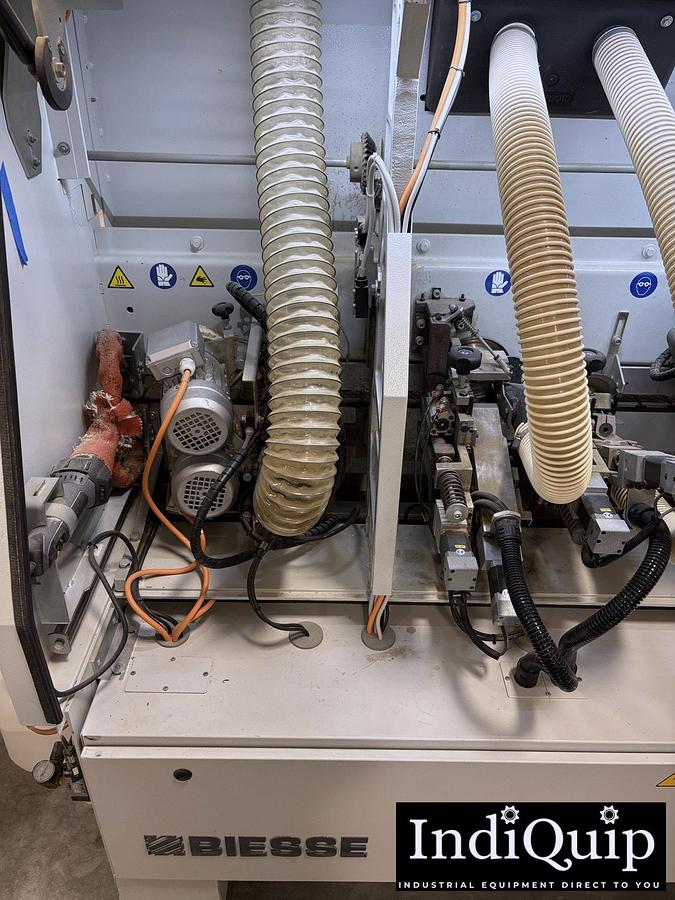

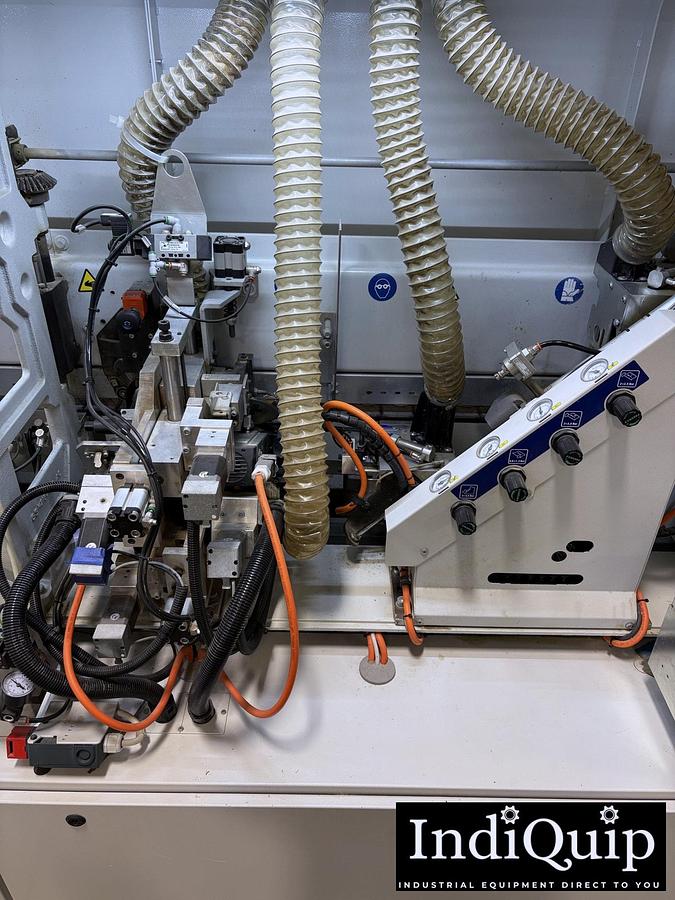

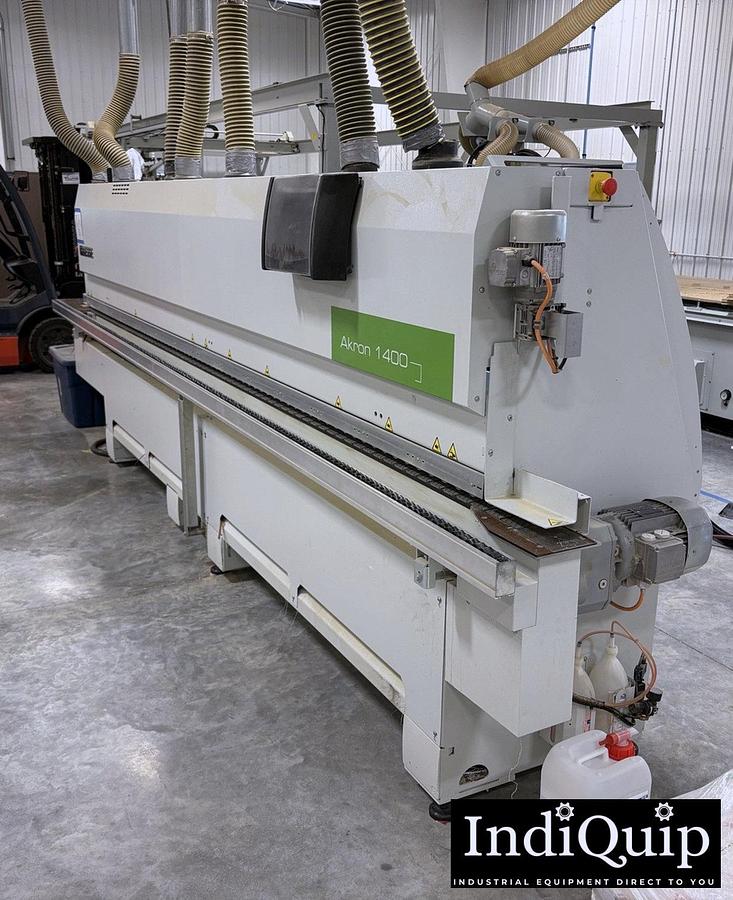

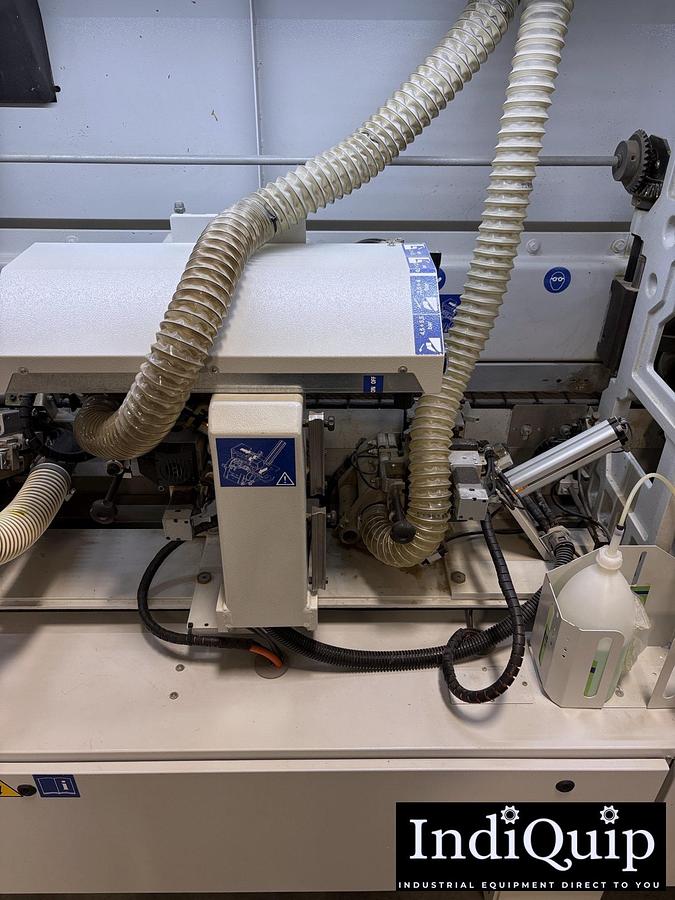

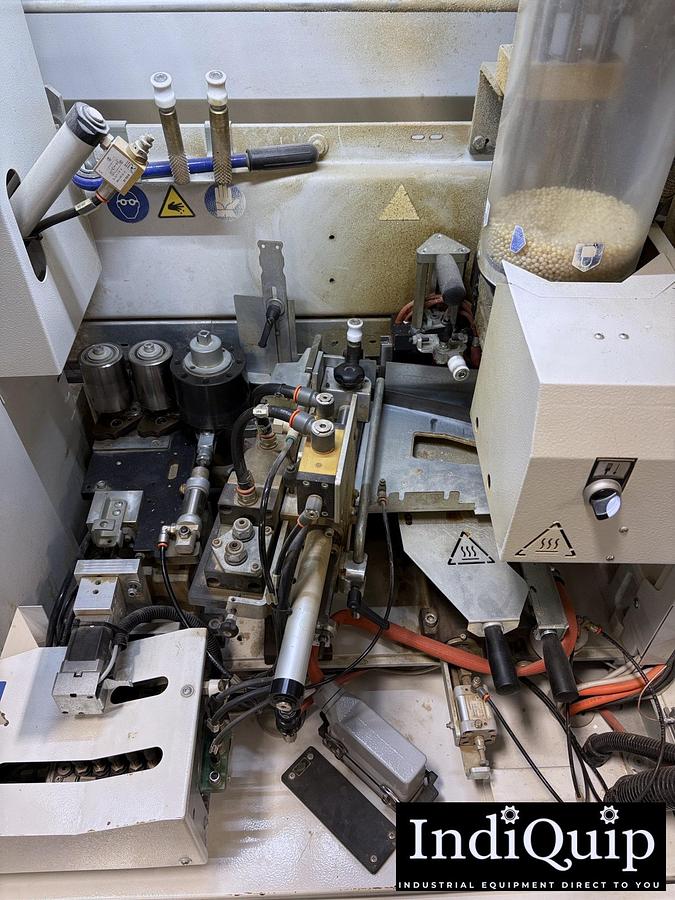

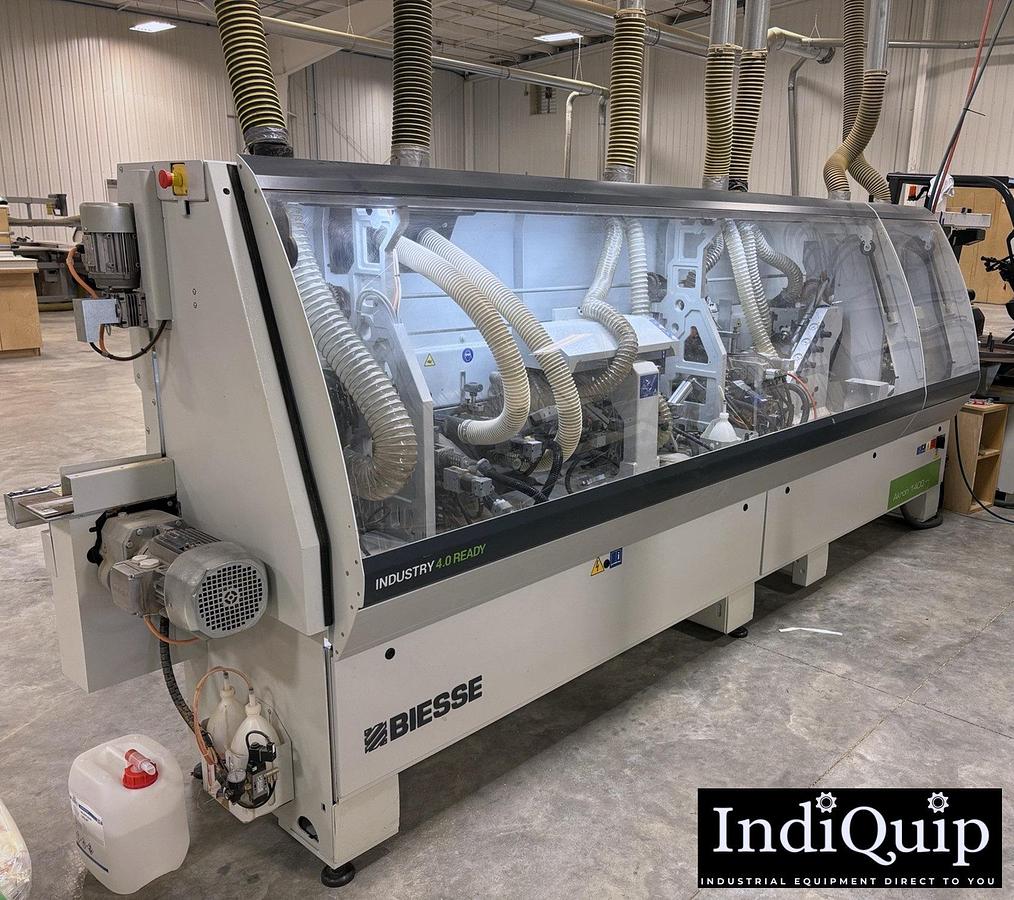

2018 Biesse Akron 1440A Edgebander

Description

Biesse Akron 1440A edgebander with pre-milling, servo trimming, corner rounding, glue scraper, buffing, hot-air blower, and release agent system.


Stations

  • Pre-milling unit; 2, counter-rotating spindles
  • Application; Gluing, edge feeding, and pressure unit
  • Glue Pre-melter for efficiency
  • End trimming unit
  • Top and bottom trimming unit (Servo controlled)
  • Multifunction 2-motor corner rounding unit
  • Profile scraper unit (servo controlled)
  • Glue scraper unit (Servo Controlled)
  • Buffing unit; (Top and Bottom)
  • Hot air blower unit
  • Release Agent system for better glue removal on face of board


All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.


Specifications

ManufacturerBiesse
ModelAkron 1440A
Year2018
ConditionUsed
Stock NumberQ-1792906
Min. panel height10 mm
Max. panel height60 mm
Height of edgebanding material14 - 64 mm
Edgebanding material thickness0.4 - 3 mm
Edgebanding strip thickness0.4 - 12 mm
Min. panel protrusion25 mm
Panel length140 - 3,200 mm
Min. panel width85 mm at 140mm length / 50 mm at 250 mm length
