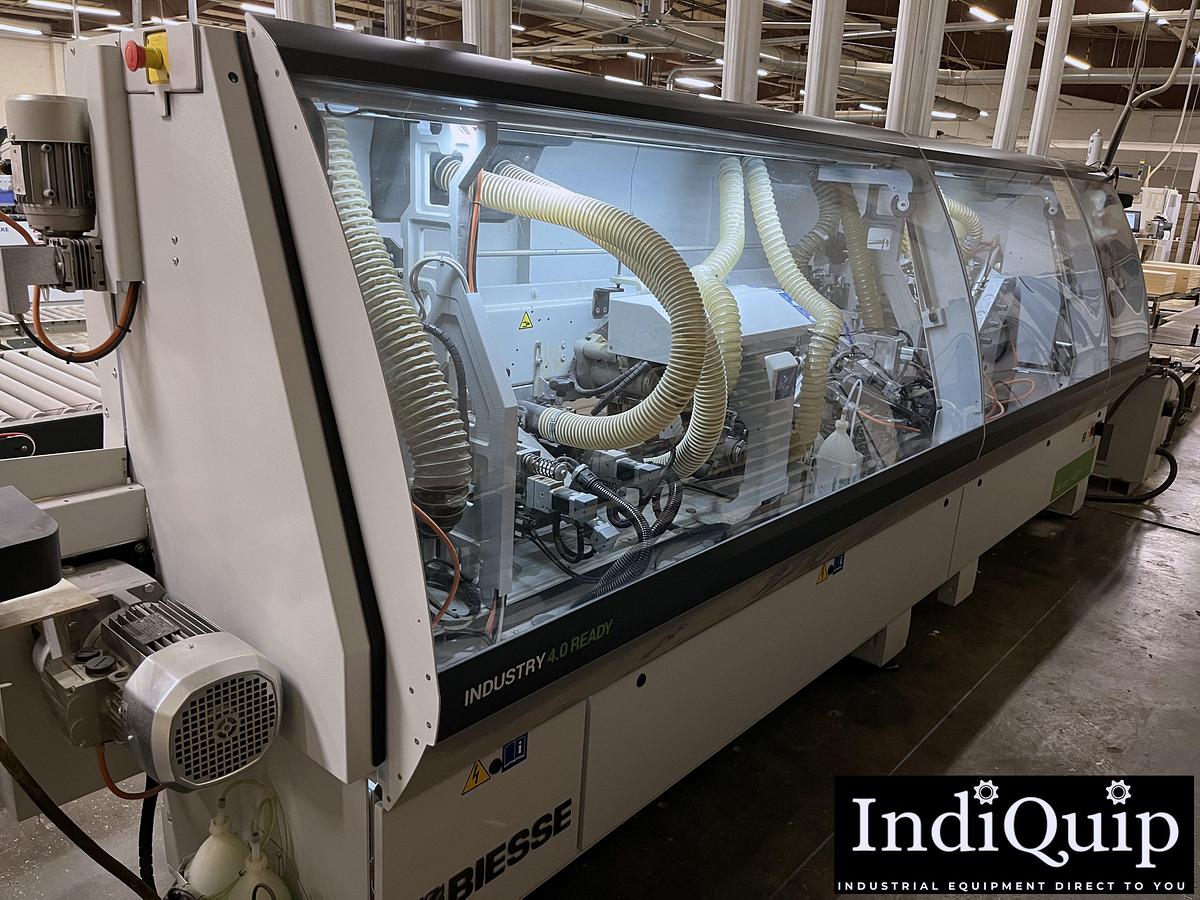

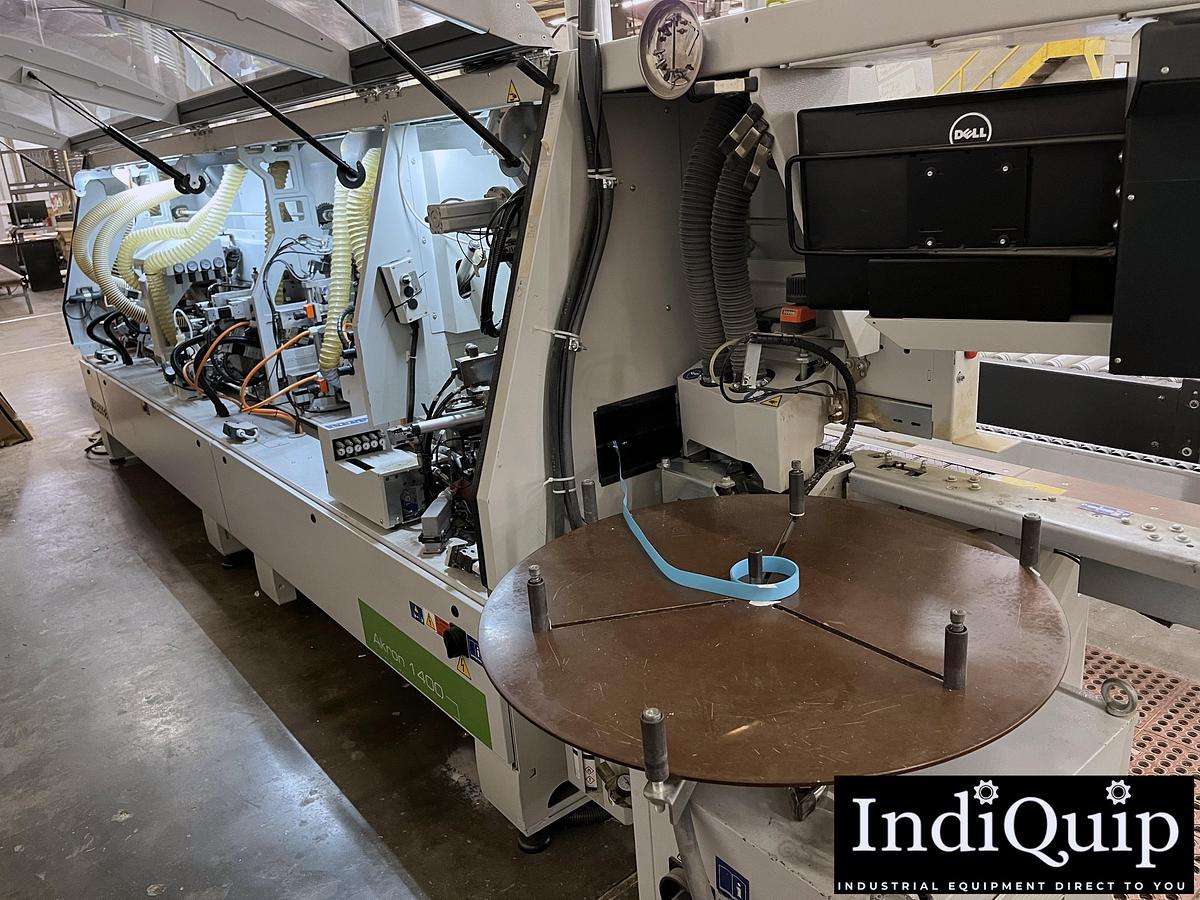

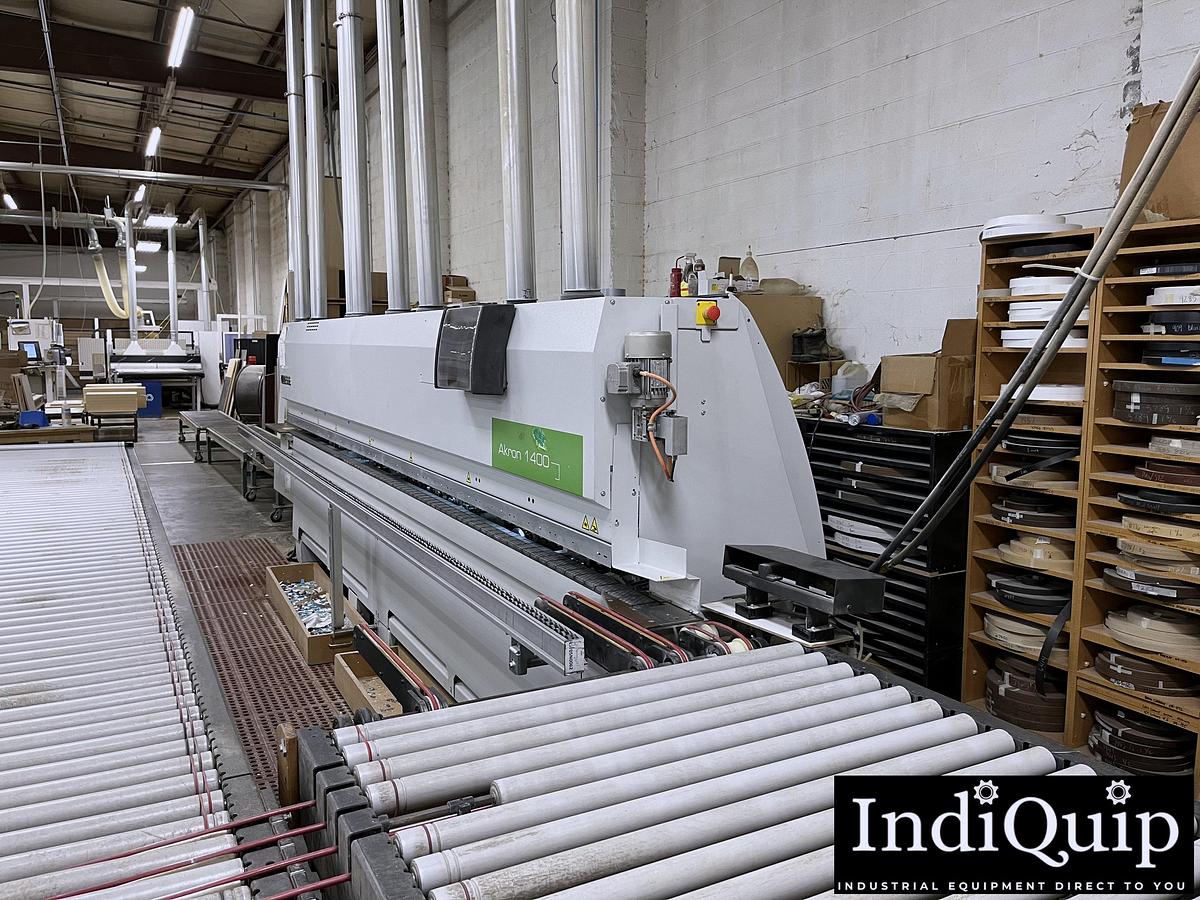

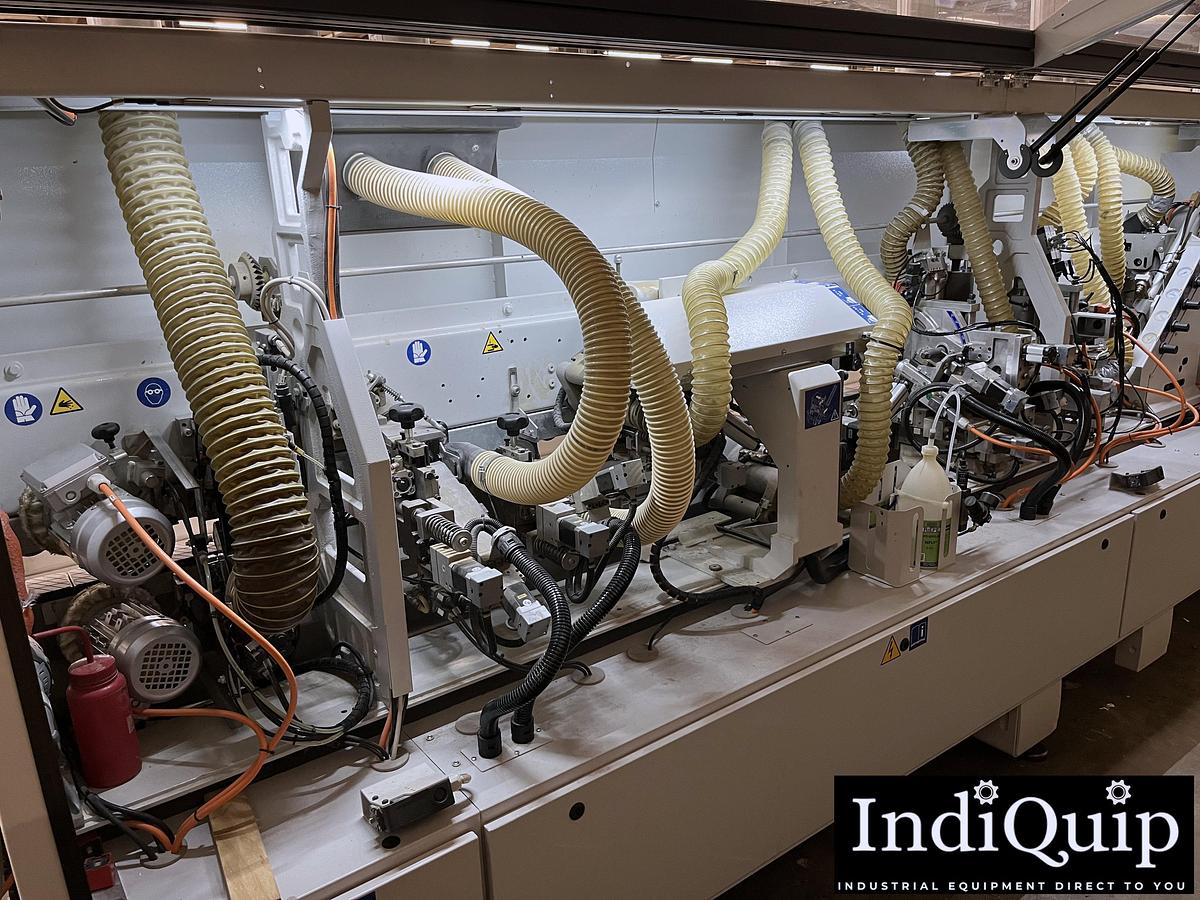

2018 Biesse Akron 1445 A

Biesse Akron 1445-A edgebander with pre-milling, NC-controlled setup, corner rounding, glue scrapers, buffing, and hot-air finishing. Industrial automatic edgebanding system.

Working Capacities

• Panel Thickness: 8–60 mm (0.31" – 2.36")
• Edge Thickness (Coils): 0.3–3 mm
• Edge Thickness (Solid Strips): 5–20 mm
• Feed Speed: 12 / 15 / 18 m/min (39 / 49 / 59 ft/min)
• Minimum Panel Length: ~6–8 in
• Minimum Panel Width: ~2.3–3.1 in

Standard Features

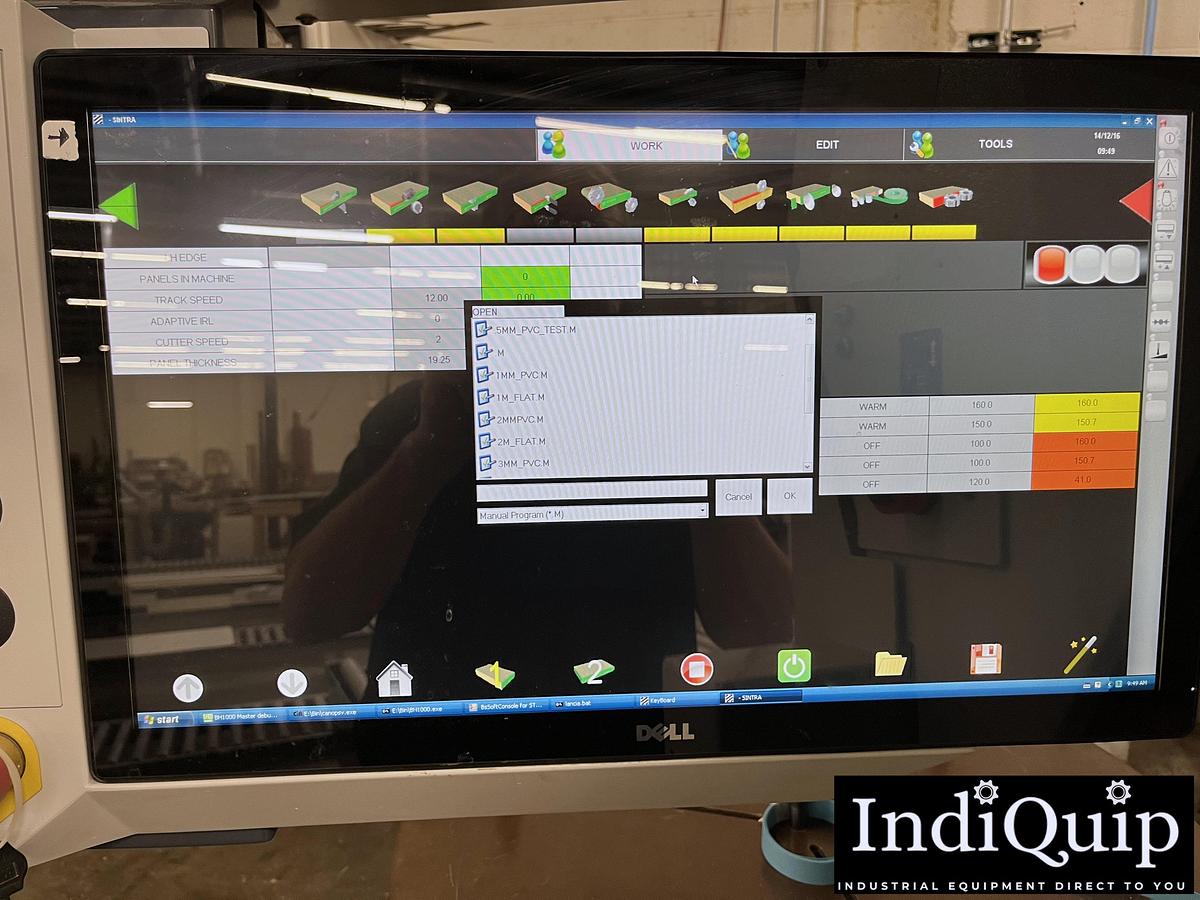

• SMART TOUCH control with diagnostics, USB import/export, job storage
• Integrated high-performance PC-based operator interface
• Electronic NC positioning for key units
• High-rigidity top pressure beam with automatic adjustment

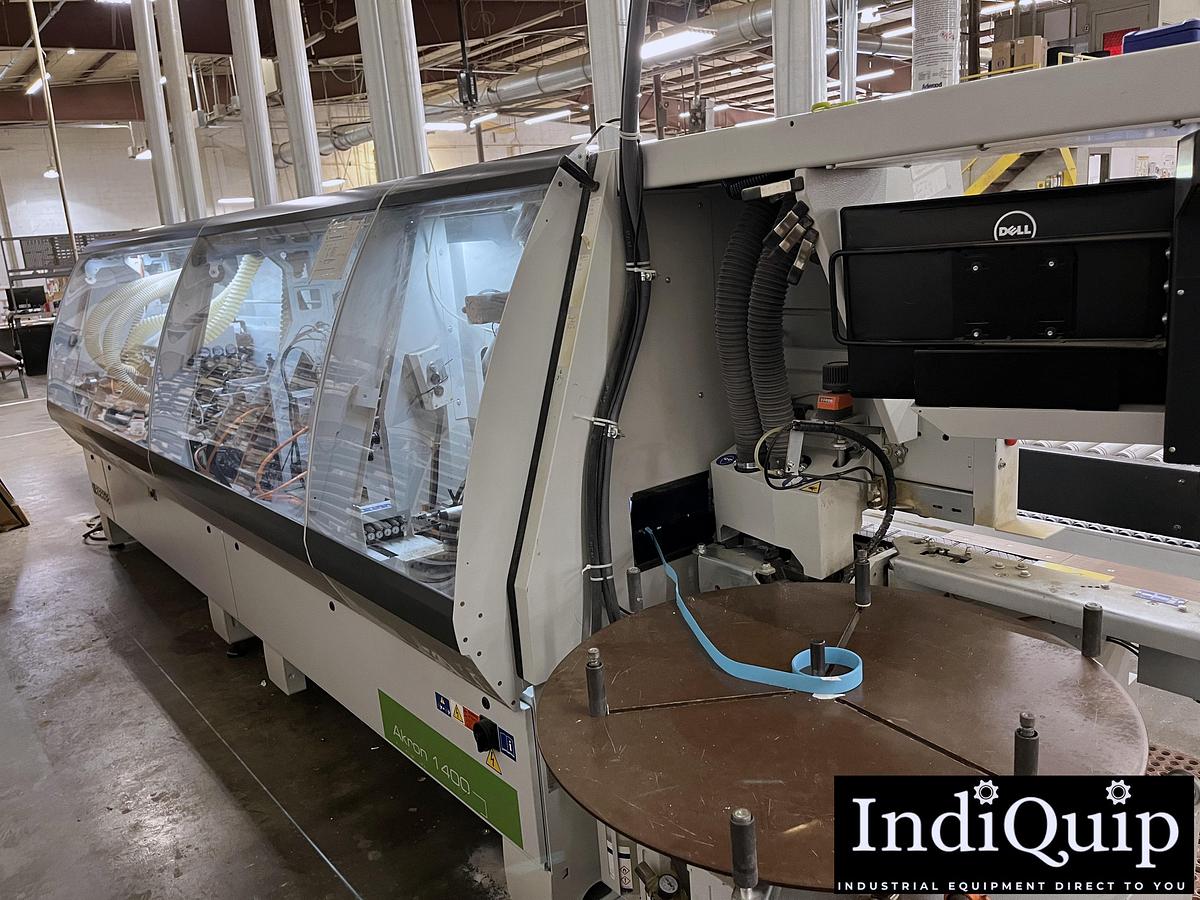

• Transparent safety enclosure with LED indicators

Pre-Milling

• Dual counter-rotating spindles
• Corrects panel edge before gluing for a clean bonding surface

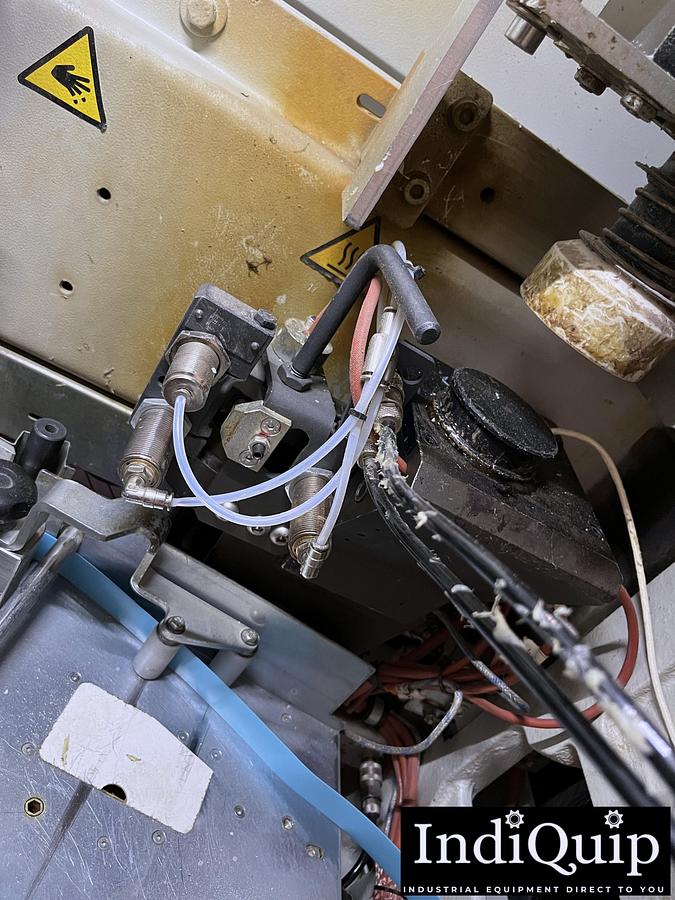

Gluing System (VC-S11)

• Hot-melt system with glue roller + spreading roller
• Pre-melter connection
• Automatic adhesive temperature control
• Thermostatic glue pot
• Guillotine for coil cutting up to 3 mm
• NC-controlled glue application

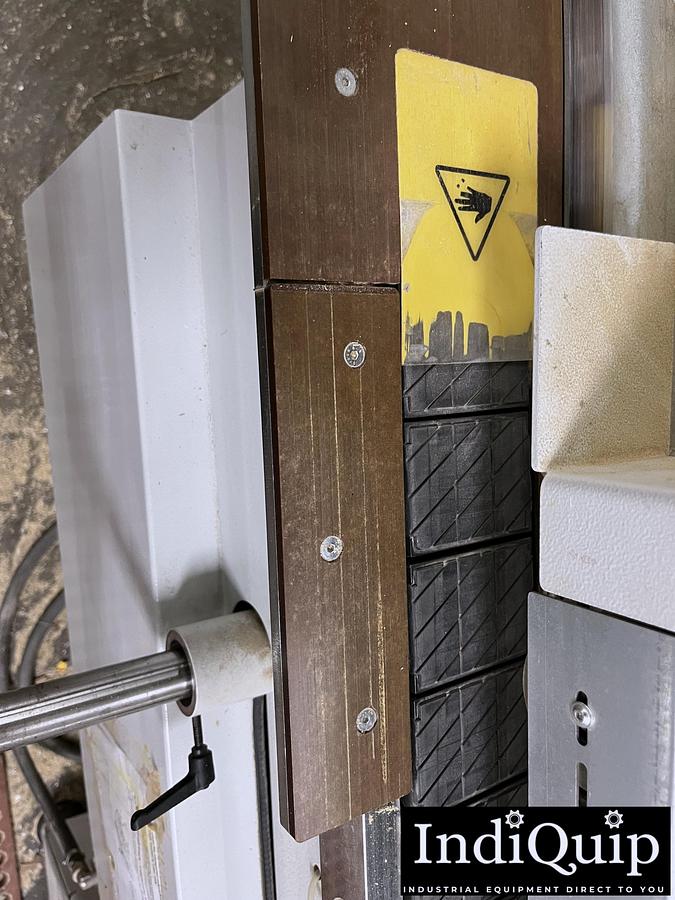

Pressure Section

• Multiple pressure rollers
• Automatic NC positioning for roller setup

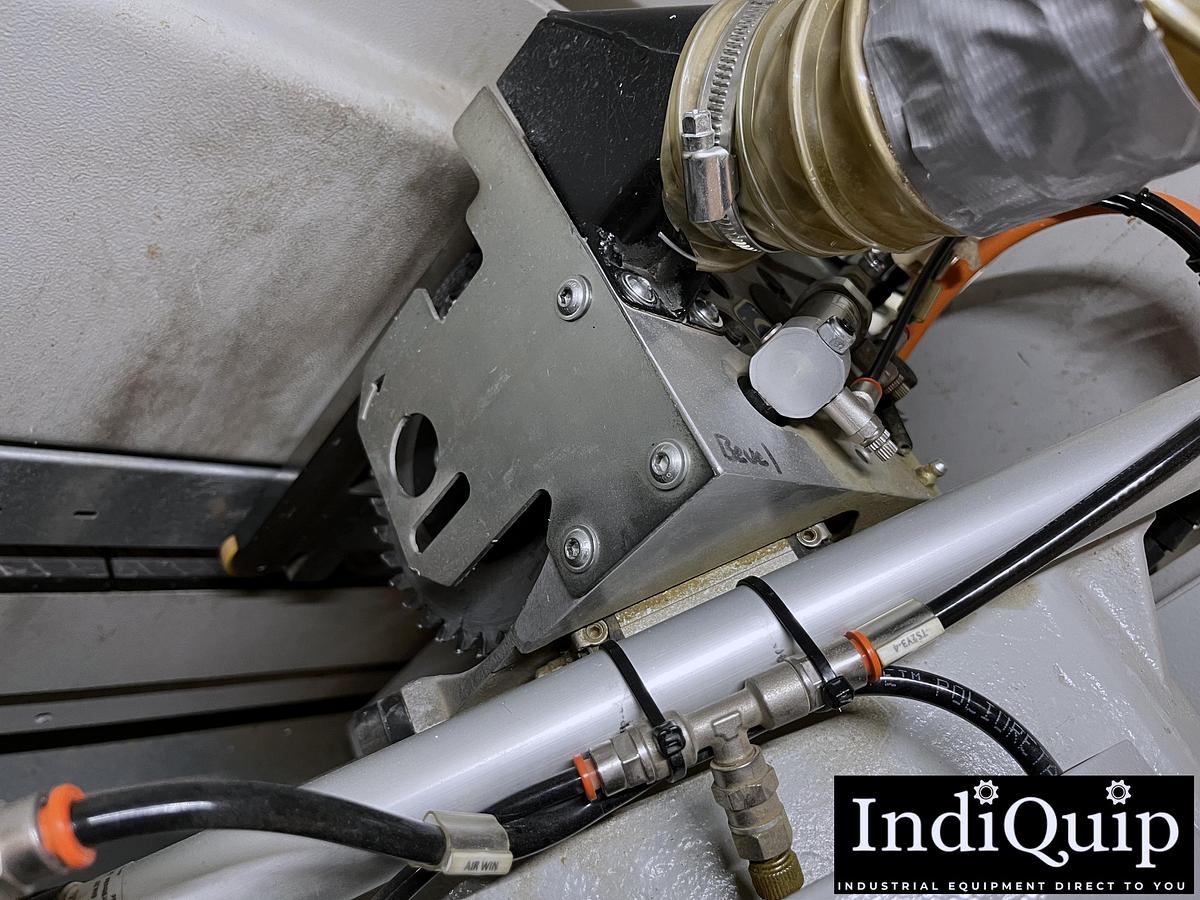

End Trimming (RPT Unit)

• Two independent high-frequency motors
• Automatic edge detection
• Pneumatic adjustment
• Chip extraction ports

Fine Trimming (RT02)

• (2) 12,000 RPM HF motors
• Horizontal & vertical rotating copiers
• Pneumatic exclusion
• Dust extraction integrated

Corner Rounding (AR02E)

• 2-motor multifunction corner rounding unit
• Radius capacity: up to 3 mm
• Ball-screw oscillating movement for smooth finishing
• Pneumatic exclusion

Scraping Units

• Profile Scraper (RC02)
• Glue Scraper (RC02)
• Both with self-adjusting mechanisms and pneumatic exclusion

Finishing

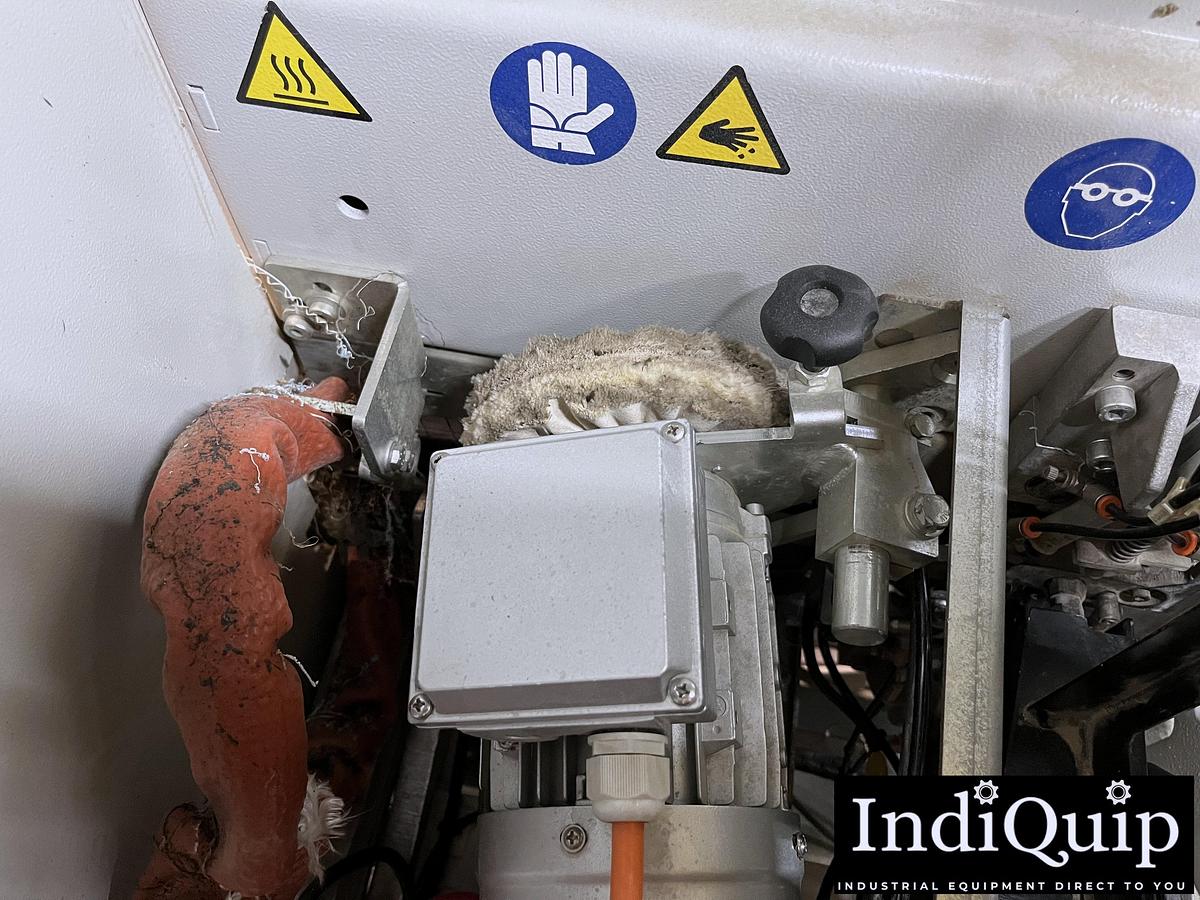

• Top & Bottom Brushing Unit (SP02), 2,800 RPM
• Hot Air Blower Unit (PH-501)
• Release Agent / Cleaning Unit (LT02) for glue line enhancement

NC Axis Package

Automatic positioning for:

• Infeed fence
• Pressure rollers
• Fine trimming unit
• Corner rounding unit
• Scraping unit

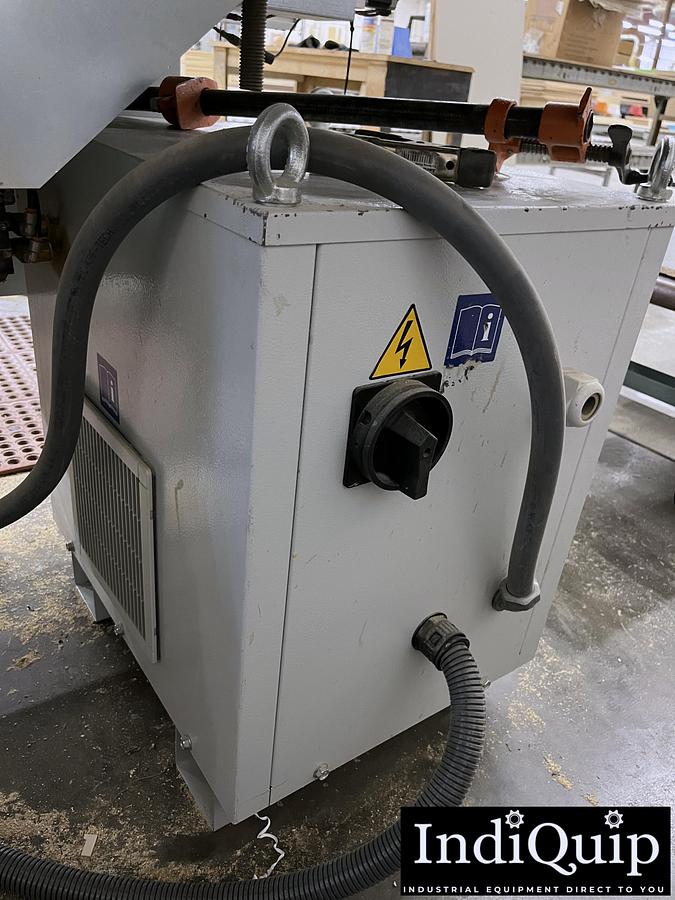

Electrical / Pneumatic Requirements

• Voltage: 480V, 3-phase, 60 Hz
• Installed Power: 15 kW
• Air Pressure: 6 bar (87 psi)
• Dust Extraction (per unit): 500 m³/h recommended
•
