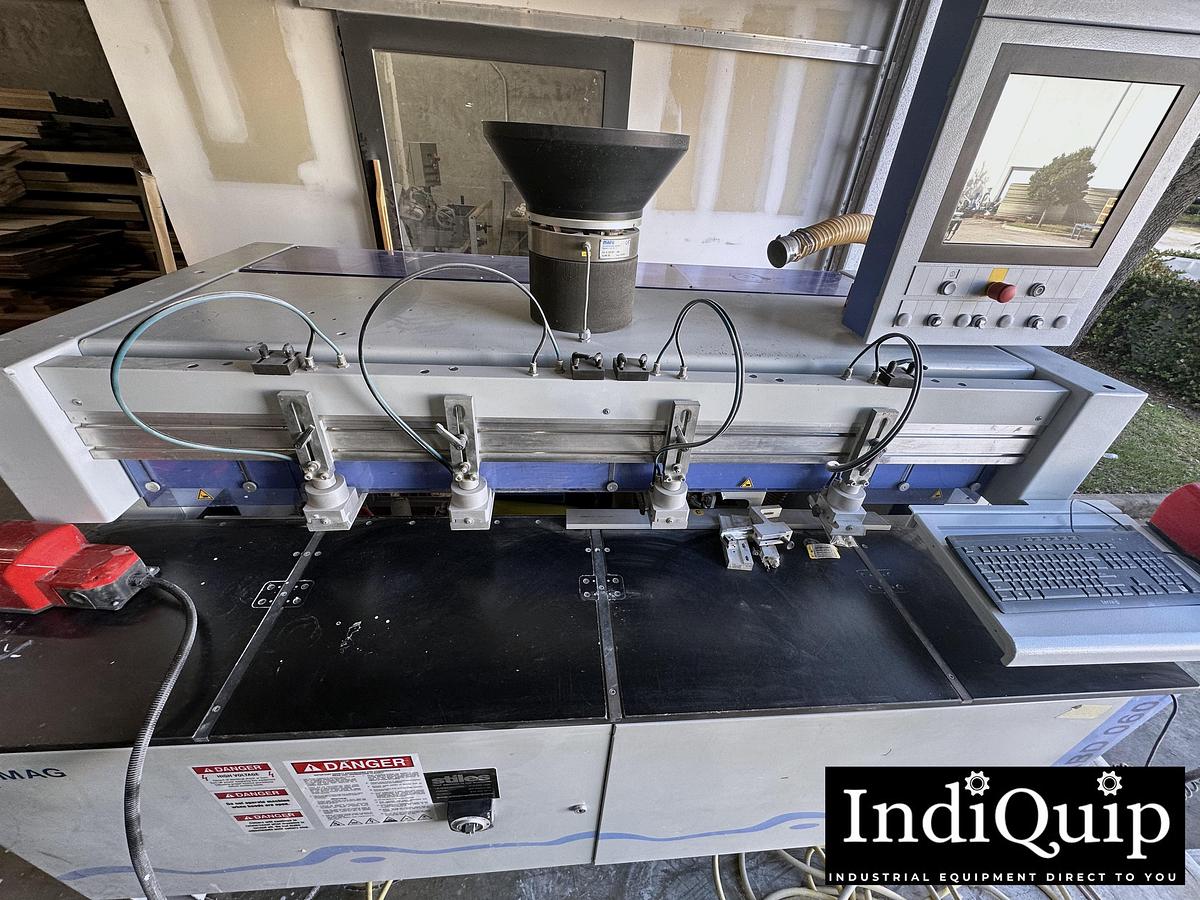

2016 Weeke Optimat ABD 060/12/NA Drilling and Dowel Inserting Machine
Description
2016 Weeke Optimat ABD 060/12 vacuum clamping and assembly table. Compact footprint, precise workpiece positioning, 4.5 kW connected load, ideal for CNC nesting, drilling, and panel assembly workflows.
All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
Specifications
| Manufacturer | Weeke |
| Model | Optimat ABD 060/12/NA |
| Year | 2016 |
| Condition | Used |
| Stock Number | Q-1792919 |
| * Workpiece length | 0.8″ – 49.2″ |
| * Workpiece width | 0.8″ – 31.5″ |
| * Workpiece thickness | 0.4″ – 2.4″ |
| * Compressed air connection | 1/2″ |
| * Compressed air supply | Minimum 7 bar |
| * Total connected load | Approximately 4.5 kW |
| * Supply voltage (control) | 10 A |
| * Extraction connection diameter | 3.15″ |
| Machine width | 56.6″ |
| Machine length | 101.1″ |
| * Machine height | 79.2″ |
| * Total machine weight | Approximately 2,425 lbs |
