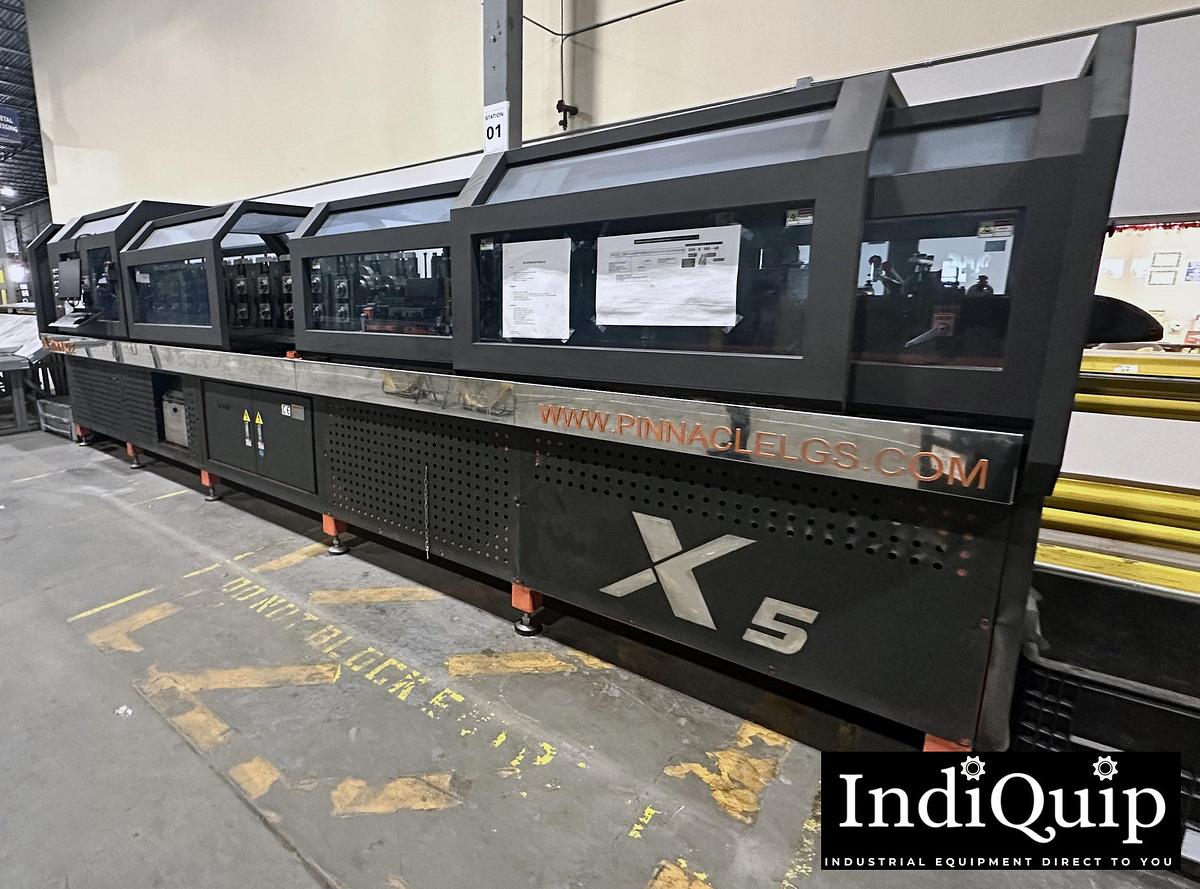

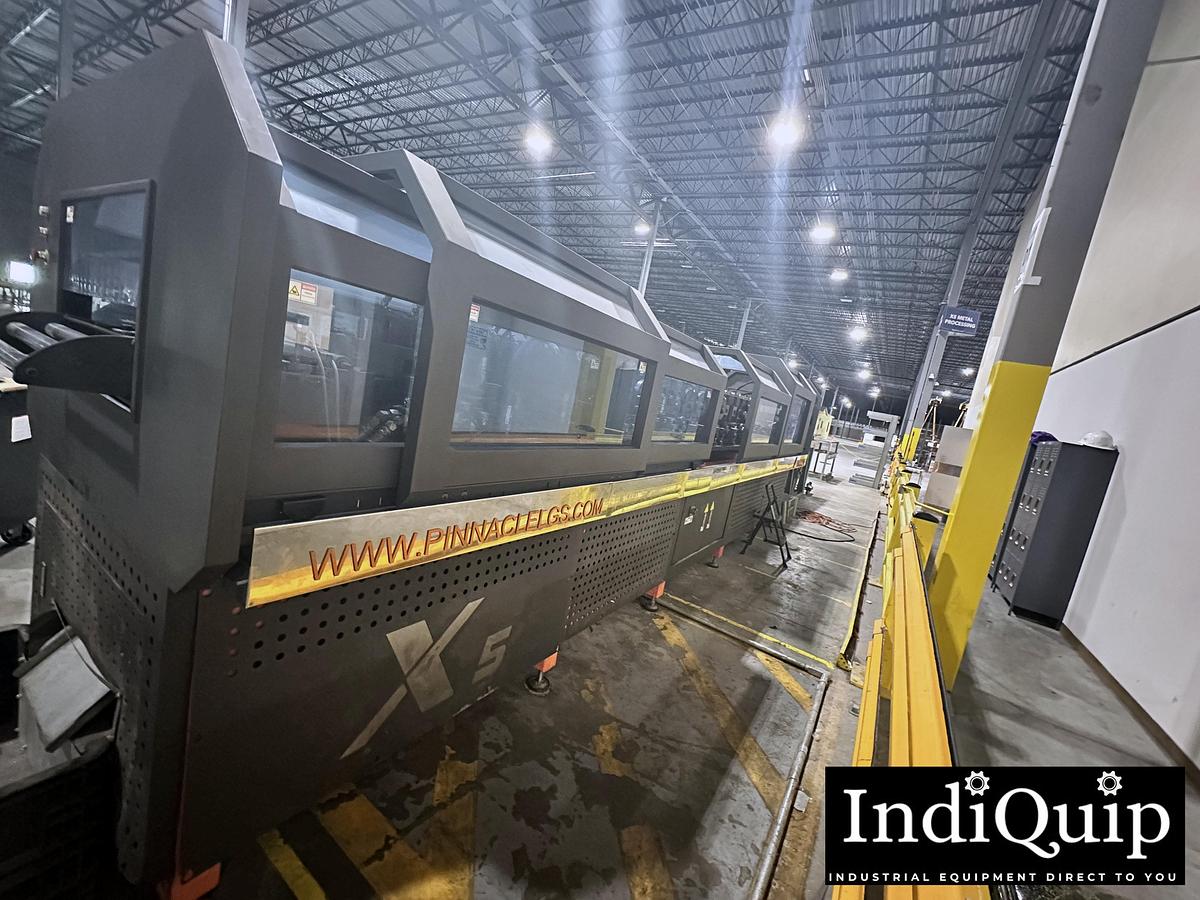

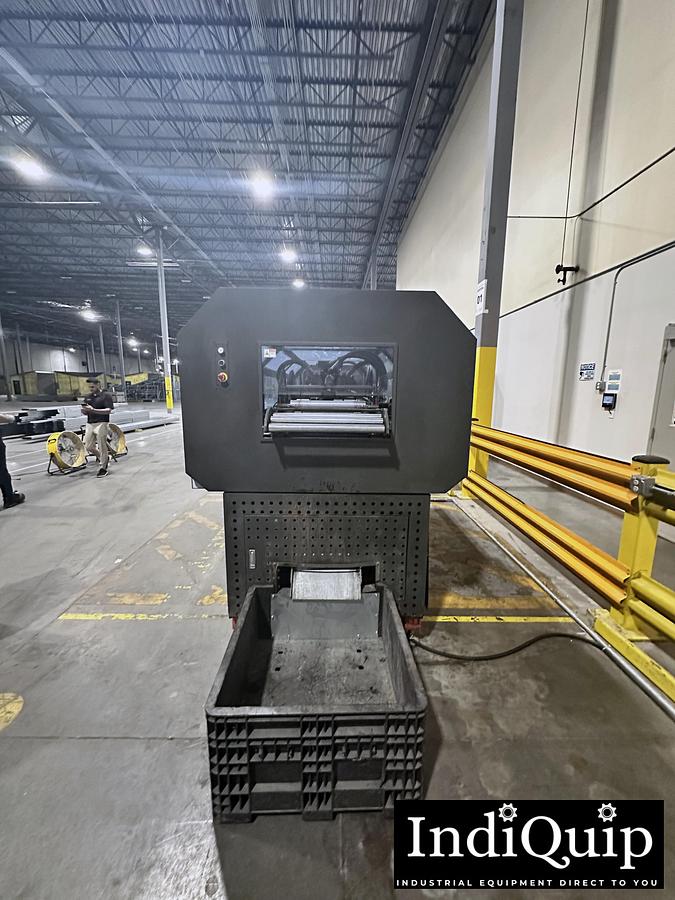

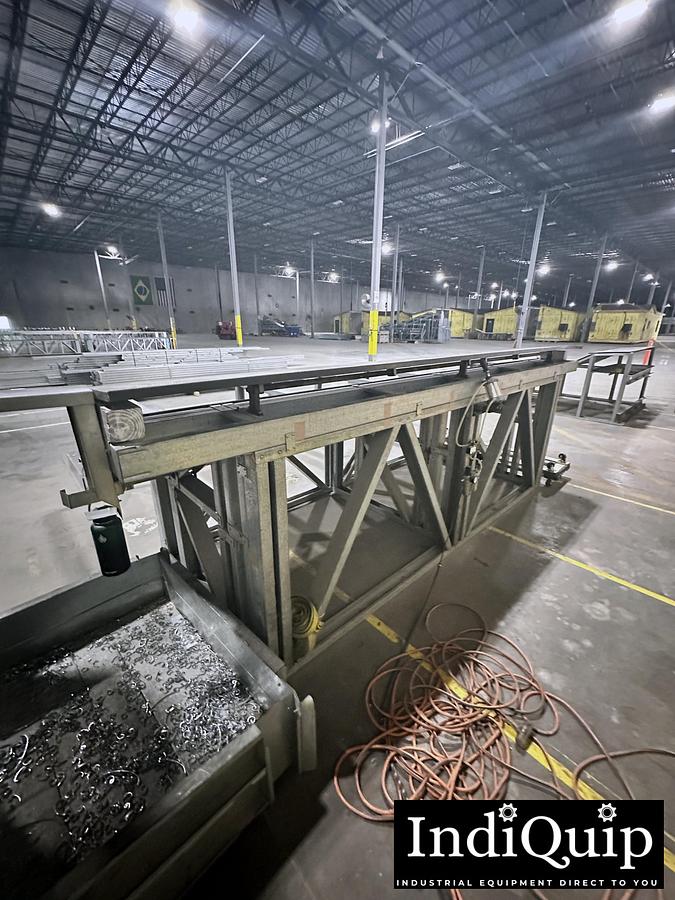

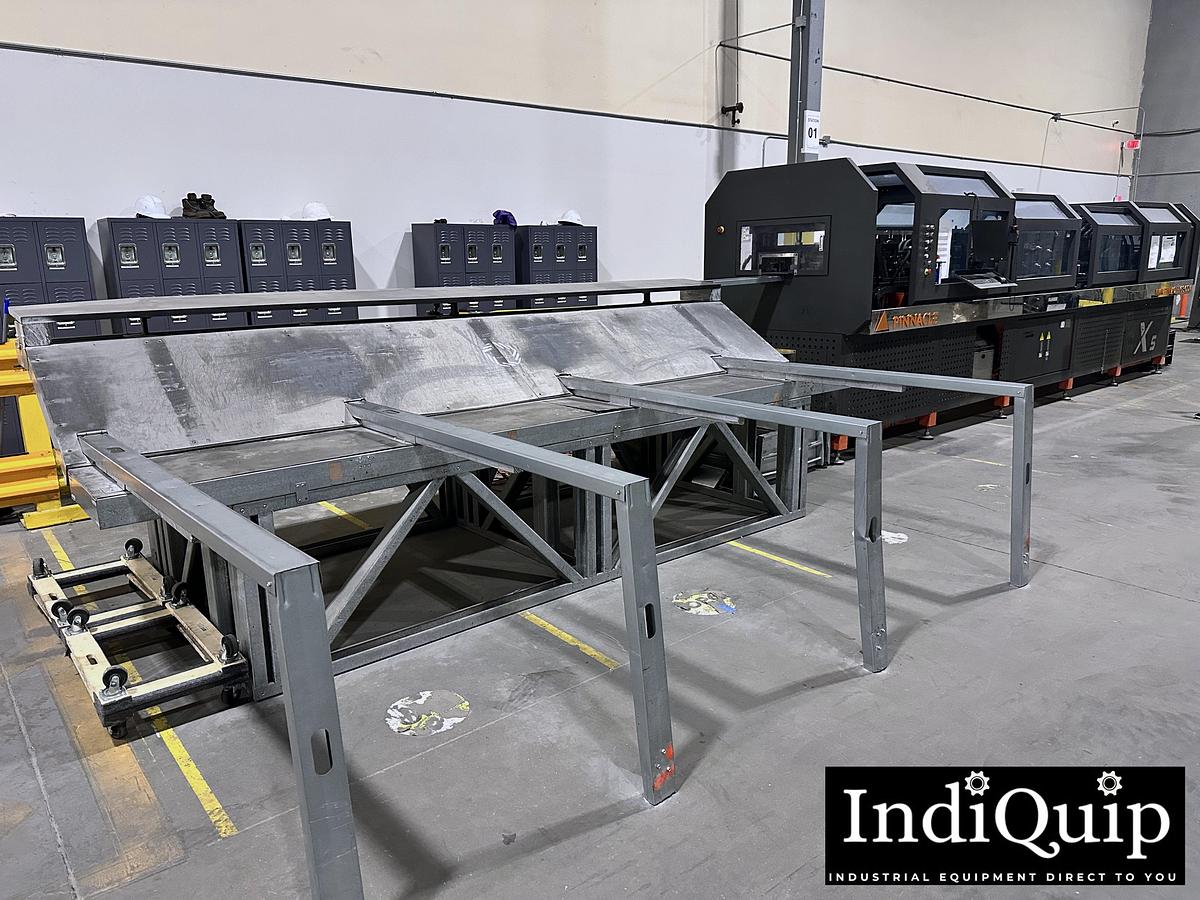

Pinnacle Framer X5 Cold-Formed Steel Framing & Truss Roll Forming System

PinnacleFRAMER X5 cold-formed steel framing and truss roll former with servo drive, integrated punching, auto changeover, and high-speed production for stud, truss, and floor joist manufacturing.

Profile Capability:

• Unlimited profile sizes with automatic changeover
• Changeover time: < 10 minutes (including web size and punch tools)
• Dedicated web sizes: 3″ to 10″
• Supported configurations:
• C + C
• C + U
• Back-to-Back C + C (2-ply)
• U + C + C + U (4-ply)

Standard Profile Sizes (Imperial):

• 3″ × 2″ (350S200)
• 3.5″ × 2″ (350S200)
• 3.625″ × 2″ (362S200)
• 4″ × 2″ (400S200)
• 6″ × 2″ (600S200)
• 8″ × 2″ (800S200)
• 10″ × 2″ (1000S200)

Material Thickness Range:

• 24 gauge to 14 gauge

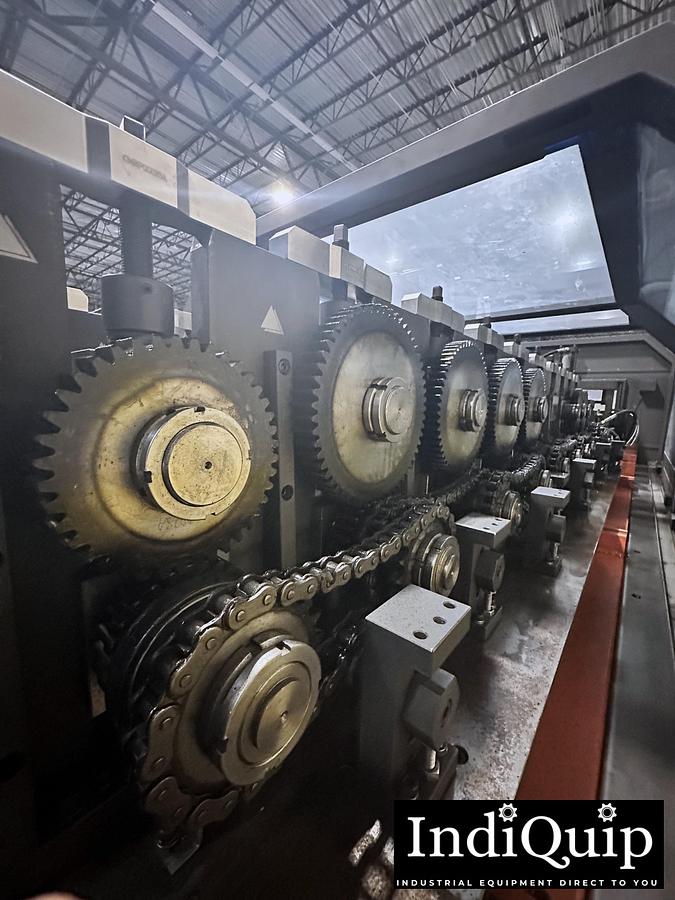

Roll Forming Section:

• 10 roll-forming stations
• Automatic gauging adjustment

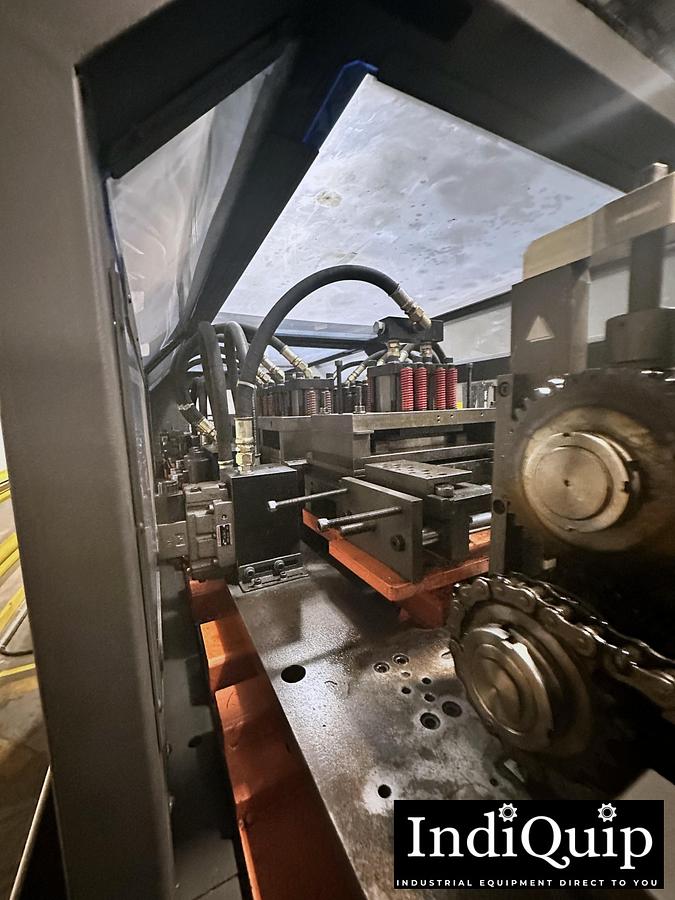

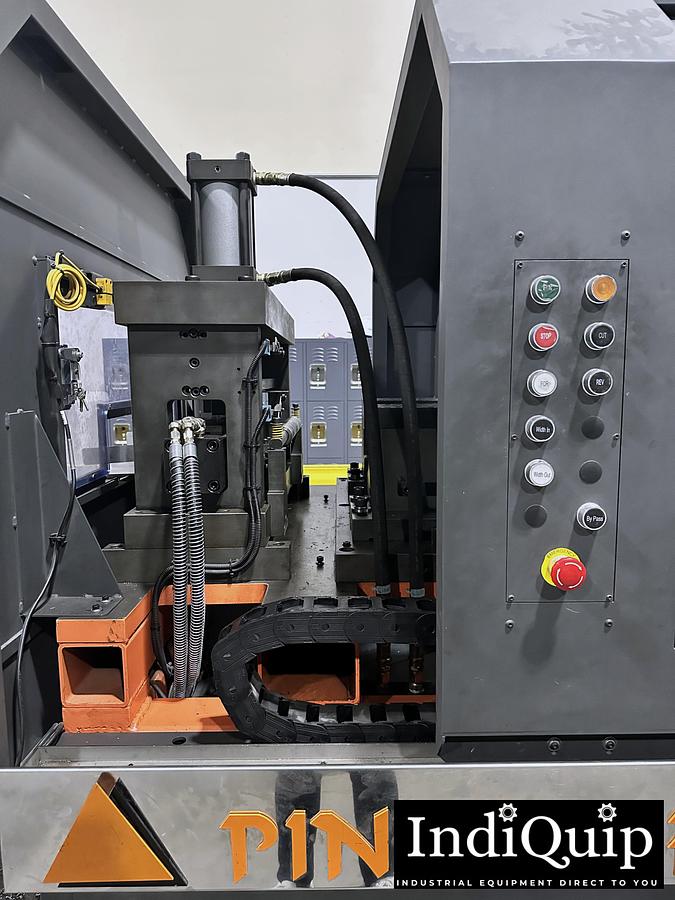

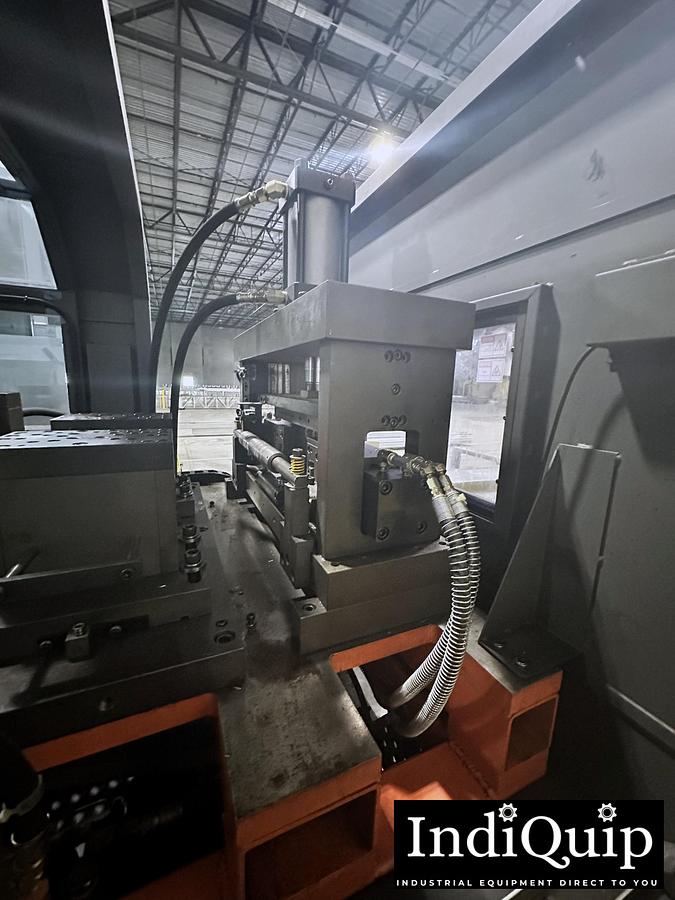

Integrated Punching Operations:

• Truss index hole punch
• PinnacleTRUSS punch
• Service hole punch
• Flag bolt hole punch
• Web bolt hole punch
• Lipped service hole punch (7″)
• Left / right lip notch punch
• Web notch punch
• Truss end cut punch
• Flange dimple connection hole
• Dimple slot
• Shear cut
• End crimp punch
• Automatic swaging

ID Marking:

• Fully integrated inkjet ID printing system

Production Output (Typical):

• Wall frames: 1,640 – 2,950 linear ft/hr
• Roof trusses: 980 – 1,640 linear ft/hr
• Floor joists: up to 5,440 linear ft/hr

Maximum Line Speed:

• Up to 6,890 linear ft/hr

Drive System:

• Servo-driven high-speed system

Hydraulic System:

• High-power, high-speed, all-temperature design

Machine Dimensions (L × W × H):

• 299″ × 59″ × 83″

Machine Weight (Approx.):

• 24,000 lbs

Electrical Requirements:

• 3-Phase, 380 VAC
• 40 kW / 60 kVA (configurable per installation)

Coil Handling System:

• Powered variable-speed decoiler
• Capacity: 6,600 lbs

Coil Size Capacity:

• Maximum coil width: 15.7″
• Inner diameter: 17.7″ – 20.5″
• Maximum outer diameter: 59″

All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
