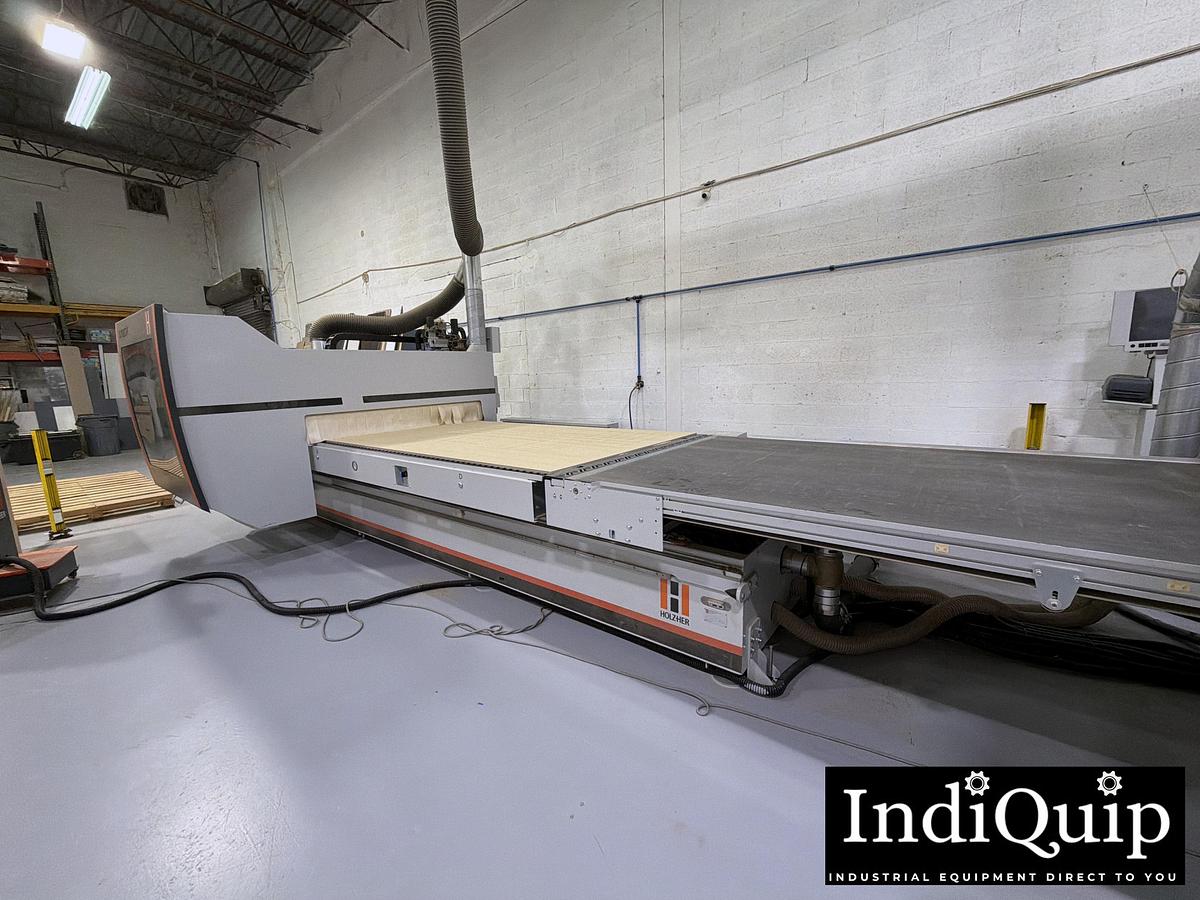

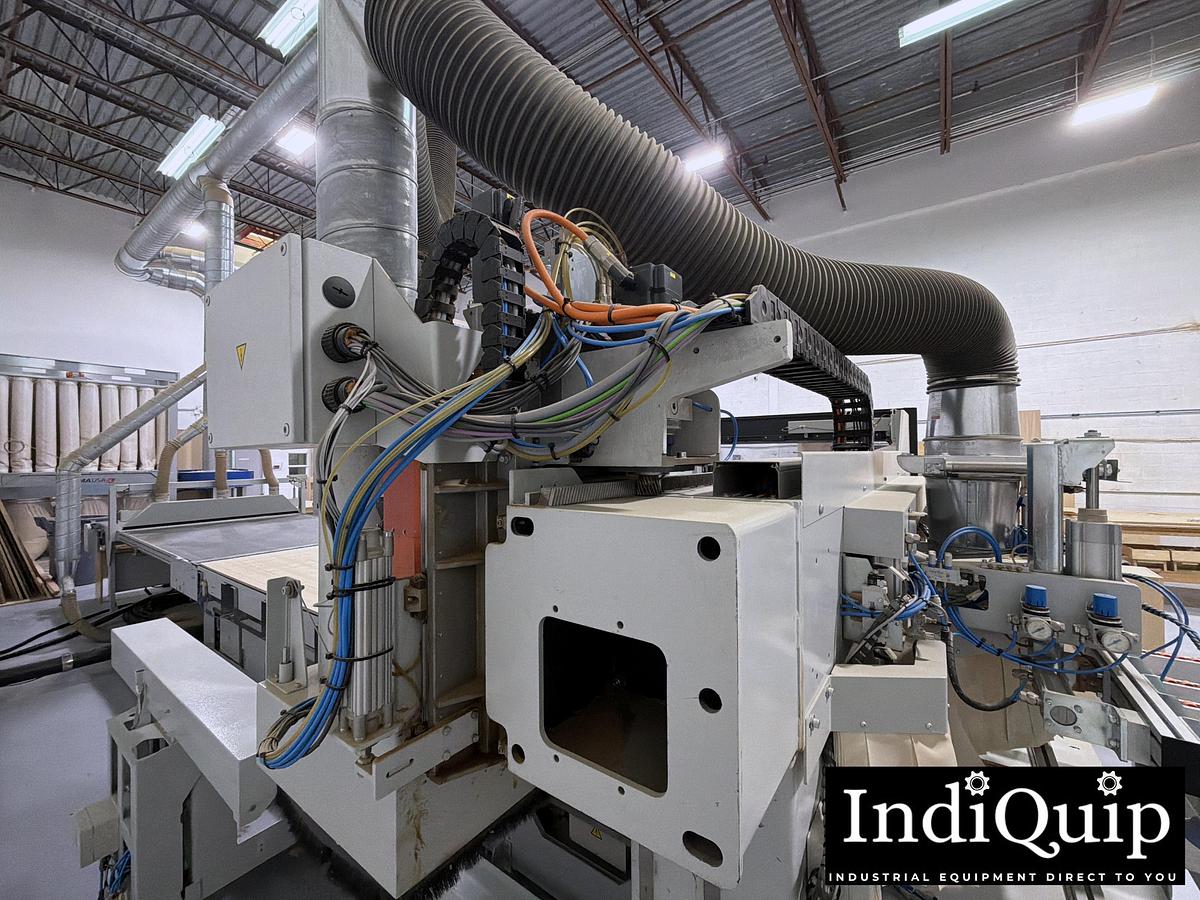

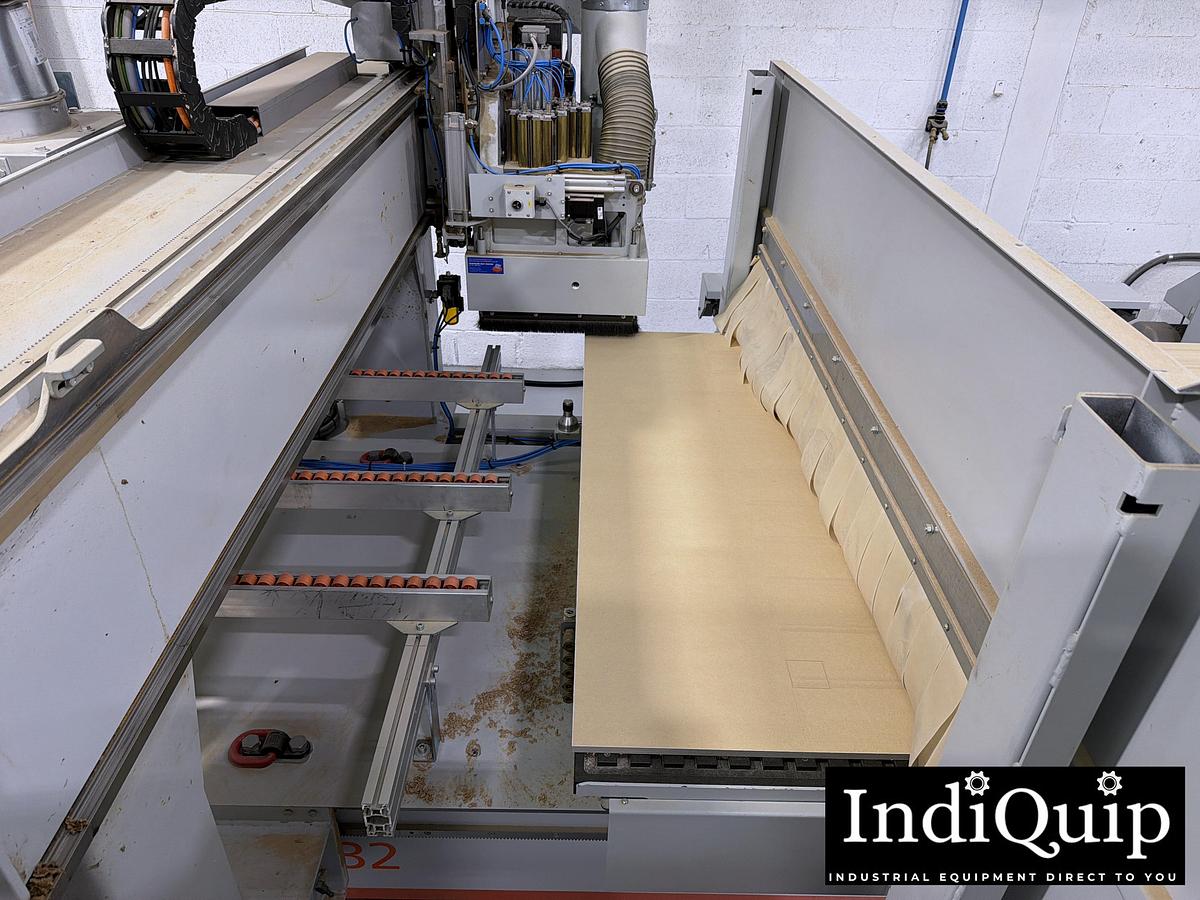

2018 Holz-Her Dynestic 7532 Lift 5' x 12' CNC Router

Description

This 2018 HOLZ-HER DYNESTIC 7532 Lift Edition is a 5×12 CNC nesting machining center engineered for professional cabinet and furniture manufacturing environments. The extended X-axis travel allows full 12-foot sheet processing, while the integrated lift system improves throughput by reducing manual loading and material handling.


Designed for nested-based manufacturing, this machine supports plywood, MDF, and composite panels with consistent accuracy and repeatability. HOLZ-HER’s rigid gantry construction and production-grade design make the DYNESTIC 7532 an excellent choice for shops seeking to increase capacity, improve workflow efficiency, or replace older CNC routers.


Ideal for cabinet shops, architectural millwork producers, and high-output panel processors looking for a reliable European-built CNC nesting solution.


Automation:

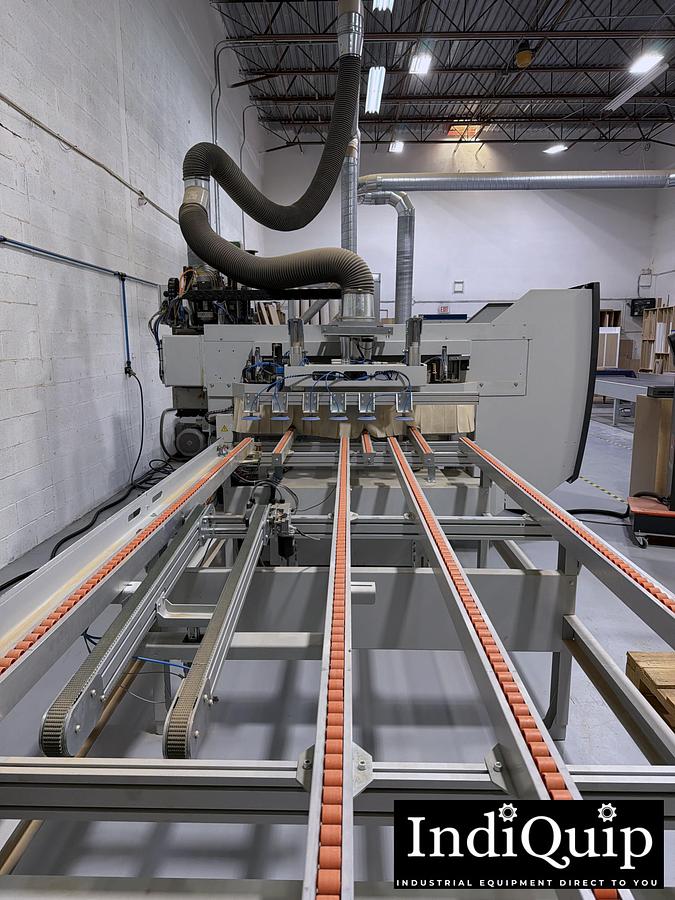

  • Lifting table with roller conveyors

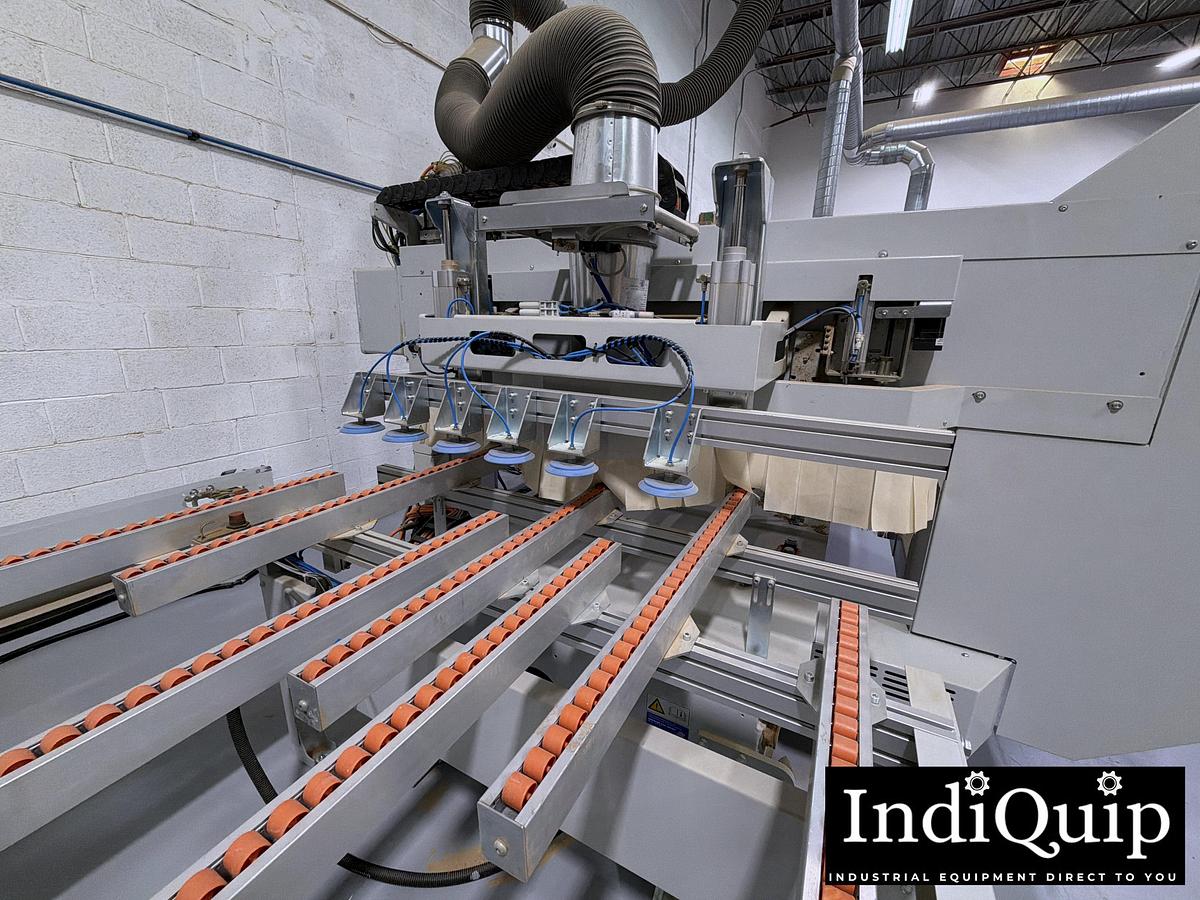

  • Pull-in mechanism with lateral positioning
  • Automatic discharge pusher with integrated evacuation

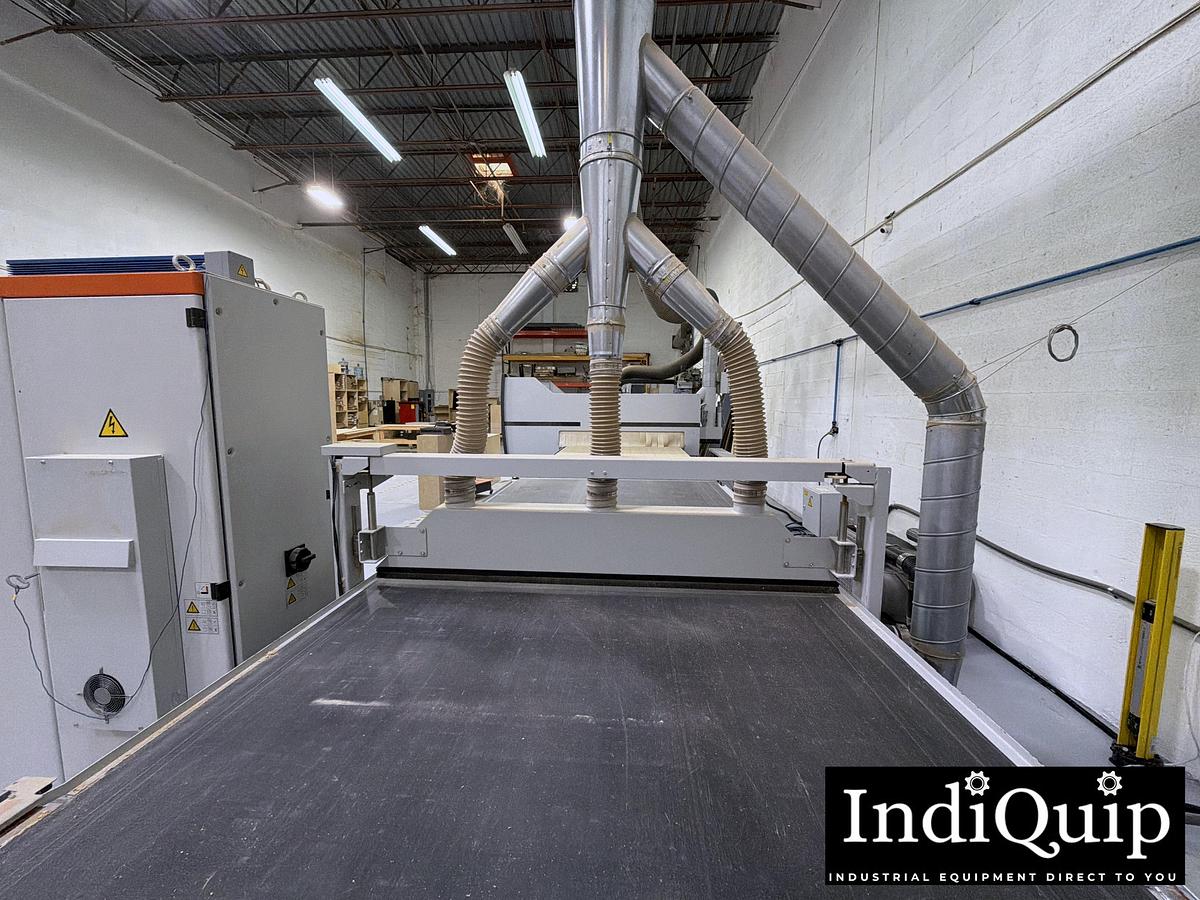

  • Discharge table with conveyor belt


All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.

Specifications

ManufacturerHolz-Her
ModelDynestic 7532 Lift
Year2018
ConditionUsed
Stock NumberQ-1792922
Table Size (L x W) (In.)12 x 5
Vector Speed328.08 f/min

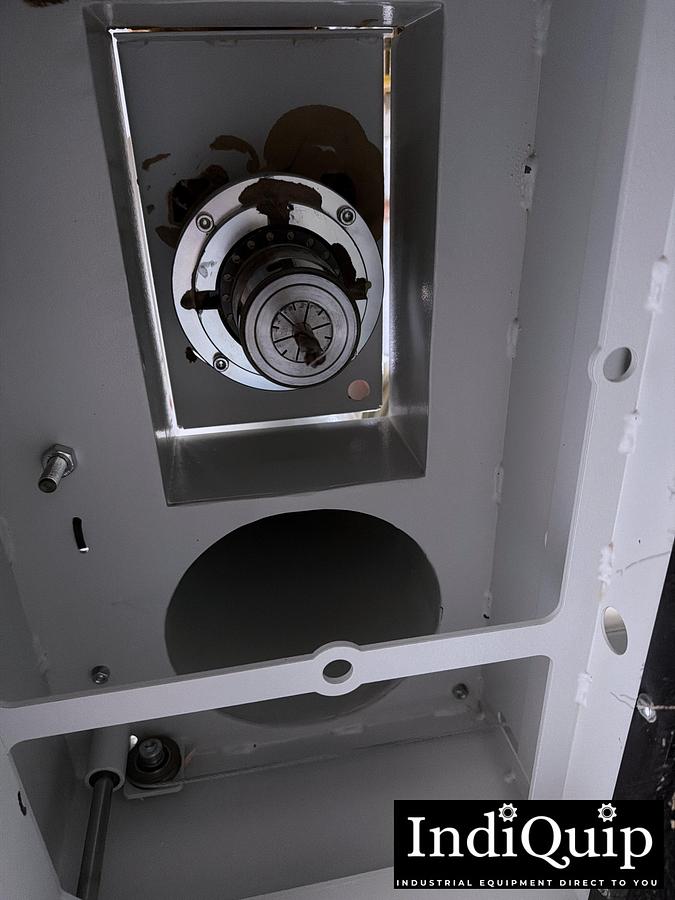

Cutter Unit8kW, air-cooled, 1000 – 24 000 rpm

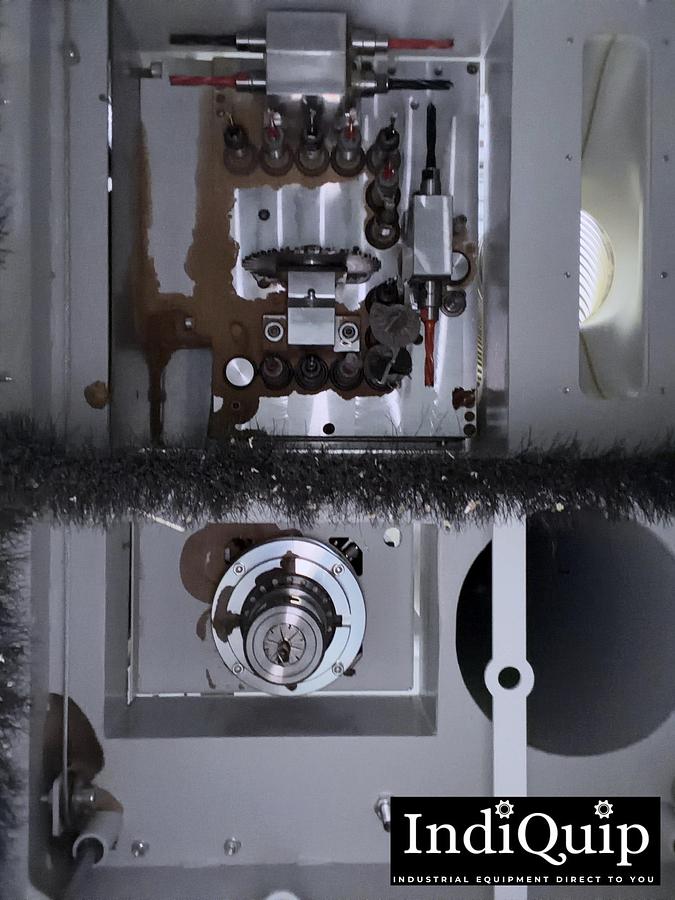

Drilling Head L15 Spindles (9 V | 6 H), incl. sawing unit for grooving in X direction
Workpiece SupportHigh flow nesting table with continuous vacuum field

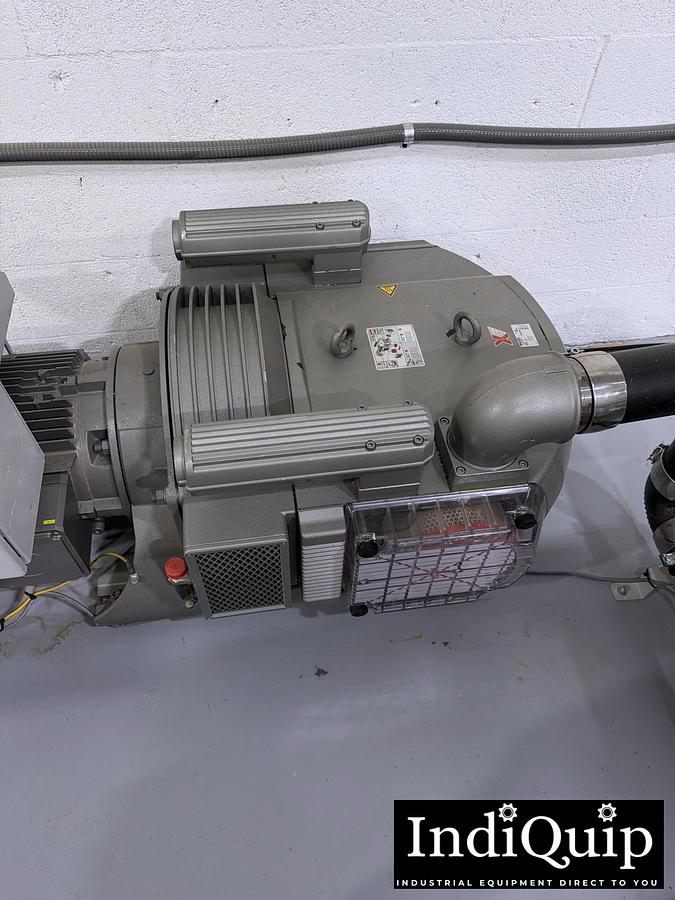

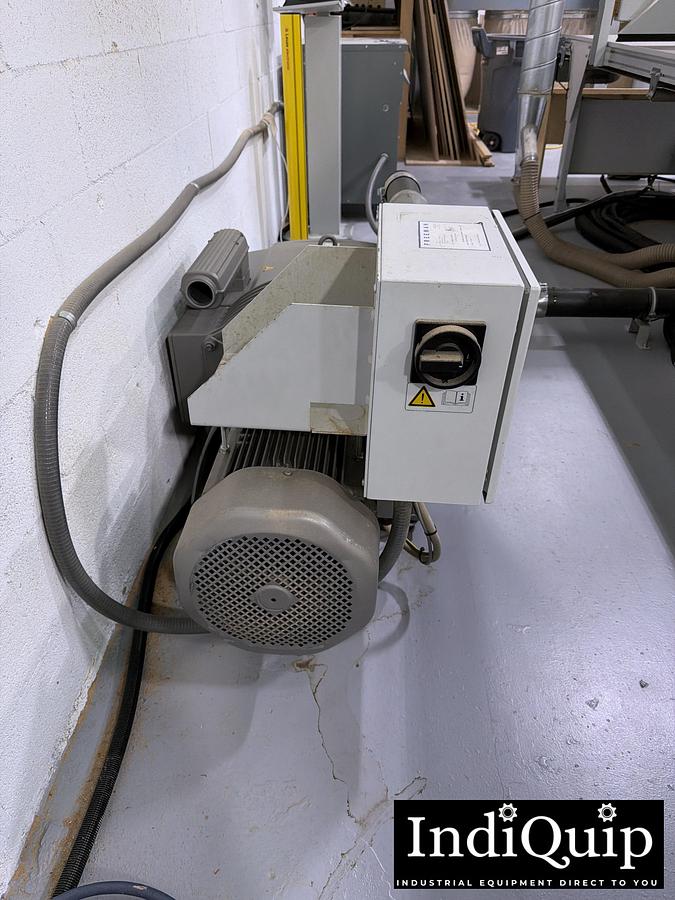

Workpiece Clamping500 m³/h low maintenance, dry-running type vacuum pump
Tool Changer14-position Pick-up tool changer with tool cover
