2021 Doosan DVF 5000 5-Axis CNC Vertical Mill

2021 Doosan DVF 5000 5-axis vertical machining center with Fanuc 31i-M B5 control, 5-axis trunnion table, 60-tool magazine, through-spindle coolant, LNS chip conveyor, mist collector, and probing—ideal for complex, high-precision production machining.

Specs:

X-Axis: 24.6″

Y-Axis: 17.7″

Z-Axis: 15.7″

Rapid Traverse: 1,575 IPM

Cutting Feedrate: 0.4 – 787 IPM

Rotary Table Diameter: 19.7″

Max. Table Capacity: 882 lbs

Max. Spindle Speed: 18,000 RPM

Spindle Motor: 30 HP

Spindle Taper: CAT 40

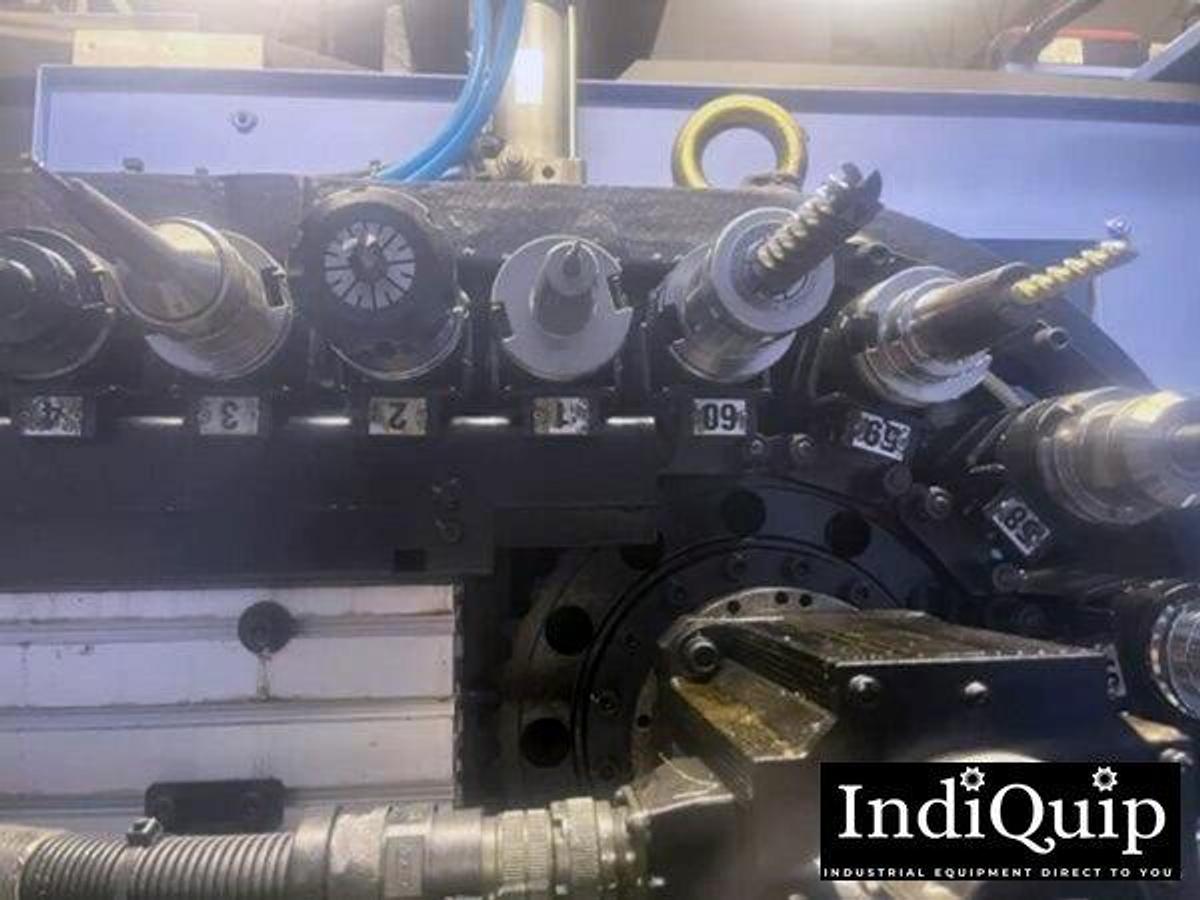

Tool Magazine: 60 Tools

Dimensions: 87″x114″x114″

Weight: 16,534 lbs

Equipped With:

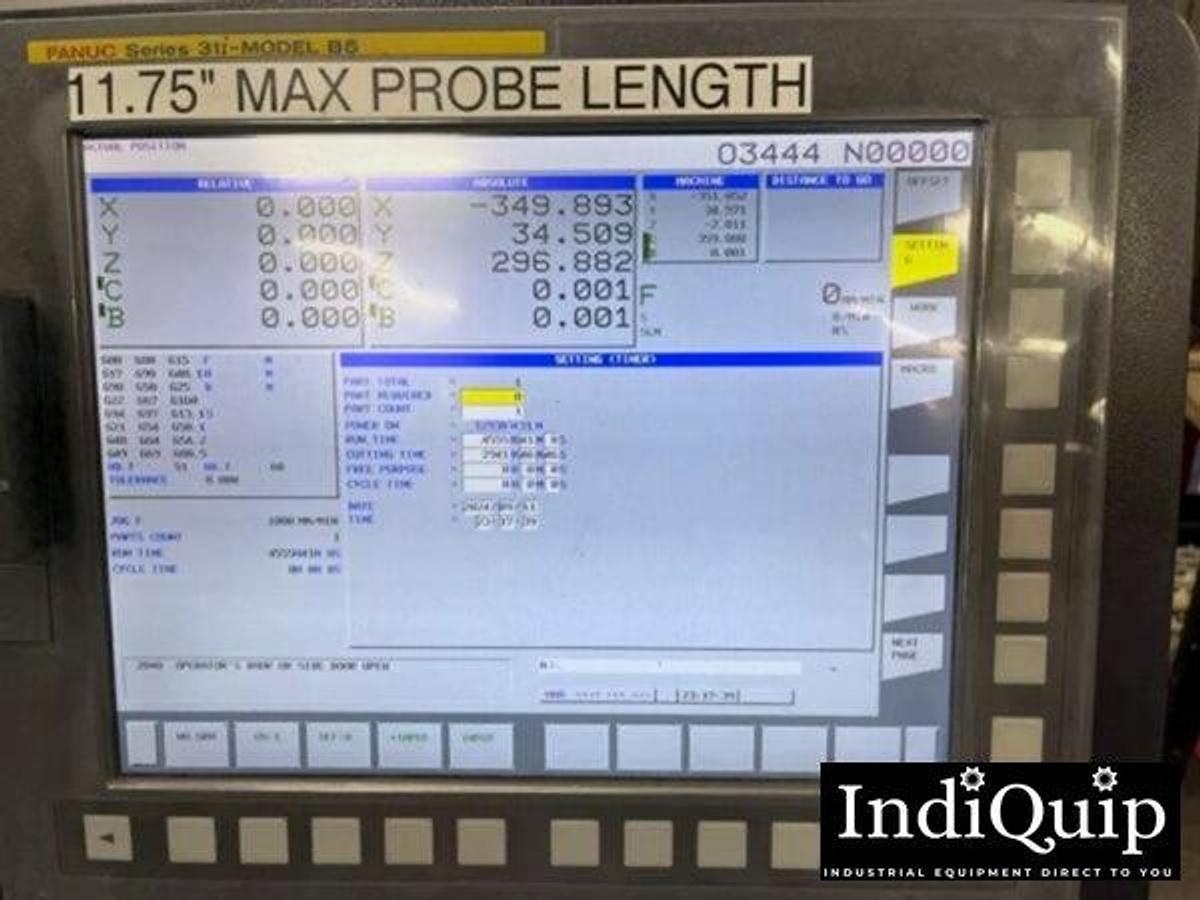

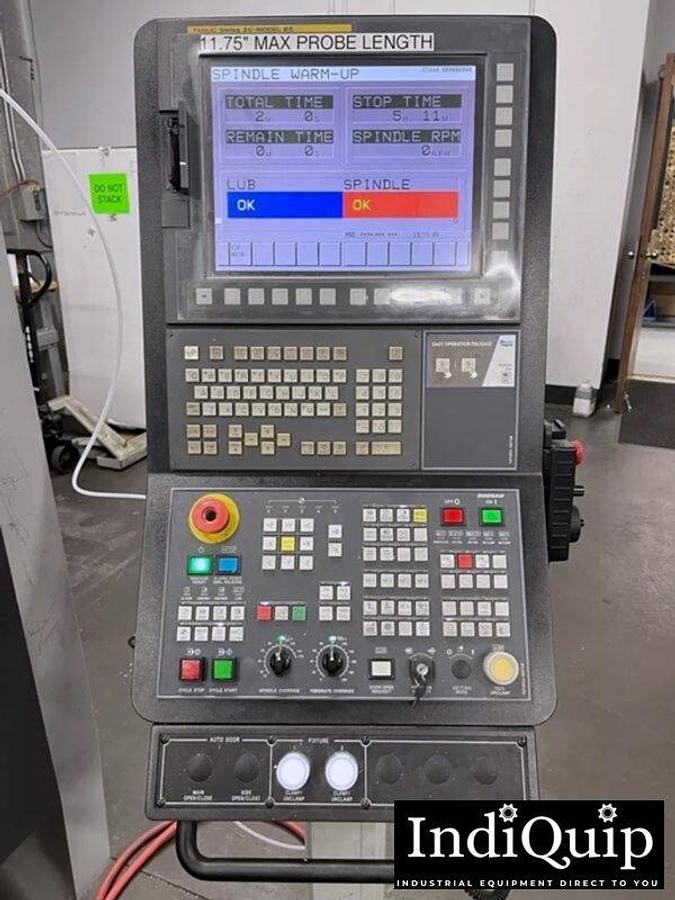

Fanuc 31i-M B5 Control

LNS Chip Conveyor

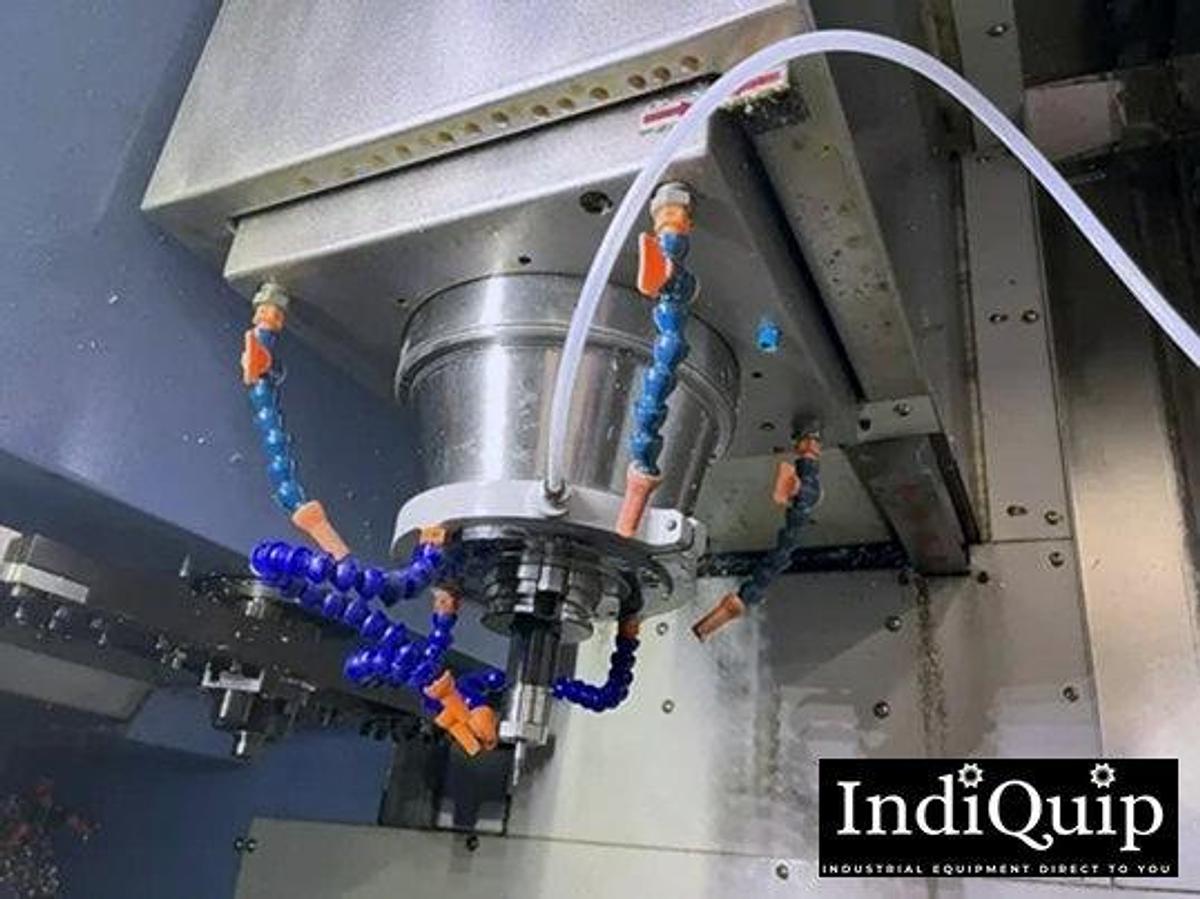

Through Spindle Coolant

60 Tool Magazine

Mist Collector

Probing

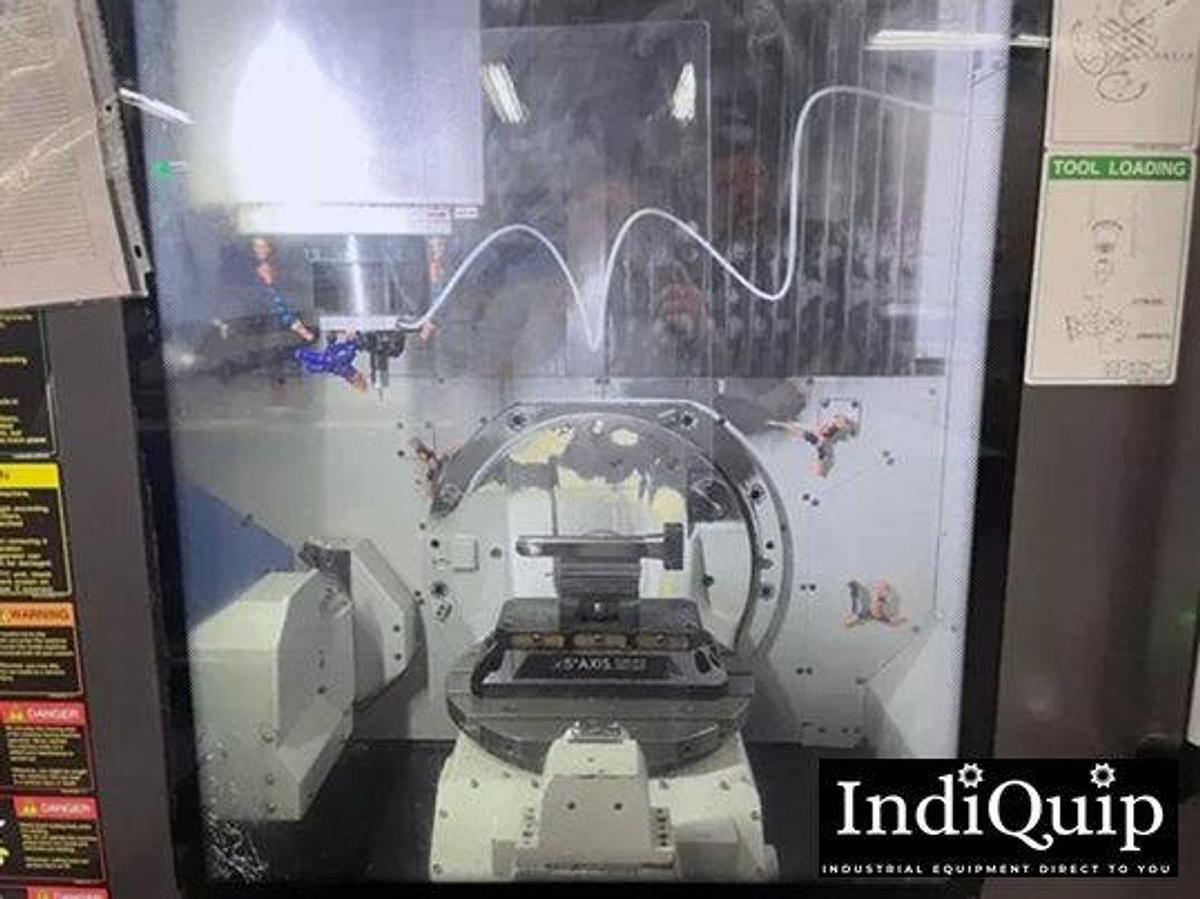

5 Axis Trunnion Table
