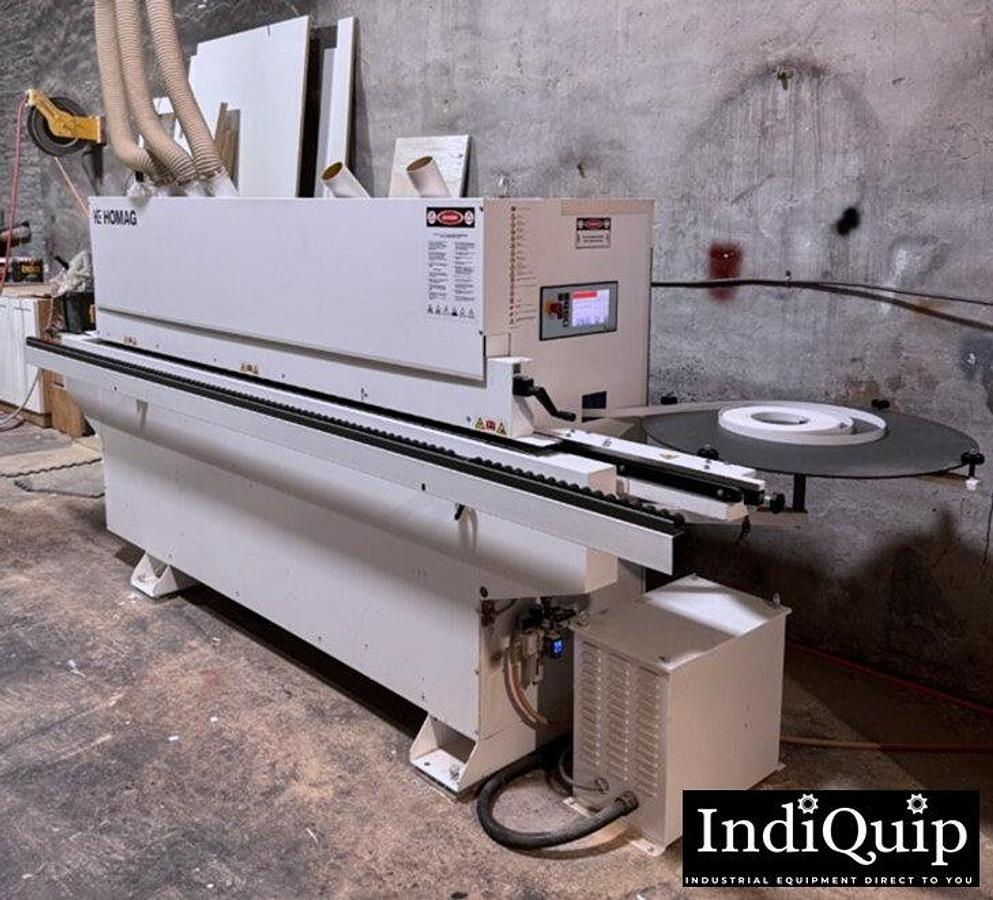

2020 HOMAG Edgeteq S-200 B (Optimat KDN 110) Single-Sided Edge Bander

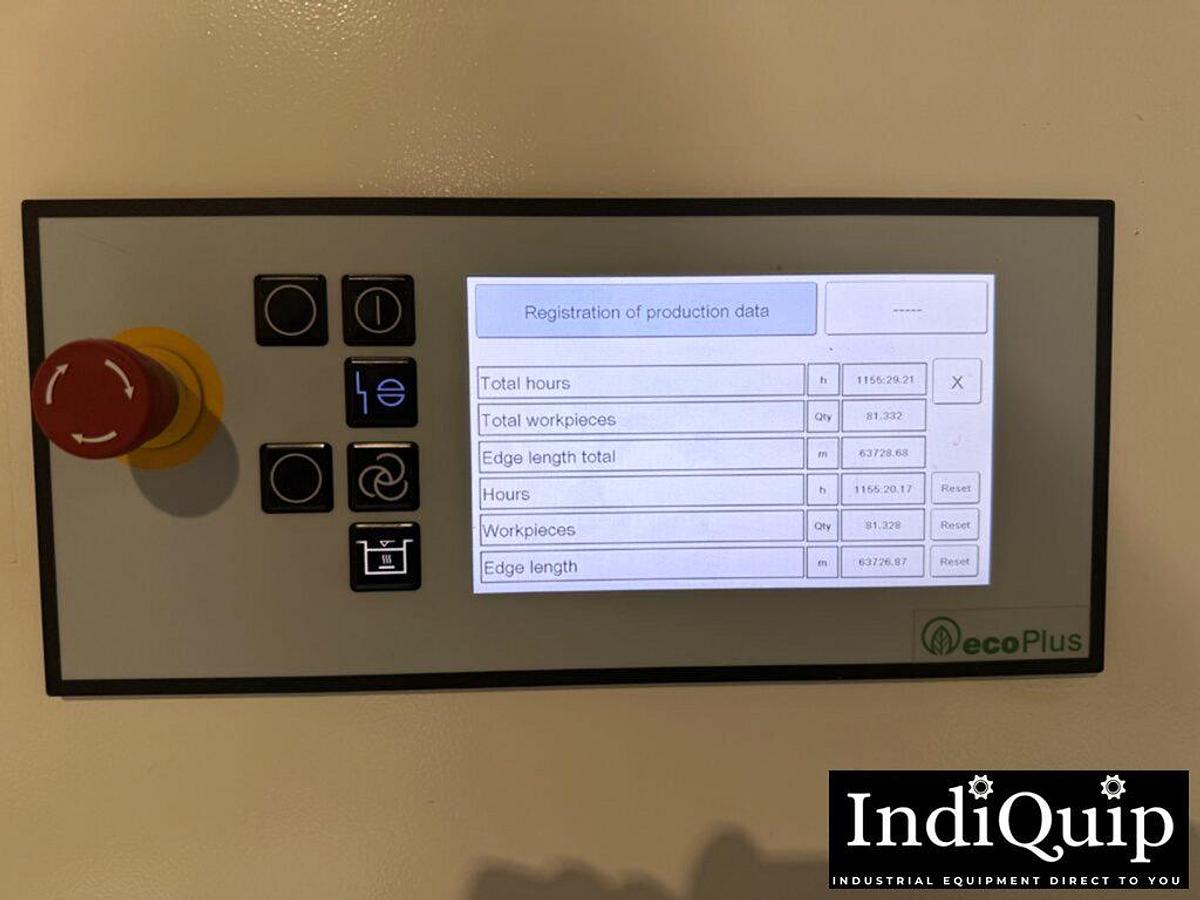

2020 Homag EDGETEQ S-200 (Optimat KDN 110) single-sided edgebander with easyTouch control, automatic coil feeding, 3 mm PVC capability, precision trimming units, and hot-melt glue system with energy-saving temperature management.

Workpiece Capacity

• Feed speed: 26 ft/min (8 m/min)
• Maximum workpiece thickness: 1.57″ (40 mm)
• Automatic height adjustment via top pressure beam across all stations
• Digital height indicator for pressure beam and infeed fence adjustment

Edgebanding Capability

• Universal automatic magazine for strip and coil feeding
• Large coil table (31.5″ / 800 mm diameter) for up to 3 mm PVC
• Standard hot-melt granulate glue system
• No lubrication required
• Automatic glue temperature reduction after 15 minutes of inactivity
• Full reheating in approx. 3 minutes

Pressure Zone

• First pressure roller driven
• Two (2) idle pressure rollers
• Digital setting system for precise pressure adjustment

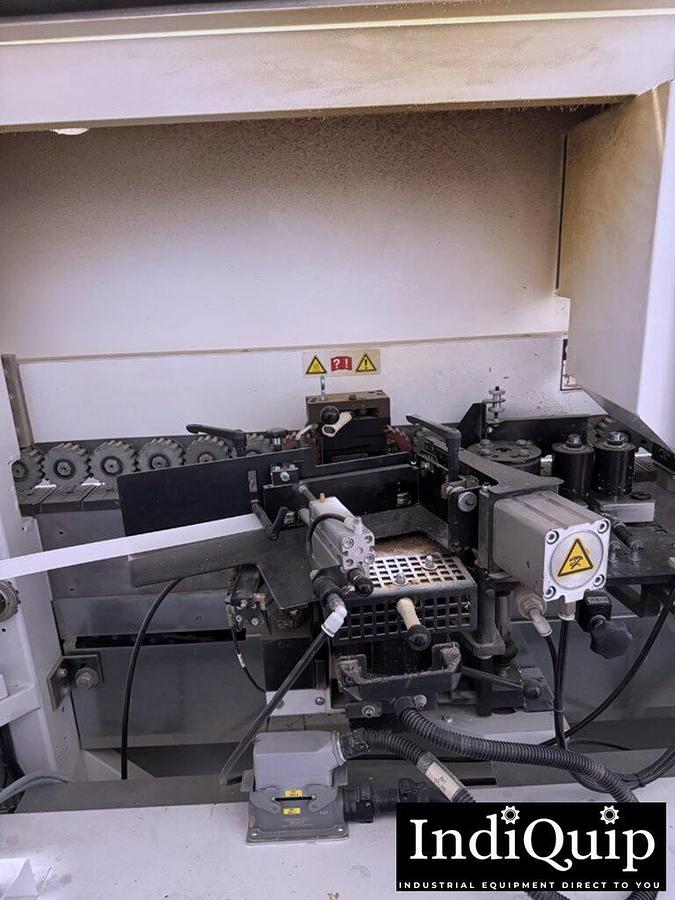

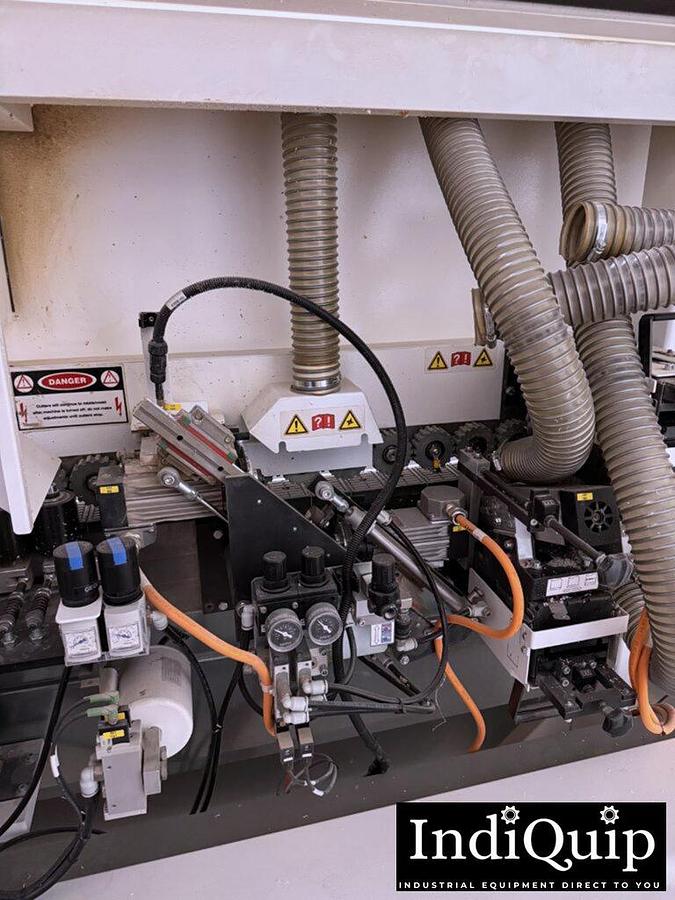

Trimming & Finishing Aggregates

• Double-Motor End Trimming Unit
• Mounted on linear guides for precision
• Top & Bottom Fine Trimming Unit
• DFC cutter heads with horizontally indexed carbide inserts
• Combination radius / straight trimming
• Three working positions:
• Flush trimming
• Trimming with overhang
• Radius / bevel trimming (R = 3 mm)
• Digital readouts included
• OPEN SPACE for optional Quick-Change Profile Scraping Unit
• Buffing Unit
• Two (2) motors
• Two (2) cloth buffing discs (approx. 5.9″ x 0.8″)
