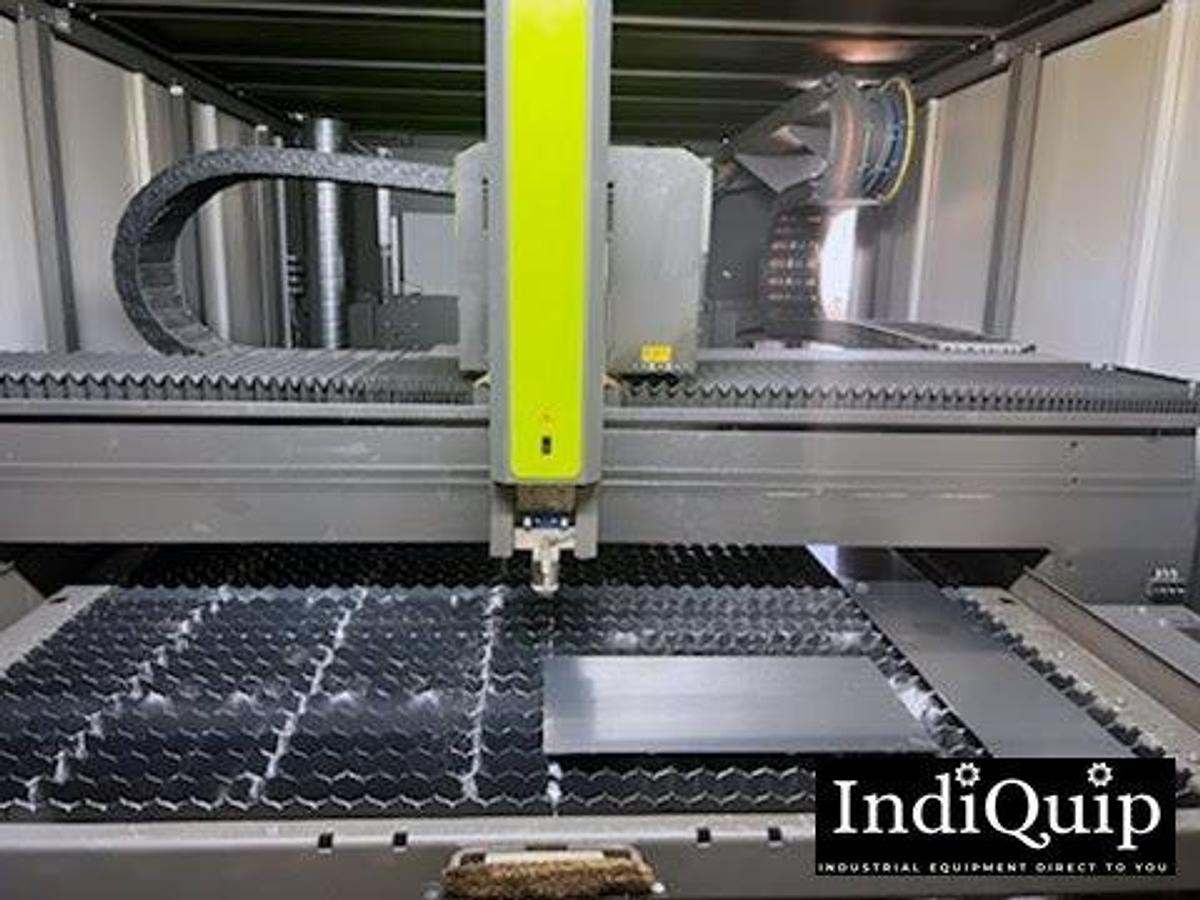

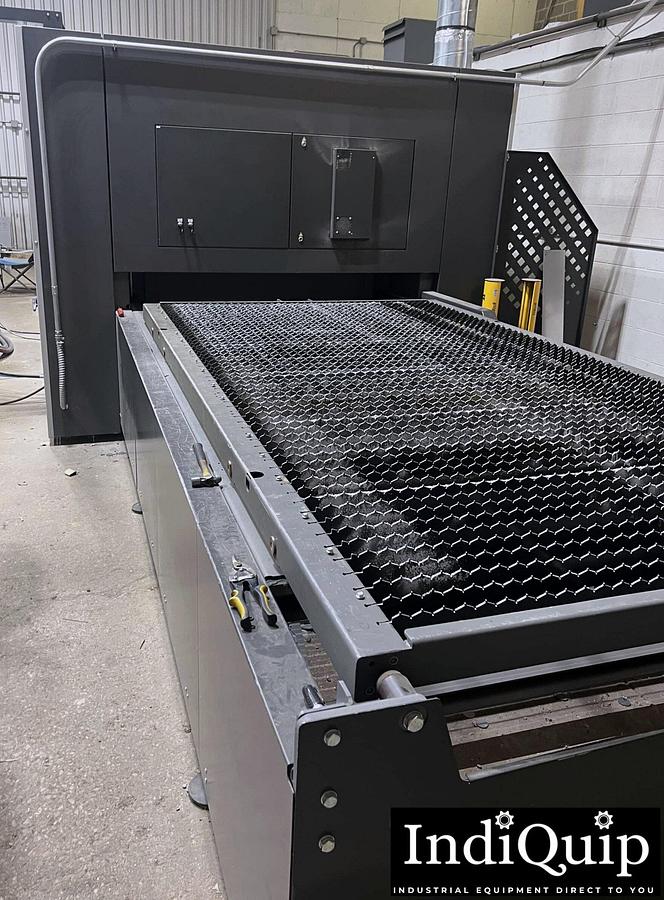

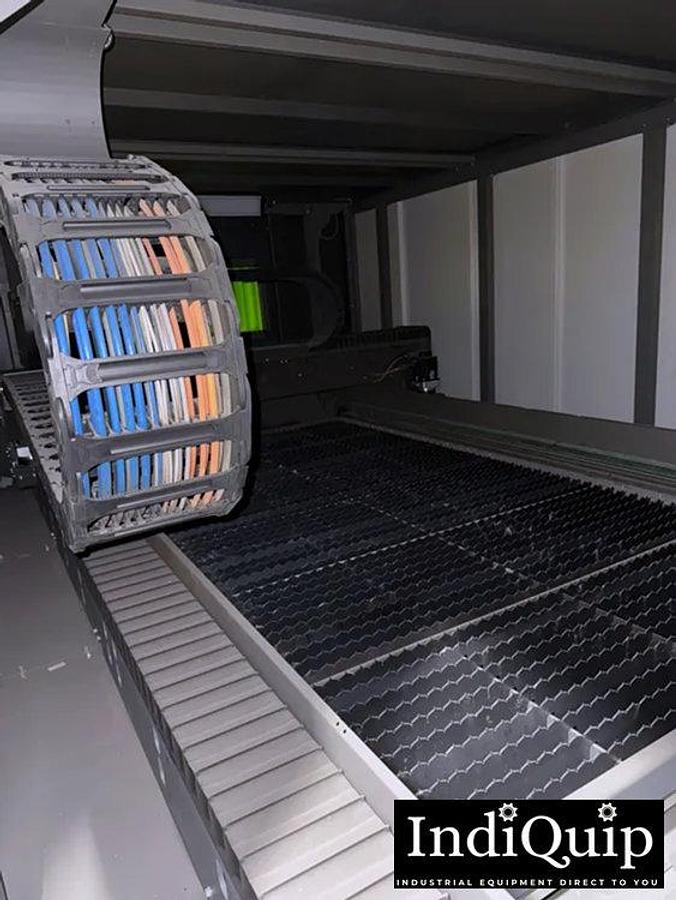

2021 Bystronic DNE LC3 3015 6000 Watt Fiber Laser

2021 Bystronic DNE LC3 3015 fiber laser with 6,000W power, 5′ x 10′ sheet capacity, and high-speed linear drives. Cuts up to 0.750″ steel, stainless, and aluminum with precision positioning, fast table changeover, and fume extraction.

Specs:

• Power: 6000W
• Laser Type: Fiber
• Sheet Size: 5′ x 10′
• Max Positioning Speed X/Y: 3937 IPM
• Max Simultaneous Positioning Speed: 5511 IPM
• Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): ±0.002″
• Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): ±0.004″
• Edge Detection Accuracy: ±0.019″
• Max Weight of Workpiece: 1,984 Lbs
• Table Changeover Time: 24 s
• Polarization: Unpolarized
• Wavelength: 1 µm
• Pulse Frequency: 1 – 2500HZ

Maximum Sheet Thicknesses:

• Steel: 0.750″
• Stainless Steel: 0.750″
• Aluminum: 0.750″
• Brass: 0.375″
• Copper: 0.375″ Total Electrical Consumption of System: 29kW

Equipped with:

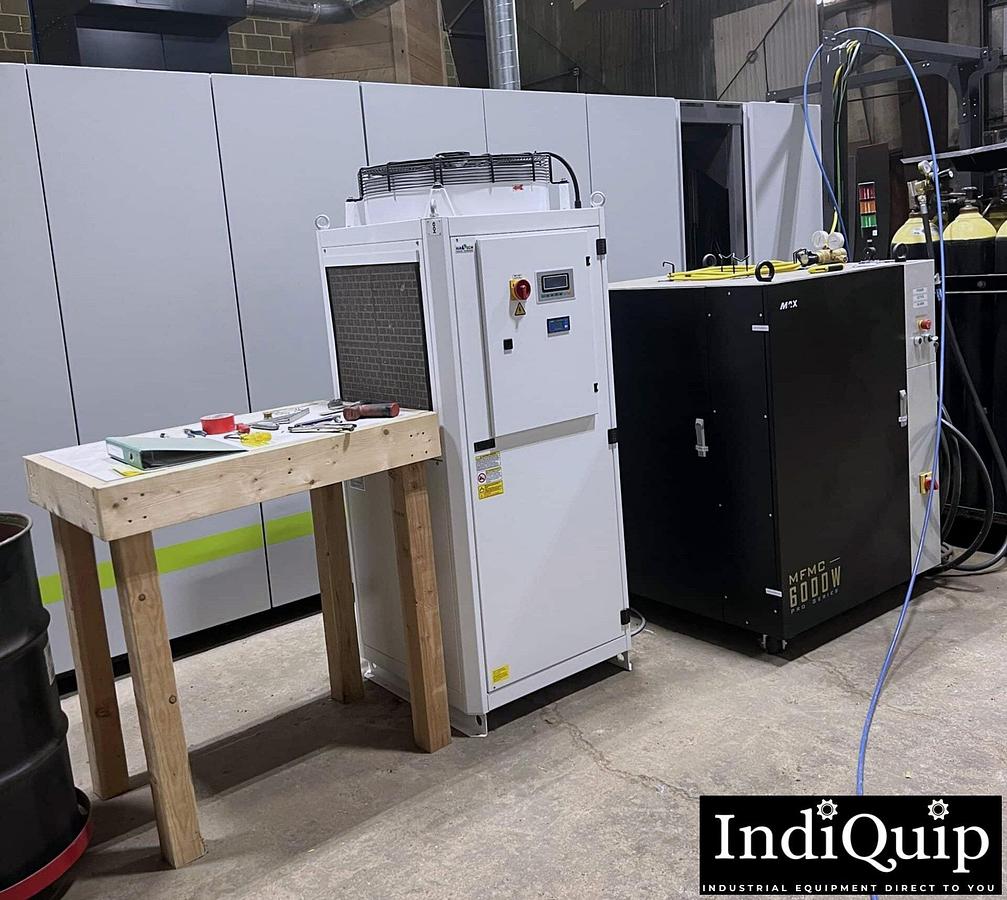

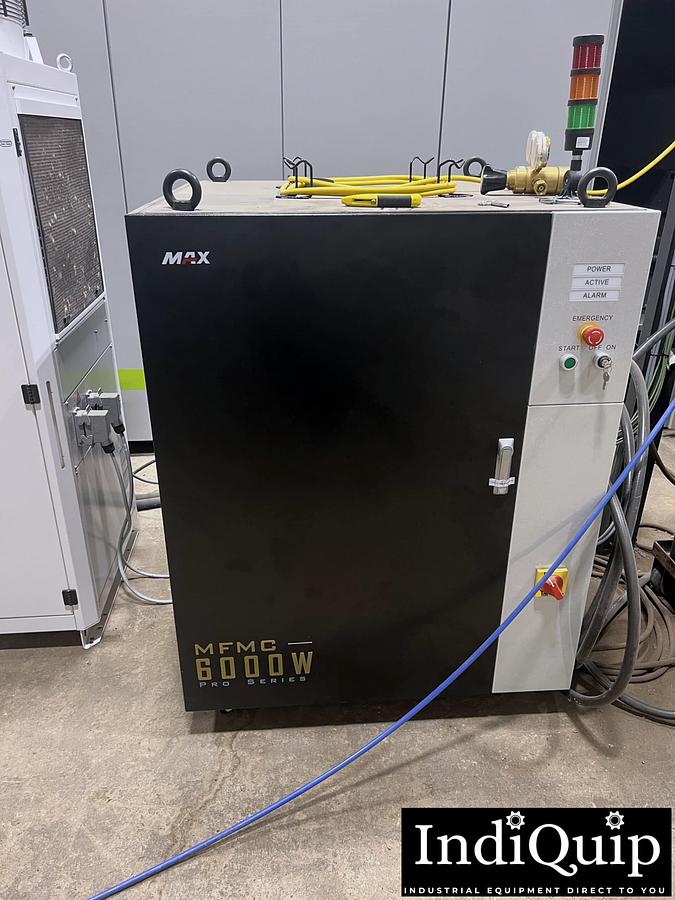

• Max Photonics MFMC 6000W Pro Series Power Source
• Donaldson Torit Fume Extraction System



All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
