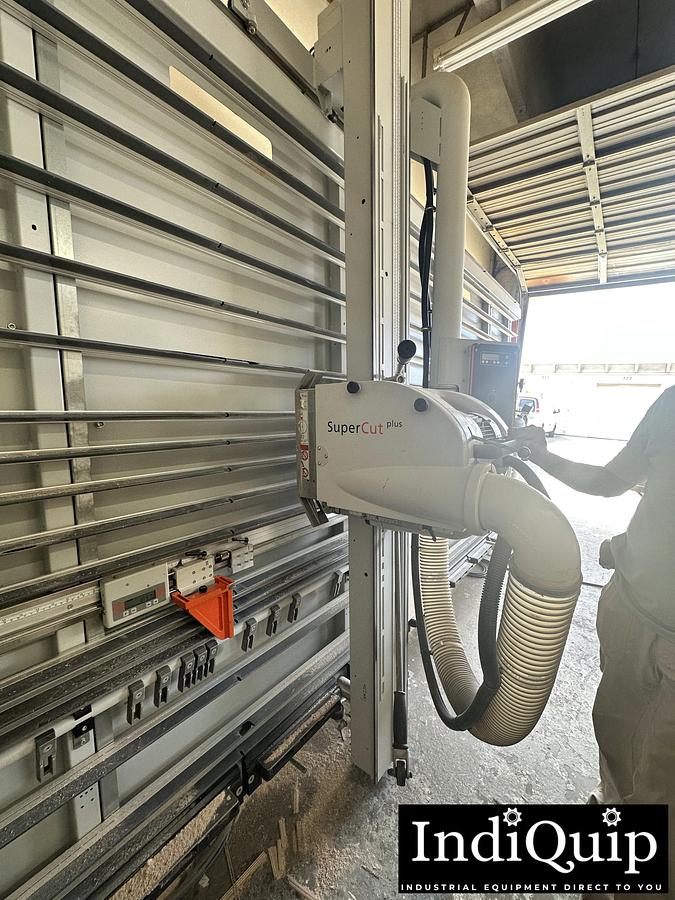

2019 Holz-Her Sector 1255 Pro

2019 Holz-Her SECTOR 1255 Pro vertical panel saw with 4 kW motor, SuperCut prescoring, 2.36" cutting depth, up to 248" cutting length, digital touch screen control, OptiBase V-Cut optimization, EasyLabel printer, and ProLock quick clamp system.

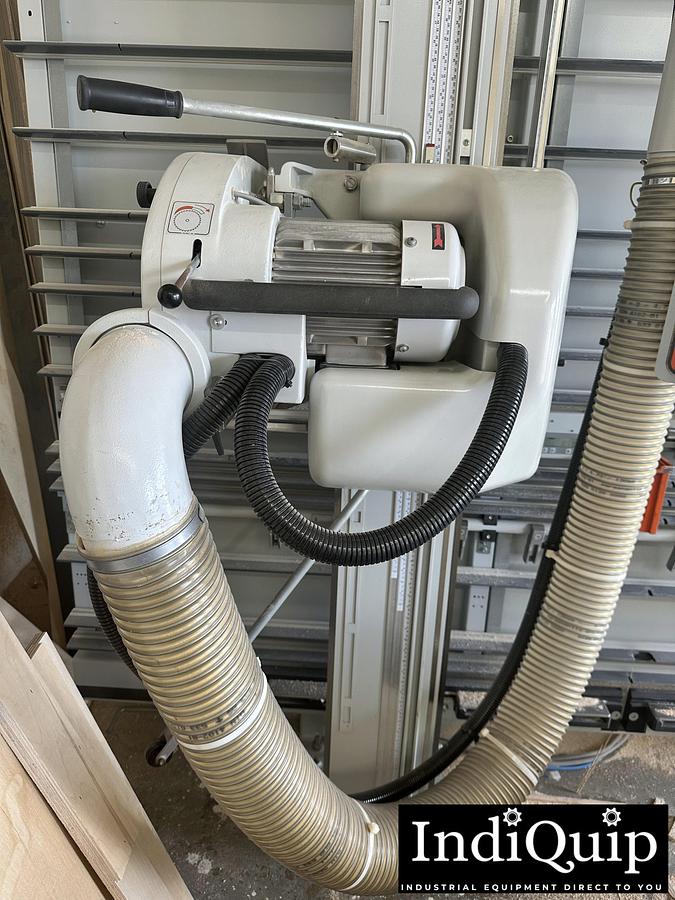

Sawing Unit

• Motor Power: 4.0 kW
• Speed: 5,200 RPM (50 Hz) / 6,300 RPM (60 Hz)
• Optional: Up to 7.0 kW with infinite speed control (1,100–5,500 RPM)
• Saw Blade Diameter: 250 mm
• Pneumatic brake for horizontal cut
• ProLock Quick Clamp Flange

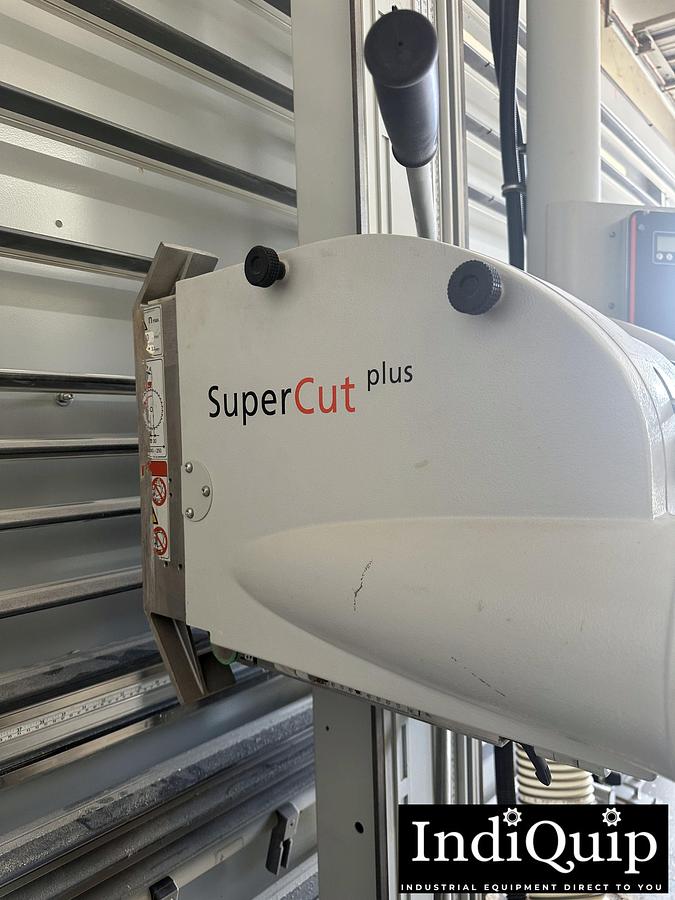

• Patented SuperCut Prescoring System

Cutting Capacity

• Cutting Depth: 60 mm
• Cutting Length Options: 3,300 / 4,300 / 5,300 / 6,300 mm
• Cutting Height: 1,900 / 2,200 mm
• Trimming Height: 1,810 / 2,110 mm

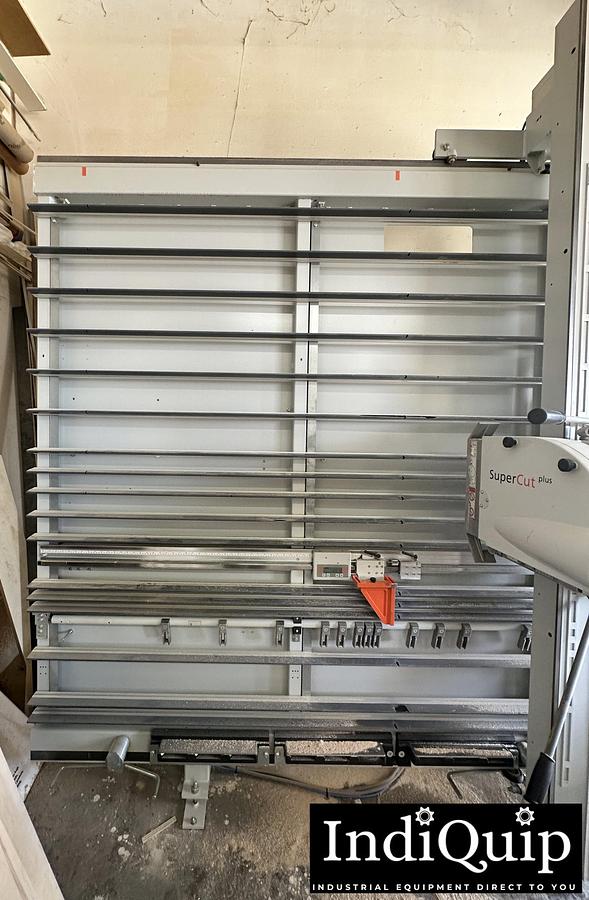

Sawing Beam & Support

• Top and bottom pneumatic arrest
• Three adjustable sawing points
• Pneumatic support grid
• Continuous middle workpiece support
• Bottom stainless steel workpiece support
• Two narrow part attachments

Dimensioning & Stops

• Digital horizontal dimension display
• Electric motor fine adjustment from control panel

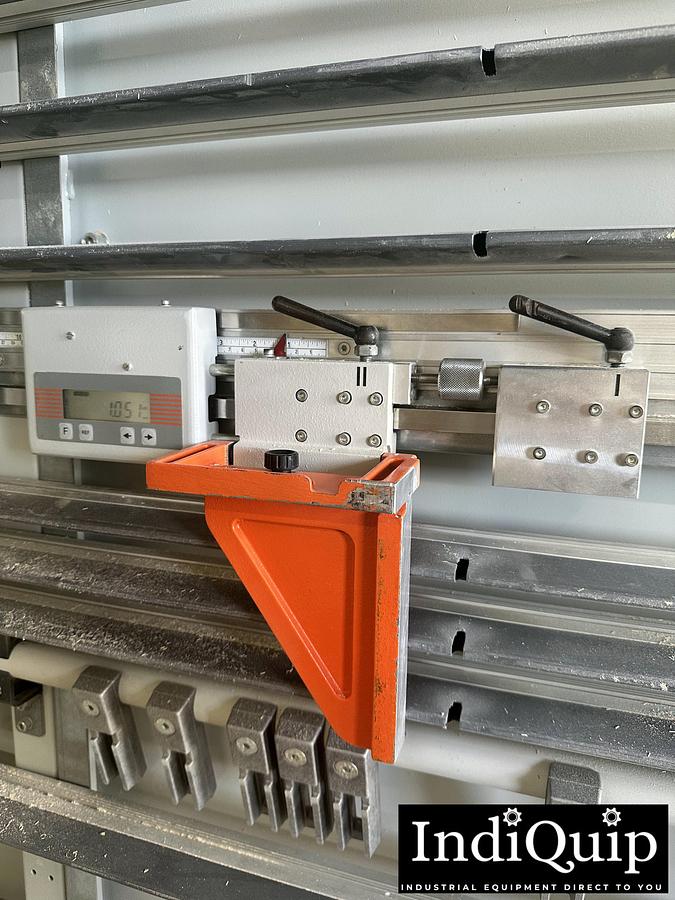

• Longitudinal stop with measuring tape and integrated small part stop
• Longitudinal stop with digital fine adjustment
• Optional second longitudinal stop (measuring tape or digital)

Optimization & Control

• 10" Touch Screen
• OptiBase V-Cut cutting optimization (with office license)
• EasyLabel printer included
• Network connectivity

Dust Extraction Requirements

• Air Requirement: 1,400 m³/h
• Minimum Air Velocity: ≥ 20 m/sec
• Attachment Connection Diameter (assembly): 120 mm
• Frame End Connection Diameter (TRK version): 100 mm
• Additional consolidation diameter (customer side): 160 mm
• Static Vacuum: 1,500 Pa

All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
