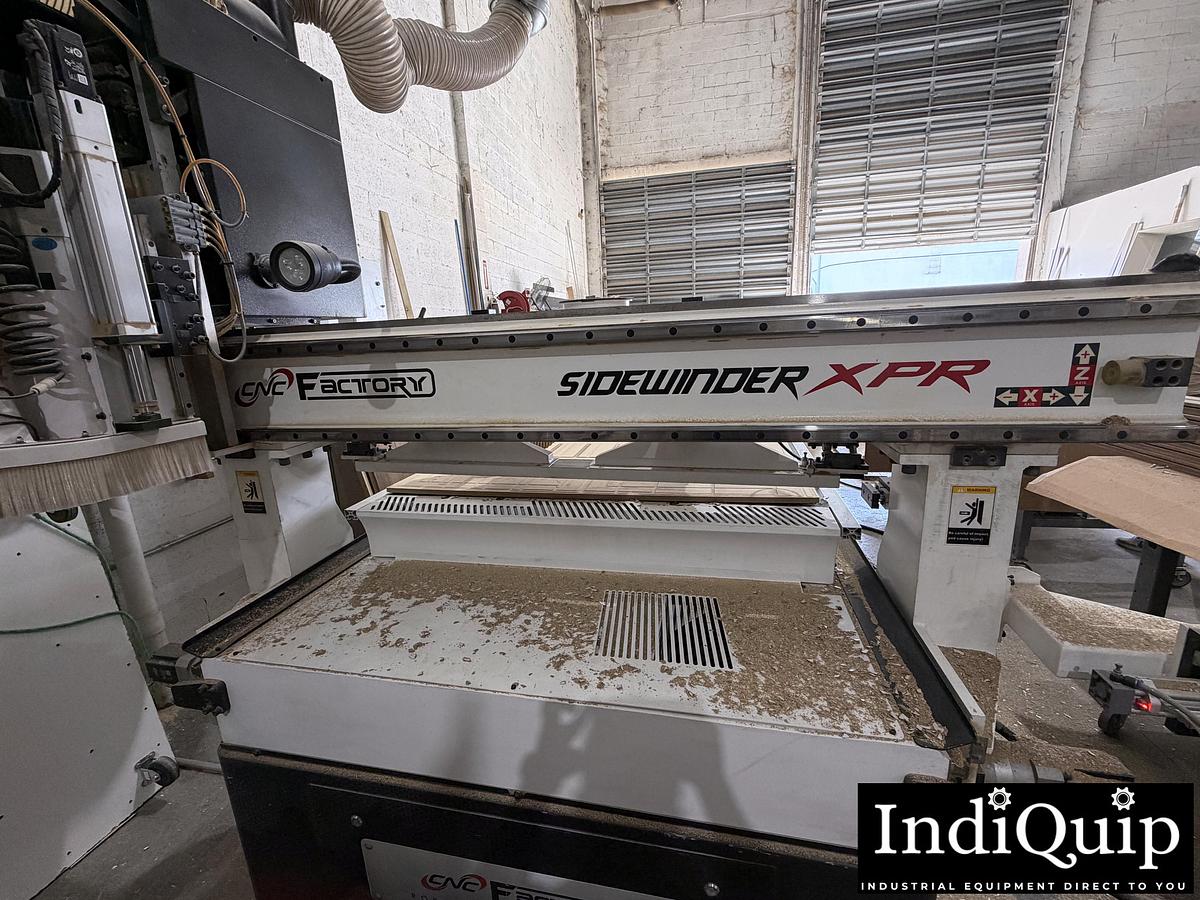

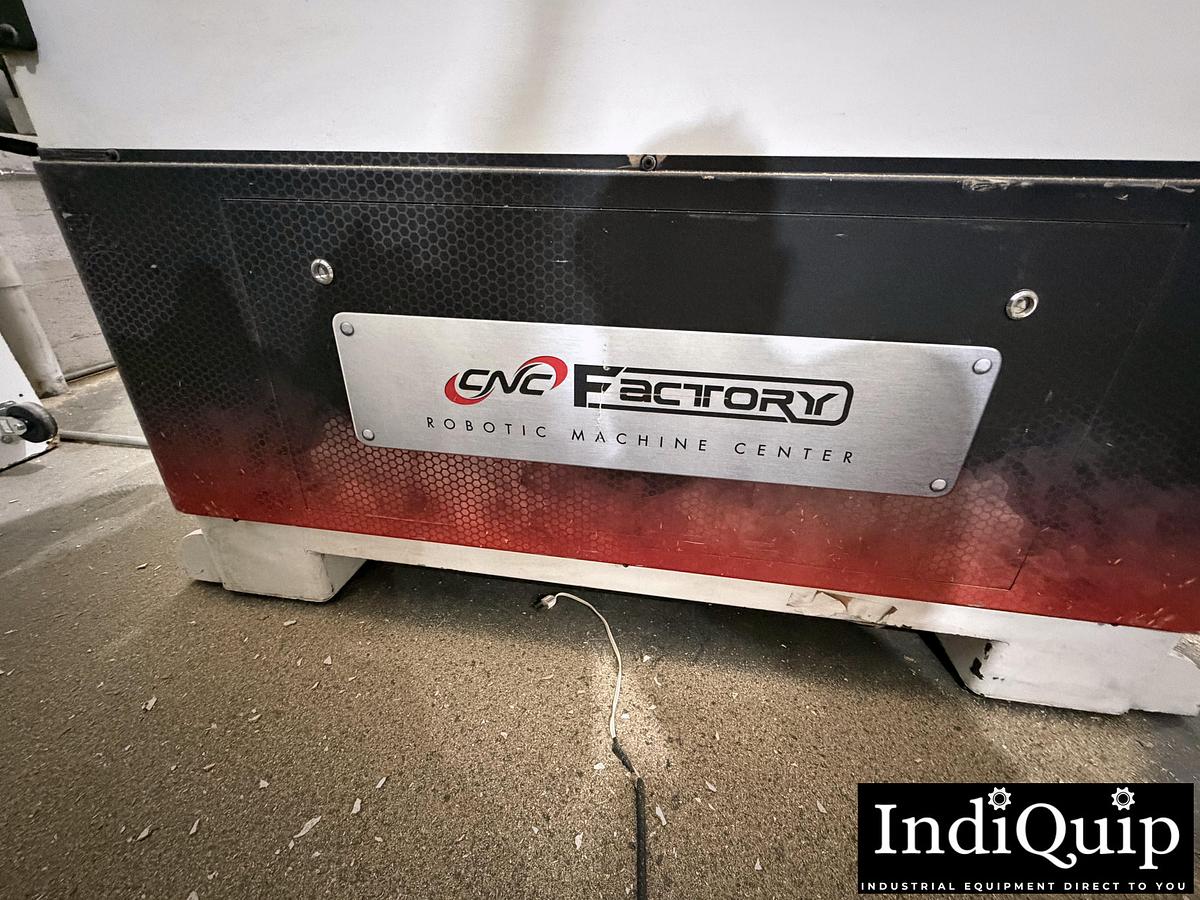

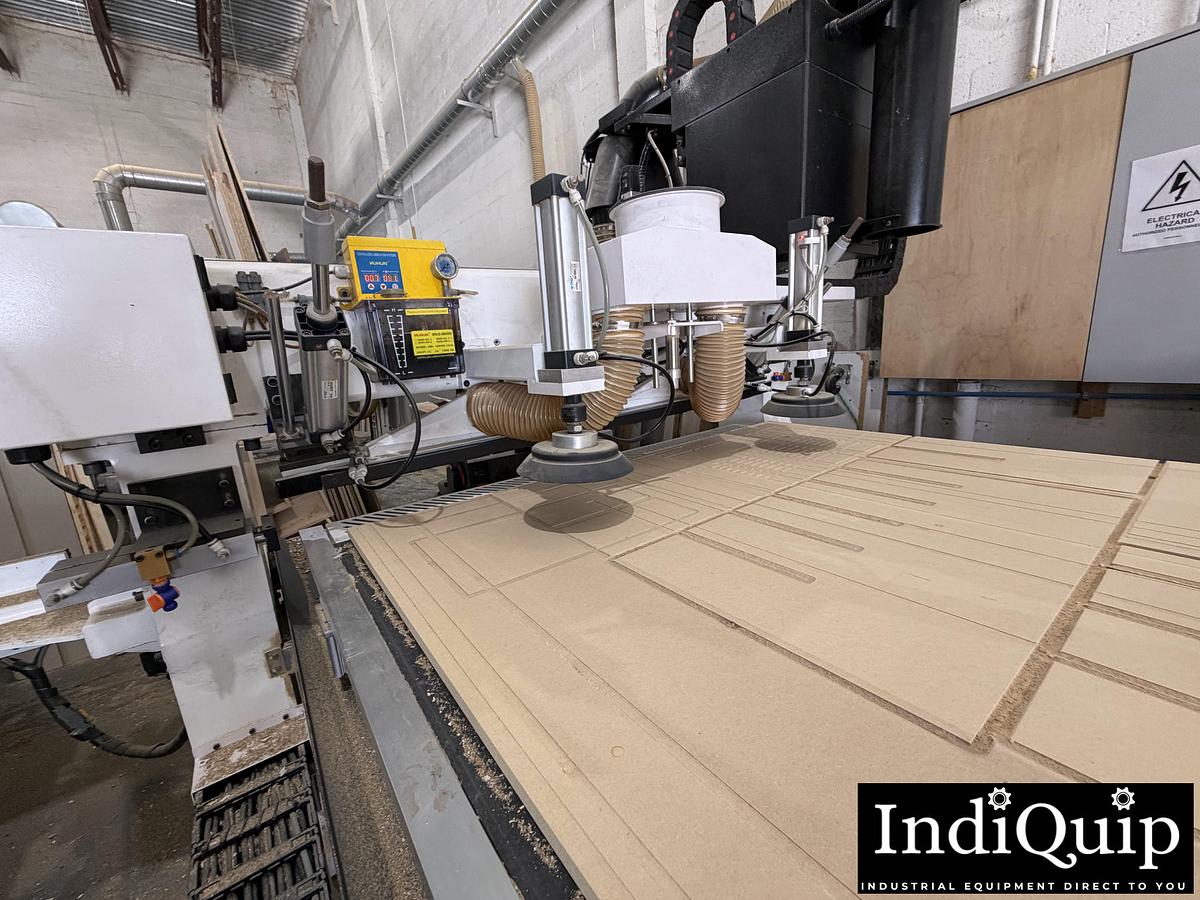

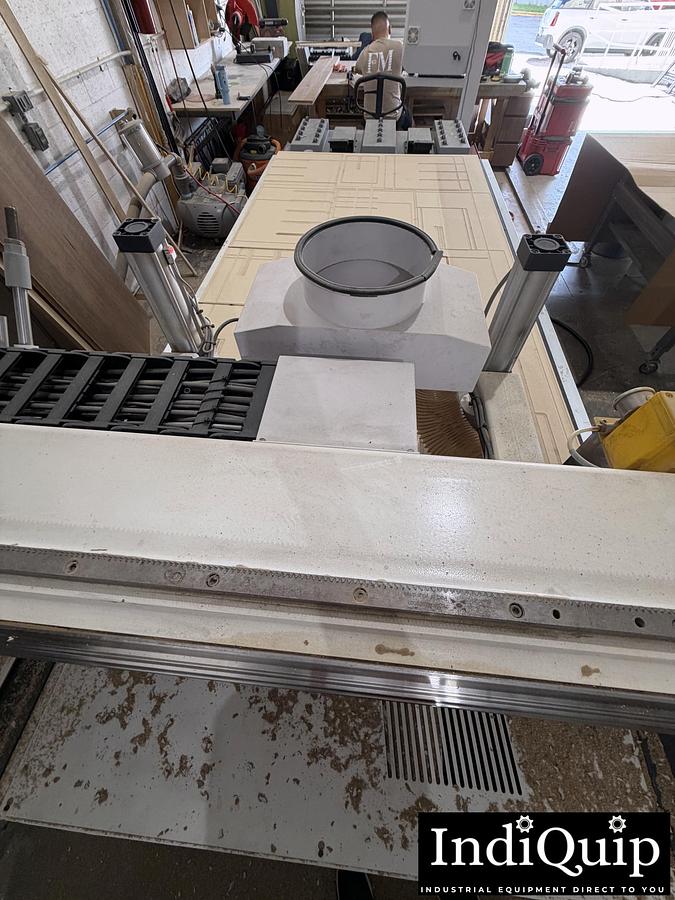

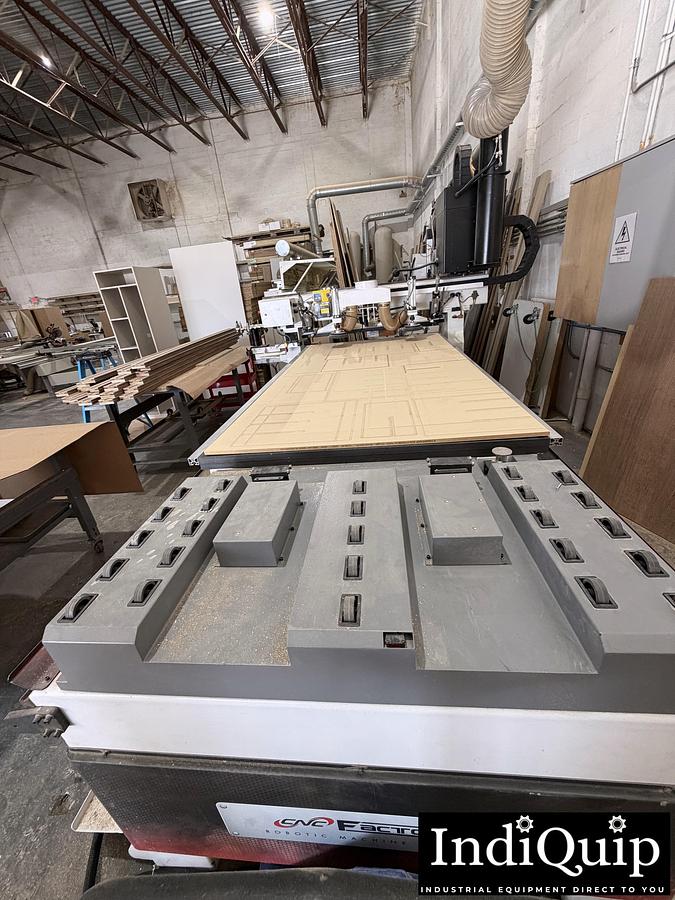

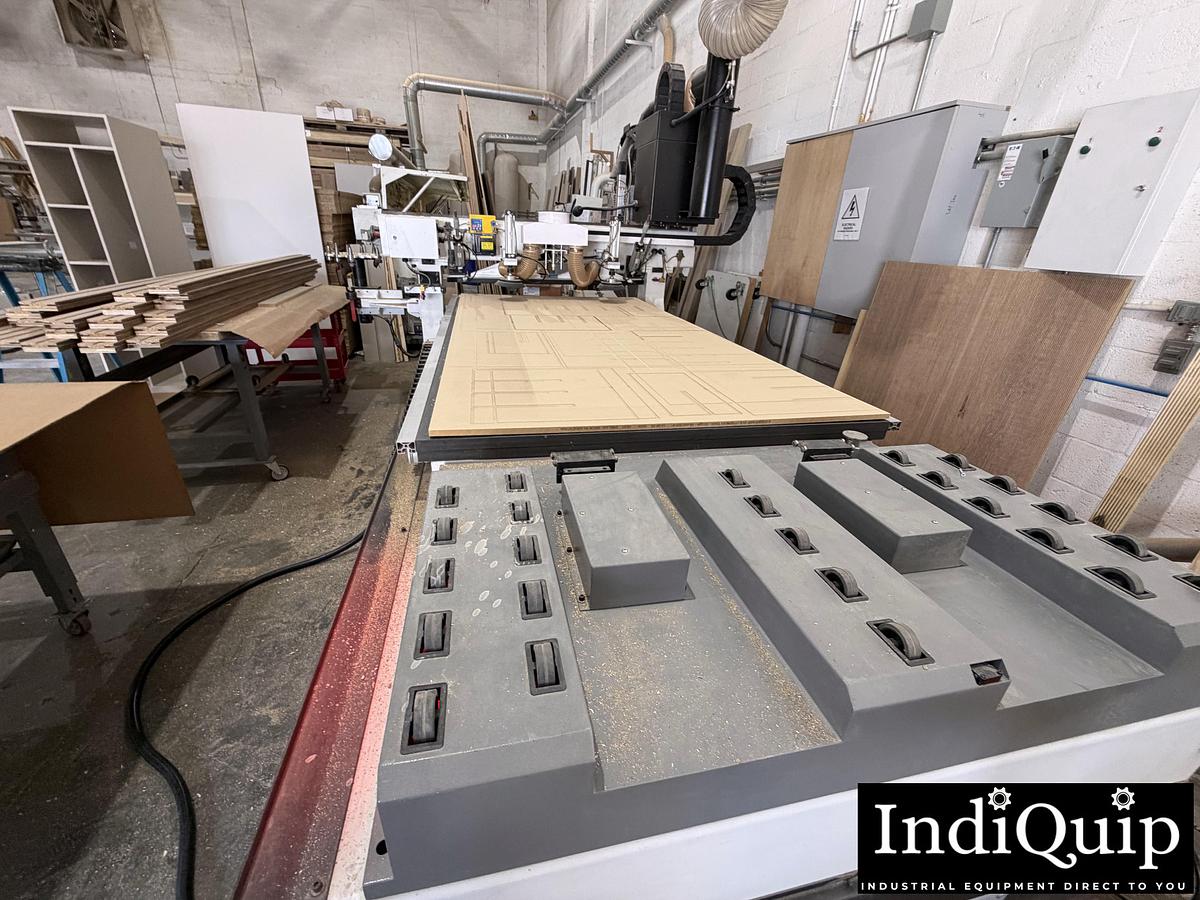

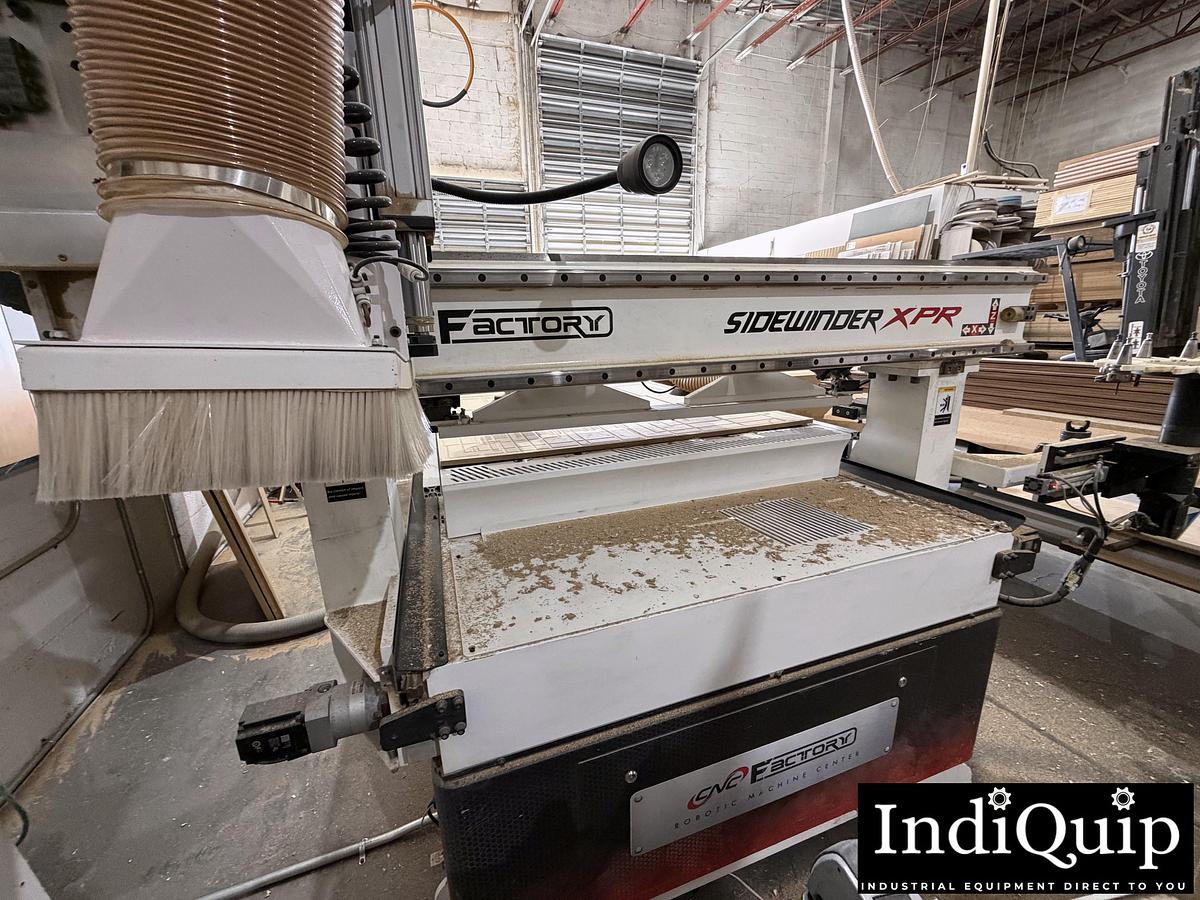

2023 CNC Factory Sidewinder XPR 4' x 8' CNC Router

Description

2023 CNC Factory Sidewinder XPR 4x8 CNC router with 12HP spindle, 8-tool ATC, and high-flow vacuum table. Turnkey cabinet shop package with V300 vacuum pump, tooling, and training included.


Table Size: 4' x 8'

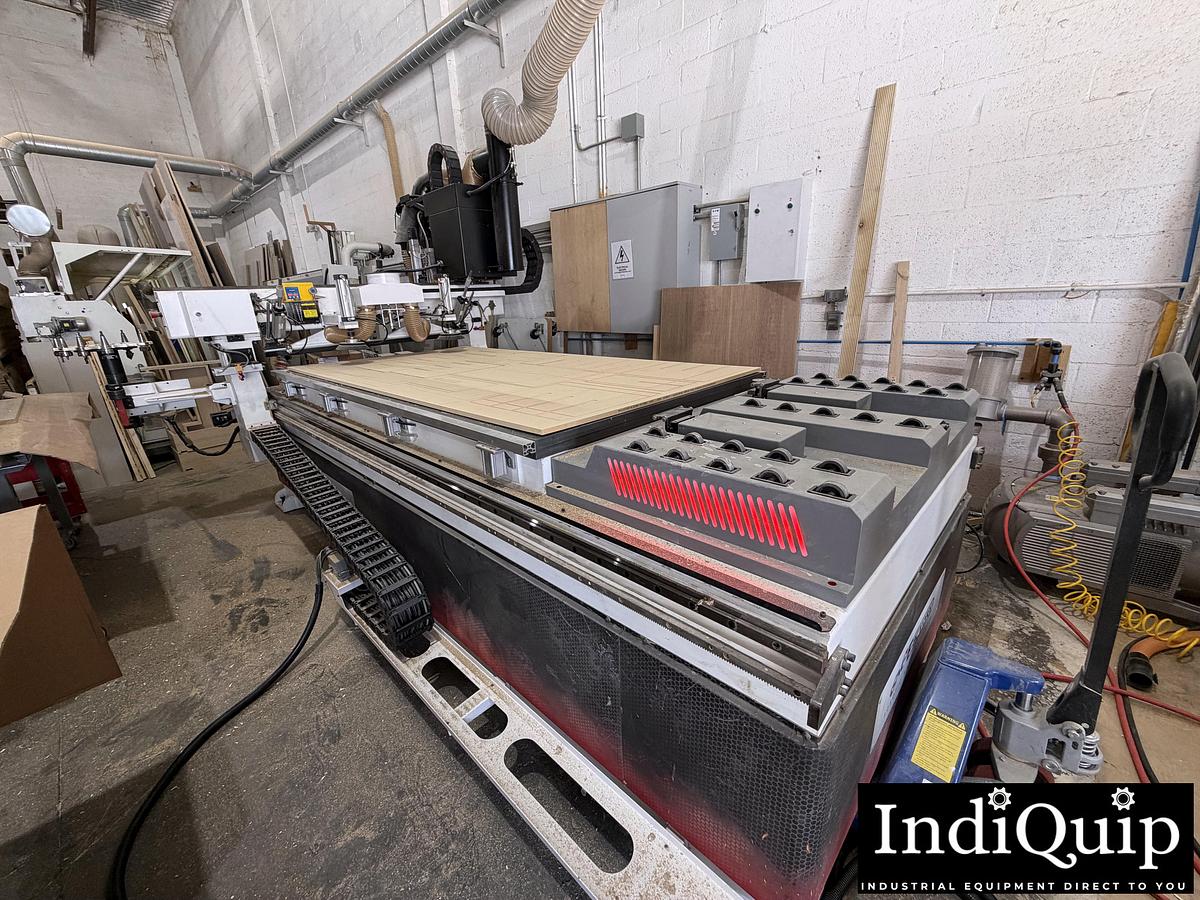

Vacuum Table: 4-zone, dual-layer high-flow phenolic grid

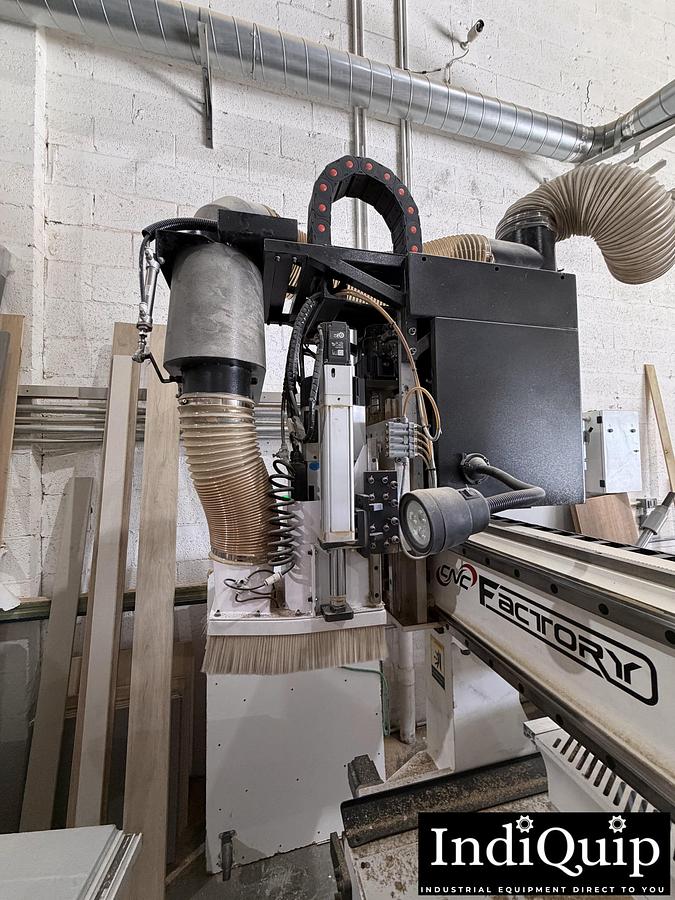

Spindle: 12 HP air-cooled ATC spindle

Spindle Speed: 1,000 – 24,000 RPM

Tool Holder Type: ISO-30

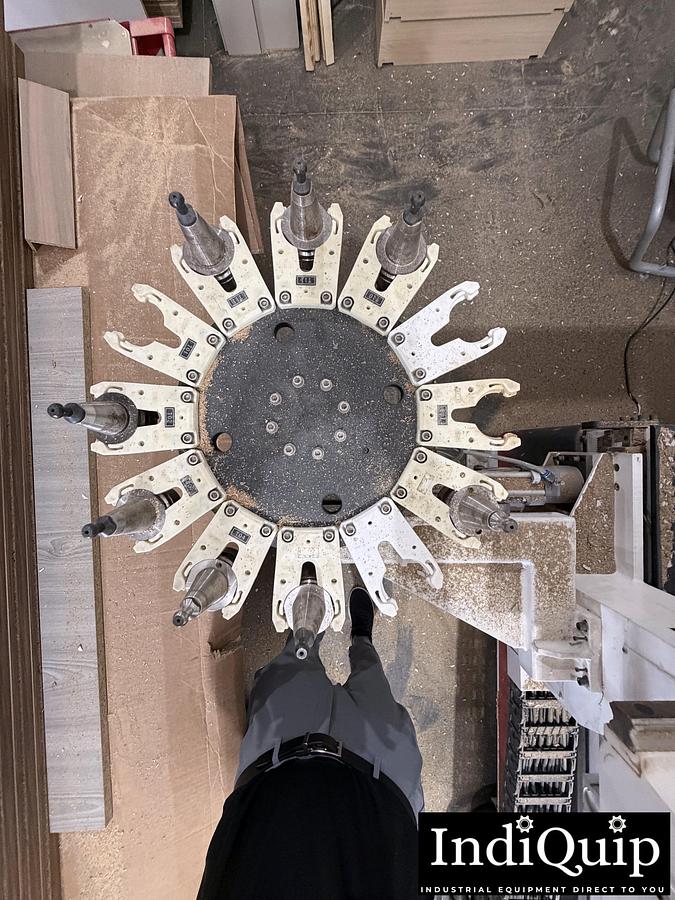

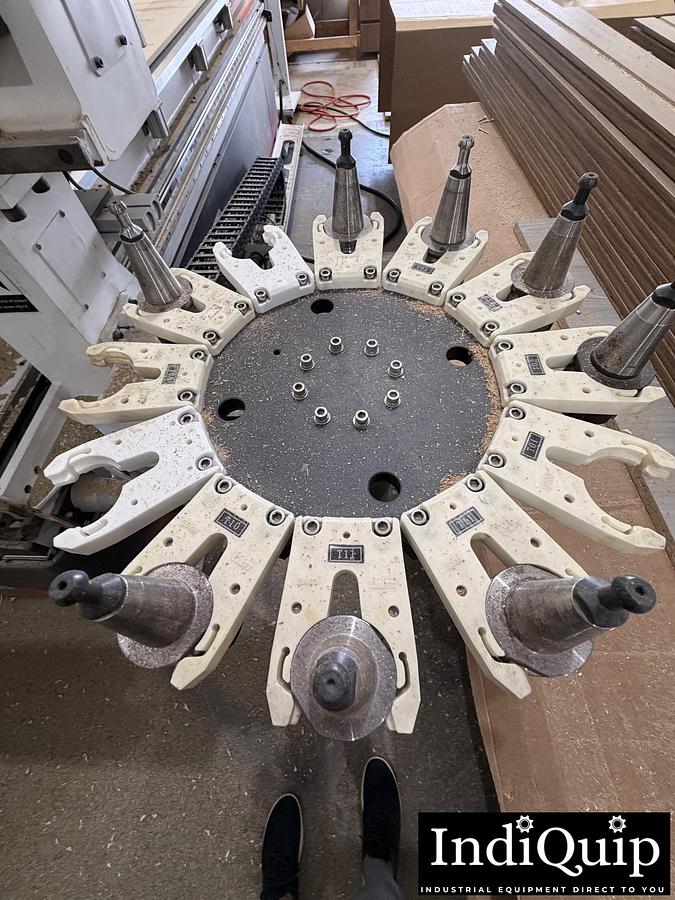

Tool Changer: 12-position rotary ATC

Tool Change Time: ~8 seconds

Max Cutting Speed: 1,200 IPM

Rapid Traverse: 2,200 IPM

Positioning Accuracy: ±0.001"

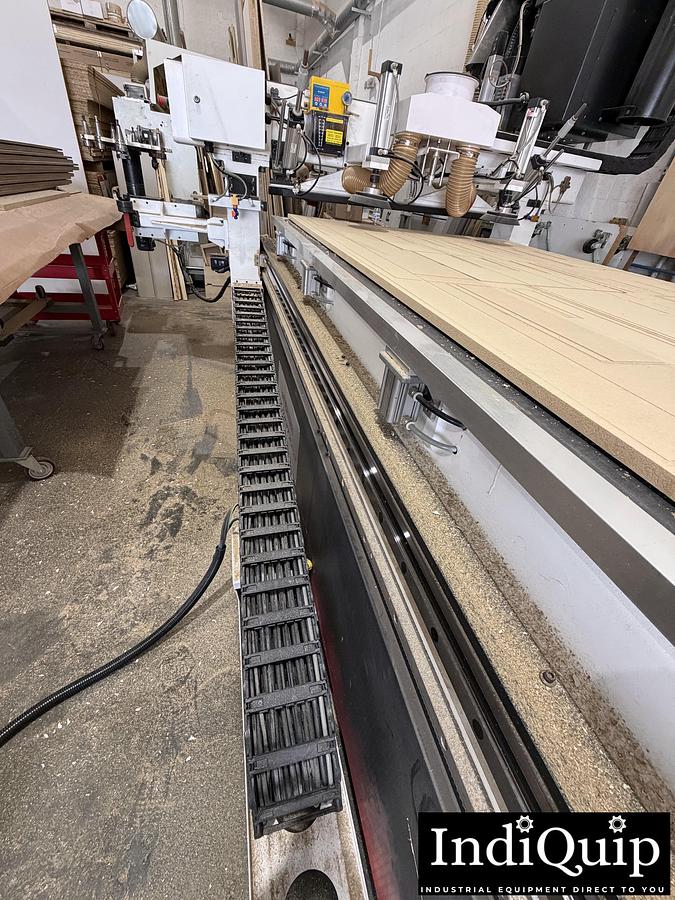

Drive System: 5th generation helical rack & pinion

Servo System: Yaskawa 5G servo motors

Z-Axis Travel: 11.5"

Z Clearance: up to 7"

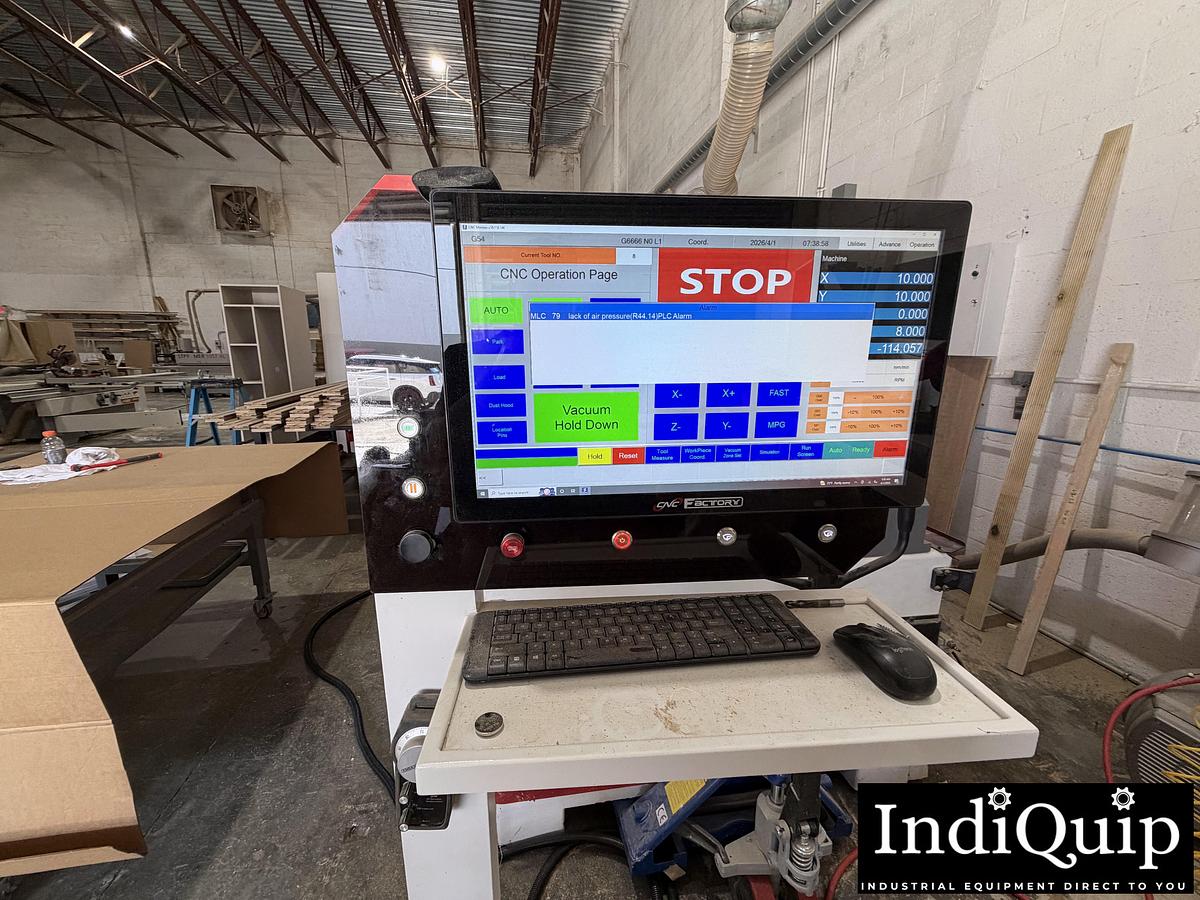

Controller: 21" touchscreen industrial control

Connectivity: WiFi, Ethernet, USB

Software Compatibility: G-code compatible (KCD, VCarve, others)

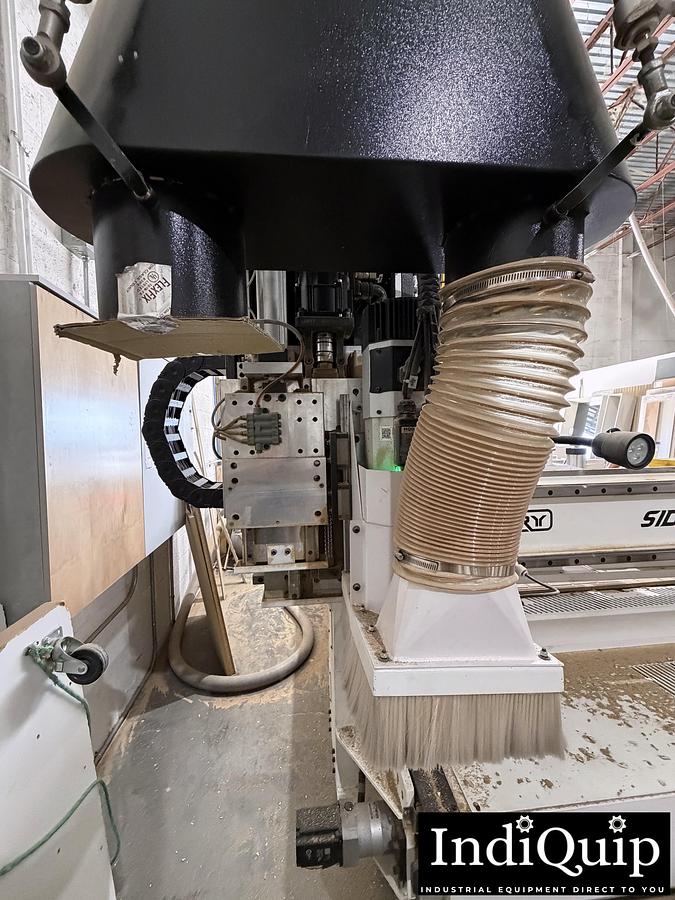

Dust Collection Port: 6"

Dust Collection Requirement: ~2,500–2,800 CFM

Air Requirement: 120 PSI, ~9 CFM

Electrical: 208–240V, 3 Phase, ~30–40 Amp

Machine Weight: approx. 7,200 lbs

Specifications

ManufacturerCNC Factory
ModelSidewinder XPR
Year2023
ConditionUsed
Stock NumberQ-1792947
