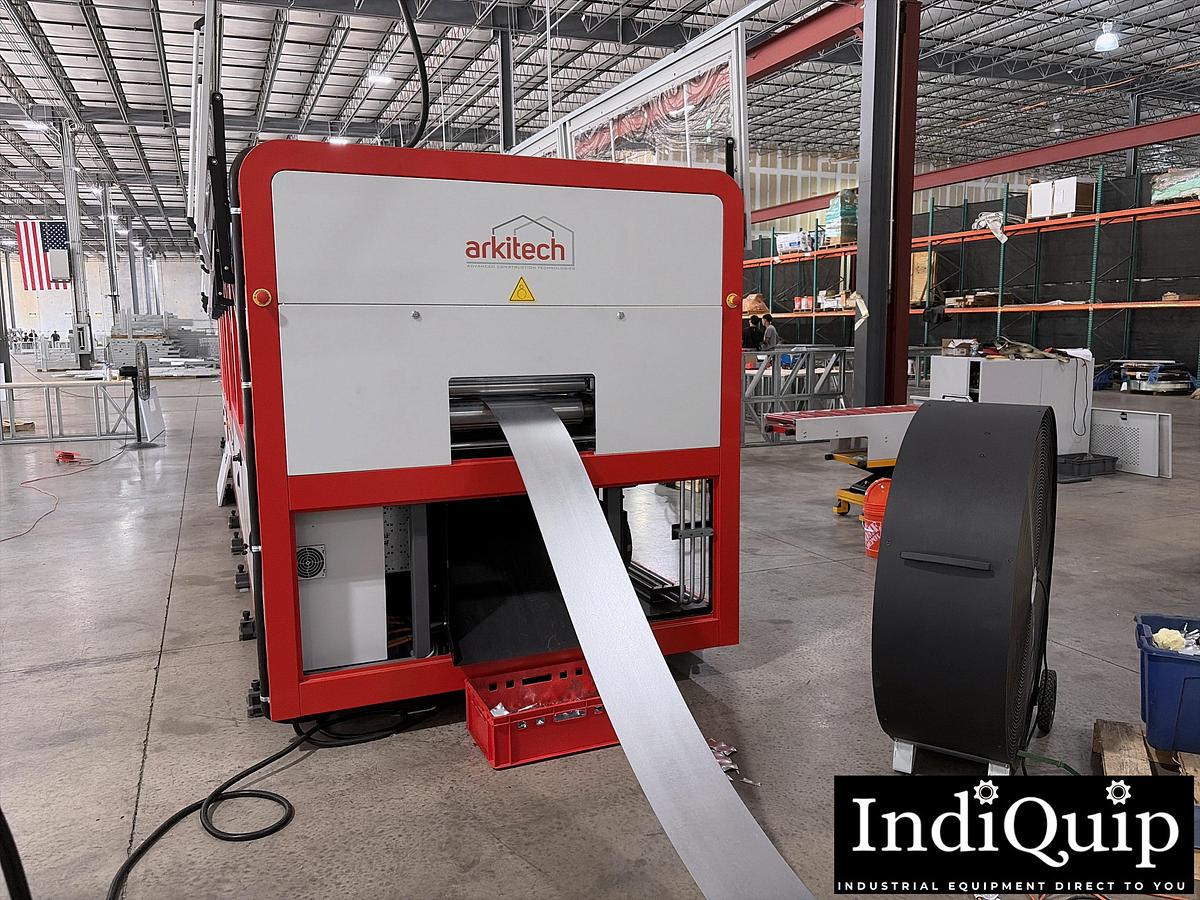

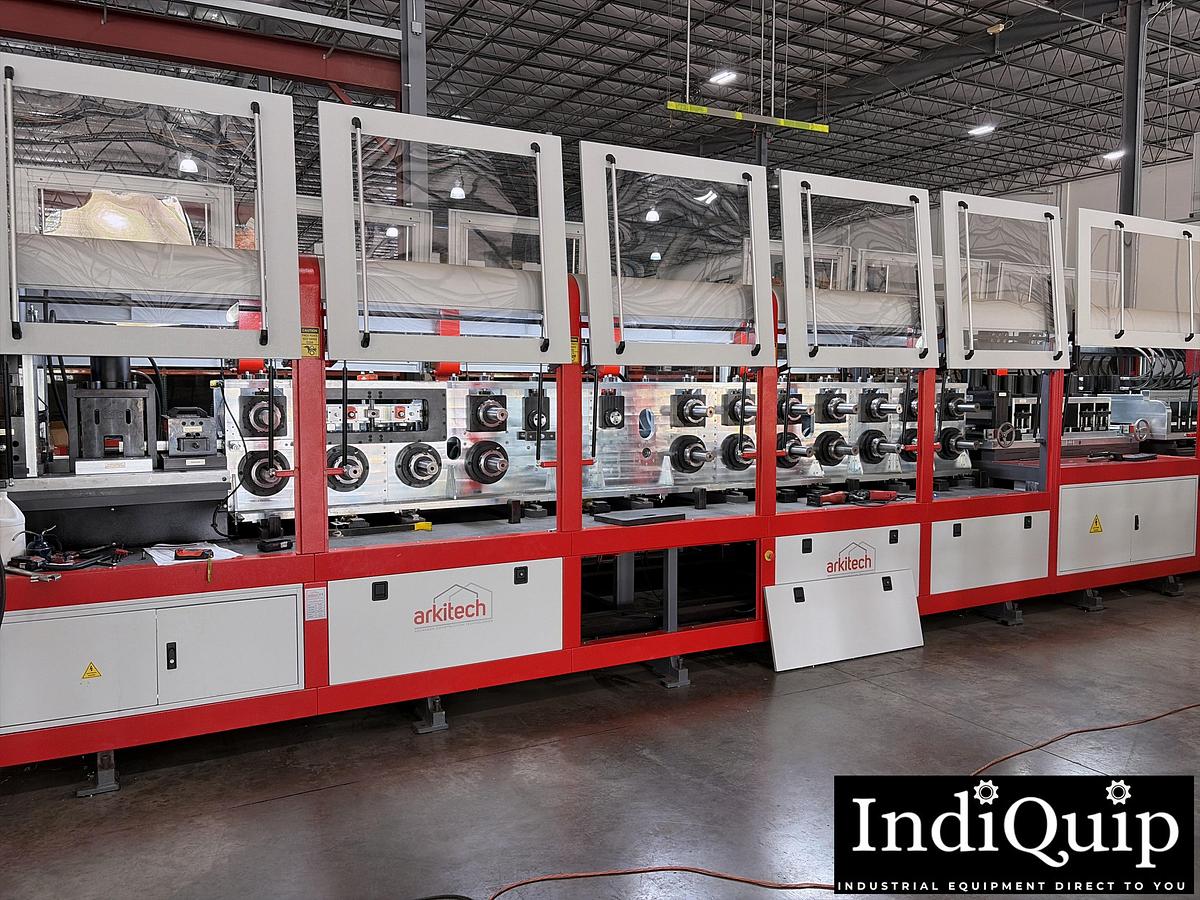

2025 Arkitech MF2500P Steel Framing Machine
Description

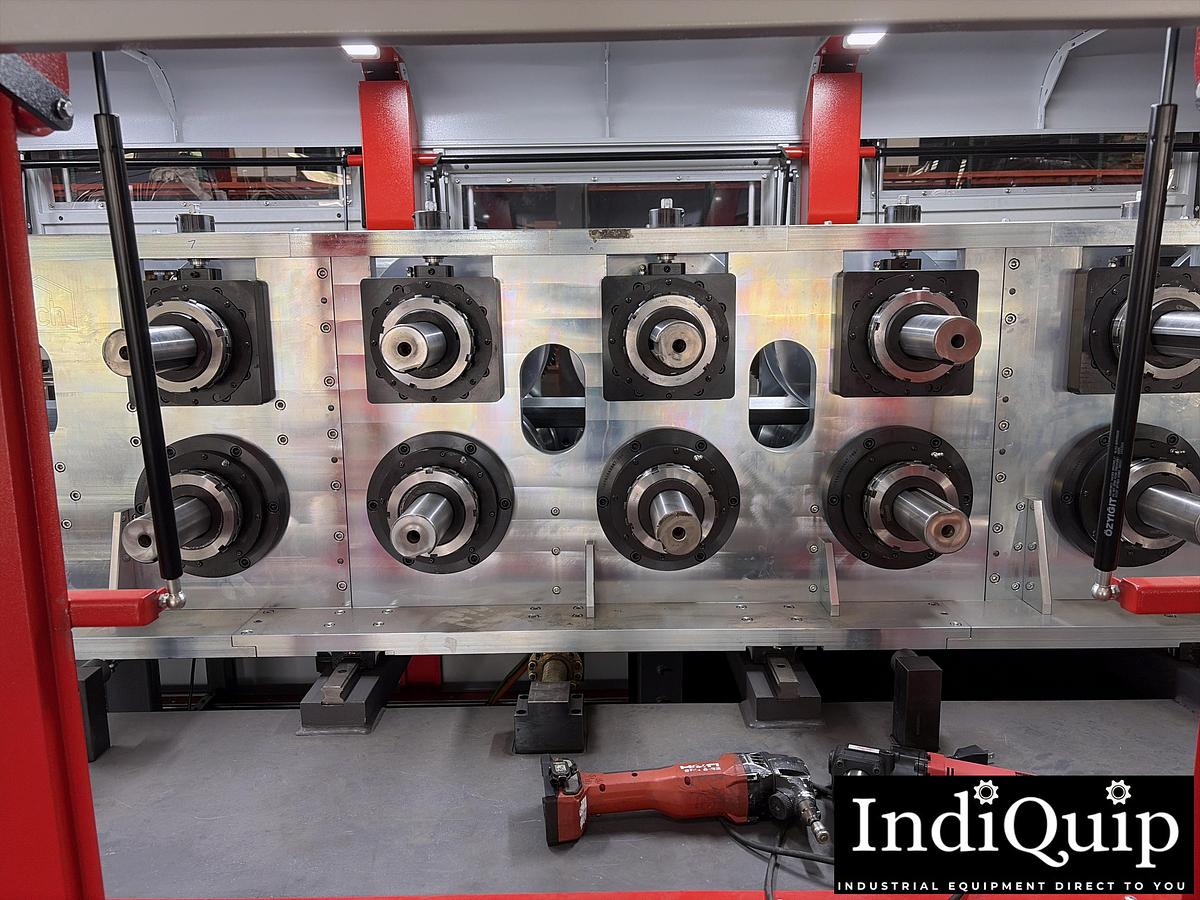

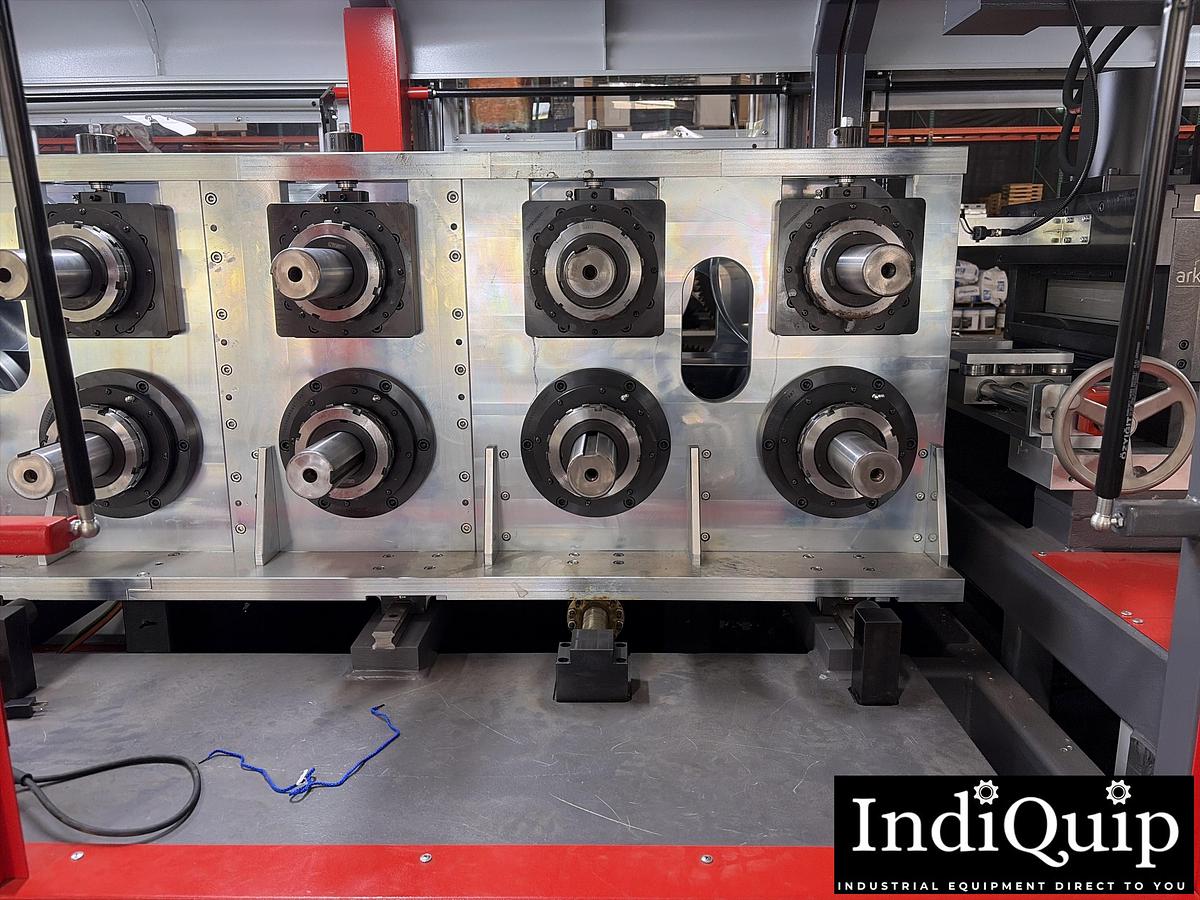

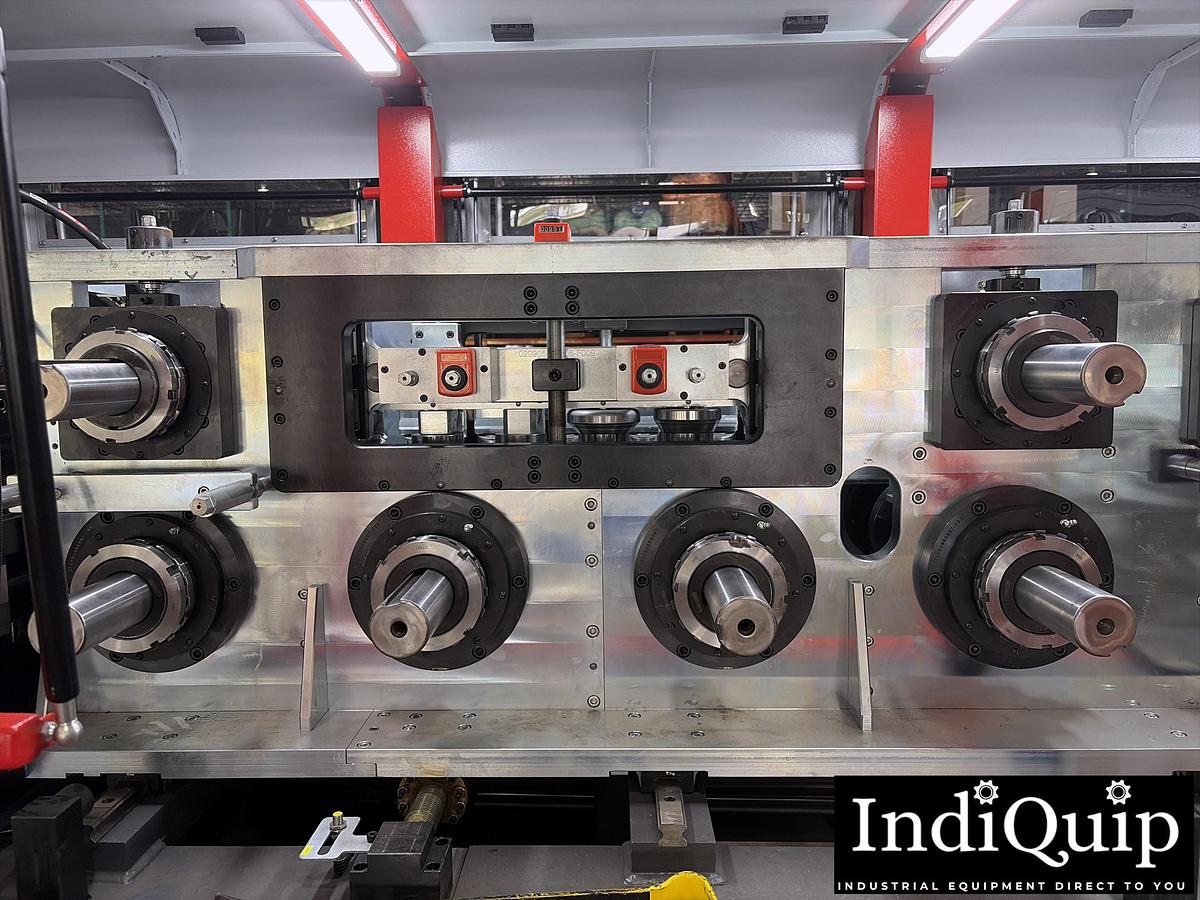

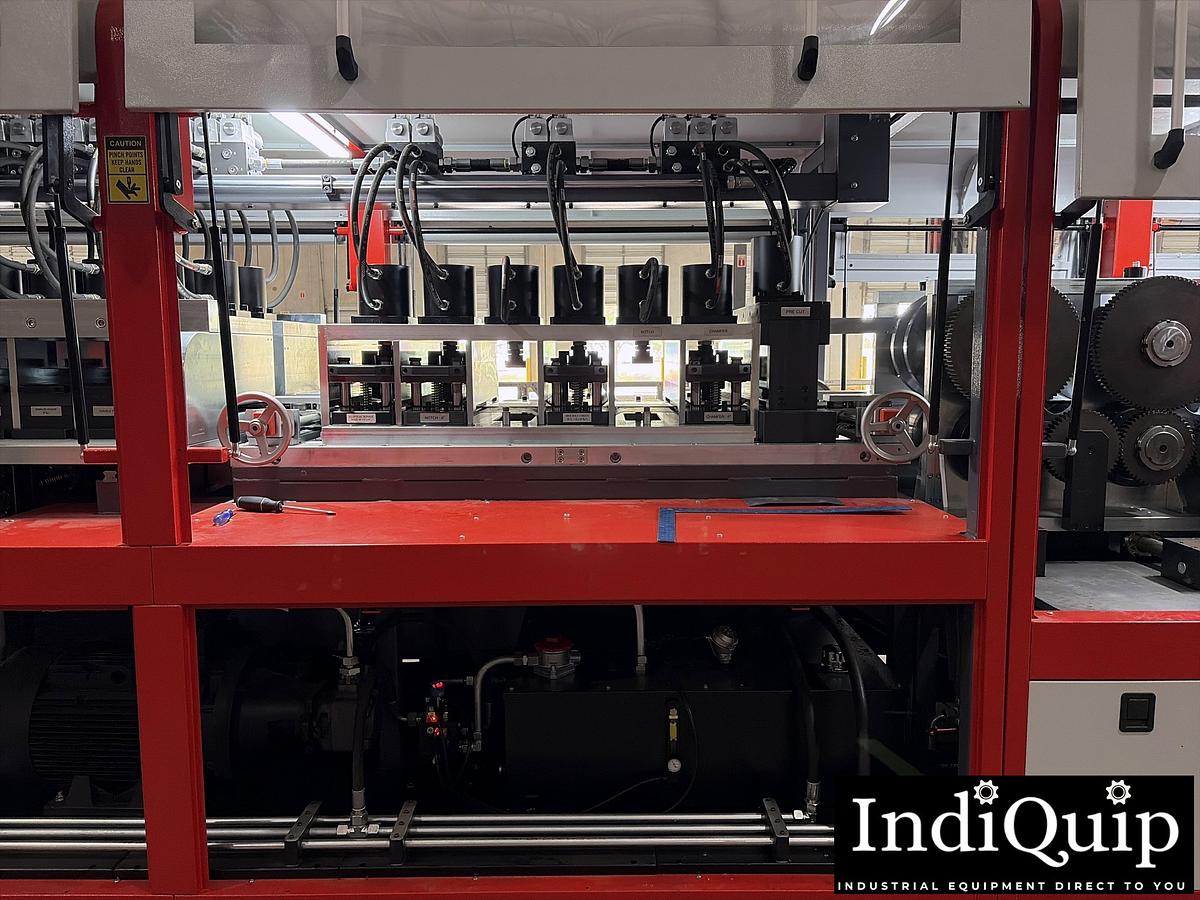

The Arkitech MF2500P is a high-capacity cold-formed steel (CFS) / light gauge steel (LGS) framing system built for producers who need to run a wide range of profile widths without manual retooling. Its 8-station cassette system covers a 2½"–12" web size range (63mm–300mm) across ten standard sizes, making it suited to residential, multi-storey, commercial, industrial, and modular construction work, as well as solar panel racking and bathroom pod production.

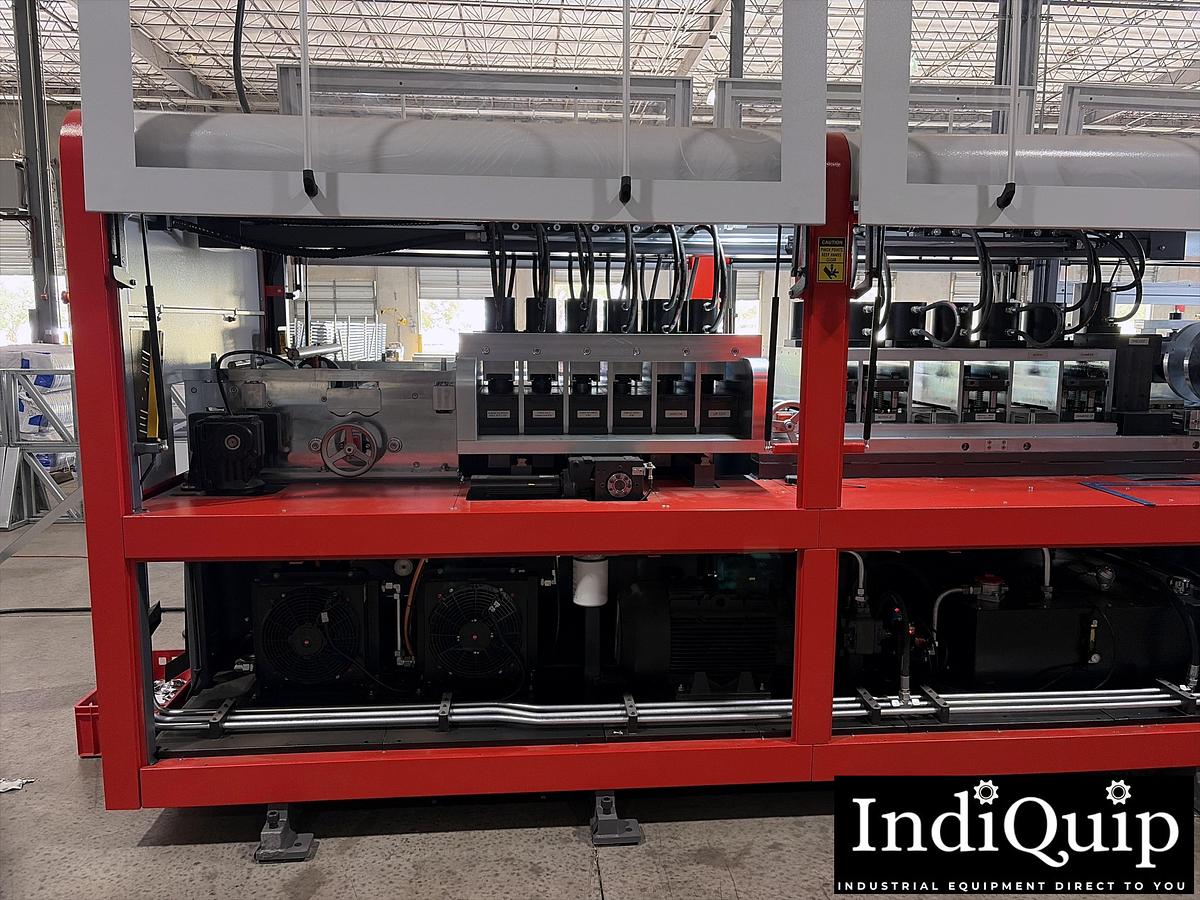

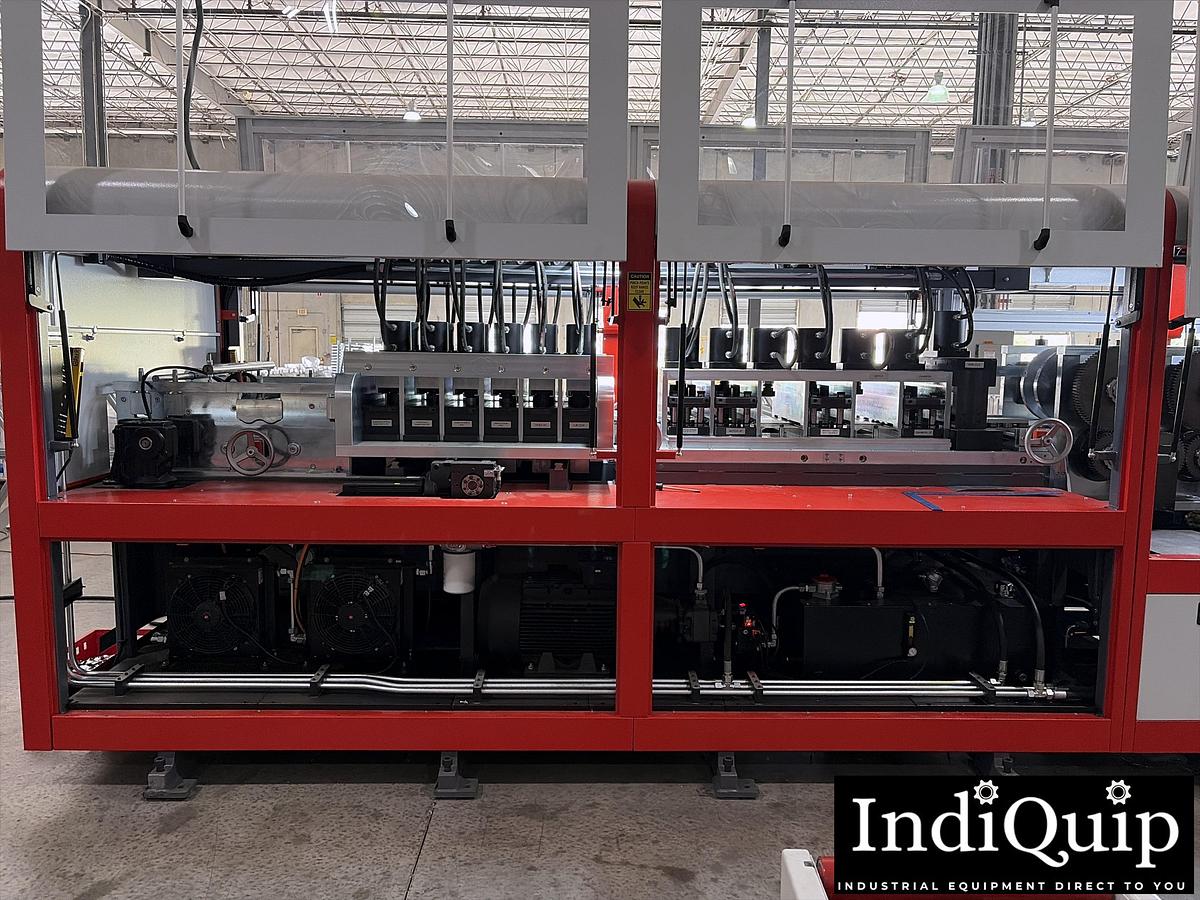

With 14 profile operations (2 free bays available for additional cassette stations), a 22kW servo drive, and a 22kW hydraulic system feeding a 200-liter tank, the MF2500P is built for continuous, high-throughput framing runs. Line speed ranges from 11 ft/min up to a maximum of 164 ft/min depending on operation count. The included Arkitech Design and Detailing Software and Arkitech Framer Software support full LGS building design, DXF import, IFC/BIM export, and direct production file generation.
Note: All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
Specifications
| Manufacturer | Arkitech |
| Model | MF2500P |
| Year | 2025 |
| Condition | Used |
| Stock Number | Q-1792963 |
| Line Speed | 11 ft/min – 38 ft/min (max 164 ft/min) |
| Printer | Double Head Printer |
| Servo Drive Power | 22 kW |
| Hydraulic Power | 22 kW |
| Hydraulic Tank | 200 L (52.8 gal) |
| Ambient Temperature Range | 41°F – 95°F (5°C – 35°C) |

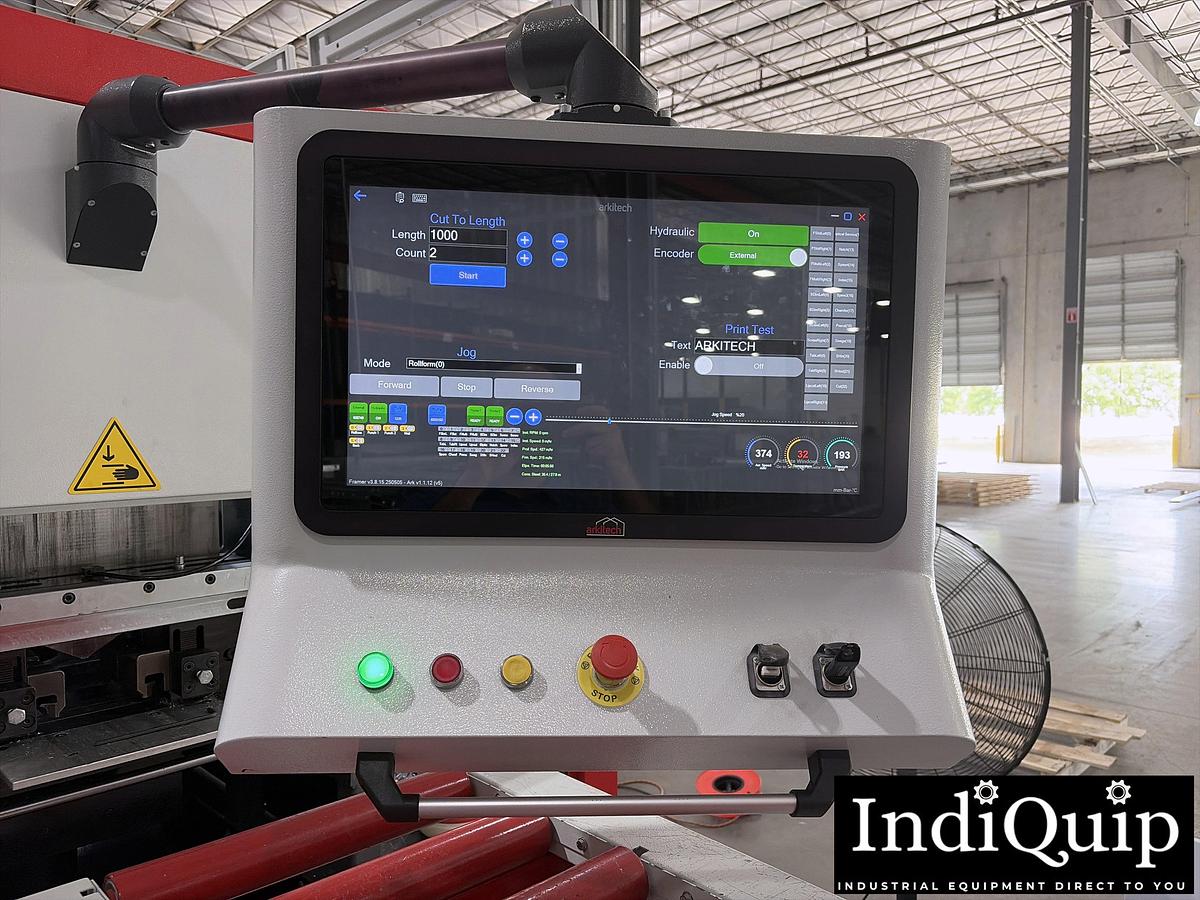

| Control Monitor | 19" |
| Dimensions (L x W x H) | 33'10" x 6'6" x 7'3" (10,300 x 1,968 x 2,190 mm) |
| Weight Approx. | 48,500 lb (22,000 kg) |
| Power Supply | 3 x 400V, 50Hz, max 65kW |
| Connectivity | WiFi, WLAN |
| Number of Web Sizes | 8 (expandable on request) |
| Profile Sections | U, C |
| Web Size Range | 2½" – 12.0" (63mm – 300mm) |
| Standard Web Sizes | 2½", 3", 3½", 3⅝", 4", 5½", 6", 8", 10", 12" |
| Profile Thickness Range | 22ga – 12ga (0.75mm – 2.5mm) |
| Flange Heights | 1⅝" – 3.0" (41mm – 75mm) |
| Profile Lip | Up to ¾" (20mm) |
| Steel Grade | S220 – S550 MPa (32 ksi – 80 ksi) |
| Galvanization | Z180 – Z450 |

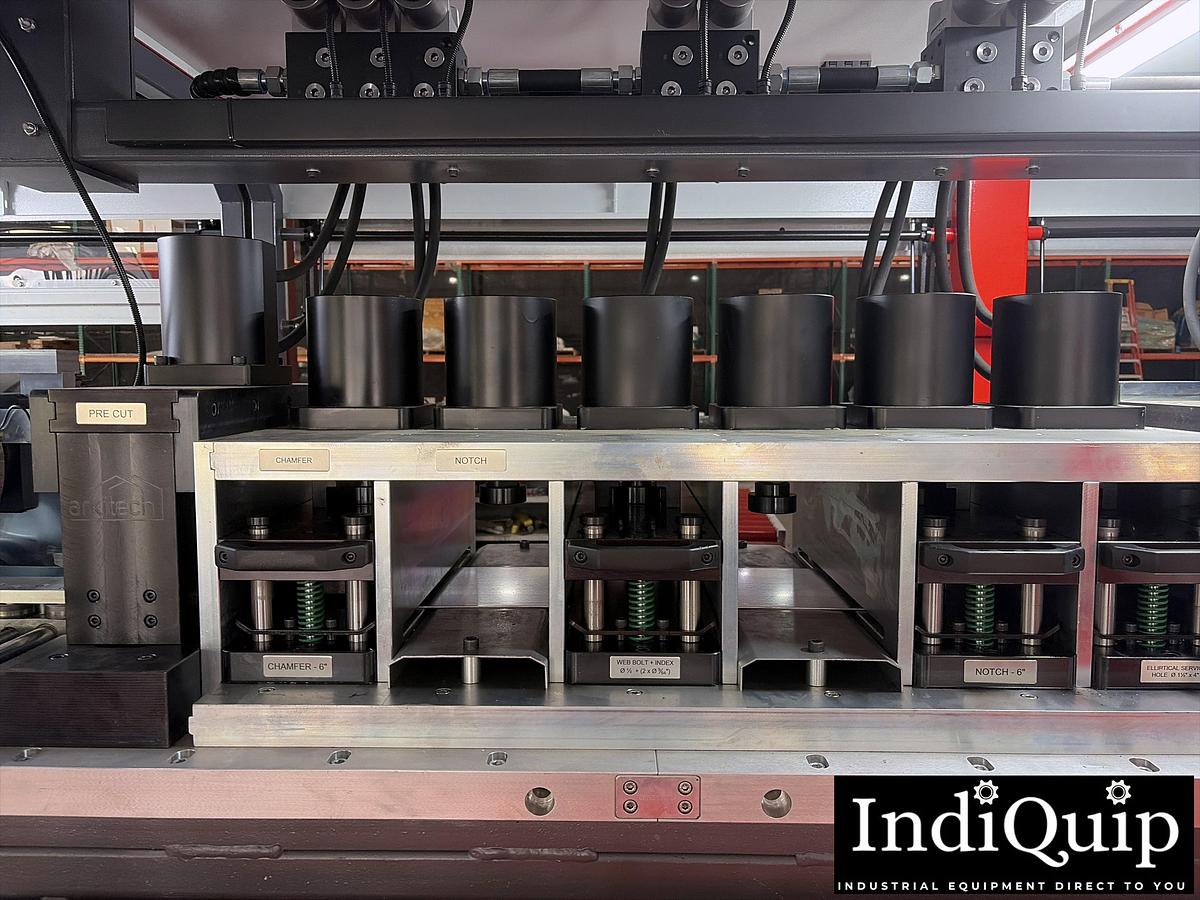

| Profile Operations | 14 (2 free bays for additional cassette stations) |

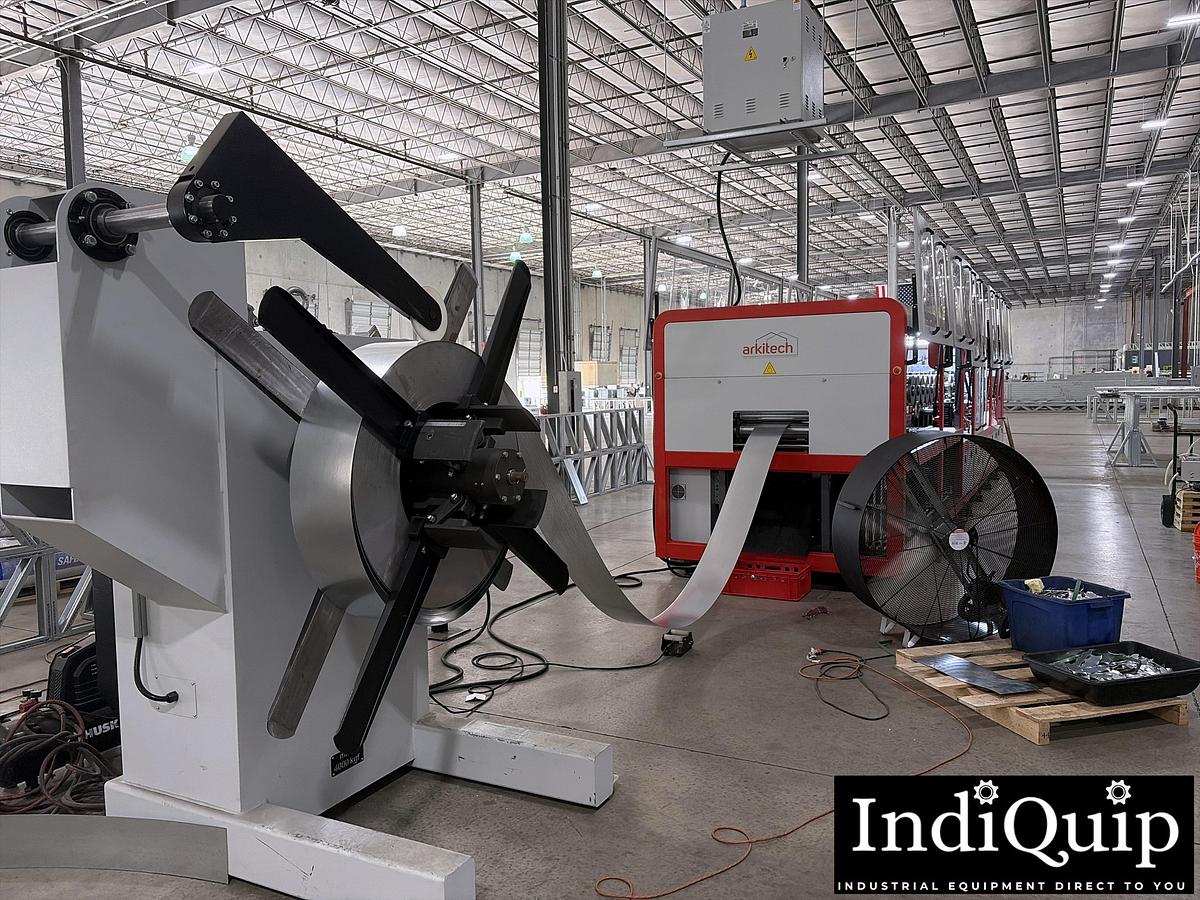

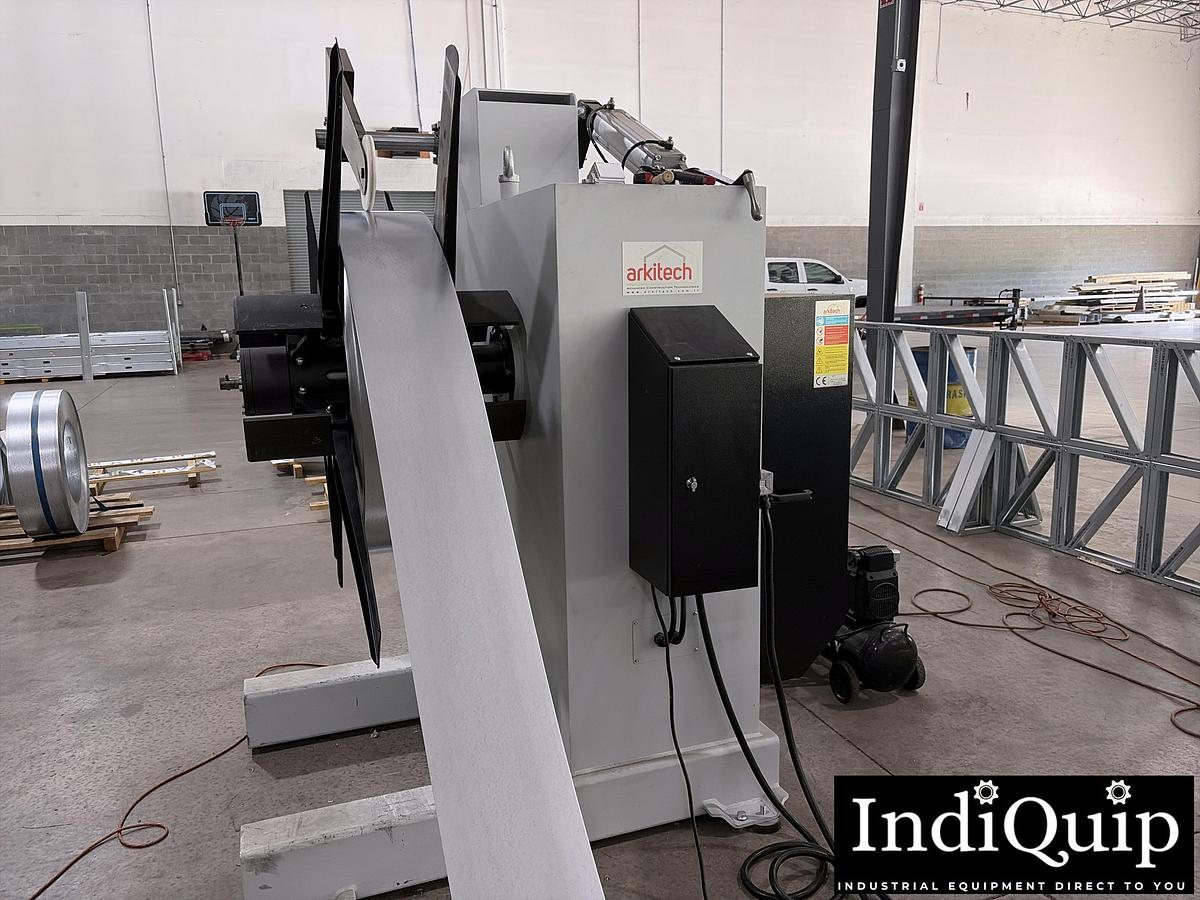

| De-coiler Capacity | 4.0 t (8,800 lb) |
| De-coiler Max Coil Diameter | 1,800mm (5'11") |
| De-coiler Max Coil Width | 600mm (1'8") |
