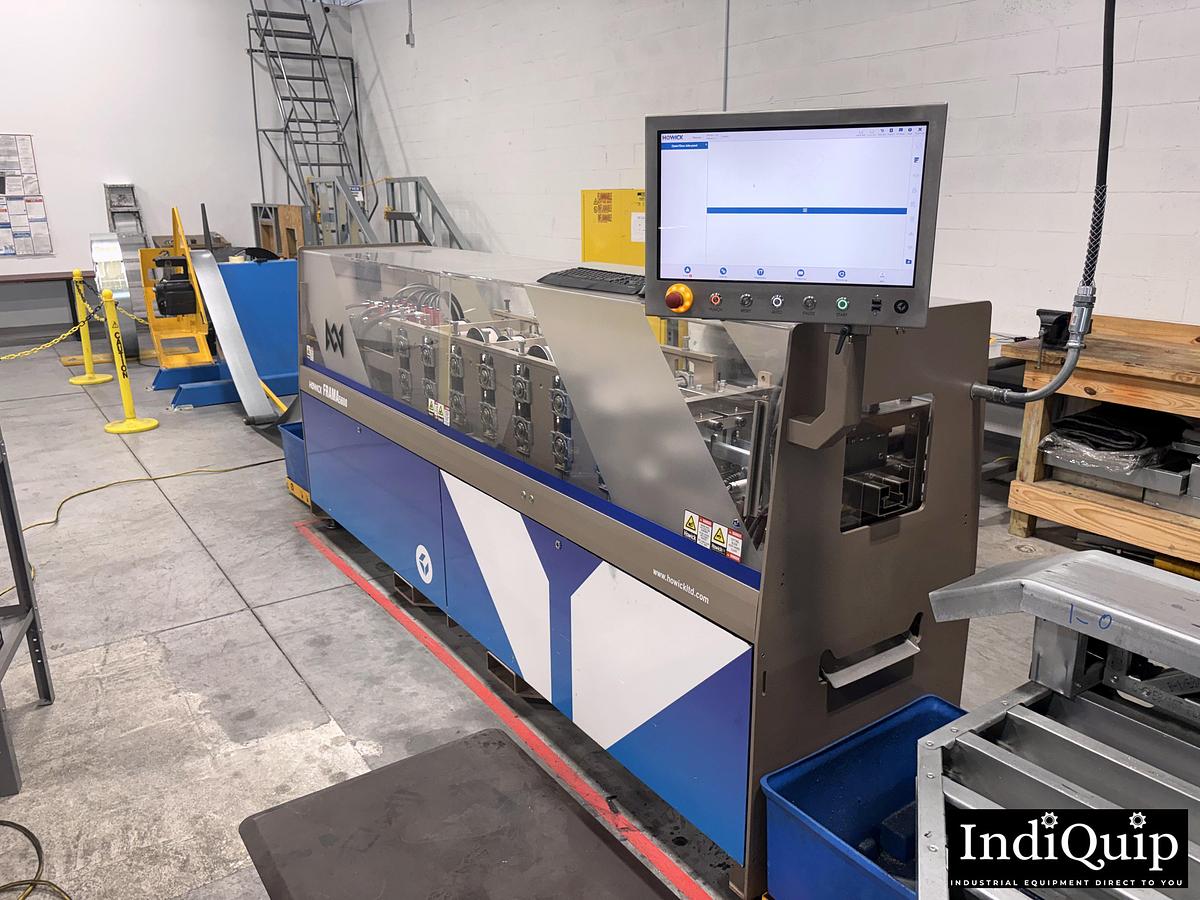

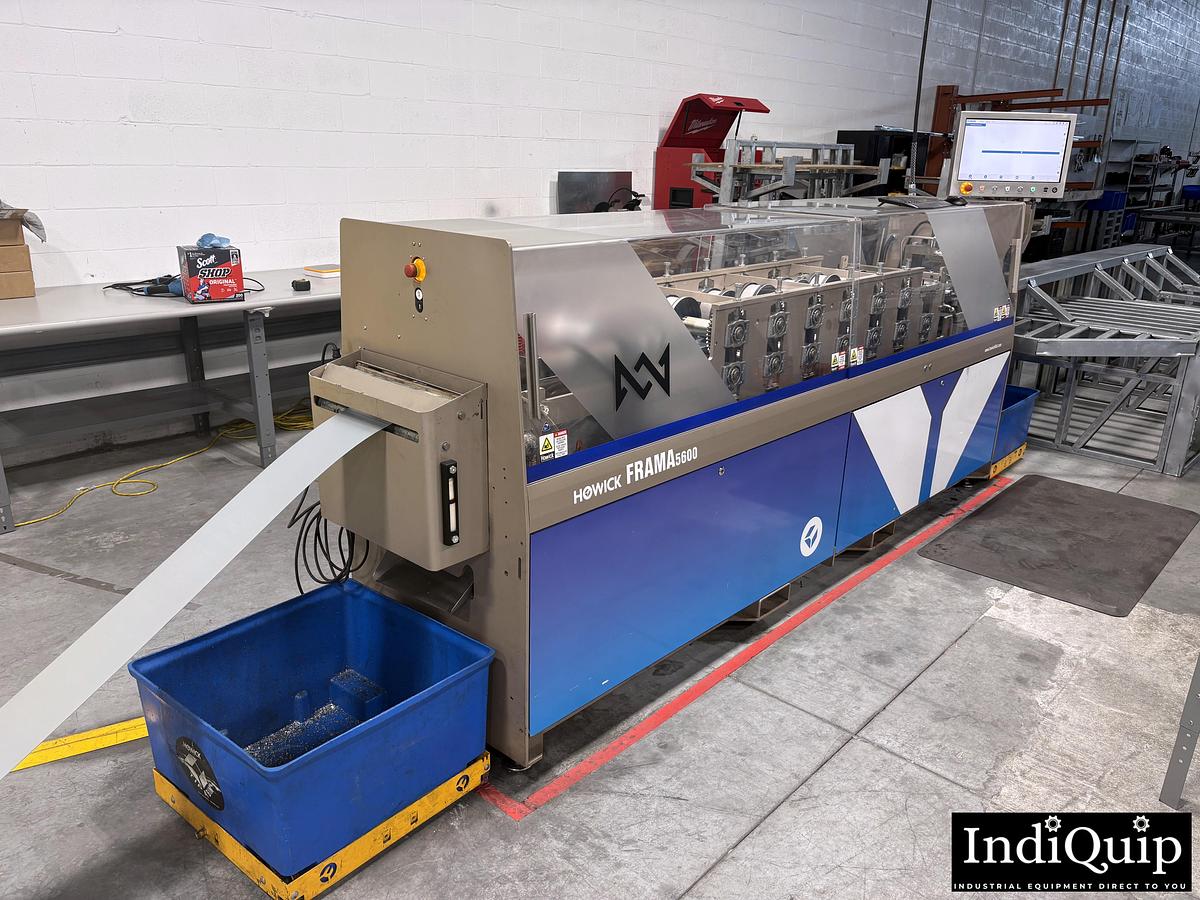

2021 Howick FRAMA 5600 3.5'' Profile Steel Framing Machine

The Howick FRAMA 5600 is a dedicated frame and truss production machine built around Howick's proven end-bearing stud detail, purpose-designed for load-bearing frame manufacturing. This 2021 unit is configured specifically for 3.5" profile production, making it a strong fit for shops standardizing on a single stud width for high-volume residential and light commercial framing.

The FRAMA 5600 handles material from 20 to 16 gauge (0.95mm to 1.55mm), giving it real capacity for heavier, load-bearing sections beyond typical light-gauge partition work. With 9 forming stages and a full standard tooling package — including truss end tool, service hole, web hole, bolt hole, lip notch, web notch, lip roller, dimple, swage, and end-bearing cut-off — the machine produces fully processed, ready-to-assemble components. Parts are dimpled and notched so frames self-clip together, eliminating the need for clamping, drilling, or a jig.

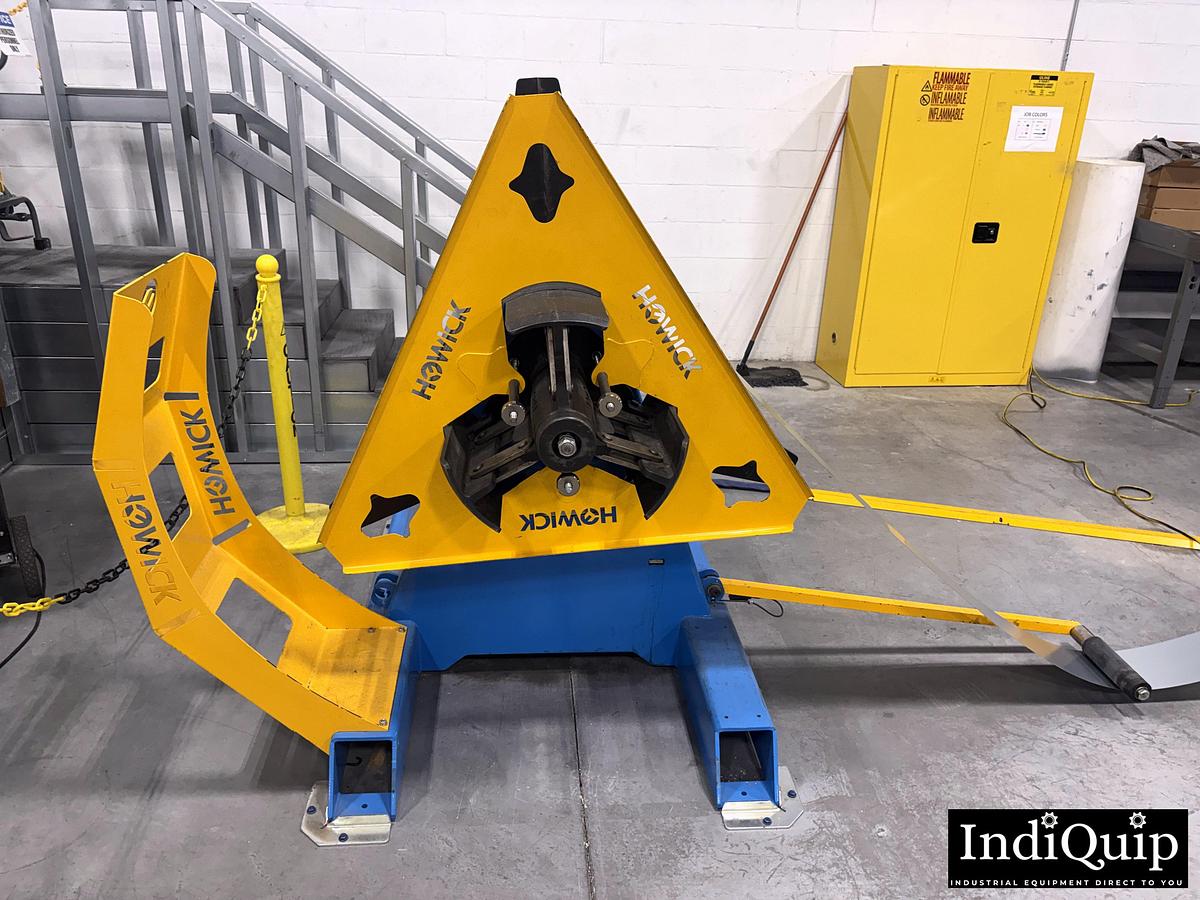

Production speeds run 1,312–2,620 ft/hr depending on component complexity, with a line speed of 98 ft/min. The machine is computer-controlled via a Windows 10 touchscreen panel PC running FRAMA Machine Control software, with CSV file input. A 3.0-ton decoiler (6,600 lb capacity) is included, with hydraulic 3-jaw self-centering expansion and auto-pause at coil end.

With a compact footprint of 11.2' x 2.5' x 4.6' and a weight of 5,300 lb, the FRAMA 5600 is built to maximize production efficiency without demanding excessive floor space.

Note: All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer's responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase. IndiQuip assumes no liability for discrepancies or omissions.
